Product Overview

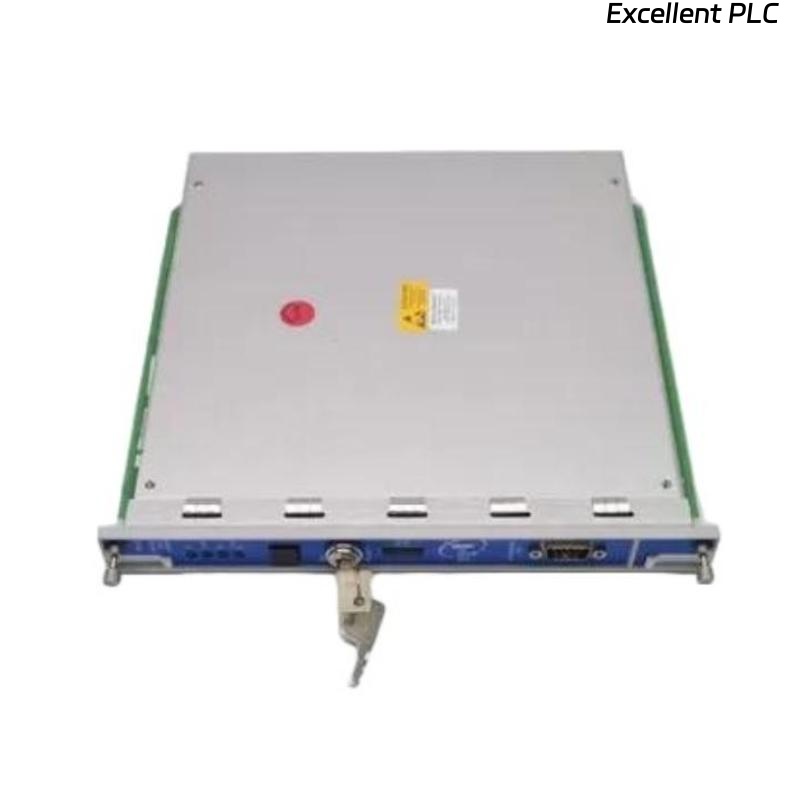

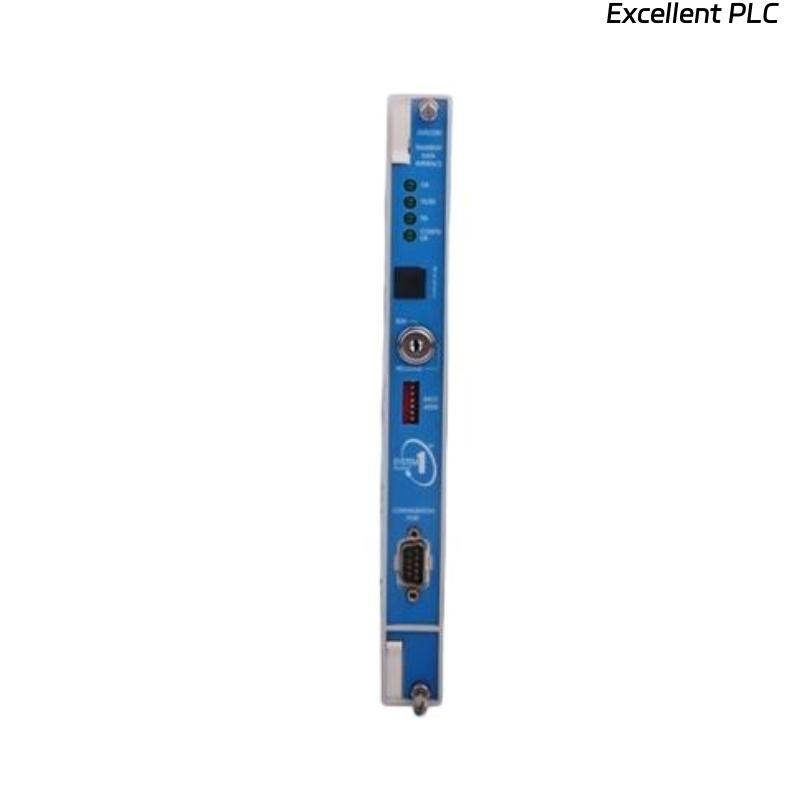

The Bently Nevada 3500/22-01-00 Transient Data Interface (TDI) Module is the central communication processor for the 3500 Machinery Protection System. It combines the functionality of a rack interface and system communication processor, managing data collection, system configuration, and transient data capture for detailed machinery diagnostics. The TDI provides both static and dynamic data to external systems, ensuring fast, reliable monitoring of critical rotating machinery.
Key Features
-
Combines Rack Interface and Communication Processor functionality
-
Supports transient data capture for advanced diagnostics
-
Provides Modbus, Ethernet, and other industrial communication options
-
Integrates with System 1® machinery management software
-
Hot-swappable design for minimal system downtime
-
Compatible with redundant configurations for high availability
-
Robust construction for industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/22-01-00 |
| Module Type | Transient Data Interface Module |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Compatible Systems | Bently Nevada 3500 Machinery Protection System |
| Communication Protocols | Modbus (Serial/TCP), Ethernet |
| Data Capture | Static, dynamic, and transient data |
| Software Integration | System 1® machinery management software |
| Redundancy Support | Yes, with paired TDI modules |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | Provided by 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Rotating machinery condition monitoring
-
Oil and gas processing facilities
-
Power generation and utilities
-
Chemical and petrochemical industries
-
Industrial manufacturing plants
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 3500/22-01-00 module?
It manages rack communications, collects machine condition data, and captures transient events.
Q2: Can this module replace a Rack Interface Module?
Yes, it integrates the functionality of the Rack Interface Module with additional transient data capture.
Q3: Is it compatible with System 1® software?
Yes, it fully integrates with Bently Nevada System 1® for advanced analysis.
Q4: What type of data does it capture?
It captures static, dynamic, and transient vibration and process data.
Q5: Can it operate in redundant mode?
Yes, it can be paired with another TDI for redundancy.
Q6: Is it hot-swappable?
Yes, it can be replaced without shutting down the rack under supported conditions.
Q7: What communication protocols are supported?
It supports Modbus (Serial/TCP), Ethernet, and other industrial protocols.
Q8: Does it require external power?
No, it is powered directly from the 3500 rack backplane.
Q9: Is it certified for hazardous locations?
Yes, it has ATEX and IECEx certifications.
Q10: What are its physical dimensions?
It measures 241.3mm x 24.4mm x 241.8 mm and weighs approximately 0.91 kg.
