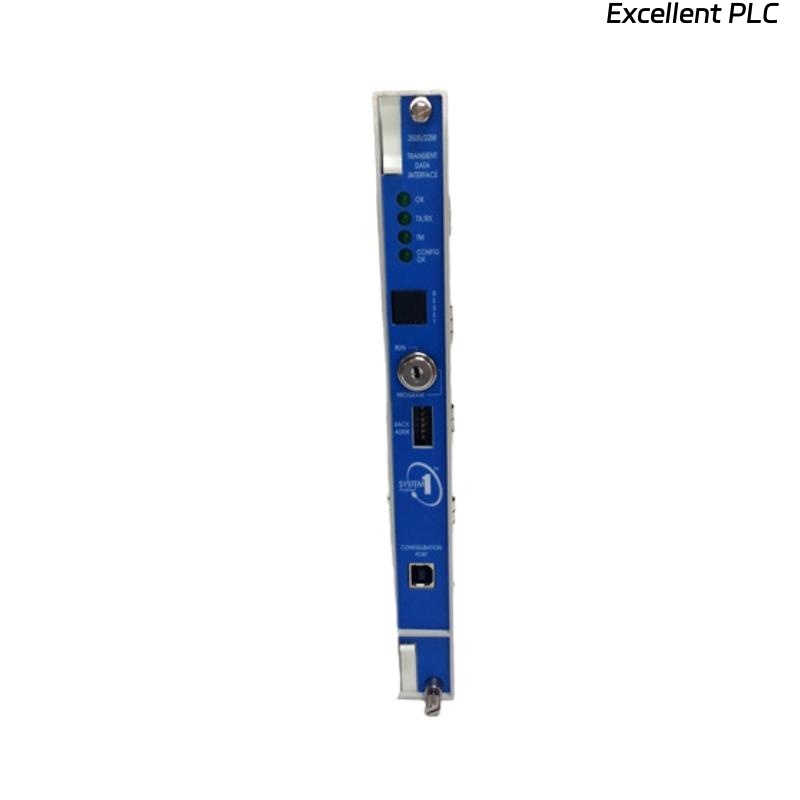

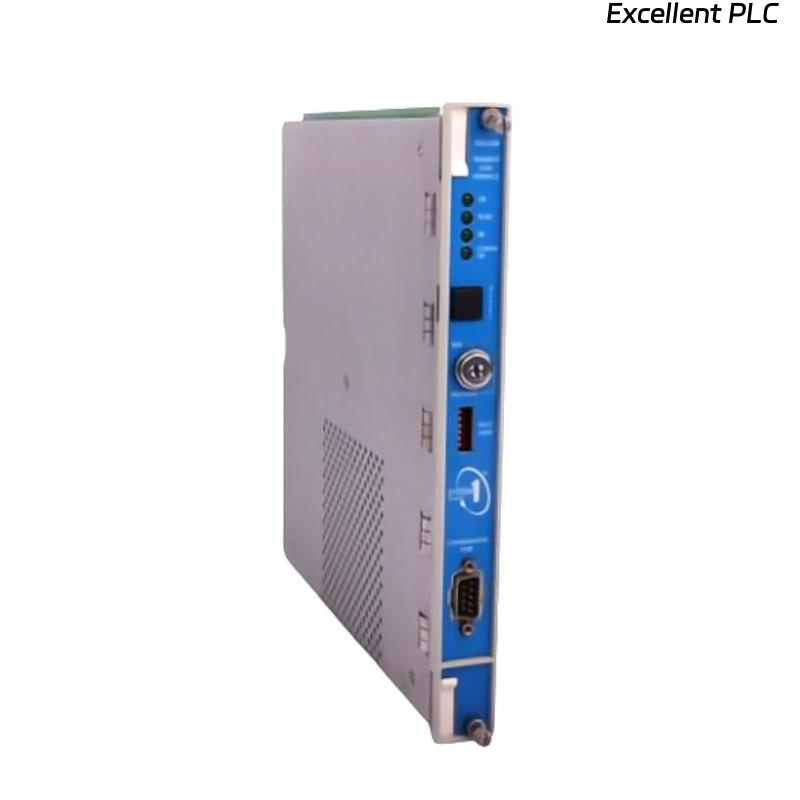

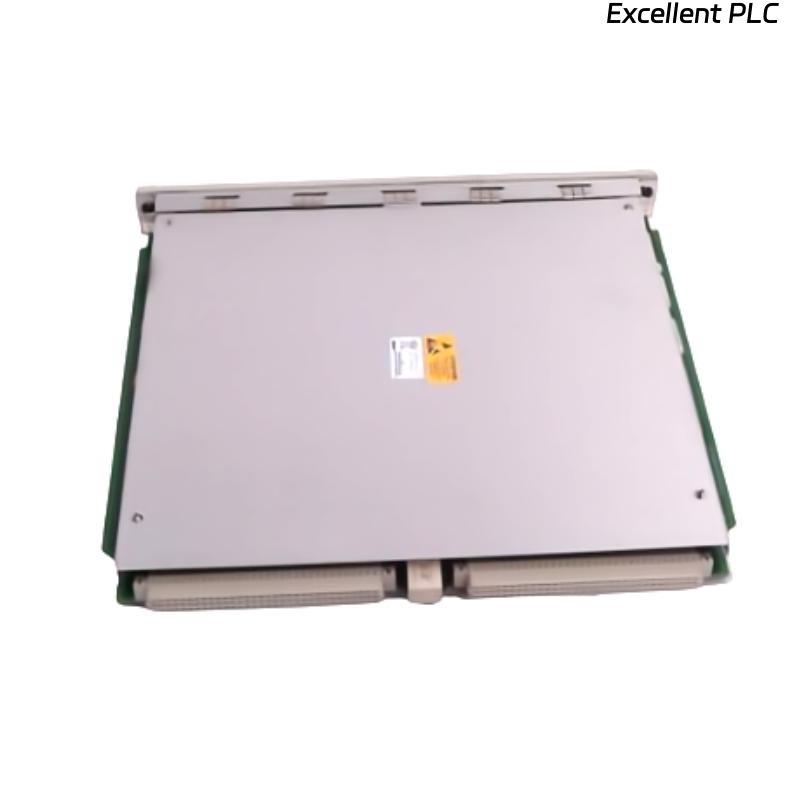

Bently Nevada 3500/22 288055-01 Transient Data Interface Module

Product Introduction

The Bently Nevada 3500/22 288055-01 Transient Data Interface Module (TDI) is a core communication and data acquisition module used in the Bently Nevada 3500 Machinery Protection System.
It combines the functionality of the 3500/20 Rack Interface Module (RIM) with advanced communication processing, providing a streamlined solution for transmitting static and transient machinery data to external software platforms such as System 1 Condition Monitoring.

Installed exclusively in Slot 1 of the rack, adjacent to the power supply module, the 288055-01 TDI collects input from all rack monitoring modules, consolidates this data, and transmits it over Ethernet or fiber-optic connections.
When used with an optional Channel Enabling Disk, it enables high-resolution transient waveform capture for in-depth diagnostic evaluation of machinery events such as startups, shutdowns, and trip conditions.

The 3500/22 288055-01 is widely recognized for its robust design, ease of integration, and ability to handle high-speed data communication without impacting the protection functions of the system.


Product Parameters

Parameter Specification
Part Number 288055-01
Series Bently Nevada 3500
Module Type Transient Data Interface Module
Slot Position Slot 1 (next to rack power supply)
Power Consumption Approx. 10.5 W
Input Signal Range –10 V DC to +10 V DC
Ethernet Interface 10Base-T / 100Base-TX (copper) or 100Base-FX (fiber)
Operating Temperature –30 °C to +65 °C
Storage Temperature –40 °C to +85 °C
Relative Humidity 0% to 95% non-condensing
Front Panel Interface USB-B port
Indicators OK, TX/RX, TM, CONFIG OK LEDs
Dimensions (W × H × D) 241.3 x 24.4 x 241.8 mm
Weight 0.91 kg
Mounting 3500 rack slot

Product Applications

The 288055-01 TDI is deployed in industrial environments where machinery protection and advanced condition monitoring are critical.
Its applications include:

  • Real-time machine condition monitoring: Gathering both steady-state values and transient waveform data for analysis.

  • Predictive maintenance integration: Seamless data transfer to System 1 for continuous health monitoring.

  • Transient event capture: Detecting and recording startup, coast-down, trip, and load-change events.

  • TMR (Triple Modular Redundancy) support: Comparing outputs from three redundant monitors for fault voting and isolation.

  • Secure remote configuration: Allowing remote setup while ensuring protection through hardware keylock security.

  • Alarm and event correlation: Linking transient waveforms to alarm timestamps for accurate diagnostics.


Product Advantages

  • Integrated functionality – Combines RIM and communication processor roles, reducing hardware count.

  • Non-intrusive to protection path – Data communication failures do not compromise the protective trip logic.

  • Versatile communication – Supports both copper Ethernet and fiber-optic links for flexible deployment.

  • High-resolution event recording – Captures pre- and post-event transient data with optional enabling disk.

  • Rugged industrial design – Operates reliably in extended temperature and humidity ranges.

  • Instant status visibility – LED indicators and OK relay for fast health diagnostics.

  • Seamless integration – Designed for compatibility with M-series monitors and 3500 rack systems.


FAQ

  1. What functions does the TDI provide compared to a standard RIM?
    It adds communication processing and transient data capture capabilities to the RIM’s basic rack interface role.

  2. Can the 288055-01 TDI be used without an enabling disk?
    Yes, but only static data will be transmitted—transient waveform capture requires the disk.

  3. How does the module handle redundant system configurations?
    In TMR systems, it compares readings from three redundant monitors and flags inconsistencies for voting logic.

  4. What networking standards does it support?
    It supports 10Base-T / 100Base-TX copper Ethernet and 100Base-FX fiber-optic connections.

  5. Does it process all rack data channels?
    Yes, it aggregates inputs from all installed monitor and I/O modules in the rack.

  6. How are transient events triggered?
    Through alarms, speed windows, or operator-initiated capture via System 1 or configuration software.

  7. What happens if the TDI fails?
    Data transmission may stop, but protective functions remain intact as it is not part of the trip chain.

  8. Can it be configured remotely?
    Yes, provided the rack is in PROGRAM mode; RUN mode locks configuration changes.

  9. Is the front USB port required for normal operation?
    No, it is used mainly for direct configuration and diagnostics, not routine communication.

  10. What LED indicators are provided?
    OK (module health), TX/RX (network traffic), TM (trip multiply), CONFIG OK (valid configuration).


Recommended Same Series / Related Models

Model / Part Number Description
3500/22M TDI for M-series monitor compatibility
3500/20 Rack Interface Module (legacy predecessor to TDI)
3500/22-01 TDI variant with copper Ethernet interface
3500/15 Power Supply Module for 3500 rack
3500/40M Proximitor® Monitor Module
3500/42M Velocity & Acceleration Monitor Module
