Product Introduction

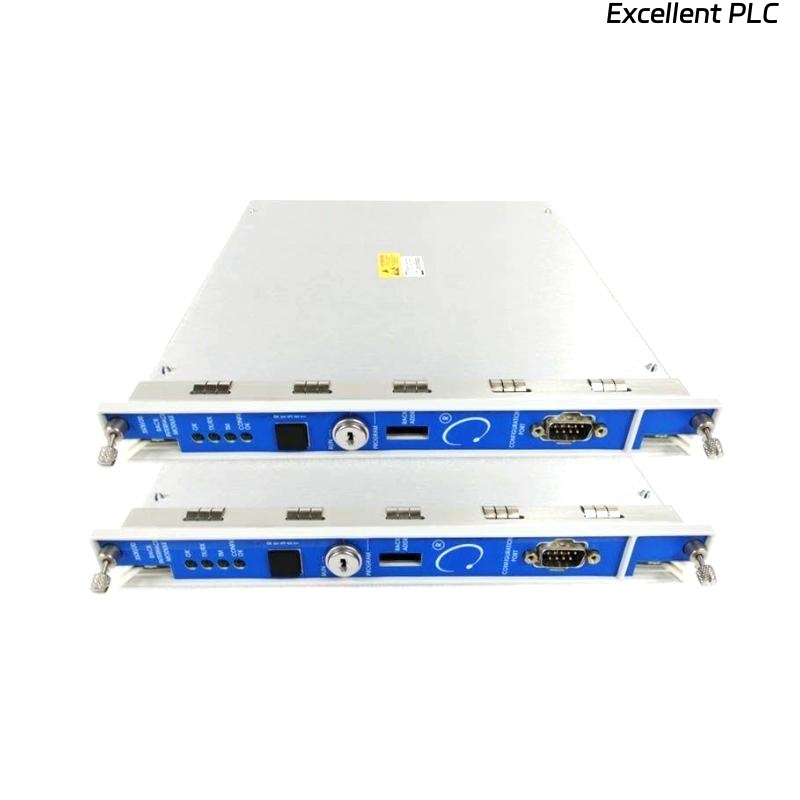

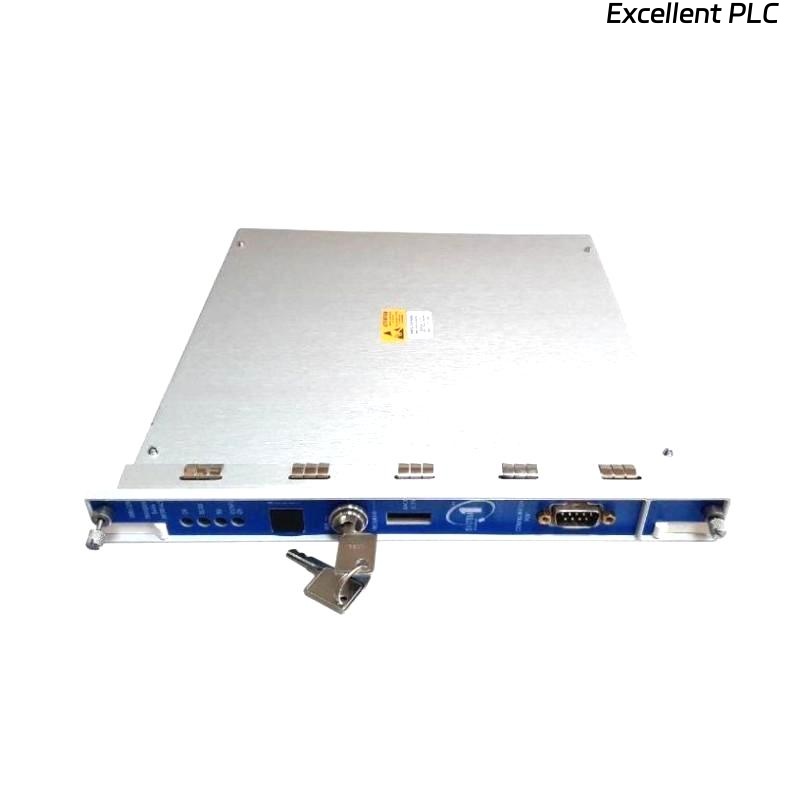

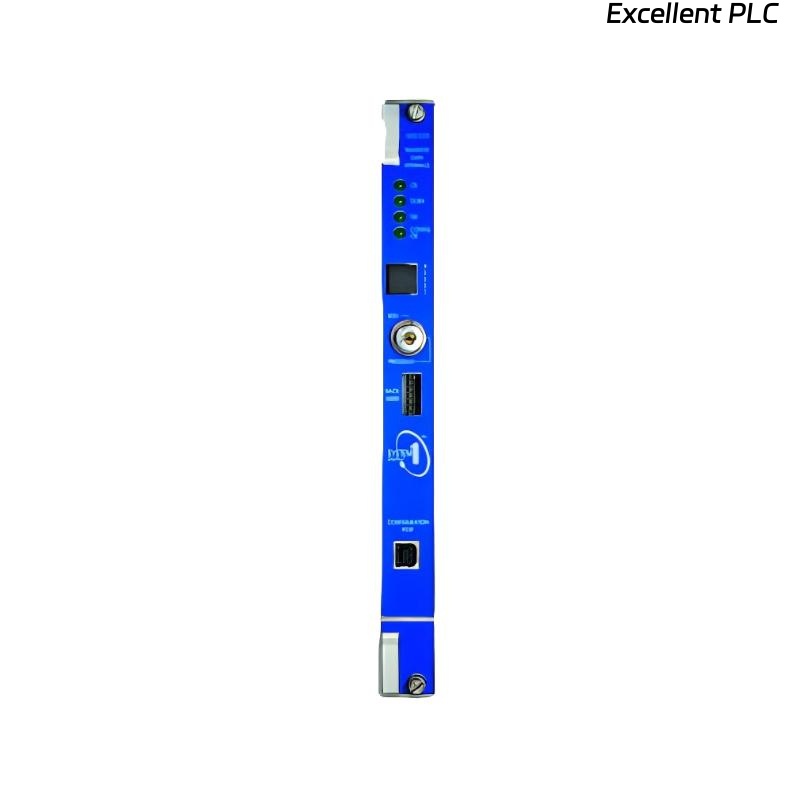

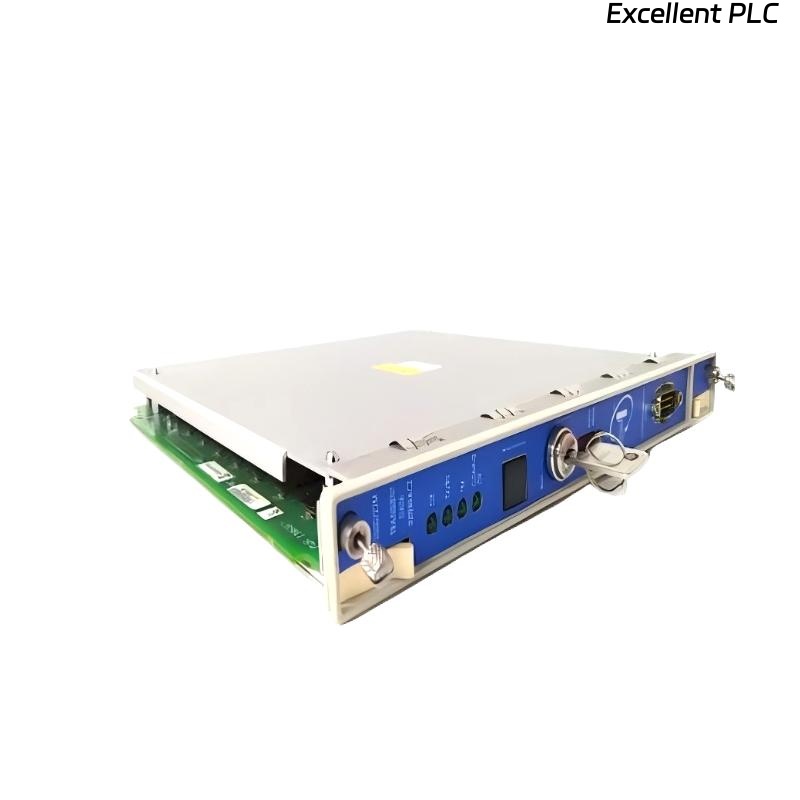

The Bently Nevada 3500/22M-01-02-00 Transient Data Interface (TDI) Module is a high-performance industrial monitoring device designed to capture transient data from rotating machinery and critical systems. This module is a key component of the Bently Nevada 3500 Series, offering real-time data acquisition and processing capabilities for detecting early signs of mechanical failure or performance degradation.
With advanced signal-processing capabilities, the 3500/22M-01-02-00 module is engineered to accurately capture transient signals, such as vibrations, temperature variations, and pressure changes, that are essential for predictive maintenance and operational monitoring. This helps minimize unplanned downtime and ensures that equipment is running at optimal levels.
The module’s design is built for reliability and flexibility, integrating seamlessly with other Bently Nevada monitoring systems. It is widely used across industries like power generation, oil and gas, automotive, and manufacturing, where high-precision machinery monitoring is crucial.
The 3500/22M-01-02-00 module is compact, lightweight, and highly efficient, making it ideal for both new installations and retrofitting existing systems. Its ability to operate in extreme conditions and handle large amounts of data makes it a trusted solution for demanding industrial applications.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Input Voltage | 24V DC ± 10% |
| Operating Temperature Range | -40°C to +85°C |
| Input Channels | 8 differential or 16 single-ended |
| Communication Protocols | Modbus, Ethernet, RS-485 |
| Data Sampling Rate | 100 kHz |
| Accuracy | ±0.1% |
| Protection | IP20 rated |
| Mounting | DIN rail mounting |
Product Applications
The 3500/22M-01-02-00 Transient Data Interface Module is designed for a variety of industrial applications where precise data acquisition and monitoring of critical machinery are required. Some key applications include:
-
Power Generation
The 3500/22M-01-02-00 module is widely used in power plants for monitoring turbines, generators, and other critical equipment. By capturing transient data, the module helps identify issues early, preventing unexpected downtime and reducing maintenance costs. -
Oil and Gas
In the oil and gas industry, the module monitors pumps, compressors, and drilling equipment, helping operators detect potential failures and avoid costly repairs. The module’s rugged design ensures it operates reliably in harsh and hazardous environments. -
Mining and Heavy Industry
The 3500/22M-01-02-00 module plays a crucial role in mining operations, where large machines like crushers and mills are monitored for early signs of wear and tear. This reduces the risk of unplanned outages and enhances overall efficiency in mining processes. -
Automotive Manufacturing
The automotive industry relies on the 3500/22M-01-02-00 module for monitoring high-precision equipment in production lines. By capturing transient data, the module helps maintain the reliability and efficiency of manufacturing processes. -
Aerospace
Aerospace manufacturers use the 3500/22M-01-02-00 module to monitor vital systems like turbines and engines, ensuring optimal performance and safety. The module detects potential failures early, which is critical in this high-risk sector.
Product Advantages
-
High-Speed Data Acquisition
The 3500/22M-01-02-00 module boasts a high-speed data sampling rate of 100 kHz, ensuring that even the smallest transient events are captured accurately in real time. This capability allows operators to detect and respond to potential issues before they lead to costly downtime. -
Wide Temperature Range
With an operating temperature range from -40°C to +85°C, this module is designed to function in a wide variety of industrial environments, from extremely cold conditions to high-temperature settings. -
Compact and Lightweight Design
Measuring 241.3 x 24.4 x 241.8 mm and weighing only 0.91 kg, the 3500/22M-01-02-00 module is compact and lightweight, making it easy to integrate into existing control systems, even in space-limited environments. -
Flexible Input Channels
The module supports up to 8 differential or 16 single-ended input channels, offering flexibility for monitoring multiple pieces of machinery simultaneously. -
Robust Protection
With an IP20 rating, the module is protected against dust and other environmental contaminants, ensuring reliable performance even in challenging conditions. -
Seamless Integration
The module supports multiple communication protocols, including Modbus, Ethernet, and RS-485, making it compatible with a wide range of industrial control systems for seamless integration. -
Predictive Maintenance
By capturing transient data, the module enables predictive maintenance, allowing operators to anticipate and address potential issues before they result in equipment failure. This reduces maintenance costs and unplanned downtime. -
Reliable and Durable
The module is designed for reliability, even in harsh operating conditions, ensuring that it provides continuous monitoring of critical equipment without interruption.
FAQ
Q1: What is the Bently Nevada 3500/22M-01-02-00 module used for?
A1: The 3500/22M-01-02-00 module is used to capture and monitor transient signals, such as vibrations, temperature changes, and pressure fluctuations, from industrial machinery to detect early signs of failure and optimize performance.
Q2: What types of data can the module capture?
A2: The module captures transient data such as vibrations, temperature fluctuations, and pressure changes, which are vital for monitoring machinery health.
Q3: How many input channels are supported by the module?
A3: The 3500/22M-01-02-00 module supports up to 8 differential or 16 single-ended input channels, providing flexibility in monitoring different machines or sensors.
Q4: What is the temperature range in which the module operates?
A4: The module operates in a temperature range from -40°C to +85°C, making it suitable for use in both hot and cold industrial environments.
Q5: What communication protocols are supported by the module?
A5: The 3500/22M-01-02-00 module supports Modbus, Ethernet, and RS-485 communication protocols, ensuring compatibility with a wide range of industrial control systems.
Q6: Can the module be used in harsh environments?
A6: Yes, the module is designed to function in harsh industrial environments, with an IP20 rating to protect it from dust and other contaminants.
Q7: How is the module mounted?
A7: The module is designed for DIN rail mounting, making installation easy and efficient in industrial control panels.
Q8: What is the data sampling rate of the module?
A8: The 3500/22M-01-02-00 module has a high-speed data sampling rate of 100 kHz, ensuring accurate and real-time monitoring of transient signals.
Q9: What is the weight of the module?
A9: The module weighs 0.91 kg, making it lightweight and easy to handle during installation and maintenance.
Q10: Is this module compatible with other Bently Nevada products?
A10: Yes, the 3500/22M-01-02-00 module is compatible with other products in the Bently Nevada 3500 series, enabling a comprehensive and integrated monitoring solution.
