Product Introduction

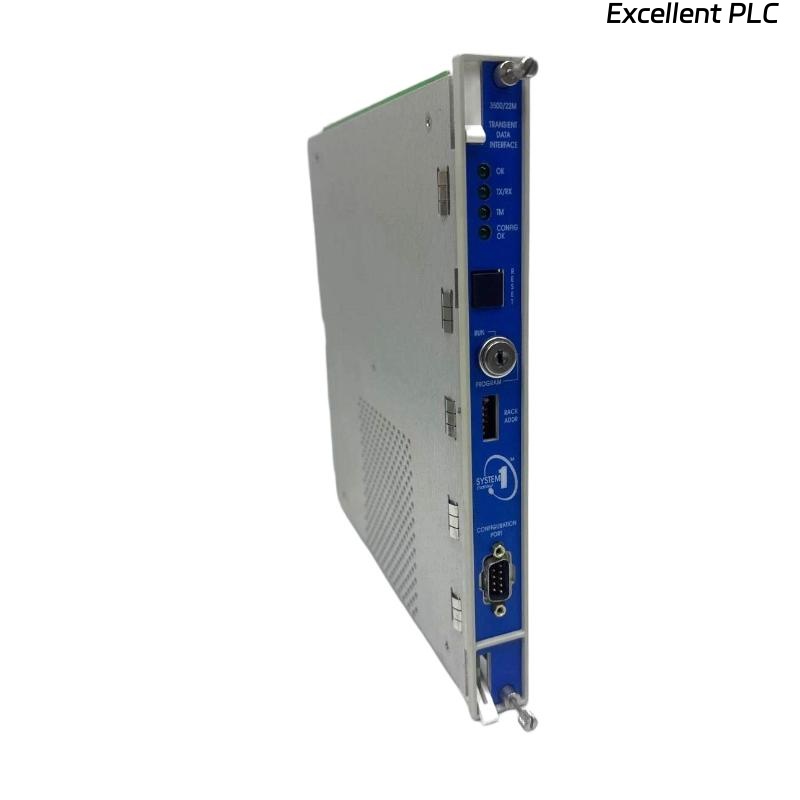

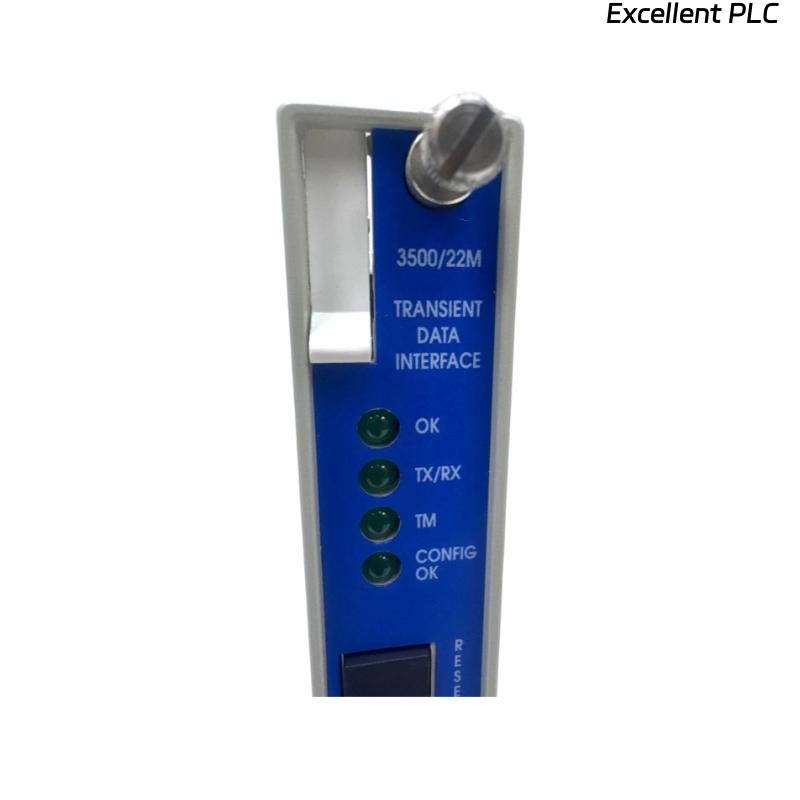

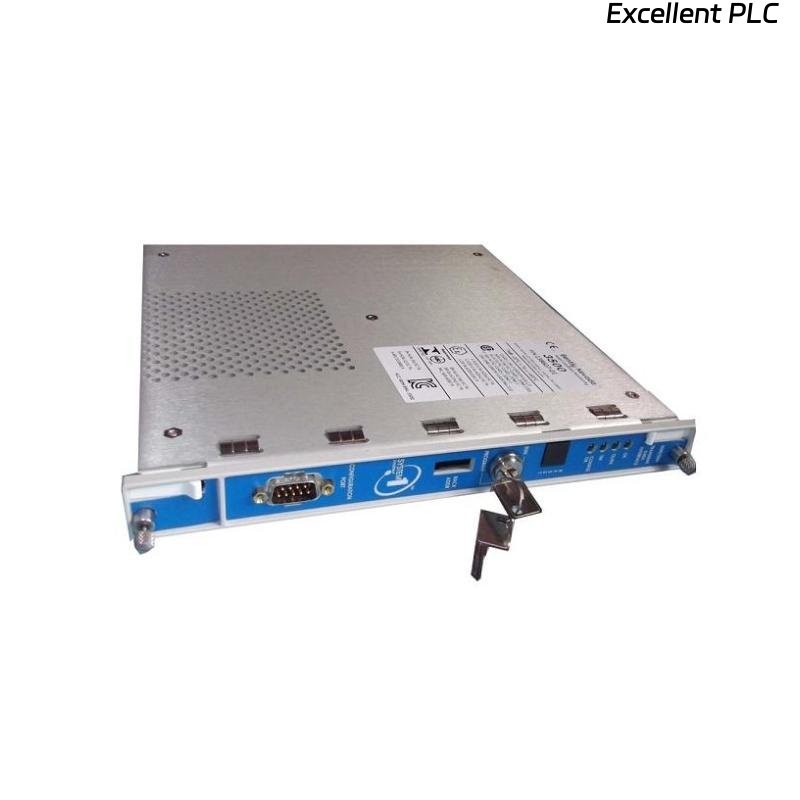

The Bently Nevada 3500/22M 138607-01 + 146031-01 Transient Data Interface (TDI) Module is a state-of-the-art device designed for high-speed data acquisition in industrial machinery monitoring. This module is part of the Bently Nevada 3500 series and is specifically engineered to capture and process transient signals such as vibrations, pressure changes, and temperature variations. These types of signals are crucial for predictive maintenance, allowing for early detection of potential failures before they escalate into costly breakdowns.
The 3500/22M TDI Module interfaces seamlessly with other components of the 3500 series, forming a comprehensive solution for continuous monitoring of equipment performance. This system enables operators to maintain optimal machinery health by identifying early signs of mechanical failure, thus reducing downtime and extending the lifespan of valuable assets. Whether in power plants, oil rigs, or manufacturing environments, this module provides essential real-time data to ensure smooth and efficient operations.
With its high-speed data acquisition capabilities, the 3500/22M is a key component for industries that require precise and reliable monitoring of rotating machinery and critical components. It is highly valued for its robust performance in demanding conditions and its ability to integrate easily into existing control systems.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Input Voltage | 24V DC ± 10% |
| Operating Temperature Range | -40°C to +85°C |
| Input Channels | 8 differential or 16 single-ended |
| Communication Protocols | Modbus, Ethernet, RS-485 |
| Data Sampling Rate | 100 kHz |
| Accuracy | ±0.1% |
| Protection | IP20 rated |
| Mounting | DIN rail mounting |
Product Applications
The 3500/22M TDI Module is designed for critical applications where high-frequency data acquisition and precise signal monitoring are essential. Some of its key applications include:
-
Power Generation
This module is used extensively in power generation plants, where turbines, generators, and other critical equipment require constant monitoring. By capturing transient signals, the module allows for early detection of potential issues, which can then be addressed before they lead to costly downtime or failures. -
Oil and Gas
In the oil and gas industry, the 3500/22M module monitors equipment such as pumps, compressors, and drilling machinery. Given the challenging and hazardous nature of these environments, the module’s ability to detect transient events helps prevent catastrophic failures and ensures the safety of operations. -
Mining and Heavy Industry
The module is also used in mining operations and heavy industries where large and complex machinery operates under harsh conditions. Its robust design ensures continuous monitoring, helping to reduce maintenance costs and improve the reliability of mining equipment. -
Automotive Manufacturing
In automotive manufacturing, high-precision equipment is critical for production efficiency. The 3500/22M module monitors vibrations and other transient signals to ensure that machinery is running optimally, thus preventing production delays and maintaining quality standards. -
Aerospace
Aerospace manufacturers use this module to monitor critical machinery such as turbines and propulsion systems. Early detection of irregularities ensures that aerospace components are functioning safely and efficiently.
Product Advantages
-
High-Speed Data Acquisition
The 3500/22M module provides a data sampling rate of 100 kHz, ensuring that transient events are captured in real-time. This allows operators to identify problems early, minimizing the risk of equipment failure. -
Wide Temperature Range
With an operating temperature range of -40°C to +85°C, the module can function reliably in both extremely cold and hot environments, making it suitable for a wide range of industrial settings. -
Compact and Lightweight Design
The module’s compact dimensions (241.3 x 24.4 x 241.8 mm) and weight (0.91 kg) make it easy to integrate into existing control systems, even in space-constrained areas. -
Durable Protection
Rated IP20 for protection against dust, the 3500/22M is designed to withstand the rigors of industrial environments, ensuring long-lasting performance in harsh conditions. -
Versatile Input Channels
The module supports up to 8 differential or 16 single-ended input channels, allowing for flexibility in data collection from multiple sensors and machinery. -
Easy Integration with Existing Systems
Supporting Modbus, Ethernet, and RS-485 communication protocols, the 3500/22M module can be easily integrated into various industrial control systems for seamless operation. -
Seamless Compatibility
As part of the Bently Nevada 3500 series, the module is fully compatible with other Bently Nevada monitoring systems, enabling a unified and reliable machinery monitoring solution. -
Predictive Maintenance
By continuously capturing transient data, this module helps in predictive maintenance, allowing operators to take corrective action before a failure occurs, reducing unplanned downtime and repair costs.
FAQ
Q1: What is the purpose of the Bently Nevada 3500/22M module?
A1: This module is designed to capture and analyze transient data from industrial machinery to detect early signs of potential issues and facilitate predictive maintenance.
Q2: How many input channels does the module support?
A2: The 3500/22M module supports up to 8 differential or 16 single-ended input channels, allowing for flexibility in monitoring multiple machinery.
Q3: What is the operating temperature range for this module?
A3: The module operates within a temperature range of -40°C to +85°C, making it suitable for use in a variety of industrial environments.
Q4: What types of signals can the module monitor?
A4: The module is capable of monitoring transient signals such as vibrations, pressure fluctuations, and temperature changes, which are critical for machinery health monitoring.
Q5: What communication protocols are supported by the module?
A5: The 3500/22M module supports Modbus, Ethernet, and RS-485 communication protocols, ensuring compatibility with a wide range of industrial systems.
Q6: How is the module mounted?
A6: The module is designed for DIN rail mounting, making it easy to install in industrial control panels.
Q7: What is the data sampling rate of the module?
A7: The 3500/22M module has a high-speed data sampling rate of 100 kHz, ensuring fast and accurate capture of transient signals.
Q8: What is the weight of the module?
A8: The module weighs 0.91 kg, making it lightweight and easy to handle during installation.
Q9: Can the module be used in harsh environments?
A9: Yes, the module is rated IP20, providing protection against dust and ensuring reliable operation even in tough industrial environments.
Q10: Is the module compatible with other Bently Nevada products?
A10: Yes, the 3500/22M module is fully compatible with other components in the Bently Nevada 3500 series, allowing for a seamless monitoring solution.
