Product Overview

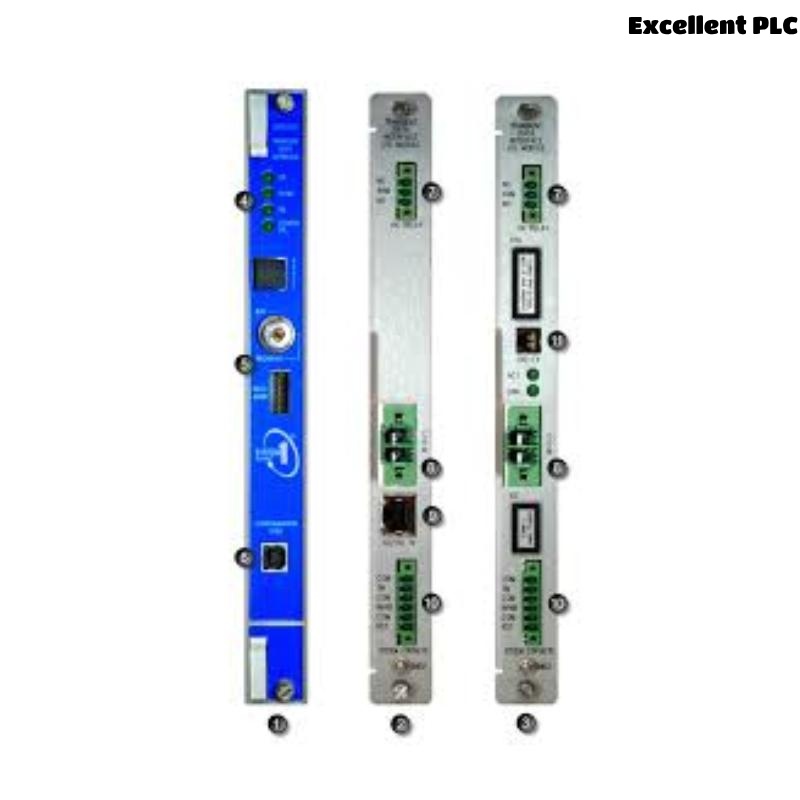

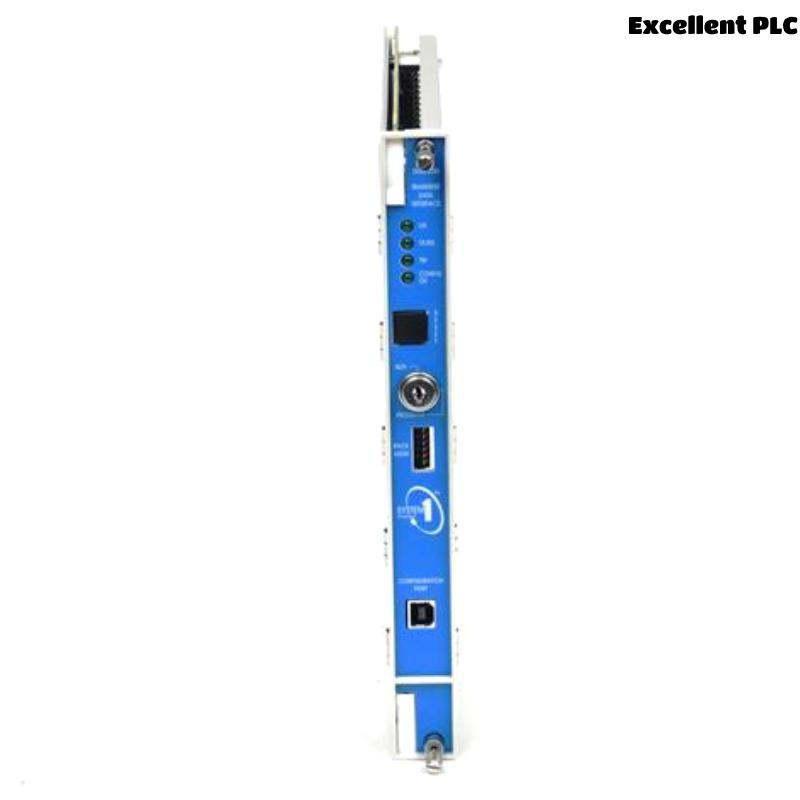

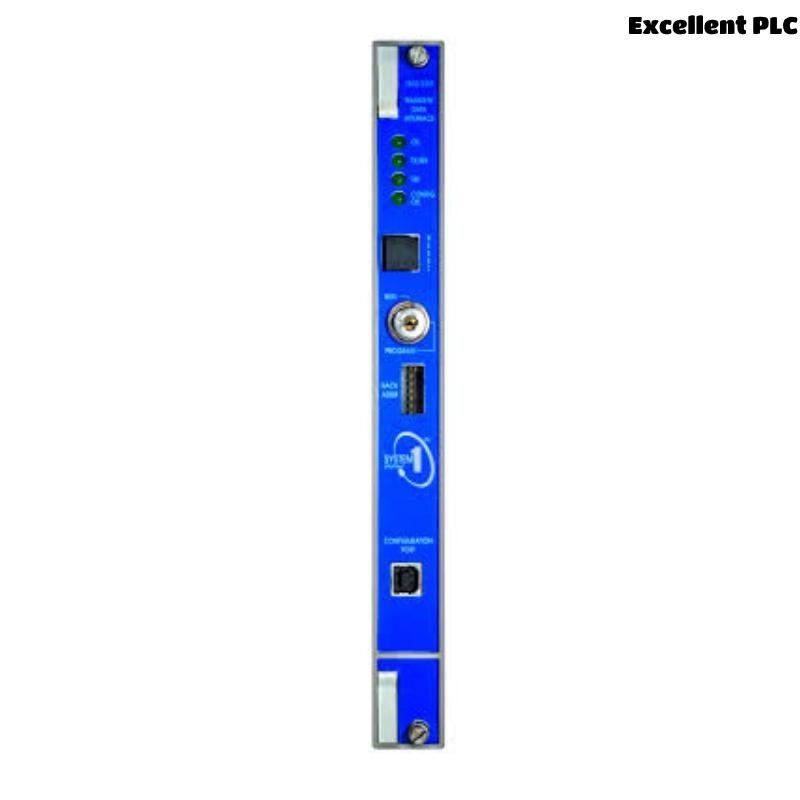

The Bently Nevada 3500/22M 164466-01 Ethernet TDI (Transient Data Interface) Module is the next-generation communications gateway for the industry-leading 3500 Machinery Protection System. Designed to deliver high-speed, reliable Ethernet communication, the 3500/22M combines both the Rack Interface Module (RIM) and advanced data acquisition capabilities into a single, powerful unit.
Equipped with enhanced transient data functionality and System 1® connectivity, the 3500/22M 164466-01 enables real-time monitoring, detailed diagnostics, and comprehensive condition-based maintenance strategies for critical rotating machinery across industrial environments.
This module ensures secure, efficient data transmission, system integrity monitoring, and seamless integration with plant-wide networks, enhancing the reliability and performance of machinery protection systems.
Key Features
-
Integrated Ethernet TDI: Combines rack interface and data acquisition in one compact, reliable module
-
High-Speed Data Transfer: Supports fast, secure Ethernet communications for real-time monitoring
-
Transient Data Acquisition: Captures machine event data such as startups, shutdowns, and faults for in-depth analysis
-
System 1® Integration: Seamless connectivity with Bently Nevada’s System 1® Machinery Management Software
-
LED Status Indicators: Provides visual status for system health, alarms, and communication integrity
-
Hot-Swappable Design: Enables module replacement without interrupting 3500 system operation
-
Backward Compatibility: Works with existing 3500 racks and monitoring modules
-
Rugged Industrial Build: Designed to operate reliably in demanding industrial environments
-
Network Security Options: Supports secure Ethernet protocols for data protection
-
Event-Triggered Data Capture: Records high-resolution data during critical machine events
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Ethernet Transient Data Interface Module (TDI) |
| Model Number | 3500/22M 164466-01 |
| Communication Interface | Dual Ethernet Ports (100BASE-TX) |
| System Compatibility | Bently Nevada 3500 Machinery Protection Systems |
| Data Acquisition Capability | Static and transient data capture, system diagnostics |
| Ethernet Standards | IEEE 802.3, 100 Mbps Ethernet |
| Transient Data Features | Event-triggered capture for startups, shutdowns, and faults |
| System Software Integration | Compatible with Bently Nevada System 1® Software |
| LED Indicators | Power, Network Status, System Health, Data Activity |
| Hot-Swappable | Yes, without rack shutdown |
| Power Requirements | Supplied through 3500 rack backplane |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Certifications | CE, UL, CSA, ATEX, IECEx (varies per system setup) |
Product Advantages
-
Unified Data and Communication: Combines communication gateway and transient data capture functions into one streamlined module
-
Enhanced Ethernet Capability: Dual Ethernet ports ensure fast, reliable data transfer to supervisory and diagnostic systems
-
Real-Time Event Monitoring: Provides detailed insight into machine behavior during critical operating events
-
Improved System Uptime: Hot-swappable design prevents unplanned downtime during maintenance or module replacement
-
System 1® Connectivity: Facilitates advanced diagnostics, remote monitoring, and predictive maintenance strategies
-
Secure, Industrial-Grade Design: Built to withstand harsh environments and industrial network demands
-
Future-Ready Architecture: Designed to support evolving diagnostic requirements and integration into modern digital systems
-
Reduced System Complexity: Eliminates the need for separate RIM and data acquisition modules
-
Event-Based Data Collection: Enables high-resolution monitoring during specific machine conditions, improving fault analysis
-
Compliance with Global Standards: Certified for use in safety-critical and hazardous industrial environments
Industry Applications
The Bently Nevada 3500/22M 164466-01 Ethernet TDI Module is essential in industries where continuous, high-speed machine monitoring and diagnostics are vital:
-
Oil & Gas: Protection and monitoring of compressors, turbines, and critical rotating equipment
-
Power Generation: Real-time diagnostics for steam turbines, gas turbines, and generators
-
Petrochemical and Refining: Machine health monitoring for process-critical assets
-
Metals & Mining: Vibration monitoring of crushers, mills, and other heavy machinery
-
Marine & Offshore: Ensures machinery reliability in offshore production platforms and vessels
-
Pulp & Paper: Continuous monitoring of high-speed rotating equipment
-
Water & Wastewater: Asset protection for pumps, blowers, and treatment systems
-
Renewable Energy: Monitoring of wind turbines and related machinery
Frequently Asked Questions (FAQ)
Q1: What does the 3500/22M 164466-01 module do?
It acts as the central communication gateway and transient data acquisition module for the 3500 Machinery Protection System.
Q2: How does this TDI version differ from earlier models?
The “M” version adds Ethernet capability, faster data transfer, and enhanced transient data functions compared to standard TDI modules.
Q3: Is the module compatible with existing 3500 systems?
Yes, the 3500/22M 164466-01 is fully compatible with standard 3500 racks and monitoring modules.
Q4: Can the TDI module be replaced while the system is running?
Yes, its hot-swappable design allows for replacement without shutting down the rack or interrupting protection functions.
Q5: What type of network connection is supported?
It features dual 100BASE-TX Ethernet ports for high-speed, redundant communication options.
Q6: What software is required for monitoring?
The module integrates seamlessly with Bently Nevada System 1® Machinery Management Software.
Q7: Does the module capture transient data?
Yes, it captures detailed transient data during critical machine events like startups, shutdowns, or system trips.
Q8: Is the module certified for use in hazardous environments?
Yes, it is certified for global industrial use, including ATEX and IECEx zones, depending on installation specifics.
Q9: What diagnostics are available through the TDI?
The TDI provides system health status, network communication diagnostics, and machine event monitoring.
Q10: Can this module support predictive maintenance strategies?
Yes, when combined with System 1® software, it provides comprehensive condition monitoring and predictive maintenance capabilities.
Recommended Related Models
| Model Number | Description |
|---|---|
| 3500/22-01-01-00 | Standard Transient Data Interface Module without Ethernet |
| 3500/22M 288055-01 | Ethernet TDI Module with advanced firmware version |
| 3500/42M | Proximitor/Seismic Monitor Module for vibration analysis |
| 3500/15-05-05-00 | Power Supply Module for 3500 Rack |
| 3500/25-01-01-00 | Keyphasor® Speed and Phase Measurement Module |
| 3500/93-01-00-02 | Rack Display Interface for visual monitoring |
Popular Bently Nevada Machinery Monitoring Products
| Model Number | Description |
|---|---|
| 330101-00-20-05-02-05 | 3300 XL 8 mm Proximity Probe for precise displacement monitoring |
| 330130-045-00-05 | 3300 XL Extension Cable for proximity probe systems |
| 3500/05 | 19-inch Rack Frame for 3500 Series Systems |
| ADAPT 3701/55 | Adaptive Machinery Protection and Condition Monitoring System |
| 3500/42M | Advanced Vibration Monitoring Module |
| 3500/25 | Keyphasor® Module for accurate rotational speed detection |
