Product Introduction

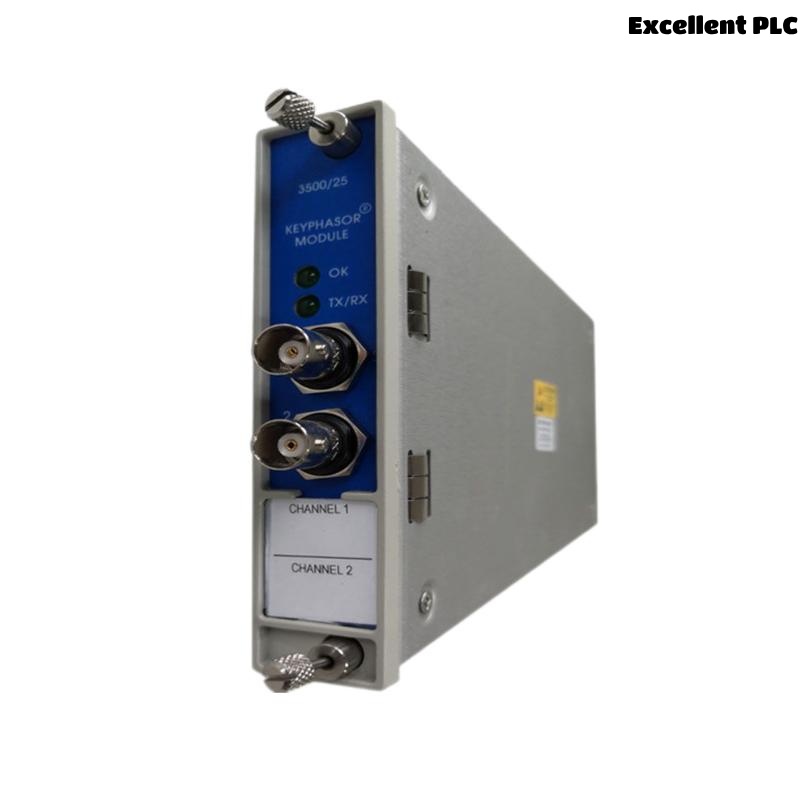

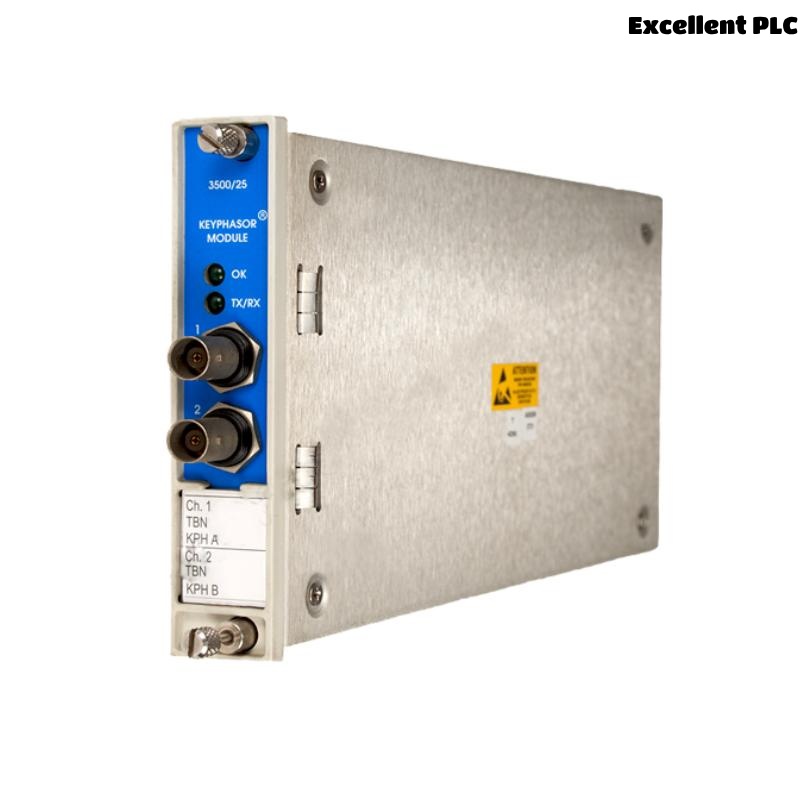

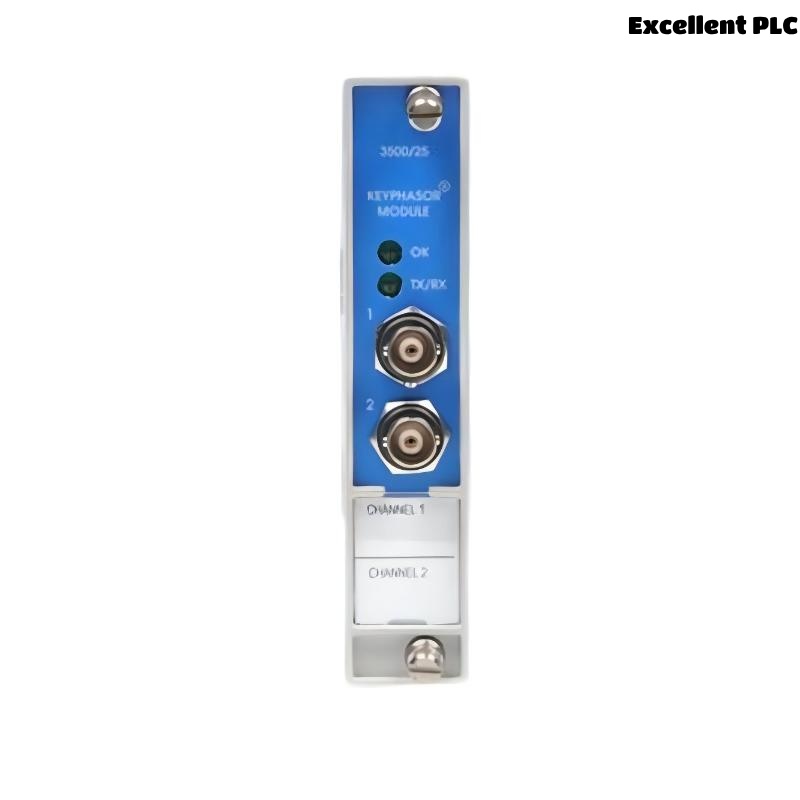

The Bently Nevada 3500/25-02-01-00 Enhanced Keyphasor Module is a part of the Bently Nevada 3500 series, designed to provide accurate monitoring and diagnostic capabilities for rotating machinery. This module is specifically engineered to measure keyphasor signals, rotational position, and phase relationships of critical industrial machines. It is an essential component in vibration monitoring systems, where accurate rotational measurements are crucial for machinery health diagnostics and predictive maintenance.
The 3500/25-02 module offers enhanced features over its predecessors, providing advanced capabilities such as improved signal processing, higher resolution measurements, and better noise immunity, all of which are important for industries where machinery health and operational uptime are critical. The enhanced functionality enables more precise detection of mechanical faults like misalignment, imbalance, and bearing failures before they lead to costly downtime.
With a compact design (119.9 x 24.4 x 256.5 mm) and lightweight (0.34 kg), the module is easy to integrate into existing control systems, particularly in applications where space is limited. The 3500/25-02 is built to endure in harsh industrial environments, making it suitable for a wide range of industries, including power generation, petrochemical, and manufacturing.
Product Parameters
The technical specifications of the Bently Nevada 3500/25-02-01-00 Enhanced Keyphasor Module are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Weight | 0.34 kg |
| Power Supply | 24V DC ± 20% |
| Signal Output | TTL/CMOS |
| Signal Input | Keyphasor signal from rotating shaft |
| Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, compatible with 3500 series |
| Power Consumption | 5W |
| Signal Resolution | High-resolution phase and position data |
| Compatibility | Compatible with Bently Nevada 3500 series modules |
Product Applications
The Bently Nevada 3500/25-02-01-00 Enhanced Keyphasor Module plays a crucial role in applications that require precise monitoring of rotating machinery. Some of its primary applications include:
-
Turbine Monitoring: The module is widely used in turbine monitoring systems, where it tracks rotational speed and phase information, helping to prevent failure due to imbalance or misalignment.
-
Compressor Systems: In compressor applications, the 3500/25-02 module detects keyphasor signals to monitor speed, phase relationships, and potential mechanical faults, such as bearing wear.
-
Pump Systems: Used in pumps to monitor shaft position and speed, the module helps detect early signs of misalignment, cavitation, or mechanical wear.
-
Motor Monitoring: Provides critical data on motor performance, including rotational speed and phase data, to ensure smooth operation and detect potential issues like overheating or imbalance.
-
Power Generation: In power plants, this module is essential for monitoring the health of generators and turbines, ensuring reliable performance of energy production equipment.
-
Industrial Machinery: Applied in various types of industrial machinery, the 3500/25-02 module helps to ensure reliable operation and extend the lifespan of high-value assets through continuous monitoring.
Product Advantages
-
High Precision: The 3500/25-02 provides accurate and high-resolution measurements of phase, position, and speed, which are critical for machinery condition monitoring.
-
Enhanced Diagnostic Capabilities: With advanced processing algorithms and improved signal quality, the module offers enhanced diagnostic capabilities, helping detect potential issues like imbalance or misalignment early in their development.
-
Robust Design: The module is built to withstand extreme environmental conditions, with an operating temperature range of -40°C to +70°C, ensuring reliability in demanding industrial environments.
-
Compact and Lightweight: With dimensions of 119.9 x 24.4 x 256.5 mm and a weight of just 0.34 kg, it is easily integrated into control systems without adding bulk or complexity.
-
Energy Efficient: The 3500/25-02 module consumes only 5W of power, making it an energy-efficient solution that helps reduce overall system power consumption.
-
Seamless Integration: The module integrates easily with other Bently Nevada 3500 Series components, including vibration monitoring and tachometer modules, creating a cohesive system for machinery health monitoring.
-
Improved Noise Immunity: The enhanced signal processing capabilities reduce noise interference, resulting in more accurate data collection even in electrically noisy environments.
-
Predictive Maintenance: By providing keyphasor and phase data, the module helps improve predictive maintenance efforts, reducing unplanned downtime and improving asset reliability.
FAQs
-
What is the function of the Bently Nevada 3500/25-02 Enhanced Keyphasor Module?
The module measures keyphasor signals, rotational position, and phase relationships of rotating machinery to enable accurate diagnostic monitoring and predictive maintenance. -
What is the input signal type for the 3500/25-02 module?
The module accepts keyphasor signals from rotating machinery shafts to determine speed, position, and phase. -
What are the power supply requirements for the 3500/25-02?
The module requires a 24V DC power supply with a ± 20% tolerance. -
How is the 3500/25-02 module mounted?
The module is designed for rack mounting and is compatible with the Bently Nevada 3500 Series system. -
What temperature range does the 3500/25-02 support?
The module operates in temperatures ranging from -40°C to +70°C, making it suitable for a wide range of industrial applications. -
What output does the 3500/25-02 provide?
The module outputs TTL/CMOS signals, which are compatible with other Bently Nevada 3500 Series modules. -
How much power does the 3500/25-02 consume?
The module consumes only 5W of power, making it an energy-efficient solution. -
Can the 3500/25-02 be used in high-speed rotating machinery applications?
Yes, the module is suitable for high-speed rotating machinery, including turbines, motors, and compressors. -
What is the weight of the 3500/25-02 module?
The module weighs just 0.34 kg, making it lightweight and easy to install. -
What makes the 3500/25-02 module ideal for predictive maintenance?
The module provides detailed phase, speed, and position data, enabling early detection of potential issues and improving maintenance planning to reduce downtime.
