Product Introduction

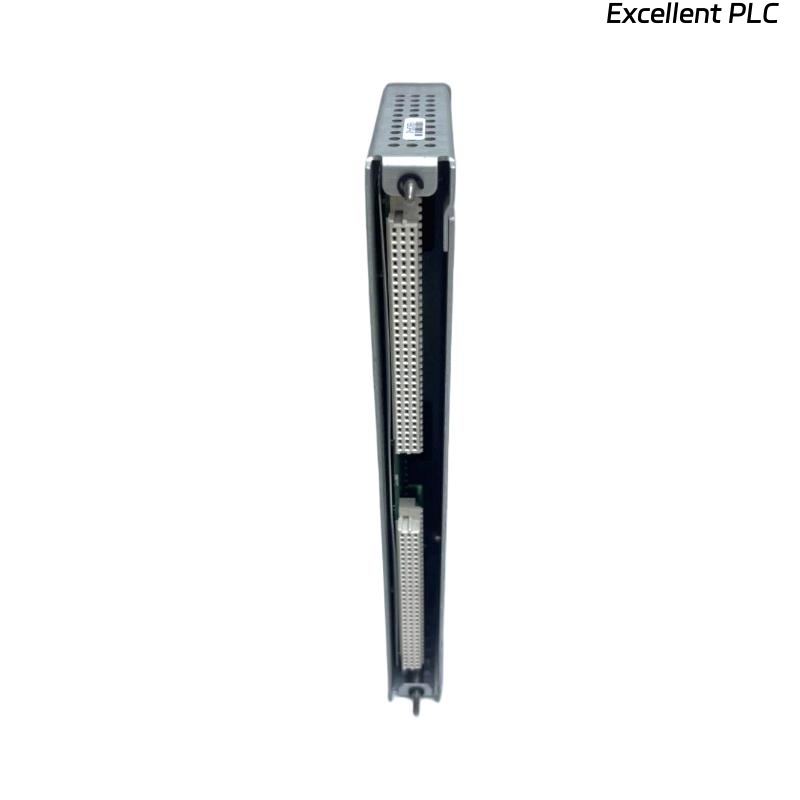

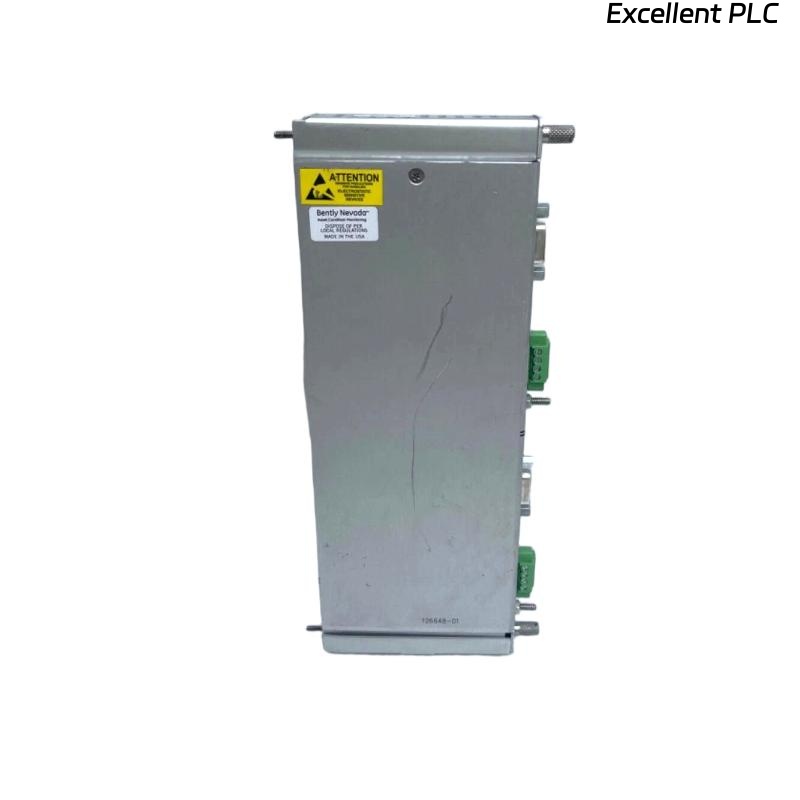

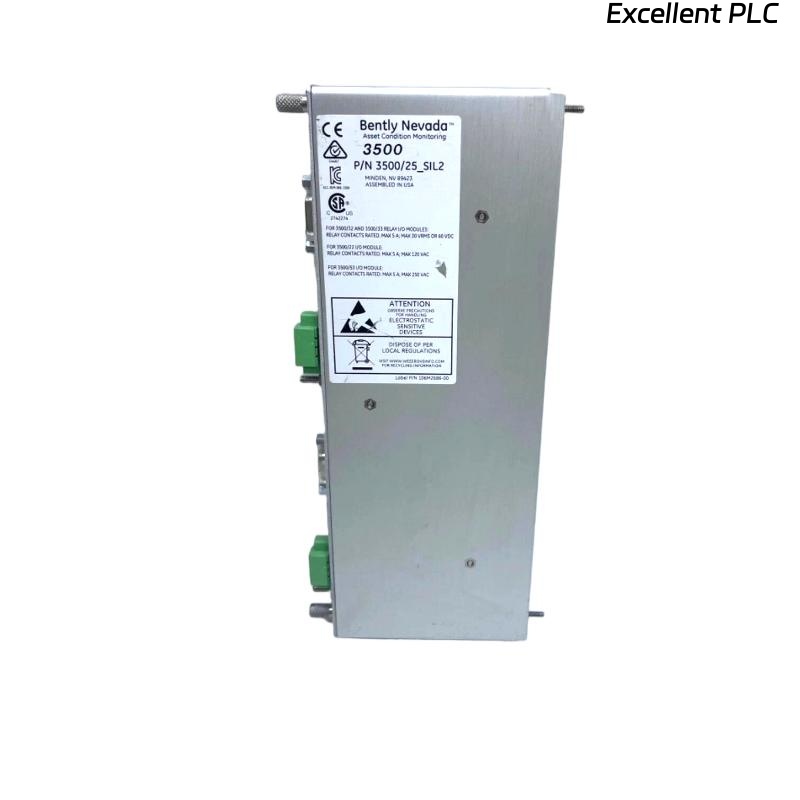

The Bently Nevada 3500/25 126648-01 Keyphasor Input/Output Module is an essential component for systems requiring high-precision measurement and monitoring of rotating machinery in industrial applications. This module acts as an interface for keyphasor input and output signals, which are critical for the synchronization of machinery, such as turbines, compressors, pumps, and motors. By accurately measuring rotational speed and phase, this module plays a vital role in ensuring the operational efficiency, safety, and longevity of rotating equipment.
The 3500/25 126648-01 module integrates seamlessly with the 3500 Series machinery protection system, offering real-time data processing capabilities. It captures keyphasor signals from machinery and processes these signals to produce useful output data for further analysis and decision-making. As part of the Bently Nevada suite of monitoring solutions, this module helps to optimize maintenance strategies, reduce unplanned downtime, and improve the reliability of critical equipment.
This module is particularly advantageous in industries such as power generation, oil and gas, mining, and manufacturing, where precise and continuous monitoring of rotational components is essential. The 3500/25 126648-01 module is also designed for easy integration into existing systems, offering high durability and reliable performance even in harsh industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241.3 x 24.4 x 103.1 mm |
| Weight | 0.46 kg |
| Input Voltage | 24V DC ± 10% |
| Operating Temperature Range | -40°C to +85°C |
| Input Channels | 1 (differential input) |
| Output Channels | 1 (differential output) |
| Frequency Range | 1 Hz to 50 kHz |
| Signal Conditioning | Differential signal conditioning |
| Protection | IP20 rated |
| Mounting | DIN rail mounting |
Product Applications
The 3500/25 126648-01 Keyphasor Input/Output Module is widely used across various industries to monitor and synchronize rotating machinery. The module is ideal for applications where high-precision rotational data is crucial for ensuring the smooth operation and health of industrial equipment. Here are some key applications:
-
Power Generation
In power plants, the 3500/25 module monitors critical machinery such as turbines, generators, and motors. By ensuring proper synchronization, it helps maintain stable operations, reduces the risk of damage due to misalignment, and minimizes costly downtime. -
Oil and Gas
The 3500/25 module is employed in the oil and gas industry to monitor pumps, compressors, and drilling equipment. Accurate rotational data is vital for detecting issues like imbalance or misalignment, which could result in equipment failure or operational inefficiency. -
Mining and Heavy Industry
In the mining industry, the module monitors machinery like crushers, conveyors, and mills. By collecting keyphasor signals, the module helps prevent breakdowns and ensures smooth production processes in heavy industrial operations. -
Automotive Manufacturing
Automotive manufacturers use the 3500/25 to monitor the synchronization of high-precision components on production lines. This ensures that production equipment operates efficiently, avoiding delays caused by mechanical issues. -
Marine and Aerospace
In the marine and aerospace industries, the 3500/25 module is used to monitor vital components like turbines and engines, providing early warnings of potential failures that could compromise safety and performance.
Product Advantages
-
High Precision Measurement
The 3500/25 126648-01 module provides highly accurate measurement of rotational speed and phase, enabling precise synchronization of machinery. This helps identify mechanical issues before they escalate, reducing downtime and maintenance costs. -
Wide Frequency Range
The module supports a frequency range from 1 Hz to 50 kHz, making it versatile and capable of handling various machinery types and operational speeds in industrial settings. -
Signal Conditioning
The 3500/25 offers differential signal conditioning, ensuring the accuracy and reliability of the data captured. This is essential for applications where high-quality signal processing is required for accurate machine health monitoring. -
Compact and Lightweight
With dimensions of 241.3 x 24.4 x 103.1 mm and a weight of only 0.46 kg, the module is both compact and lightweight, making it easy to integrate into existing systems without occupying excessive space. -
Reliable Protection
The 3500/25 module is rated IP20, providing protection against dust and environmental contaminants, ensuring consistent performance in industrial environments. -
Seamless Integration
Designed for easy DIN rail mounting, the module integrates easily into control systems, making installation simple and cost-effective for a wide range of industrial applications. -
Versatile Applications
This module is versatile and can be used in industries like power generation, oil and gas, manufacturing, and aerospace, offering a reliable solution for machinery synchronization and performance monitoring. -
Supports Predictive Maintenance
By accurately monitoring keyphasor signals, the module supports predictive maintenance strategies, helping operators identify issues before they result in equipment failure, reducing maintenance costs, and improving equipment reliability.
FAQ
Q1: What is the primary function of the 3500/25 126648-01 module?
A1: The primary function of the 3500/25 module is to provide keyphasor input and output signals for machinery monitoring, allowing for precise measurement of rotational speed and phase in rotating equipment.
Q2: How many input and output channels does the module support?
A2: The module supports 1 differential input channel and 1 differential output channel for accurate data capture and output.
Q3: What is the frequency range of the 3500/25 module?
A3: The 3500/25 module operates within a frequency range of 1 Hz to 50 kHz, making it suitable for monitoring a wide range of machinery speeds.
Q4: How is the module mounted?
A4: The 3500/25 module is designed for DIN rail mounting, providing easy installation in control panels or industrial machinery systems.
Q5: Can the module be used in harsh environments?
A5: Yes, the 3500/25 module has an IP20 rating, providing protection against dust and other contaminants, ensuring reliable performance in harsh industrial environments.
Q6: What industries benefit from using the 3500/25 module?
A6: The 3500/25 module is used in industries such as power generation, oil and gas, mining, manufacturing, and aerospace for monitoring the synchronization of rotating machinery.
Q7: What is the temperature range for the 3500/25 module?
A7: The module operates within a temperature range of -40°C to +85°C, making it suitable for use in both cold and hot industrial environments.
Q8: Is the 3500/25 module compatible with other Bently Nevada products?
A8: Yes, the 3500/25 module is fully compatible with other Bently Nevada monitoring systems, offering a comprehensive solution for machinery health monitoring.
Q9: What is the weight of the 3500/25 module?
A9: The module weighs 0.46 kg, making it lightweight and easy to handle during installation and maintenance.
Q10: Does the module provide real-time monitoring?
A10: Yes, the 3500/25 module provides real-time monitoring of keyphasor signals, allowing operators to make timely decisions based on up-to-date data.
