Product Introduction

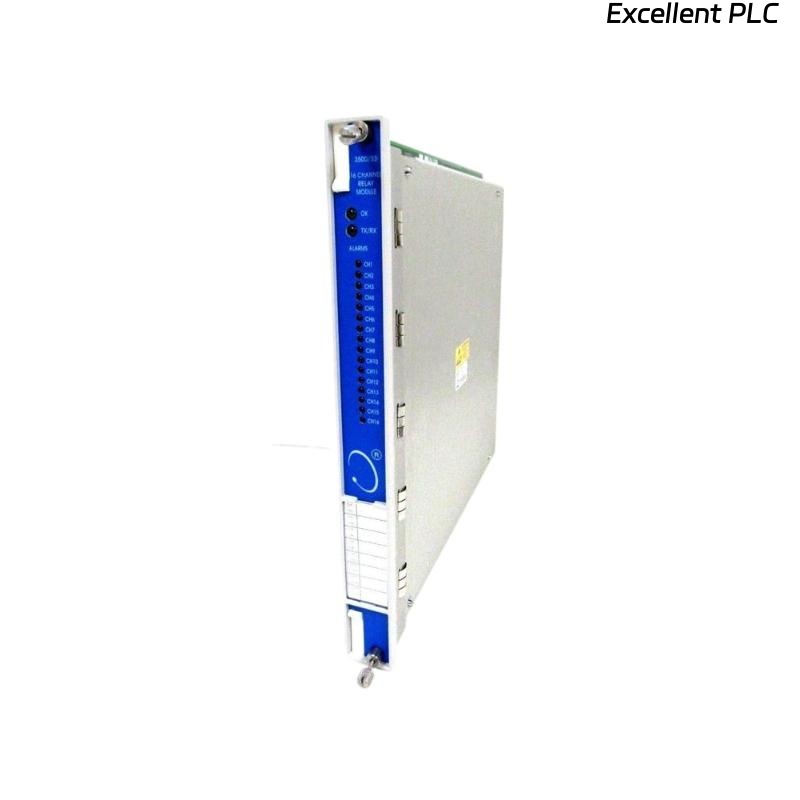

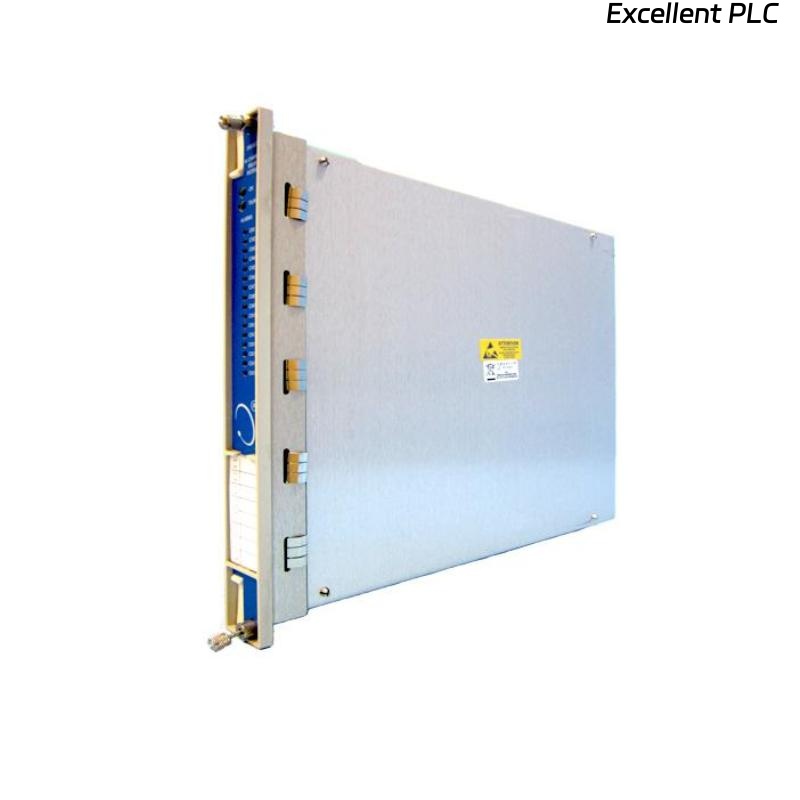

The Bently Nevada 3500/33 149986-01+149992-01 is a 16-channel relay module designed for industrial machinery protection and control systems. This module is an integral part of the Bently Nevada 3500 Series, which is known for its ability to provide advanced machinery diagnostics and protection. The 3500/33 relay module offers flexible, high-performance relay outputs that allow for precise control of external devices such as alarms, emergency shutdown systems, and other critical control mechanisms.
This module provides 16 independent relay channels, each capable of handling specific tasks and outputting signals for machinery protection. With its robust design, this module ensures rapid response times and high reliability, making it an essential component for industries such as oil and gas, power generation, and manufacturing.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
| Number of Relay Channels | 16 channels |
| Coil Voltage | 24V DC |
| Relay Output Rating | 5A @ 30V DC, 1A @ 120/240V AC |
| Relay Switching Time | < 10 ms |
| Operating Temperature Range | -40°C to +70°C |
| Mounting | DIN Rail or Panel Mountable |
| Environmental Protection | IP20 |
| Relay Isolation | 250V AC between channels |
| Power Supply | 24V DC ±10% |
| Status Indicator | LED indicators for each channel |
Product Applications
The 3500/33 149986-01+149992-01 module is designed for a variety of critical applications in industrial environments. Some common uses include:
-
Machine Protection
The relay module is used for triggering shutdown or alarm systems, reducing the risk of mechanical damage to machinery such as turbines, pumps, and compressors. -
Control System Integration
It is ideal for integration into process control systems, ensuring reliable and fast activation of external devices, actuators, and controllers. -
Oil & Gas Industry
In the oil and gas sector, this relay module is used to protect critical equipment, ensuring the safety of the machinery in challenging operating conditions. -
Power Generation Plants
The 3500/33 module is frequently deployed in power generation plants to monitor and protect turbines and other machinery, maintaining safe and optimal performance. -
Alarm & Safety Systems
The module enables fast and reliable triggering of alarms and safety systems, ensuring that operators are immediately notified of potential issues. -
Industrial Automation
It is also used for industrial automation purposes, providing the necessary relay outputs for automated control systems that manage large-scale industrial operations.
Product Advantages
-
High Relay Density
The 3500/33 149986-01+149992-01 offers 16 independent relay channels, allowing for a compact and efficient solution for industrial systems requiring multiple outputs. -
Fast Switching Response
With a switching time of less than 10 ms, the module ensures immediate reaction to abnormal system conditions, minimizing the risk of machine damage. -
Wide Operating Temperature Range
The module can function in extreme temperatures ranging from -40°C to +70°C, making it suitable for various harsh environments. -
Reliability and Durability
The 3500/33 module is engineered for high reliability in demanding industrial applications. Its rugged design guarantees long-term performance and low maintenance. -
Independent Channels for Flexibility
Each of the 16 channels operates independently, allowing for flexible control of multiple external devices without cross-channel interference. -
LED Status Indicators
The module features LED status indicators for each relay channel, making it easy for operators to monitor the operational status and diagnose issues quickly. -
Electrical Isolation
The module provides 250V AC isolation between relay channels, ensuring safety and protecting sensitive equipment from electrical faults. -
IP20 Protection Rating
The 3500/33 module offers an IP20 protection rating, making it suitable for indoor industrial environments. -
Compact Design
Despite offering 16 relay channels, the module’s compact design ensures it occupies minimal space while delivering high performance. -
Simple Installation
The module is compatible with both DIN rail and panel mounting, providing flexibility for installation in various industrial control systems.
FAQ
Q1: How many relay output channels does the 3500/33 module have?
A1: The module provides 16 independent relay output channels.
Q2: What is the switching time for the relays?
A2: The relay switching time is less than 10 milliseconds, ensuring fast and efficient operation.
Q3: What is the operating temperature range of the module?
A3: The 3500/33 operates within a temperature range of -40°C to +70°C, making it suitable for a variety of industrial environments.
Q4: What is the weight of the 3500/33 module?
A4: The module weighs 0.7 kg.
Q5: Can the module be mounted on a DIN rail?
A5: Yes, the 3500/33 can be mounted on DIN rails or directly on panels.
Q6: What is the power supply requirement for this module?
A6: The module operates with a 24V DC ±10% power supply.
Q7: How is the status of each channel monitored?
A7: The module has LED status indicators for each channel, allowing operators to easily monitor the operational status.
Q8: Is the module suitable for use in power plants?
A8: Yes, the 3500/33 is commonly used in power plants to protect turbines and other critical equipment.
Q9: What is the environmental protection rating of the module?
A9: The module has an IP20 environmental protection rating, which is suitable for indoor use.
Q10: How does the 3500/33 provide electrical isolation?
A10: The module provides 250V AC electrical isolation between the channels, ensuring safe operation and protecting equipment.
