Product Introduction

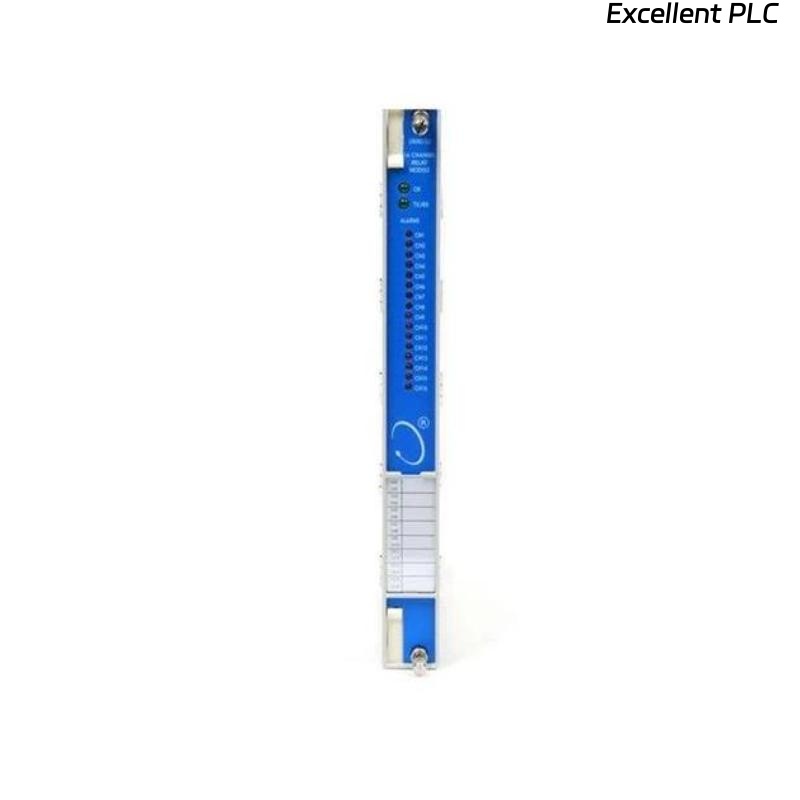

The Bently Nevada 3500/33 162291-01 is a 16-channel relay module designed to offer reliable and efficient control of various industrial equipment. It is part of the renowned Bently Nevada 3500 series, known for its robust machinery monitoring, protection, and control capabilities. This module provides a comprehensive solution for controlling external devices, such as alarms, emergency shutdown systems, and other important safety mechanisms in industrial environments.
Engineered for both flexibility and high performance, the 3500/33 162291-01 module allows users to handle multiple outputs and make quick adjustments in response to abnormal system conditions. With its advanced features and robust design, the relay module ensures that machinery remains operational and safe in demanding industrial applications, including power plants, oil and gas, and manufacturing facilities.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
| Number of Relay Channels | 16 channels |
| Relay Output Rating | 5A @ 30V DC, 1A @ 120/240V AC |
| Relay Switching Time | < 10 ms |
| Operating Temperature Range | -40°C to +70°C |
| Mounting | DIN Rail or Panel Mountable |
| Environmental Protection | IP20 |
| Relay Isolation | 250V AC between channels |
| Power Supply | 24V DC ±10% |
| Status Indicator | LED indicators for each channel |
Product Applications
The 3500/33 162291-01 module is designed for use in a wide variety of critical industrial applications. Some common uses include:
-
Machine Protection
The relay module is ideal for triggering shutdown or alarm systems, helping protect critical machinery such as turbines, compressors, and motors from damage. -
Industrial Control Systems
It can be integrated into process control systems, enabling fast and reliable activation of external devices like actuators and control valves. -
Oil & Gas Industry
In the oil and gas sector, the 3500/33 module plays a crucial role in protecting complex machinery in harsh, remote environments, ensuring safety and operational efficiency. -
Power Generation
This relay module is commonly used in power plants for monitoring and controlling critical equipment, maintaining uptime and operational stability. -
Alarm and Safety Systems
The module is essential for triggering safety alarms and emergency systems, quickly alerting operators to potentially hazardous conditions. -
Industrial Automation
The 3500/33 is ideal for use in industrial automation systems, controlling a wide range of equipment in large-scale operations.
Product Advantages
-
High Relay Density
The 3500/33 162291-01 offers 16 independent relay channels, allowing users to efficiently control a wide range of devices without taking up excessive space. -
Fast Switching Response
With a switching time of less than 10 ms, this module ensures rapid reaction to abnormal conditions, providing an immediate response to any changes in system performance. -
Wide Operating Temperature Range
The module can operate in extreme temperatures from -40°C to +70°C, making it suitable for challenging environments. -
Enhanced Reliability and Durability
Built with high-quality components, this module guarantees long-term performance and minimal maintenance, even under the most demanding conditions. -
Independent Channel Operation
Each of the 16 channels operates independently, allowing for greater flexibility in controlling multiple devices without interference between channels. -
LED Status Indicators
Each relay channel is equipped with an LED status indicator, making it easy for operators to monitor the operational status and identify any issues quickly. -
Electrical Isolation
The module provides 250V AC isolation between channels, ensuring safe operation and protecting sensitive equipment from electrical faults. -
Compact Design
Despite offering 16 channels, the module’s compact design allows it to fit easily into tight spaces within control panels or industrial control systems. -
Simple Installation
The 3500/33 162291-01 is compatible with both DIN rail and panel mounting, providing flexibility during installation. -
IP20 Protection Rating
With an IP20 rating, this module is protected from dust and can be used in indoor environments, ensuring reliable performance over time.
FAQ
Q1: How many relay output channels does the 3500/33 module have?
A1: The 3500/33 162291-01 has 16 independent relay output channels.
Q2: What is the switching time for the relay module?
A2: The switching time for the relays is less than 10 milliseconds.
Q3: What is the weight of the 3500/33 module?
A3: The module weighs 0.7 kg.
Q4: What is the power supply requirement for this module?
A4: The 3500/33 requires a 24V DC ±10% power supply.
Q5: Can this module be mounted on a DIN rail?
A5: Yes, the module is compatible with DIN rail or panel mounting.
Q6: What is the operating temperature range of the module?
A6: The operating temperature range is -40°C to +70°C, making it suitable for harsh environments.
Q7: Does the module have electrical isolation between channels?
A7: Yes, the module provides 250V AC isolation between channels, ensuring safe operation.
Q8: How is the status of each relay channel monitored?
A8: Each channel has an LED status indicator, which allows operators to quickly monitor the operational status.
Q9: Is the module suitable for use in power generation plants?
A9: Yes, the 3500/33 is ideal for use in power generation plants to protect and monitor critical equipment.
Q10: What is the environmental protection rating of the module?
A10: The 3500/33 has an IP20 protection rating, which makes it suitable for indoor environments.
