Product Description

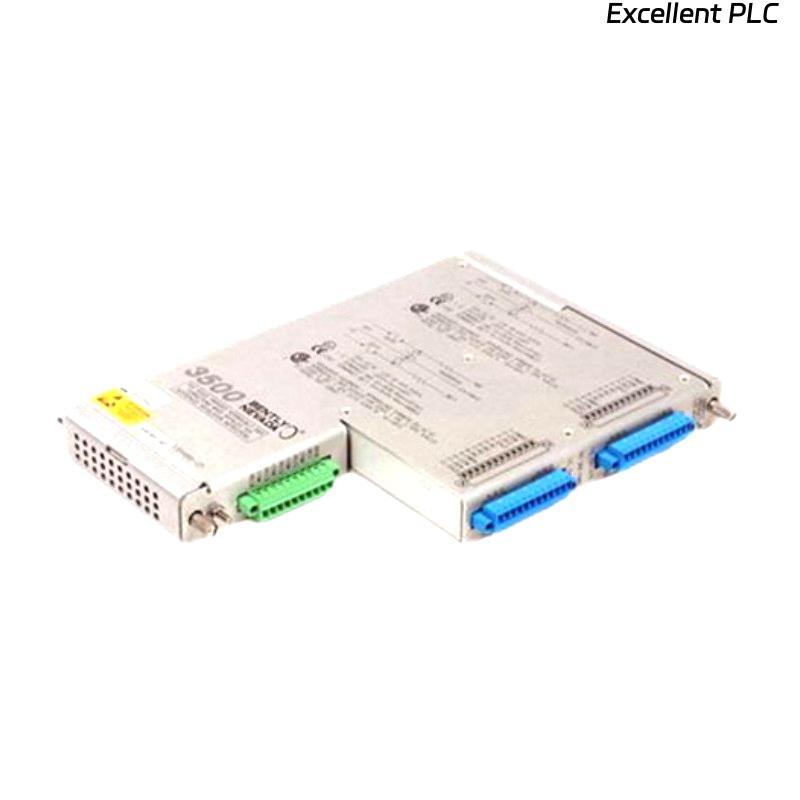

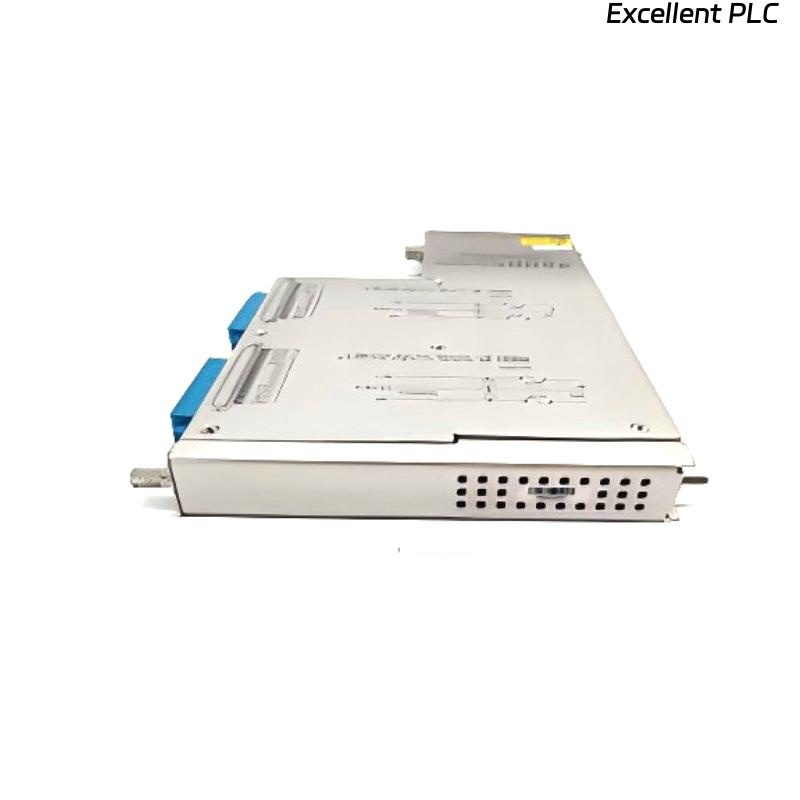

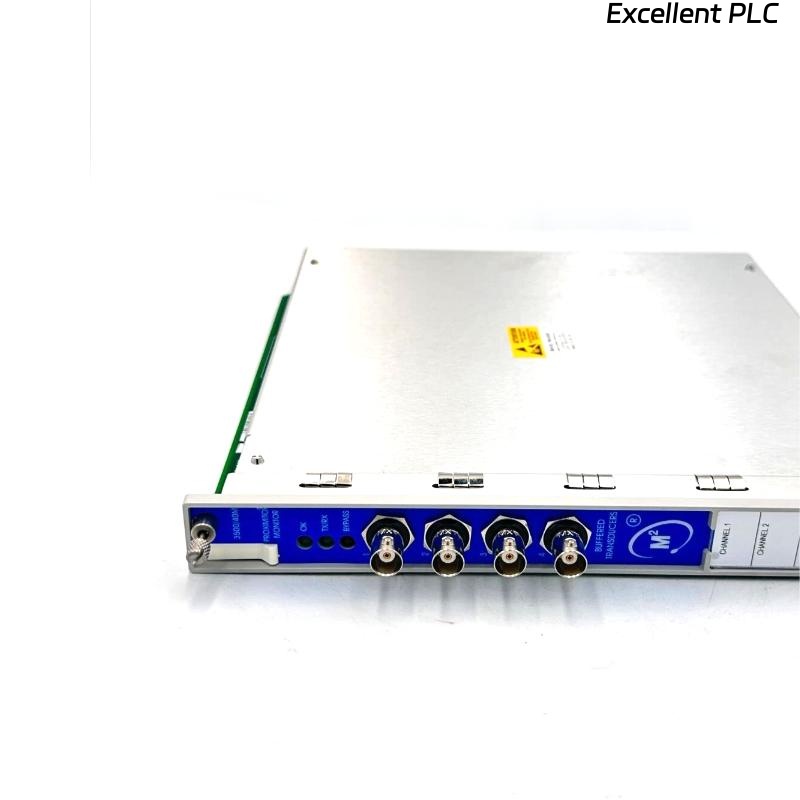

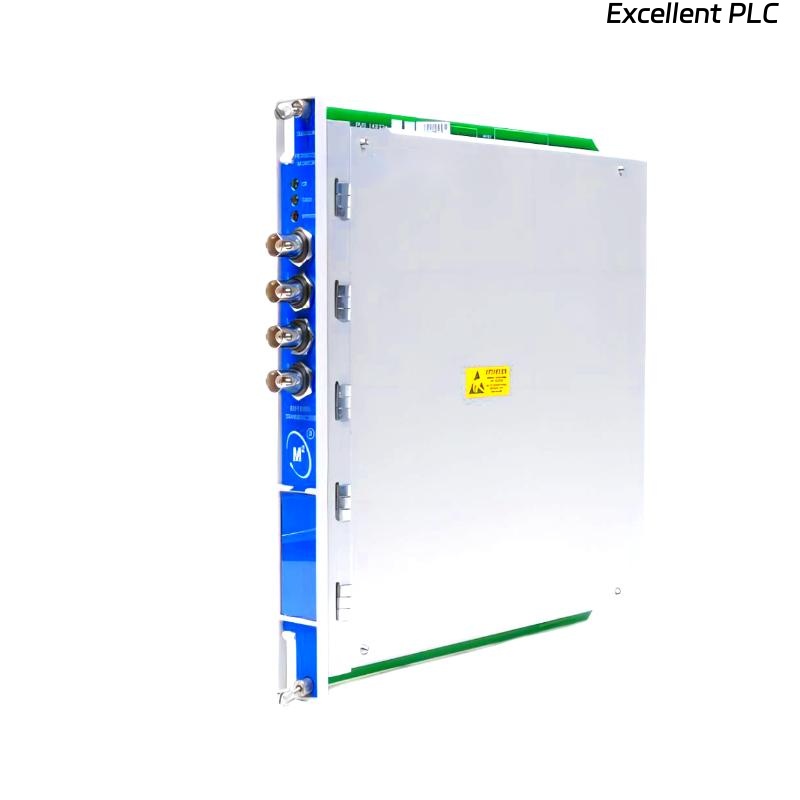

The Bently Nevada 3500/40 Proximitor Monitor is a four-channel machinery condition monitoring device designed to accept input from proximity transducers, condition the signals, and provide precise vibration and position measurements. It supports multiple measurement types, including radial vibration, thrust position, eccentricity, differential expansion, and REBAM (Rolling Element Bearing Analysis Method). Each channel is fully programmable via the 3500 Rack Configuration Software and allows independent configuration for optimal machine protection. This model combination includes the 176449-01 main monitor module and the 135489-04 I/O module with internal barriers and terminations, enabling use in hazardous environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 |
| Input Signals | 1–4 proximity transducer inputs |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ |
| Sensitivity | 3.94 mV/µm or 7.87 mV/µm (Radial, Thrust, Eccentricity), 0.394 mV/µm or 0.787 mV/µm (Differential Expansion), 40 mV/µm or 80 mV/µm (REBAM) |
| Outputs | Buffered transducer outputs, 550 Ω output impedance |
| Power Supply to Transducers | -24 Vdc |
| Accuracy | ±0.33% typical, ±1% maximum |
| Operating Temperature | -30°C to +65°C (depending on I/O module type) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (Monitor) | 241.3 x 24.4 x 241.8 mm |
| Weight (Monitor) | 0.91 kg |
| Hazardous Area Approvals | ATEX, IECEx, CSA, cNRTLus (Class I, Div 2 / Zone 2) |
Applications
-
Continuous monitoring of critical machinery vibration and position parameters
-
Turbomachinery protection for steam, gas, and hydro turbines
-
Monitoring of pumps, compressors, fans, and generators
-
Early detection of shaft misalignment, rotor imbalance, or bearing faults
-
Integration into plant-wide condition monitoring systems for predictive maintenance
Advantages
-
High Versatility: Supports multiple measurement modes per monitor
-
Hazardous Area Certified: Suitable for explosive atmospheres
-
High Accuracy: ±0.33% typical ensures reliable readings
-
Customizable Alarming: User-configurable alert and danger setpoints
-
Robust Build: Designed for demanding industrial environments
-
Integrated REBAM: Enables rolling element bearing fault detection
FAQ
Q1: What is the main function of the 3500/40 Proximitor Monitor?
A1: To process signals from proximity transducers for vibration, position, and bearing condition monitoring, providing alarms when conditions exceed set limits.
Q2: Can it operate in hazardous environments?
A2: Yes, with the 135489-04 I/O module, it meets ATEX, IECEx, CSA, and cNRTLus Zone 2/Div 2 requirements.
Q3: How many channels does it have?
A3: It has four channels, which can be configured in pairs for different measurements.
Q4: What types of measurements are supported?
A4: Radial vibration, thrust position, eccentricity, differential expansion, and REBAM.
Q5: Is it compatible with all Bently Nevada proximity probes?
A5: It accepts standard Bently Nevada proximity transducer inputs.
Q6: What is the accuracy of the readings?
A6: Typically ±0.33% of full scale, with a maximum error of ±1%.
Q7: How are alarms configured?
A7: Via the 3500 Rack Configuration Software, allowing customized alert and danger setpoints.
Q8: What is REBAM used for?
A8: For advanced rolling element bearing analysis to detect defects early.
Q9: What is the power consumption?
A9: Approximately 7.7 W.
Q10: What is the physical size and weight of the monitor module?
A10: 241.3 x 24.4 x 241.8 mm, weighing 0.91 kg.
Related Models (Same Series)
| Model | Channels | I/O Type | Barrier Option | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 3500/40M-01 | 4 | Internal Termination | No | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/40M-02 | 4 | External Termination | No | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/40M-03 | 4 | Internal Termination | Yes | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M | 4 | Proximitor/Seismic | Optional | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/44M | 4 | Aeroderivative Monitor | No | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/46M | 4 | Hydro Monitor | No | 241.3 x 24.4 x 241.8 | 0.91 kg |
Popular Bently Nevada Models
| Model | Function | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface | – | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/32M | Relay Module | – | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/50 | Keyphasor Module | 2 | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/53M | Overspeed Detection | – | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/60 | Temperature Monitor | 6 | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/65 | Velocity Monitor | 4 | 241.3 x 24.4 x 241.8 | 0.91 kg |
