Product Introduction

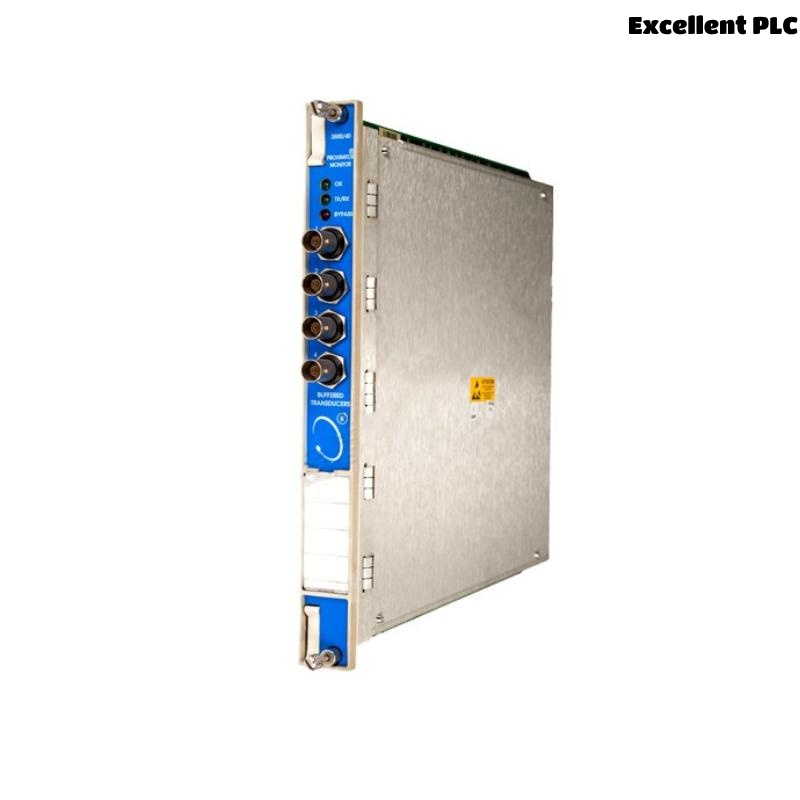

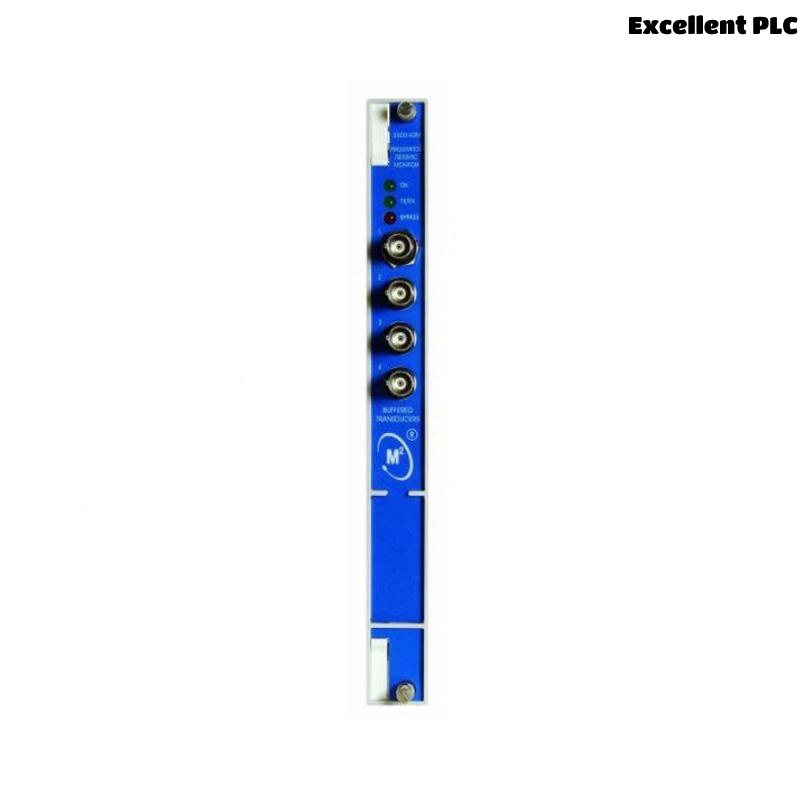

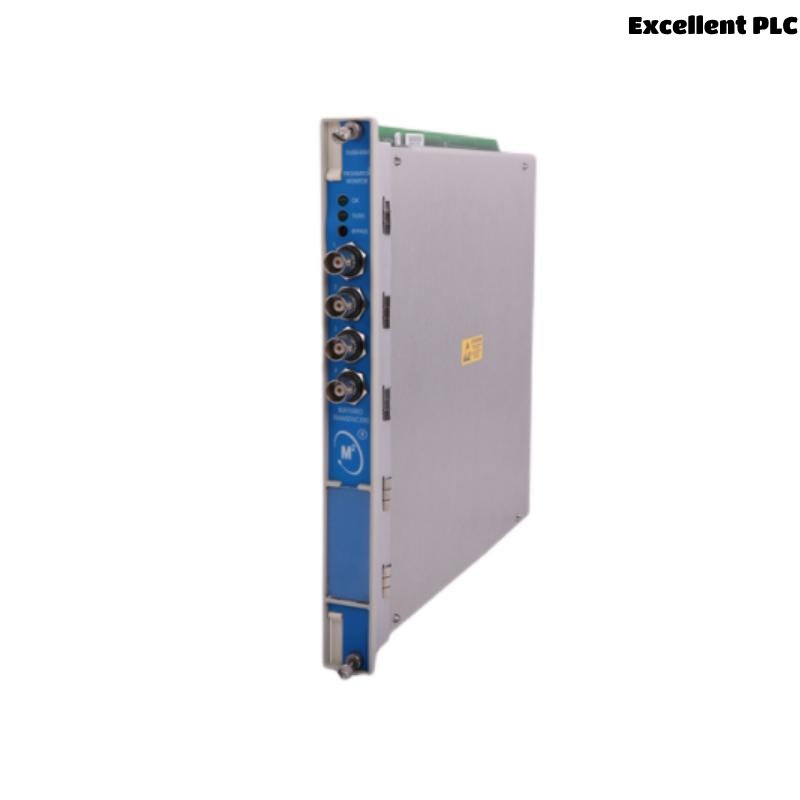

The Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor is a high-performance signal conditioning module designed to amplify and process signals from vibration, proximity, and acceleration transducers. It is a critical component in the Bently Nevada 3500 Series of machinery monitoring systems, providing high-precision amplification and signal conditioning for accurate monitoring of critical rotating machinery.
The module offers superior signal quality and noise immunity, enabling precise detection of mechanical faults like imbalance, misalignment, bearing damage, and other issues that could lead to unplanned downtime. By conditioning the signals from transducers, the 3500/40M-01-01 ensures reliable and stable data for continuous monitoring and early detection of potential issues, supporting predictive maintenance strategies.
With its robust design and ability to operate in challenging industrial environments, the 3500/40M-01-01 module is suitable for a variety of applications in industries such as power generation, petrochemical, manufacturing, and heavy machinery, where operational reliability is critical.
Product Parameters
The technical specifications of the Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Power Supply | 24V DC ± 20% |
| Input Type | Vibration, proximity, or acceleration transducers |
| Output Type | Analog output, conditioned signals |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted, compatible with Bently Nevada 3500 Series |
| Power Consumption | 5W |
| Signal Conditioning | High-gain signal amplification and filtering |
| Compatibility | Compatible with Bently Nevada 3500 Series modules |
Product Applications
The 3500/40M-01-01 Pre-Amplifier Monitor is designed for applications requiring precise amplification and conditioning of signals from vibration, proximity, and acceleration transducers. Common uses include:
-
Turbine Monitoring: In turbine applications, the 3500/40M-01-01 module amplifies and conditions signals from vibration sensors, enabling the early detection of imbalance, misalignment, and bearing failure.
-
Compressor Systems: Used in compressors to monitor vibration and proximity transducers, the module helps identify faults like cavitation or mechanical wear before they cause significant damage.
-
Pump Systems: The pre-amplifier ensures proper signal conditioning for pump systems, enabling accurate detection of early signs of cavitation, misalignment, and other mechanical issues.
-
Motor Health Monitoring: In motors, the module processes signals from vibration and proximity sensors to detect issues such as bearing faults, imbalance, or misalignment.
-
Power Generation: The 3500/40M-01-01 module plays an essential role in power plants, where it amplifies signals from turbines, generators, and other equipment to detect failures early and ensure continuous operation.
-
Industrial Equipment: Ideal for various types of industrial machinery, this module enables efficient and reliable machinery health monitoring to support predictive maintenance strategies.
Product Advantages
-
High-Quality Signal Conditioning: The 3500/40M-01-01 module provides high-gain signal amplification and noise filtering, ensuring high-quality and accurate signal data from vibration and proximity transducers.
-
Reliable Performance in Harsh Environments: With an operating temperature range of -40°C to +70°C and resistance to high humidity, the module is designed for reliable performance in the most demanding industrial conditions.
-
Compact Design: At 241.3 x 24.4 x 241.8 mm and weighing just 0.91 kg, the module is compact and space-efficient, making it easy to integrate into existing control systems without adding unnecessary bulk.
-
Energy Efficient: Operating at just 5W of power, the 3500/40M-01-01 is an energy-efficient solution for continuous machinery health monitoring.
-
Easy Integration: The module is fully compatible with the Bently Nevada 3500 Series, ensuring easy integration with other components of the system for a comprehensive monitoring solution.
-
Enhanced Diagnostics: By conditioning and amplifying sensor signals, the module improves diagnostics, helping operators identify mechanical issues early and minimize downtime.
-
Wide Transducer Compatibility: The 3500/40M-01-01 works with a wide range of vibration, proximity, and acceleration transducers, making it a versatile solution for many industrial applications.
-
Long-Lasting Durability: Built with high-quality materials and a robust design, the 3500/40M-01-01 ensures long-lasting durability, even in challenging operational environments.
FAQs
-
What is the main function of the Bently Nevada 3500/40M-01-01 Pre-Amplifier Monitor?
The module amplifies and conditions the signals from vibration, proximity, and acceleration transducers, providing accurate machinery health monitoring and diagnostics. -
What types of transducers are compatible with the 3500/40M-01-01?
The module works with vibration, proximity, and acceleration transducers, making it versatile for a variety of industrial applications. -
What is the input signal type for the 3500/40M-01-01?
The module accepts input signals from vibration, proximity, and acceleration transducers. -
How is the 3500/40M-01-01 mounted?
The module is rack-mounted and is compatible with other components of the Bently Nevada 3500 Series. -
What is the power supply requirement for the 3500/40M-01-01?
The module requires a 24V DC power supply with a ± 20% tolerance. -
What is the temperature range for the 3500/40M-01-01?
The module operates in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments. -
What is the power consumption of the 3500/40M-01-01?
The module consumes 5W of power, providing an energy-efficient solution for continuous monitoring. -
How does the 3500/40M-01-01 help with predictive maintenance?
By amplifying and conditioning sensor signals, the module enables the early detection of mechanical issues, helping operators plan maintenance activities more effectively. -
What is the weight of the 3500/40M-01-01?
The module weighs 0.91 kg, making it easy to handle and integrate into existing systems. -
What is the output type of the 3500/40M-01-01?
The module provides analog output with conditioned signals that can be used for further analysis and diagnostics.
