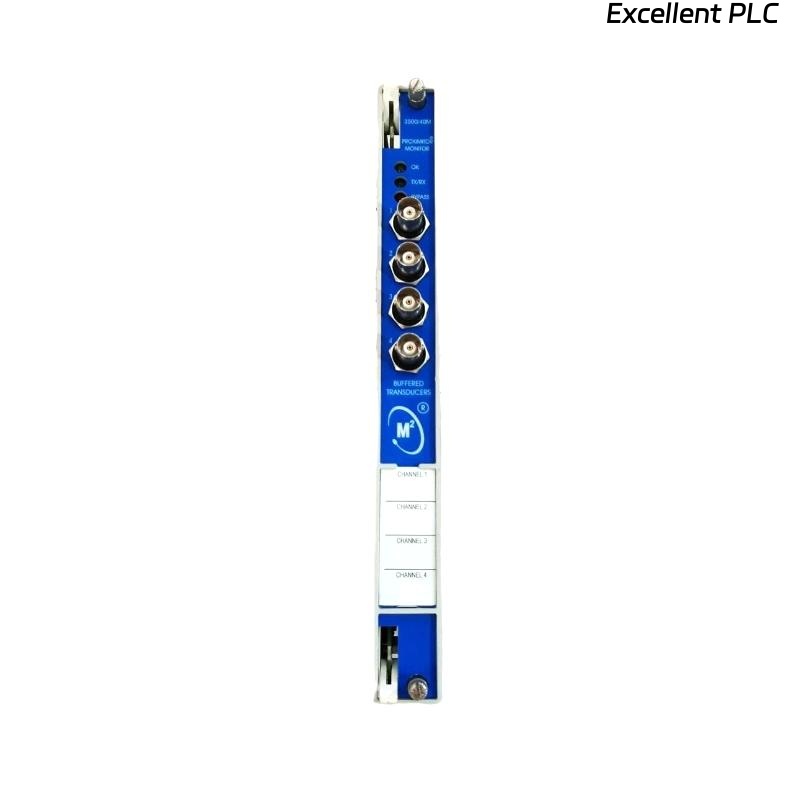

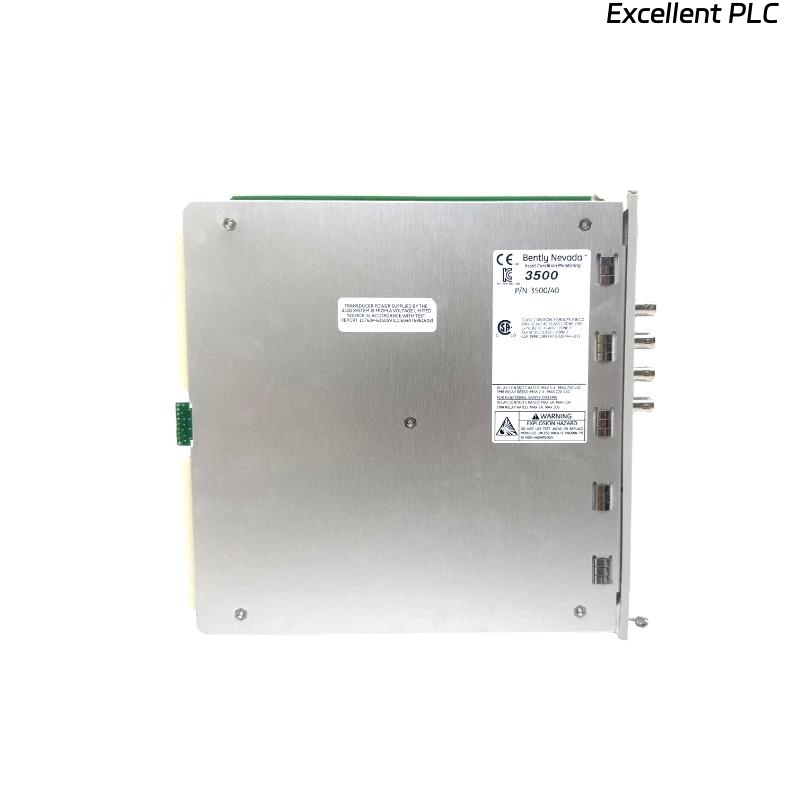

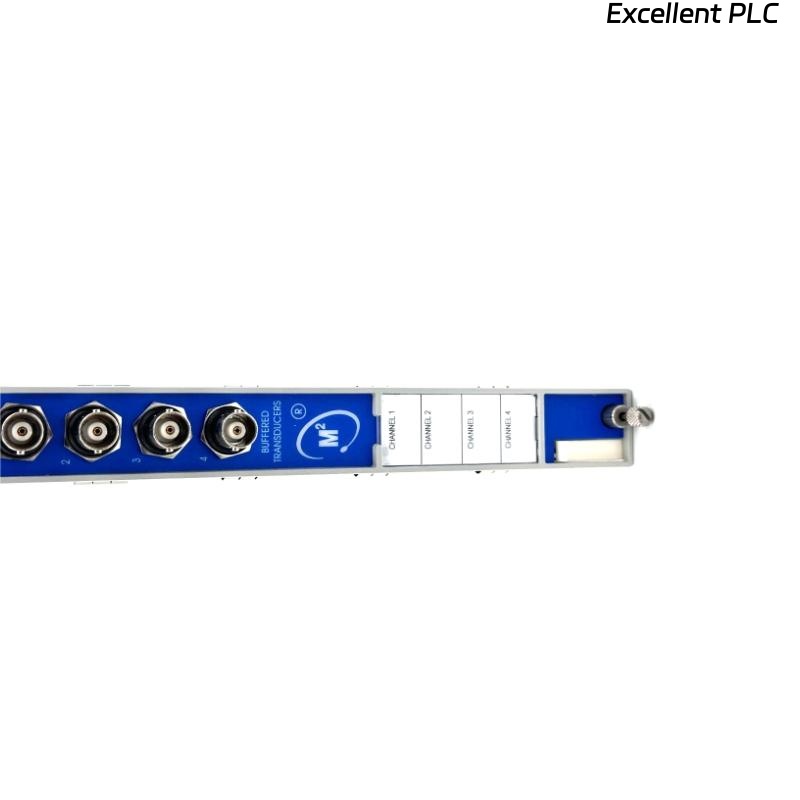

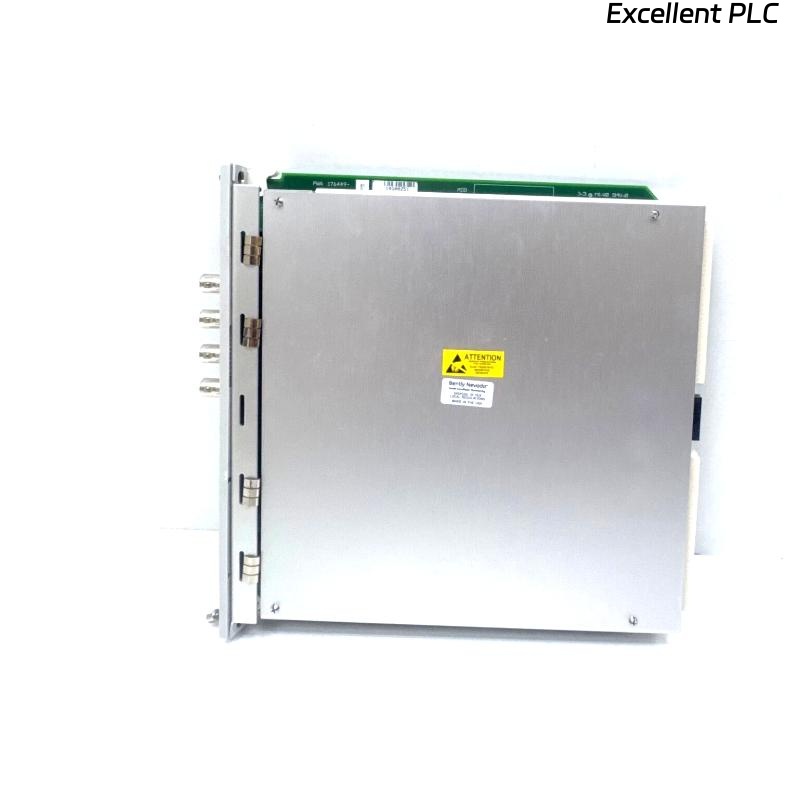

Bently Nevada 3500/40M 176449-01 Proximitor Monitor

Manufacturer:Bently Nevada

Product Number:3500/40M 176449-01

Product Type:Proximitor Monitor

Origin:USA

Dimensions:241.3 x 24.4 x 241.8 mm

Weight:0.91 kg

Views:108

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Bently Nevada 3500/40M 176449-01 Proximitor Monitor

Product Overview

The Bently Nevada 3500/40M 176449-01 Proximitor Monitor is a four-channel machinery protection and condition monitoring device. It processes signals from proximity transducers to measure vibration, position, and other key parameters, and compares them with configurable alarm setpoints. Designed for continuous monitoring, it delivers critical machine health information for operational and maintenance decisions. Channels are programmable in pairs, supporting multiple measurement functions simultaneously.


Product Features

  • Supports Radial Vibration, Eccentricity, Thrust Position, Differential Expansion, and REBAM.

  • User-programmable alarms with both Alert and Danger setpoints.

  • Multiple filtering options including Direct, Gap, Not 1X, 1X, 2X, and Smax filtering.

  • Buffered transducer outputs for each channel with short-circuit protection.

  • Suitable for hazardous environments with multiple certification options.

  • Compatible with 3500 Rack Configuration Software for flexible setup.


Technical Specifications

Parameter Specification
Input Channels 1 to 4 proximity transducer signals
Power Consumption 7.7 W typical
Input Impedance 10 kΩ (Proximitor and acceleration inputs)
Sensitivity Radial Vibration/Thrust/Eccentricity: 3.94 or 7.87 mV/μm; Differential Expansion: 0.394 or 0.787 mV/μm; REBAM: 40 or 80 mV/μm
Outputs Buffered transducer outputs, -24 Vdc transducer power
Frequency Response User-programmable ranges depending on function
Alarm Accuracy ±0.13% of setpoint value
Operating Temperature -30°C to +65°C (varies with I/O module type)
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Dimensions 241.3 × 24.4 × 241.8 mm
Weight 0.91 kg
Certifications FCC, EMC, ATEX, IECEx, CSA, ABS, DNV GL
Rack Space 1 full-height front slot for monitor, 1 full-height rear slot for I/O module

Applications

  • Turbomachinery protection and condition monitoring.

  • Measuring shaft radial vibration and displacement.

  • Monitoring axial thrust position.

  • Detecting rotor eccentricity and thermal growth.

  • Rolling element bearing fault detection via REBAM.

  • Integration in critical machinery systems in oil & gas, power generation, and marine sectors.


Advantages

  • Multi-Function Capability: Handles up to two measurement types simultaneously per module.

  • High Accuracy: ±0.33% full-scale typical for most parameters.

  • Programmable Flexibility: Fully configurable with rack software.

  • Robust Design: Operates in harsh industrial and offshore environments.

  • Compliance Ready: Meets global safety and EMC standards.

  • Maintenance Friendly: Buffered outputs allow easy diagnostics without interrupting monitoring.


FAQ

Q1: What is the primary function of the 3500/40M Proximitor Monitor?
A1: To measure and monitor machinery vibration, position, and related parameters, and to trigger alarms when readings exceed configured limits.

Q2: How many channels does the 176449-01 version support?
A2: It supports four channels, configurable in pairs.

Q3: Can it handle multiple measurement types at once?
A3: Yes, it can perform up to two measurement functions simultaneously, one per channel pair.

Q4: What type of sensors does it work with?
A4: It accepts input from Bently Nevada proximity transducers.

Q5: Is it suitable for hazardous environments?
A5: Yes, it is available with ATEX, IECEx, CSA, and other hazardous area approvals.

Q6: What is REBAM used for?
A6: REBAM (Rolling Element Bearing Analysis Module) detects bearing faults by analyzing specific vibration signals.

Q7: Does it provide real-time monitoring?
A7: Yes, it continuously compares measured parameters with alarm setpoints for real-time protection.

Q8: What is the operating temperature range?
A8: From -30°C to +65°C, depending on I/O module configuration.

Q9: How accurate are the alarm setpoints?
A9: Alarm setpoints have an accuracy within ±0.13% of the desired value.

Q10: Can it integrate into an existing 3500 rack?
A10: Yes, it is designed to fit into the Bently Nevada 3500 rack system.


Related Models (Same Series or Similar)

Model Description Dimensions (mm) Weight
3500/40 Proximitor Monitor (previous gen) 241.3 × 24.4 × 241.8 0.91 kg
3500/42M Proximitor Seismic Monitor 241.3 × 24.4 × 241.8 0.91 kg
3500/44M Aeroderivative GT Vibration Monitor 241.3 × 24.4 × 241.8 0.91 kg
3500/46M Hydro Monitor 241.3 × 24.4 × 241.8 0.91 kg
3500/50 Keyphasor Module 241.3 × 24.4 × 241.8 0.91 kg
3500/53 Overspeed Detection Module 241.3 × 24.4 × 241.8 0.91 kg

Popular Bently Nevada Models

Model Description Dimensions (mm) Weight
3300 XL 8 mm Proximity Probe Shaft vibration measurement Varies 0.05 kg
3500/92 Communication Gateway 241.3 × 24.4 × 241.8 0.91 kg
3500/25 Keyphasor Module 241.3 × 24.4 × 241.8 0.91 kg
3500/22M Transient Data Interface 241.3 × 24.4 × 241.8 0.91 kg
3500/15 Power Supply Module 241.3 × 24.4 × 241.8 0.91 kg
330400 Velomitor Velocity Sensor 80 × 25 × 25 0.2 kg
