Product Overview

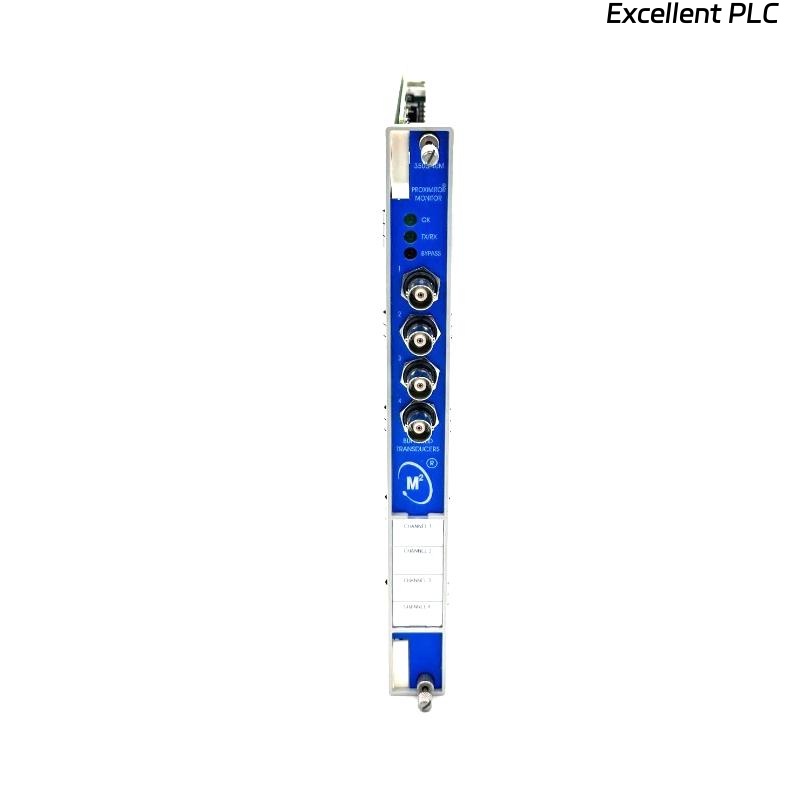

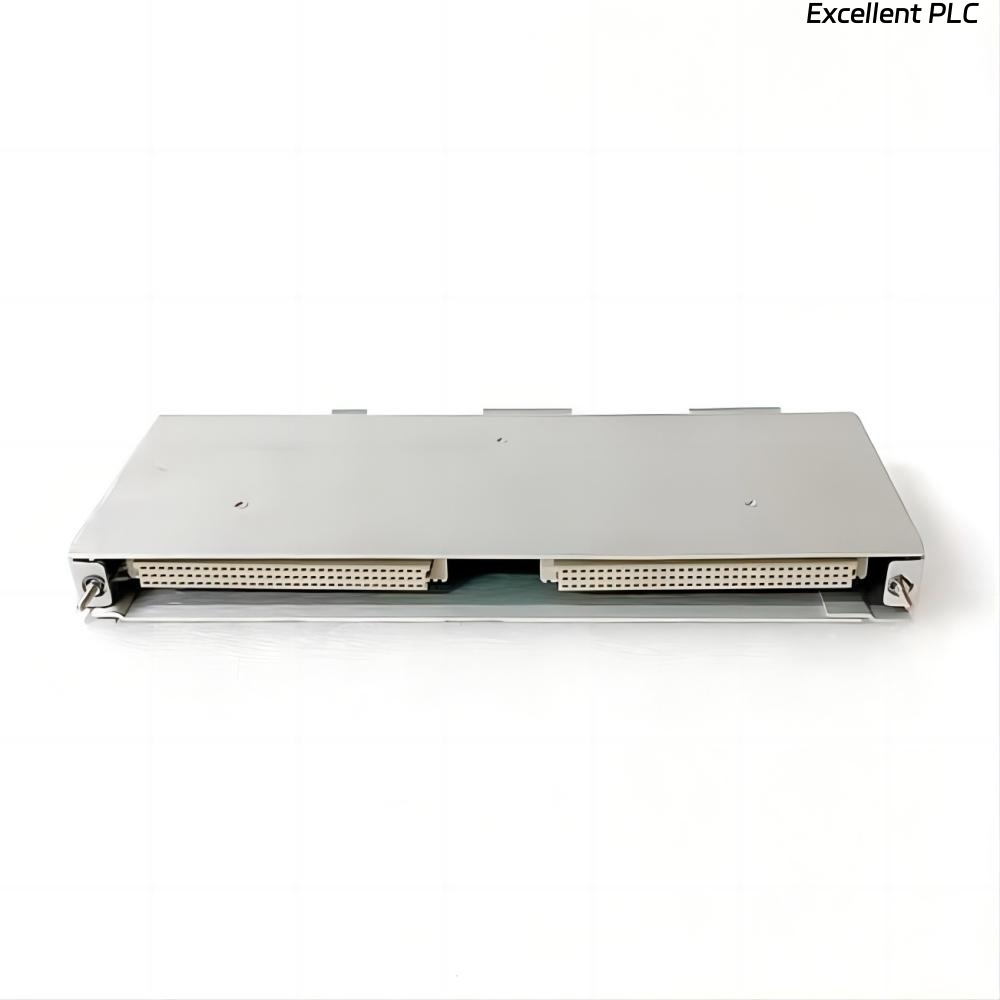

The Bently Nevada 3500/40M Proximitor Monitor is a four-channel vibration and position monitoring module designed for use with proximity transducers. It processes input signals, provides various static and dynamic measurements, and compares them to user-defined alarm thresholds for reliable machinery protection. It supports functions such as radial vibration, thrust position, eccentricity, differential expansion, and REBAM (Rolling Element Bearing Analysis Measurement).
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 independent channels, configurable in pairs |
| Supported Functions | Radial Vibration, Thrust Position, Eccentricity, Differential Expansion, REBAM |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ |
| Sensitivity | 3.94 mV/µm or 7.87 mV/µm (Radial, Thrust, Eccentricity) |
| Frequency Response | User-programmable filters, up to 15.8× running speed |
| Alarm Setpoints | Adjustable 0–100% full-scale, user-configurable |
| Operating Temperature | -30°C to +65°C (standard I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Certifications | FCC, EMC, LV, RoHS, ABS, DNV GL, ATEX, IECEx, CSA |
Applications
-
Continuous protection of rotating machinery such as turbines, compressors, and pumps
-
Monitoring of shaft vibration, position, and bearing health
-
Industrial process reliability assurance in oil & gas, petrochemical, and power generation
-
Advanced diagnostics for predictive maintenance programs
Advantages
-
Multi-function capability within a single module
-
High measurement accuracy (±0.33% typical)
-
Configurable alarms for early fault detection
-
Broad environmental tolerance for harsh conditions
-
Fully compatible with Bently Nevada 3500 Series machinery protection systems
-
Compliance with multiple global certifications for industrial and hazardous areas
FAQ
Q1: What is the primary function of the 3500/40M Proximitor Monitor?
A1: To measure and protect machinery by processing proximity transducer signals for vibration, position, and bearing analysis.
Q2: How many channels does this module support?
A2: It supports four channels, configurable in two pairs.
Q3: Can the module monitor different parameters on different channels?
A3: Yes, channels 1 and 2 can monitor one function while channels 3 and 4 monitor another.
Q4: What is REBAM in the 3500/40M?
A4: REBAM stands for Rolling Element Bearing Analysis Measurement, used for bearing fault diagnostics.

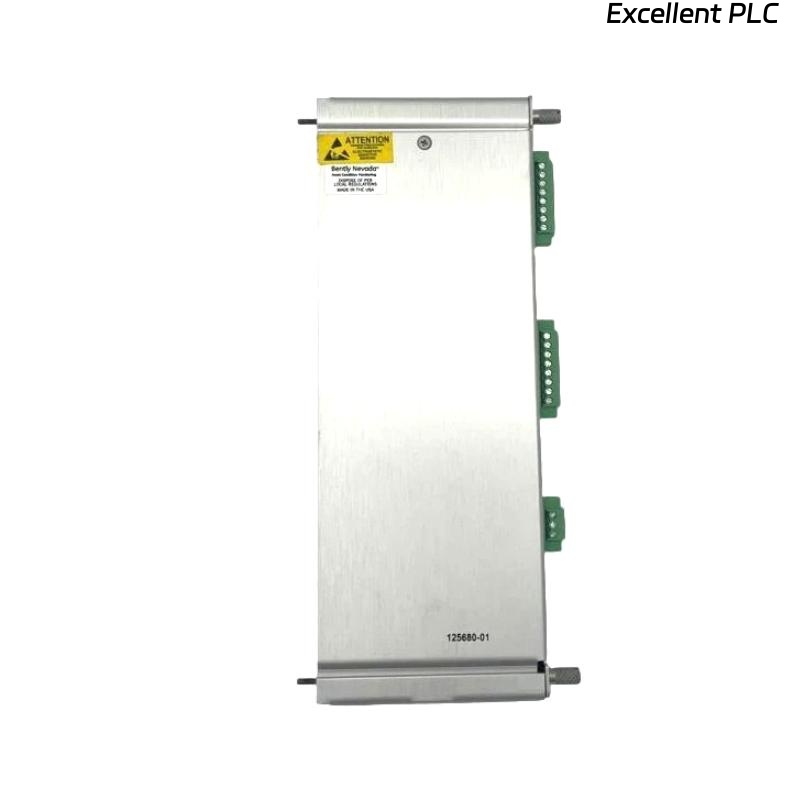

Q5: What type of I/O module is included in 176449-01 + 125680-01?
A5: It includes the Proximitor I/O Module with Internal Terminations.
Q6: What is the accuracy of measurements?
A6: Typically within ±0.33% of full scale.
Q7: Is it suitable for hazardous area applications?
A7: Yes, it has ATEX, IECEx, and CSA approvals for Class I, Zone 2 installations.
Q8: What is the operating temperature range?
A8: -30°C to +65°C for standard I/O configurations.
Q9: How are alarms configured?
A9: Through the 3500 Rack Configuration Software, with adjustable alert and danger setpoints.
Q10: Can it be integrated into existing 3500 racks?
A10: Yes, it is fully compatible with the Bently Nevada 3500 Series system.
