Product Overview

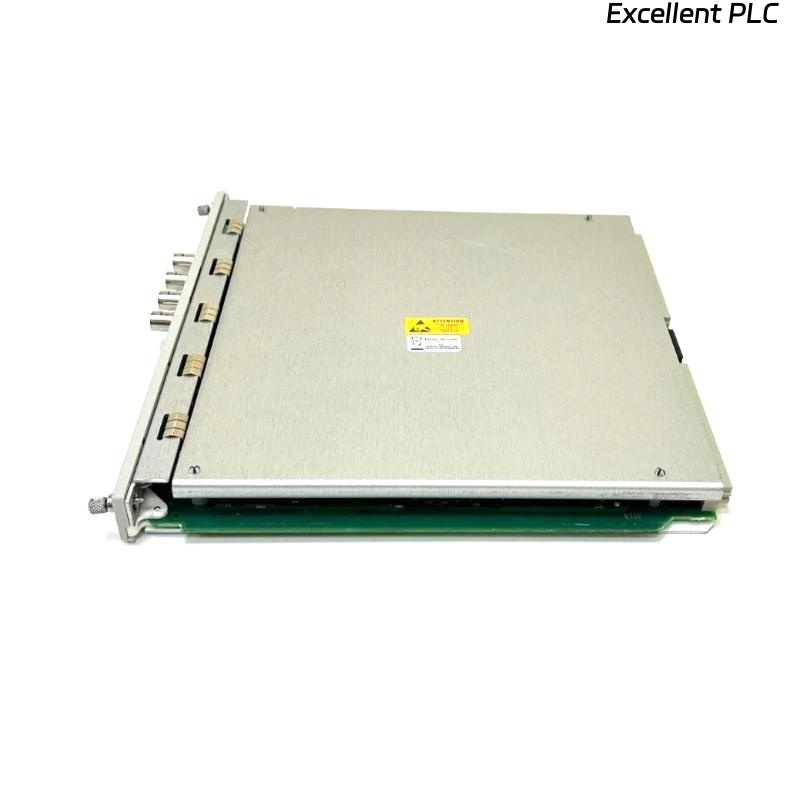

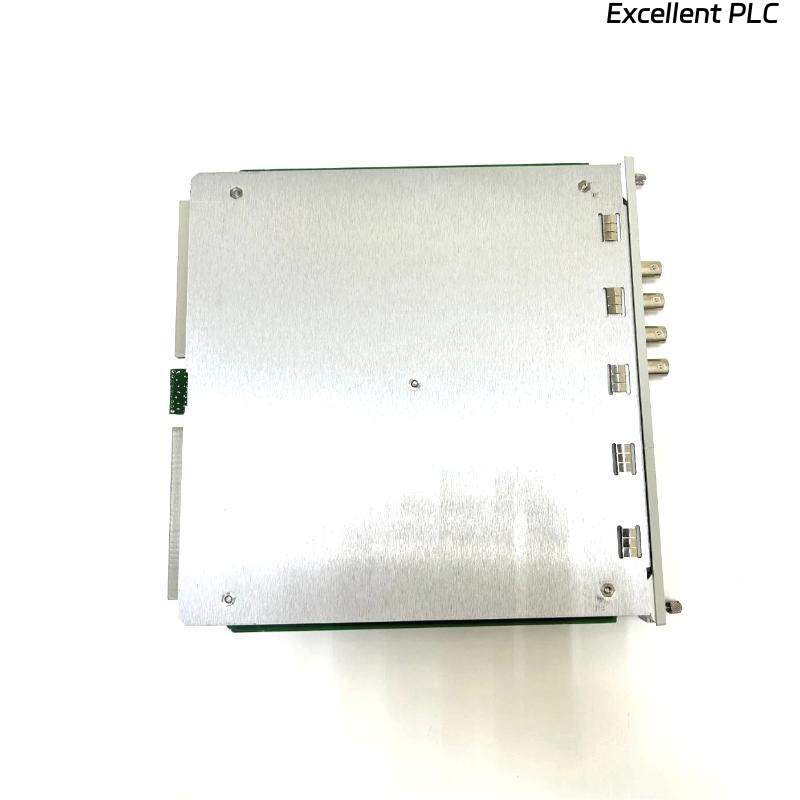

The Bently Nevada 3500/42-04-02 is a high-performance monitoring module designed to measure and analyze vibration and seismic parameters in critical rotating machinery. It is part of the 3500 machinery protection system and offers real-time monitoring for both proximitor and seismic transducer inputs. This ensures early detection of mechanical issues, reducing unplanned downtime and preventing catastrophic equipment failures.
Product Specifications
| Parameter | Value |
|---|---|
| Module Type | Proximitor / Seismic Monitor |
| Channels | 2 (per module) |
| Input Types | Proximitor® or Seismic transducers |
| Signal Processing | True peak, RMS, 1X, 2X, gap measurements |
| Transducer Power Supply | Integrated |
| Communication | Through 3500 rack system |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Mounting | 3500 Series rack |
| Operating Temperature | -30°C to +65°C |
| Certifications | CE, CSA, ATEX (varies with configuration) |
Applications
-
Steam Turbines – Detects imbalance, misalignment, and bearing faults.
-
Gas Turbines – Monitors casing vibrations and rotor displacement.
-
Compressors – Identifies early-stage faults such as surge-induced vibration.
-
Pumps – Ensures smooth operation by monitoring bearing wear and cavitation.
-
Gearboxes – Detects gear mesh defects and lubrication issues.
-
Industrial Fans – Monitors operational vibration for preventive maintenance.
Key Advantages
-
Dual Monitoring Capability – Supports both proximitor and seismic measurements.
-
Advanced Signal Processing – Accurate RMS and peak measurements for precise diagnostics.
-
High Reliability – Designed for continuous industrial operation in harsh environments.
-
Seamless Integration – Fully compatible with the 3500 Series machinery protection system.
-
Flexible Configuration – Allows user-defined alarm and trip settings.
-
Proven Field Performance – Trusted in critical rotating equipment worldwide.
FAQ
-
Q: What is the main function of the 3500/42-04-02?
A: To monitor vibration and seismic parameters for machinery protection. -
Q: How many channels does the module support?
A: It supports 2 independent monitoring channels. -
Q: Can it work with both proximitor and seismic transducers?
A: Yes, it supports both input types. -
Q: What are its common industrial applications?
A: Turbines, compressors, pumps, gearboxes, and industrial fans. -
Q: Does it support alarm and trip functions?
A: Yes, it can trigger alarms and shutdowns via the 3500 rack. -
Q: What is its operating temperature range?
A: -30°C to +65°C. -
Q: Is it compatible with other 3500 modules?
A: Yes, it integrates fully into the 3500 rack system. -
Q: Does it provide real-time monitoring?
A: Yes, continuous real-time vibration and displacement monitoring. -
Q: What is the power supply requirement for the transducer?
A: The module provides integrated transducer power supply. -
Q: Can it be used in hazardous environments?
A: Yes, certain configurations meet ATEX and CSA standards.
Related Models (Same Series or Similar Function)
| Model No. | Description | Channels | Input Type |
|---|---|---|---|
| 3500/42M | Proximitor/Seismic Monitor | 2 | Proximitor & Seismic |
| 3500/46M | Hydro Monitor | 2 | Hydro Turbine Sensors |
| 3500/45 | Position Monitor | 2 | Proximitor |
| 3500/40M | Proximitor Monitor | 2 | Proximitor |
| 3500/50 | Tachometer Module | 1 | Speed Sensors |
| 3500/60 | Temperature Monitor | 6 | RTD/Thermocouple |
