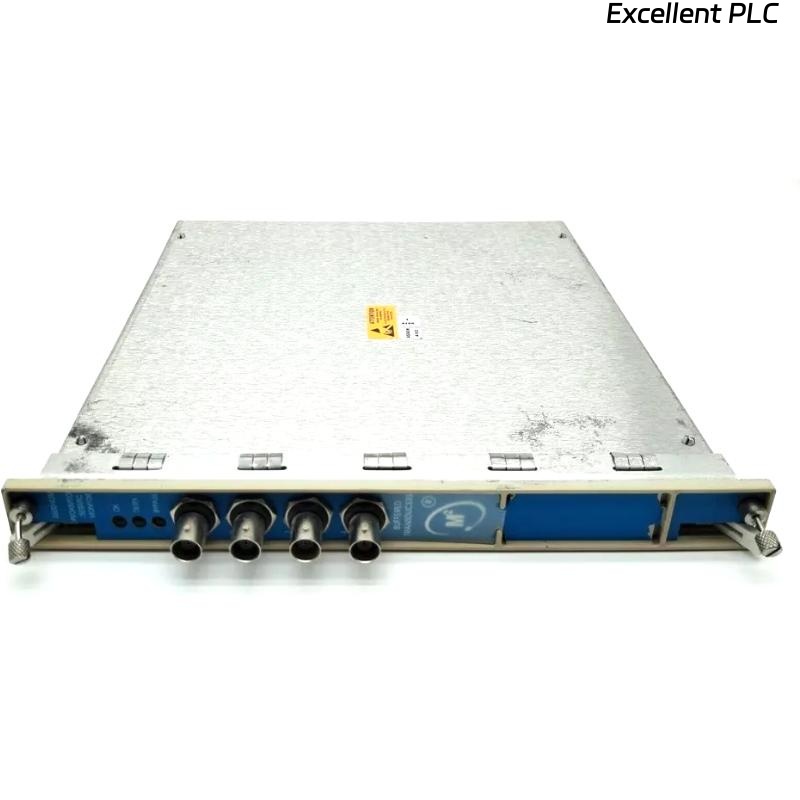

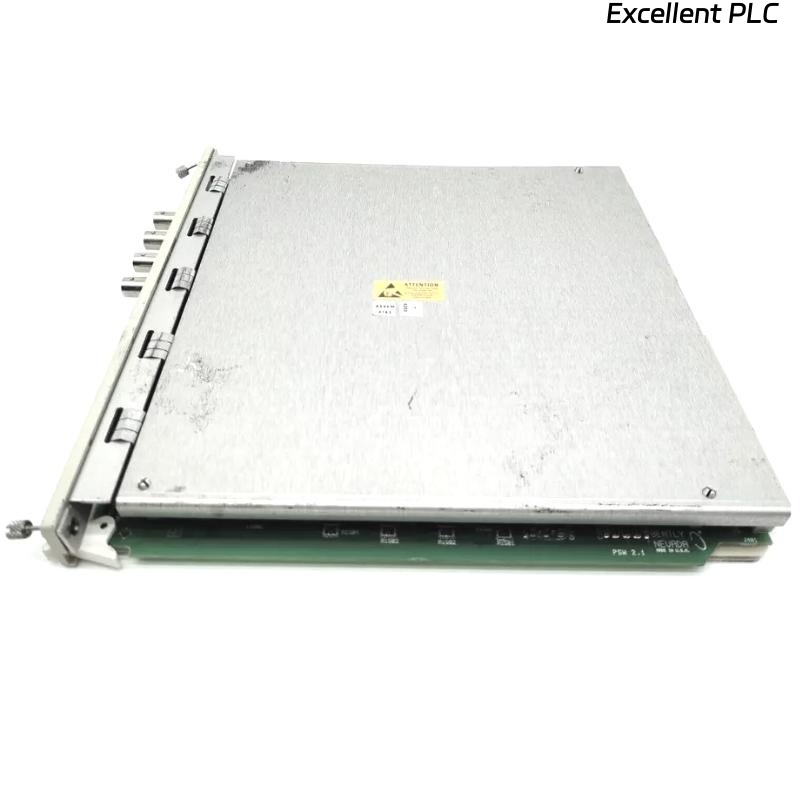

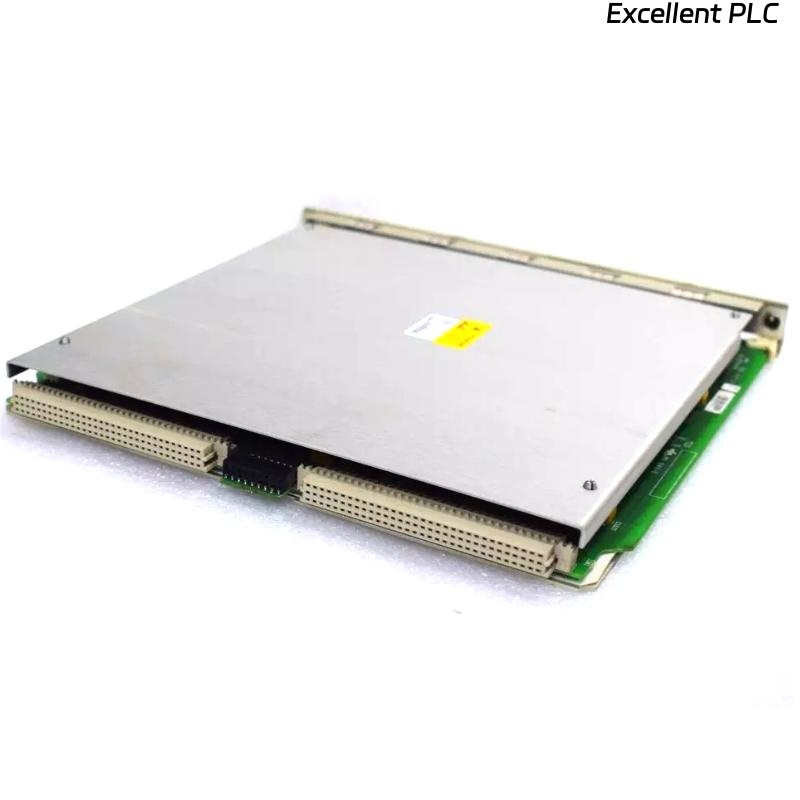

Bently Nevada 3500/42 140734-02 Product Introduction
The Bently Nevada 3500/42 140734-02 is a high-performance vibration monitor module designed for critical machinery protection and condition monitoring. It is part of the renowned Bently Nevada 3500 series, which is widely used in industries such as oil & gas, power generation, and chemical processing. This module provides reliable and accurate vibration measurements, ensuring the safe operation of rotating equipment by detecting abnormalities early.
Product Parameters
The technical specifications of the Bently Nevada 3500/42 140734-02 are as follows:
| Parameter | Specification |
|---|---|
| Model Number | 3500/42 140734-02 |
| Input Channels | 2 (supports multiple sensor types) |
| Measurement Range | 0-20 mm/s or 0-500 µm (configurable) |
| Frequency Response | 0.5 Hz to 10 kHz |
| Accuracy | ±1% of full scale |
| Power Supply | 18-32 VDC |
| Operating Temperature | -30°C to +70°C |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Communication | RS-232/RS-485, Modbus protocol |
| Certifications | ATEX, IECEx, SIL 2 compliant |
Product Applications
The Bently Nevada 3500/42 140734-02 is ideal for:
-
Industrial Rotating Equipment: Monitors turbines, compressors, pumps, and motors.
-
Power Plants: Ensures the reliability of generators and steam turbines.
-
Oil & Gas: Protects critical machinery in refineries and pipelines.
-
Chemical Processing: Safeguards mixers, reactors, and other high-speed equipment.
-
Water Treatment: Monitors pumps and blowers to prevent failures.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Flexible Configuration: Supports multiple sensor types and measurement ranges.
-
Advanced Diagnostics: Includes self-test features and alarm capabilities.
-
Compliance: Meets international safety and performance standards.
-
Easy Integration: Compatible with existing Bently Nevada 3500 systems.
Frequently Asked Questions (FAQ)
-
What sensors are compatible with the 3500/42 module?
It supports proximity probes, accelerometers, and velocity sensors. -
Can this module be used in hazardous areas?
Yes, it is ATEX and IECEx certified for hazardous environments. -
What is the operating voltage range?
18-32 VDC. -
How many alarm relays does it have?
It supports up to 4 programmable alarm relays. -
Is the module SIL compliant?
Yes, it meets SIL 2 requirements. -
What is the typical response time for alarms?
Less than 10 milliseconds. -
Can it be integrated with DCS systems?
Yes, via RS-485/Modbus or other communication protocols. -
What is the warranty period?
Typically 12 months, depending on the supplier. -
How often should calibration be performed?
Recommended annually or as per operational conditions. -
Does it support firmware updates?
Yes, firmware can be updated for enhanced functionality.
Recommended Related Models
| Model Number | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/25 | Enhanced Keyphasor Module |
| 3500/32 | 16-Channel Relay Module |
| 3500/40M | Proximitor Seismic Monitor |
| 3500/45 | Dual-Channel Temperature Monitor |
| 3500/92 | Communication Gateway |
