Bently Nevada 3500/42M-01 Proximitor Seismic Monitor

Product Introduction

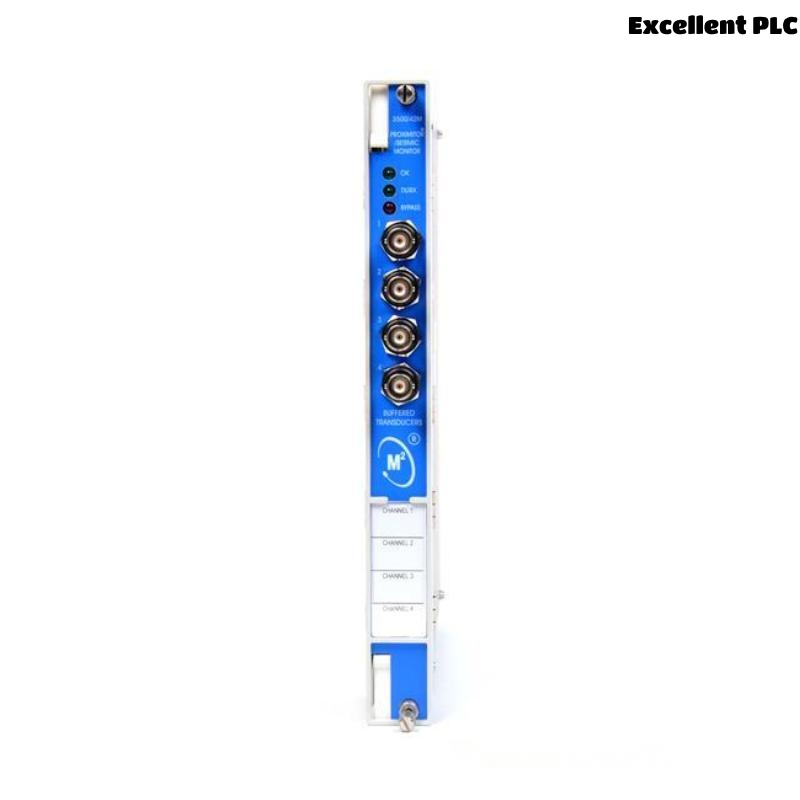

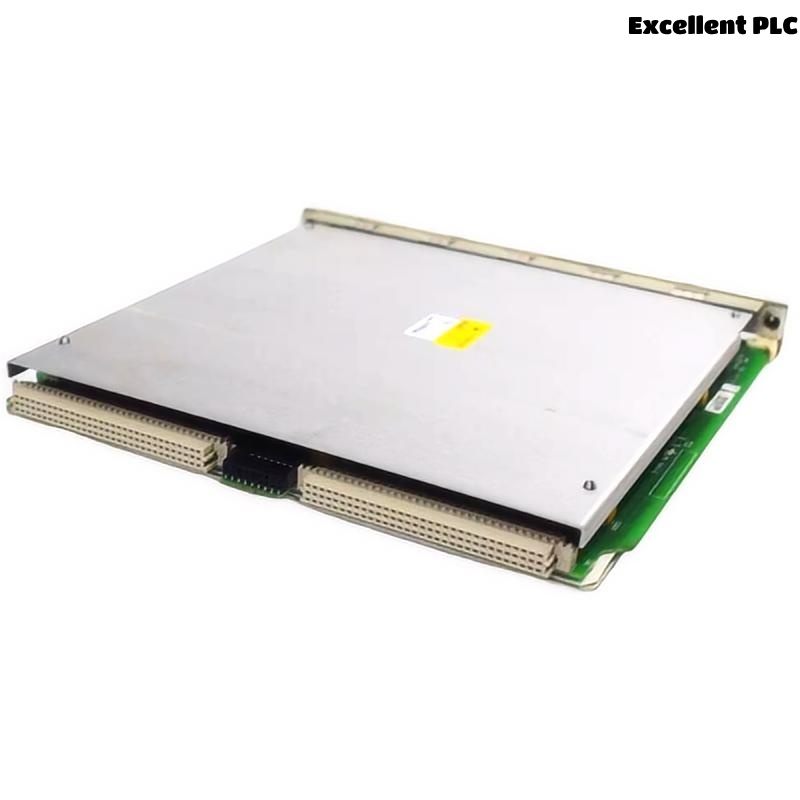

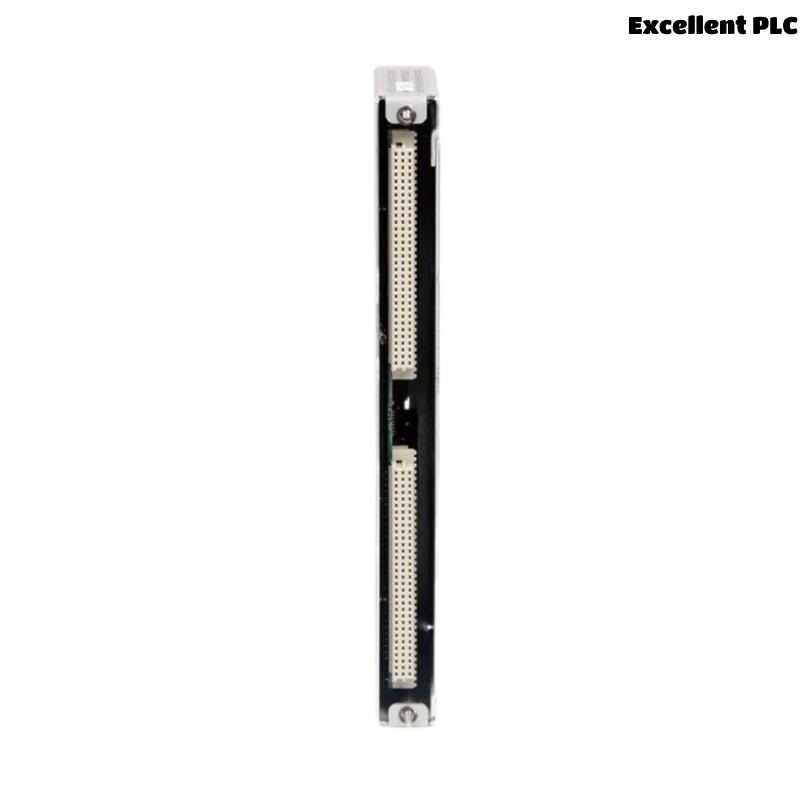

The Bently Nevada 3500/42M-01 Proximitor/Seismic Monitor is an integral component of the 3500 Series Machinery Protection System, specifically engineered to monitor critical dynamic and position parameters in rotating and reciprocating machinery. It offers up to four independent channels that can be individually configured to process input from proximity transducers or seismic transducers.

The 3500/42M-01 is ideal for applications requiring advanced vibration analysis, axial thrust monitoring, rod position detection, and casing vibration tracking. With its modular design and seamless integration into the 3500 system rack, this monitor delivers real-time condition data and supports plant-wide reliability programs with the highest standards of industrial protection.

Its configuration flexibility, wide compatibility with Bently Nevada sensors, and industry-standard alarm capabilities make it one of the most deployed monitoring modules for turbomachinery and process-critical rotating equipment across oil & gas, power generation, and heavy industry.


Product Specifications

Specification Details
Model Number 3500/42M-01
Module Type Proximitor/Seismic Monitor
Channels 4 independently configurable channels
Input Signal Types Proximity probe, accelerometer, velocity transducer
Compatible Sensors Bently Nevada 3300 XL, 7200 series, velocity/acceleration sensors
Measurement Types Radial Vibration, Axial Thrust, Position, Rod Drop, Seismic Vibration
Frequency Response 0.5 Hz – 20 kHz (sensor dependent)
Alarm Setpoints per Channel 2 (Alert and Danger thresholds)
Signal Outputs Buffered dynamic signal and proportional 4–20 mA (optional)
Diagnostic Features Sensor OK, Not OK, signal dropouts, configuration errors
Configuration Through 3500 Configuration Software
Communication Interface Through 3500/22M TDI
Power Consumption < 6.5 Watts
Mounting 3500 rack-mounted (slots 3–14)
Hot Swappable Yes
Dimensions (W x H x D) 241.3 x 24.4 x 241.8 mm
Weight 0.91 kg
Operating Temperature Range -30°C to +65°C
Storage Temperature Range -40°C to +85°C
Humidity 0–95% RH, non-condensing
Certifications CE, CSA, ATEX, IECEx
System Compatibility Fully compatible with Bently Nevada 3500 Series

Product Applications

The 3500/42M-01 is purpose-built for machinery protection in industries where vibration, thrust, and position measurements are vital to operational integrity. Key application areas include:

  • Steam & Gas Turbines
    Monitors vibration and shaft position to prevent critical failure.

  • Compressors (Centrifugal & Reciprocating)
    Detects mechanical imbalance, rotor instability, and piston rod drop.

  • Industrial Pumps
    Tracks excessive vibration or shaft movement caused by wear or cavitation.

  • Electric Motors & Generators
    Ensures bearing health and balanced rotor operation through dynamic signal analysis.

  • Petrochemical Plants
    Used for machinery interlock logic and predictive maintenance.

  • Nuclear & Fossil Power Plants
    Provides early fault detection for mission-critical rotating equipment.


Product Advantages

  • Dual Function Monitoring
    Capable of simultaneously monitoring both proximity and seismic sensors across four channels.

  • Flexible Channel Configuration
    Each channel can be independently configured for a wide variety of measurements.

  • Wide Sensor Compatibility
    Fully compatible with Bently Nevada’s trusted 3300 XL and 7200 series probes, as well as velocity and acceleration transducers.

  • Dynamic Buffered Outputs
    Includes buffered BNC outputs for dynamic signal analysis with portable equipment.

  • Field Proven Performance
    Used globally in critical applications for over two decades with proven reliability.

  • Redundant Safety and Voting Logic
    Supports redundancy and advanced alarm logic when integrated with relay and keyphasor modules.

  • Hot-Swappable Architecture
    Allows removal and replacement without system shutdown, improving uptime and maintainability.

  • Intelligent Diagnostics
    Reports sensor integrity, connection faults, and configuration status through the TDI and software interface.


Frequently Asked Questions (FAQ)

1. What types of sensors are supported by the 3500/42M-01?
It supports proximity probes (e.g., 3300 XL), accelerometers, and velocity transducers.

2. How many measurements can the module handle at once?
Up to four measurements on four independent channels, all simultaneously.

3. Can each channel be used for different measurement types?
Yes, each channel can be configured independently for vibration, position, or thrust monitoring.

4. How are alarms configured?
Each channel has two setpoints (Alert and Danger) configurable through 3500 software.

5. Does it support buffered output?
Yes, each channel provides a buffered dynamic signal via BNC connectors for analysis.

6. Can this module be used in hazardous locations?
Yes, it is certified for use in ATEX and IECEx classified hazardous areas.

7. Is it compatible with all proximity probes?
It is compatible with Bently Nevada 3300 XL and 7200 series probes and others with similar signal characteristics.

8. What happens if a sensor fails?
The module reports sensor “Not OK” status and can trigger an alarm or trip if configured.

9. How is the module configured?
Through Bently Nevada 3500 Configuration Software interfaced via the TDI module.

10. Is the module field-replaceable?
Yes, it is hot-swappable and can be replaced without powering down the rack.


Related Models from the Same Series

Model Description
3500/40M Proximitor Monitor (Proximity Only)
3500/25 Keyphasor Module
3500/32 4-Channel Relay Module
3500/22M Transient Data Interface (TDI)
3500/93 LCD Display Monitor
3500/15 Universal Power Supply Module

Popular Models from Bently Nevada

Model Description
330104-00-05-10-02-00 3300 XL Proximity Probe
330130-040-00-00 3300 XL Extension Cable
330180-91-00 High-Temperature Velocity Transducer
3500/42M Proximitor/Seismic Monitoring Module
3500/22M Transient Data Interface with Ethernet/RS232
3500/32 Relay Output Module for Alarm/Shutdown Control

Frequently Asked Questions (FAQ)

1. What types of sensors are supported by the 3500/42M-01?
It supports proximity probes (e.g., 3300 XL), accelerometers, and velocity transducers.

2. How many measurements can the module handle at once?
Up to four measurements on four independent channels, all simultaneously.

3. Can each channel be used for different measurement types?
Yes, each channel can be configured independently for vibration, position, or thrust monitoring.

4. How are alarms configured?
Each channel has two setpoints (Alert and Danger) configurable through 3500 software.

5. Does it support buffered output?
Yes, each channel provides a buffered dynamic signal via BNC connectors for analysis.

6. Can this module be used in hazardous locations?
Yes, it is certified for use in ATEX and IECEx classified hazardous areas.

7. Is it compatible with all proximity probes?
It is compatible with Bently Nevada 3300 XL and 7200 series probes and others with similar signal characteristics.

8. What happens if a sensor fails?
The module reports sensor “Not OK” status and can trigger an alarm or trip if configured.

9. How is the module configured?
Through Bently Nevada 3500 Configuration Software interfaced via the TDI module.

10. Is the module field-replaceable?
Yes, it is hot-swappable and can be replaced without powering down the rack.

Related Models from the Same Series

Model Description
3500/40M Proximitor Monitor (Proximity Only)
3500/25 Keyphasor Module
3500/32 4-Channel Relay Module
3500/22M Transient Data Interface (TDI)
3500/93 LCD Display Monitor
3500/15 Universal Power Supply Module

Popular Models from Bently Nevada

Model Description
330104-00-05-10-02-00 3300 XL Proximity Probe
330130-040-00-00 3300 XL Extension Cable
330180-91-00 High-Temperature Velocity Transducer
3500/42M Proximitor/Seismic Monitoring Module
3500/22M Transient Data Interface with Ethernet/RS232
3500/32 Relay Output Module for Alarm/Shutdown Control
