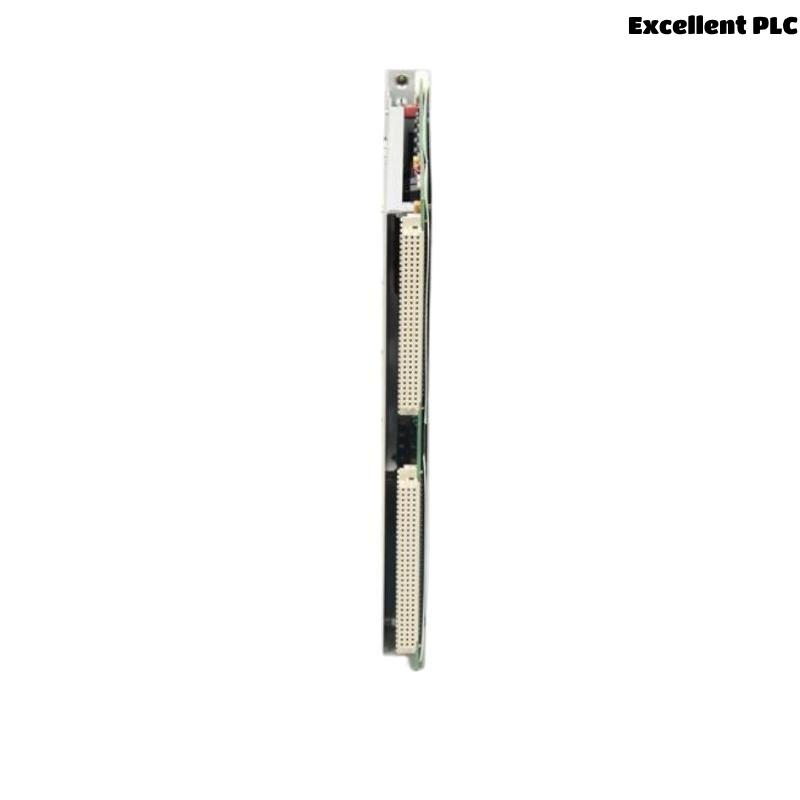

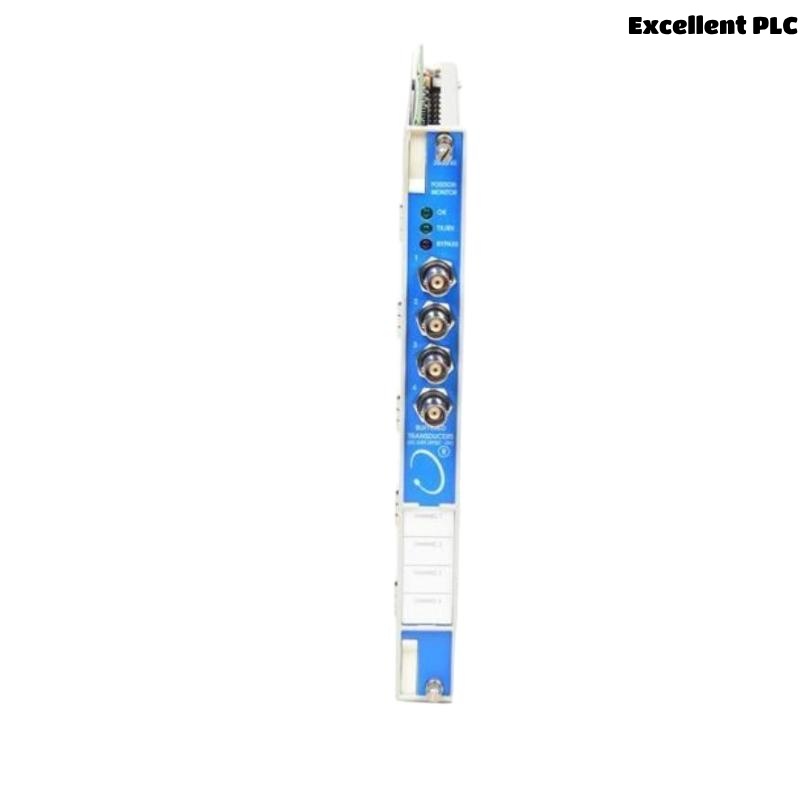

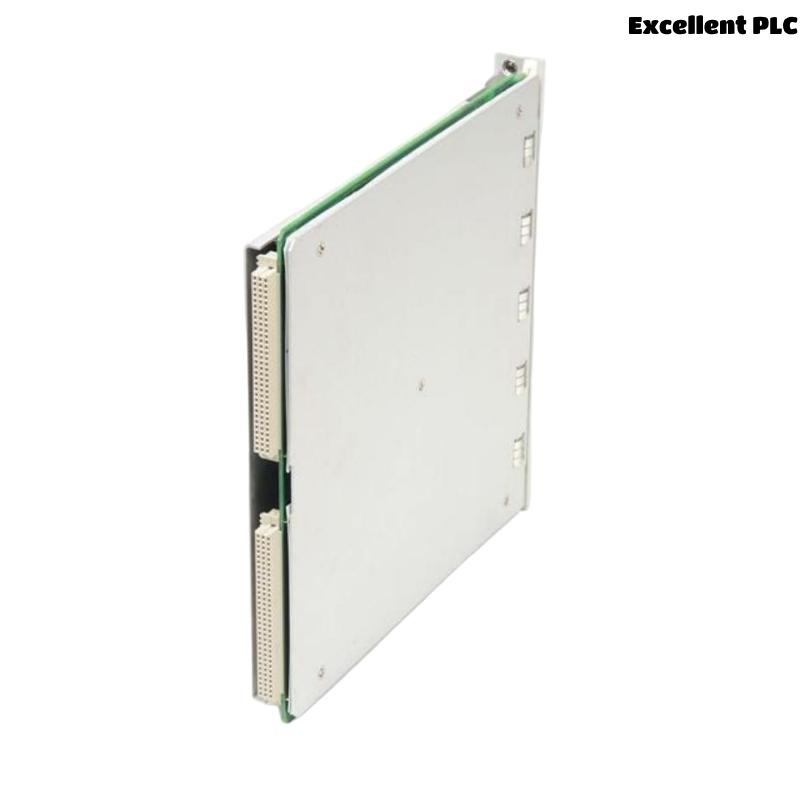

The Bently Nevada 3500/45-01-00 140734-04 Position Monitoring Module is a critical component of the Bently Nevada 3500 series, designed to monitor the position of rotating machinery in various industrial settings. This module is particularly effective at tracking displacement, angular position, and distance, which are essential for ensuring that machinery is operating correctly and within its specified tolerances. By detecting position anomalies, such as misalignment or displacement, the module helps prevent costly mechanical failures and extends the life of industrial equipment.
In industries where downtime can lead to significant losses, the 3500/45-01-00 140734-04 position monitoring module serves as a proactive solution, providing early detection of issues that could otherwise lead to catastrophic failure. It integrates seamlessly with other Bently Nevada monitoring systems, allowing for a centralized and efficient approach to machine health monitoring. Designed for demanding environments, the module excels in industries such as power generation, oil & gas, and heavy manufacturing, where precise monitoring is paramount for operational safety and efficiency.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Operating Voltage | 24 V DC |
| Signal Output | 4-20 mA, 0-10 V |
| Temperature Range | -40°C to +85°C |
| Mounting Type | Rail-mounted |
| Input Type | Differential / Single-ended |
| Compliance | CE, UL certified |
Applications
The Bently Nevada 3500/45-01-00 140734-04 Position Monitoring Module is widely used in industries where precise tracking of rotating components is crucial for preventing failures and optimizing machine performance. Some common applications include:
-
Power Generation: The module is used in power plants to monitor the position of turbines, pumps, and motors, ensuring that they remain within safe operating parameters and preventing misalignments or malfunctions.
-
Oil & Gas: On offshore platforms and in refineries, this module is applied to monitor the position of pumps, compressors, and other critical equipment, providing early warnings of potential misalignment or other mechanical issues.
-
Mining: In mining operations, the module helps track the position of heavy-duty machinery such as crushers, mills, and conveyors, ensuring that they are functioning properly and preventing mechanical damage.
-
Manufacturing: In automated manufacturing systems, the module tracks the position of motors, robotic arms, and conveyors, helping to maintain smooth operations and avoid production delays.
-
Transportation: The module is used in transportation systems, including railways, marine vessels, and aircraft, to monitor the position of engines, propulsion systems, and other rotating components.
-
Industrial Infrastructure: The 3500/45-01-00 module is used to monitor large infrastructure projects, such as bridges, dams, and tunnels, ensuring the proper alignment and operation of critical components.
Advantages
-
Highly Accurate Position Monitoring: The 3500/45-01-00 module offers precise position tracking, ensuring that machinery components are operating within their specified limits and preventing issues such as misalignment, wear, or mechanical stress.
-
Early Fault Detection: By monitoring position data in real-time, the module helps identify faults before they lead to catastrophic failures, minimizing downtime and repair costs.
-
Flexible Output Options: The module supports both 4-20 mA and 0-10 V outputs, allowing it to integrate seamlessly with a wide range of control systems and other monitoring equipment.
-
Wide Temperature Range: Operating in temperatures from -40°C to +85°C, the module is suitable for use in harsh industrial environments, from cold storage facilities to high-temperature plants.
-
Compact and Lightweight Design: Despite its powerful monitoring capabilities, the 3500/45-01-00 module is compact (241.3 × 24.4 × 241.8 mm) and lightweight (0.91 kg), making it easy to install and fit into space-constrained areas.
-
Durable and Reliable: The module is built to withstand the rigors of industrial environments, ensuring long-term reliability in even the most challenging operating conditions.
-
Seamless Integration: It integrates easily with other Bently Nevada monitoring systems, providing a unified solution for comprehensive machine health monitoring.
-
Cost-Effective Maintenance: By detecting misalignment and wear early, the module helps reduce the need for expensive emergency repairs and prevent unplanned downtime, resulting in significant cost savings.
FAQs
-
What is the primary function of the 3500/45-01-00 140734-04 module?
This module monitors the position of rotating machinery, detecting misalignment, displacement, and other potential issues that could lead to machinery failure. -
What is the weight of the 3500/45-01-00 module?
The module weighs 0.91 kg, which makes it lightweight and easy to integrate into systems with space constraints. -
What output options are available for this module?
The module offers 4-20 mA and 0-10 V output options, which allow for compatibility with a variety of industrial control systems. -
What is the operating temperature range for the 3500/45-01-00?
It operates effectively in a temperature range from -40°C to +85°C, making it suitable for use in extreme environments. -
How does the 3500/45-01-00 module help prevent machinery failure?
By continuously monitoring the position of rotating equipment, the module can detect misalignment or abnormal wear before it leads to costly mechanical failure. -
Can the module detect misalignment in machinery?
Yes, the module tracks position parameters to detect misalignment, helping to prevent issues that could cause premature wear or failure. -
Is the module compatible with other Bently Nevada systems?
Yes, the 3500/45-01-00 module is fully compatible with other Bently Nevada 3500 series components, providing a comprehensive machinery monitoring solution. -
What industries use the 3500/45-01-00 module?
The module is used in power generation, oil & gas, mining, manufacturing, and transportation industries, among others. -
What is the mounting type of the module?
The module is designed for rail mounting, making it easy to install and integrate into existing setups. -
Is the module CE and UL certified?
Yes, the 3500/45-01-00 module is CE and UL certified, meeting international safety and reliability standards.
