Product Overview

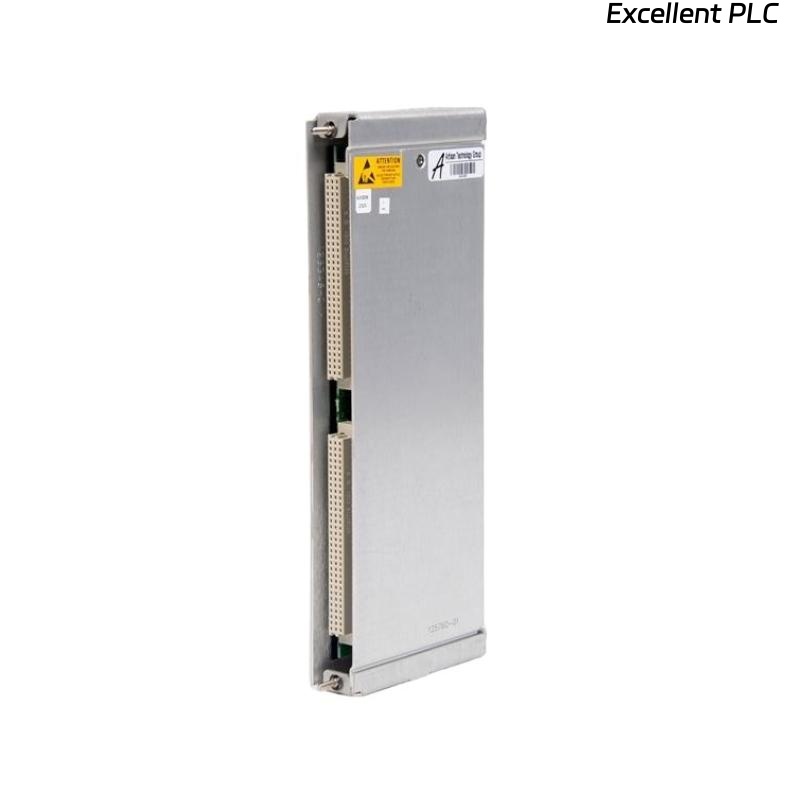

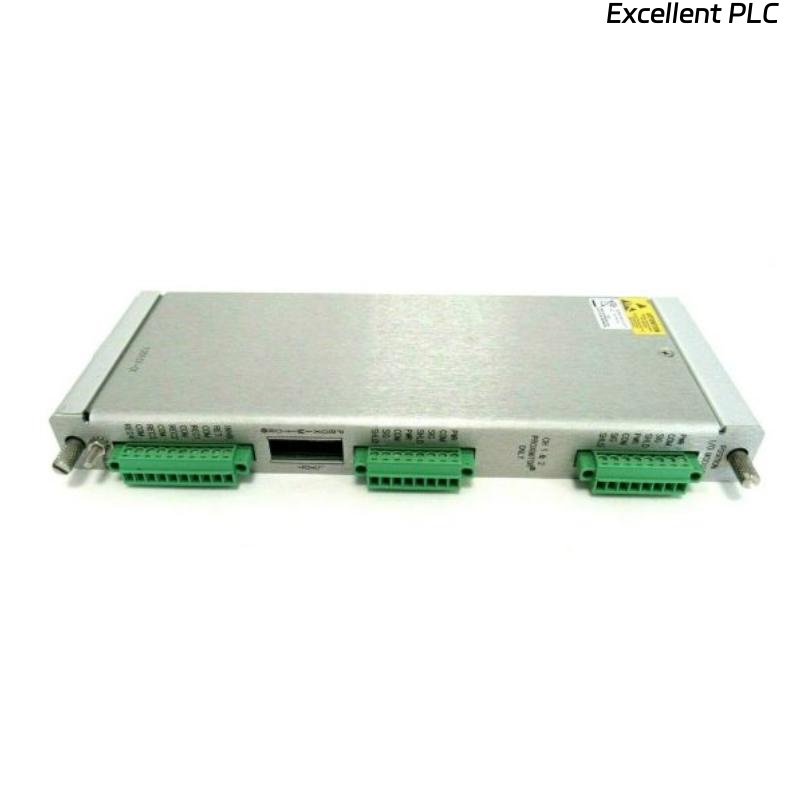

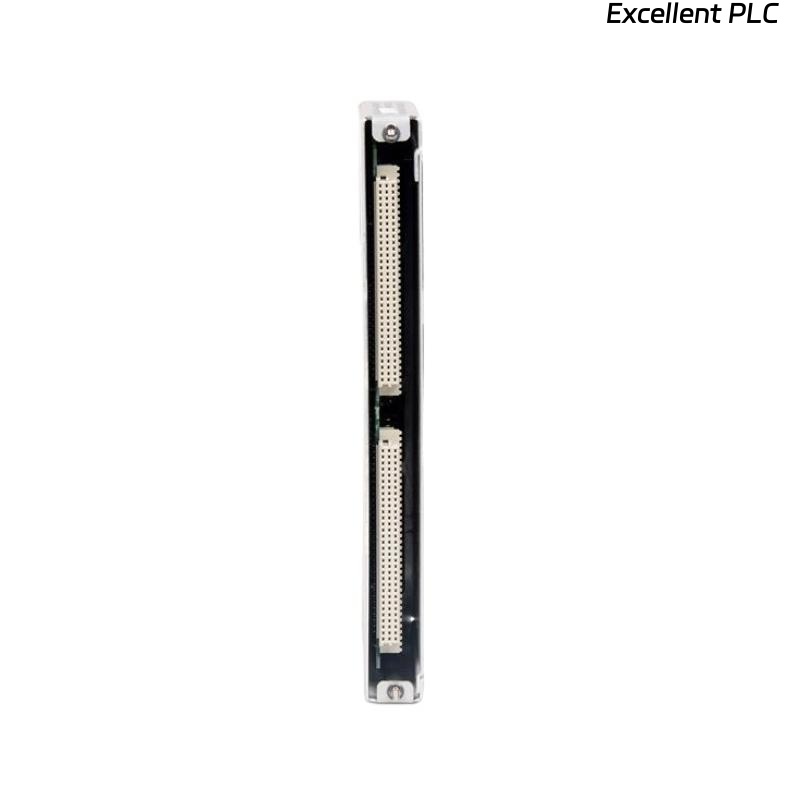

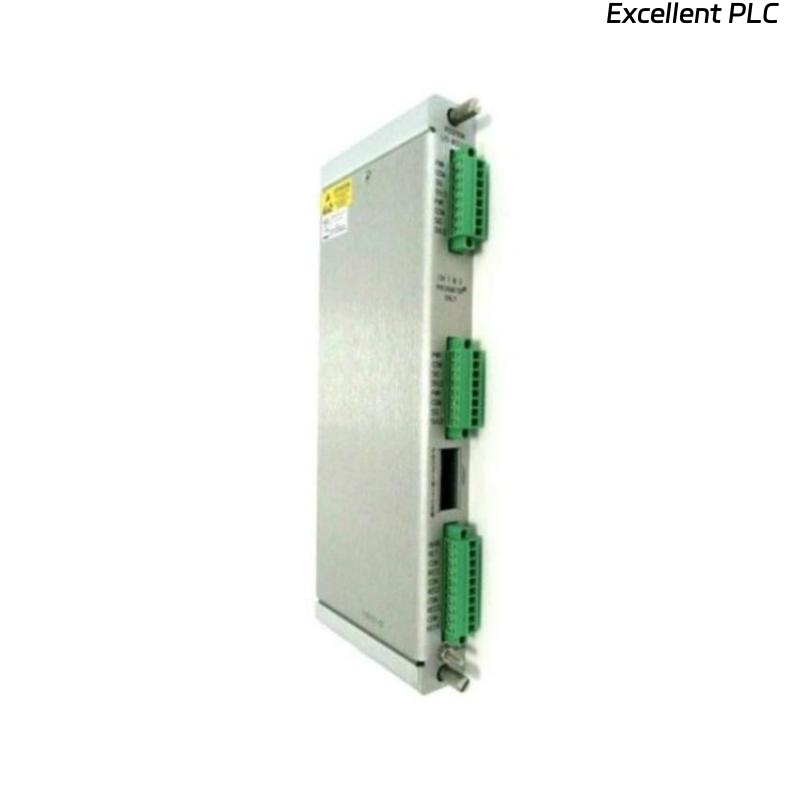

The Bently Nevada 3500/45 135137-01 Position Monitor I/O Module is a critical component of the 3500 Machinery Protection System, designed to provide accurate position monitoring and protection for rotating machinery. It processes signals from proximity probes and transducers, delivering real-time shaft position and vibration data. This module ensures reliable integration with other 3500 system components, enabling effective machinery condition monitoring and predictive maintenance.
Key Features
-
Provides precise position monitoring for critical machinery
-
Supports multiple transducer and proximity probe types
-
Configurable alarm and trip outputs
-
Hot-swappable for minimal downtime
-
Rack-mounted for 3500 series systems
-
Real-time data output compatible with System 1®
-
Robust design suitable for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/45 135137-01 |
| Module Type | Position Monitor I/O Module |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Function | Shaft position and machinery monitoring |
| Input Channels | 2 channels (transducer/proximity probe inputs) |
| Output Channels | Configurable alarm and trip outputs |
| Alarm/Trip Capability | Configurable per channel |
| Communication | Via 3500 rack backplane |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.2 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbine shaft position monitoring
-
Compressor and pump machinery protection
-
Oil and gas, petrochemical, and refining plants
-
Power generation equipment monitoring
-
Integration with System 1® for condition-based maintenance
Frequently Asked Questions (FAQ)
Q1: How many input channels does this module have?
It has two independent transducer/proximity probe channels.
Q2: Can it provide alarm and trip outputs?
Yes, outputs are configurable per channel.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q4: What types of transducers does it support?
It supports standard proximity probes and compatible position transducers.
Q5: What is the operating temperature range?
0°C to 65°C.
Q6: Can it integrate with System 1®?
Yes, it provides real-time data compatible with System 1®.
Q7: What are the module’s dimensions and weight?
It measures 241.3mm x 24.4mm x 99.1 mm and weighs approximately 0.2 kg.
Q8: Is it suitable for hazardous environments?
Yes, it meets CE, CSA, ATEX, and IECEx certifications.
Q9: Can it be used with all 3500 series racks?
Yes, it integrates seamlessly into the 3500 series rack system.
Q10: Can it process multiple signal types?
Yes, it handles inputs from standard proximity probes and compatible transducers.
