Product Introduction

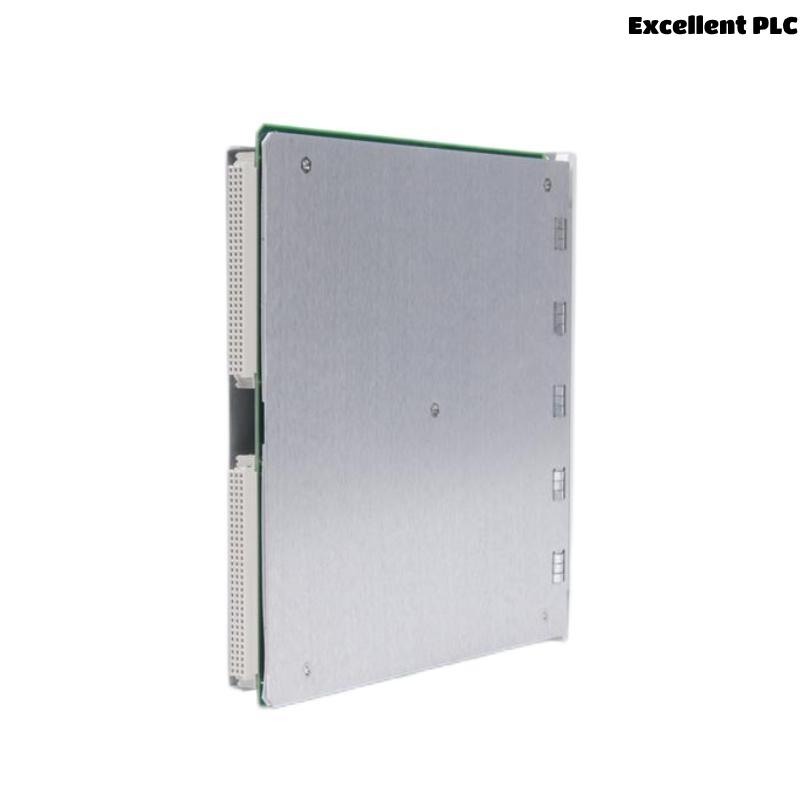

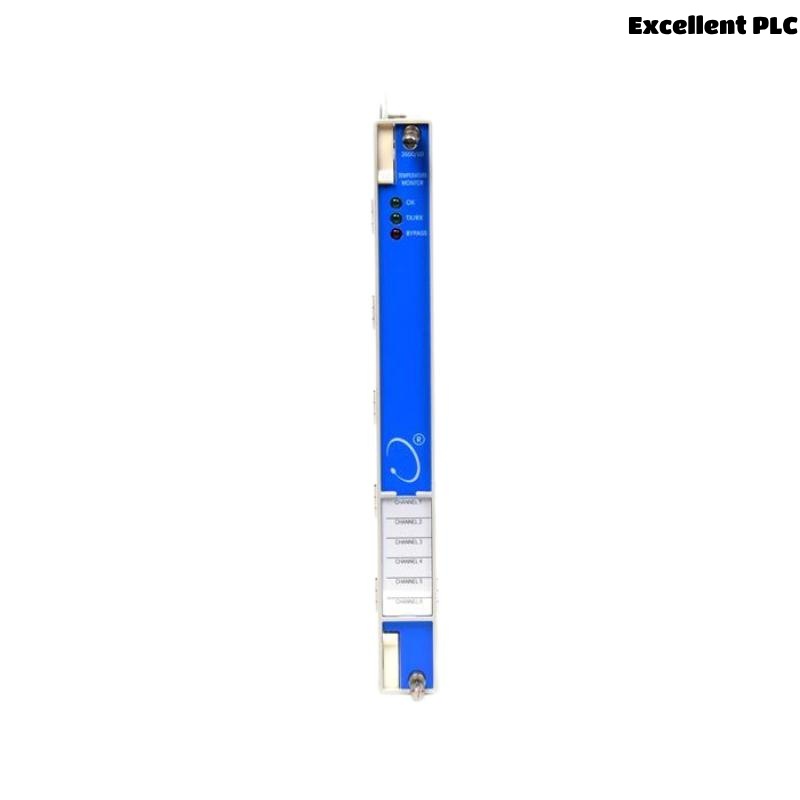

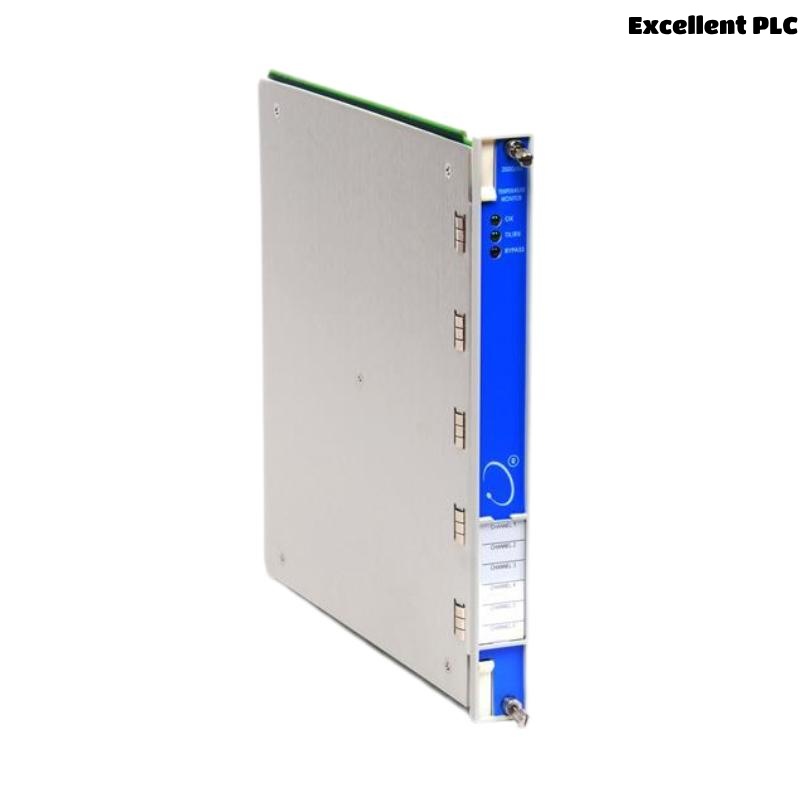

The Bently Nevada 3500/60-01-00 163179-01 Temperature Monitor is a highly reliable and advanced temperature monitoring system designed to ensure the safe and efficient operation of industrial machinery. As part of the 3500 series from Bently Nevada, a leading provider of vibration and condition monitoring solutions, the 3500/60 Temperature Monitor delivers real-time monitoring of temperature data for critical equipment in industries such as power generation, oil & gas, and manufacturing.
This temperature monitoring system offers precise measurement and early detection of potential problems, such as overheating or abnormal temperature rises, which could lead to machinery failure. The 3500/60 is specifically designed to monitor a variety of temperatures in turbines, compressors, generators, motors, and other rotating machinery. It integrates seamlessly with Bently Nevada’s condition monitoring systems, providing operators with a comprehensive view of equipment health.
Equipped with a variety of advanced features such as high accuracy, easy integration, and a broad operating temperature range, the 3500/60 Temperature Monitor ensures that your machinery operates efficiently and within safe parameters.
Product Specifications:
Parameter | Description |
---|---|
Model | 3500/60-01-00 163179-01 |
Dimensions | 241.3 x 24.4 x 241.8 mm |
Weight | 0.91 kg |
Input Type | Thermocouple, RTD, or resistance inputs |
Power Supply | 24 VDC ± 10% |
Operating Temp | -40°C to +85°C |
Output | 4-20 mA or 0-10 V |
Mounting | DIN Rail or Panel Mount |
Communication | Compatible with Bently Nevada 3500 Series |
Compliance | CE, UL |
Display | LED Indicators for Alarm Status |
Applications:
The 3500/60-01-00 Temperature Monitor is versatile and used in a wide range of applications across various industries. It is designed to monitor temperature variations in critical machinery, helping ensure optimal performance and prevent potential damage due to excessive heat or abnormal temperature changes. Key applications include:
-
Turbine Monitoring: In power plants, this temperature monitor helps track the temperature of turbines to prevent overheating, which could lead to catastrophic failures or reduced efficiency.
-
Generator Monitoring: The sensor is used in generators to measure temperature fluctuations and alert operators of any abnormal temperature rise that could indicate mechanical issues or inefficiency.
-
Compressor Health Monitoring: It monitors compressors to detect overheating or abnormal temperature changes, which could signal mechanical failure or suboptimal performance.
-
Motor Temperature Monitoring: The 3500/60 Temperature Monitor is widely used in monitoring electric motors, ensuring that operating temperatures stay within safe levels.
-
Industrial Equipment Monitoring: It is suitable for monitoring a wide variety of industrial equipment, including pumps, heat exchangers, and motors, ensuring safe operation and preventing expensive damage.
-
Condition Monitoring Systems: The 3500/60 integrates seamlessly into broader condition monitoring systems, providing a centralized solution for monitoring multiple parameters of industrial machinery, helping to predict failures and reduce downtime.
The product is ideal for industries like power generation, oil and gas, mining, manufacturing, and other heavy industries where the performance and reliability of machinery are crucial to maintaining uptime.
Advantages:
-
High Accuracy and Reliability: The 3500/60 Temperature Monitor offers high-accuracy temperature measurements, ensuring precise monitoring of machinery health, and helping to prevent potential damage due to temperature-related issues.
-
Broad Operating Temperature Range: With a temperature range from -40°C to +85°C, the monitor can be used in a wide variety of industrial environments, including harsh operating conditions.
-
Flexible Input Types: The monitor supports a variety of input types, including thermocouples, RTDs, and resistance inputs, offering flexibility for different applications.
-
Easy Integration: The 3500/60 Temperature Monitor is designed for easy integration into existing Bently Nevada 3500 monitoring systems, providing a comprehensive and unified machinery health monitoring solution.
-
Compact and Durable Design: Despite its powerful features, the monitor has a compact design (241.3 x 24.4 x 241.8 mm) and weighs only 0.91 kg, making it easy to install and integrate into tight spaces or machinery cabinets.
-
Versatile Output Options: The monitor provides both 4-20 mA and 0-10 V outputs, making it compatible with a wide range of monitoring and control systems.
-
Real-time Alarm Indicators: The monitor features LED indicators that show the alarm status, providing instant feedback to operators and allowing for prompt corrective actions when necessary.
-
Low Maintenance: Designed for minimal maintenance, the 3500/60 reduces the need for frequent servicing, helping to lower maintenance costs and reduce downtime.
-
Compliance with Global Standards: The product complies with CE and UL safety standards, ensuring it meets global industry requirements.
-
Cost-Effective Monitoring Solution: By providing precise temperature monitoring, it helps prevent costly machinery damage and reduces unplanned downtime, ultimately saving costs in repairs and operational disruptions.
FAQ (Frequently Asked Questions)
-
What is the purpose of the Bently Nevada 3500/60 Temperature Monitor?
-
The 3500/60 is used to monitor the temperature of industrial machinery such as turbines, motors, and compressors, helping to prevent overheating and ensuring optimal performance.
-
-
What are the dimensions of the 3500/60 Temperature Monitor?
-
The monitor measures 241.3 x 24.4 x 241.8 mm.
-
-
How much does the Bently Nevada 3500/60 Temperature Monitor weigh?
-
The weight of the monitor is 0.91 kg.
-
-
What input types does the 3500/60 support?
-
The monitor supports thermocouple, RTD, and resistance inputs, offering flexibility in how temperature data is collected.
-
-
What is the power supply requirement for the 3500/60 Temperature Monitor?
-
The monitor requires a 24 VDC ±10% power supply.
-
-
What type of output does the 3500/60 Temperature Monitor provide?
-
The monitor provides either a 4-20 mA or 0-10 V output, making it compatible with most condition monitoring systems.
-
-
Is the 3500/60 compatible with other Bently Nevada monitoring systems?
-
Yes, it is designed to integrate seamlessly with other Bently Nevada 3500 series condition monitoring systems.
-
-
Can the 3500/60 Temperature Monitor be used in extreme temperature environments?
-
Yes, it has an operating temperature range of -40°C to +85°C, making it suitable for use in both cold and high-heat environments.
-
-
Does the 3500/60 Temperature Monitor require frequent maintenance?
-
No, it is designed to be low maintenance, offering reliable performance without the need for regular servicing.
-
-
How does the 3500/60 Temperature Monitor help prevent machinery failure?
-
By continuously monitoring the temperature of critical machinery, the monitor can detect abnormal temperature rises that may indicate mechanical issues, allowing for early intervention and reducing the risk of failure.
-
