Product Overview

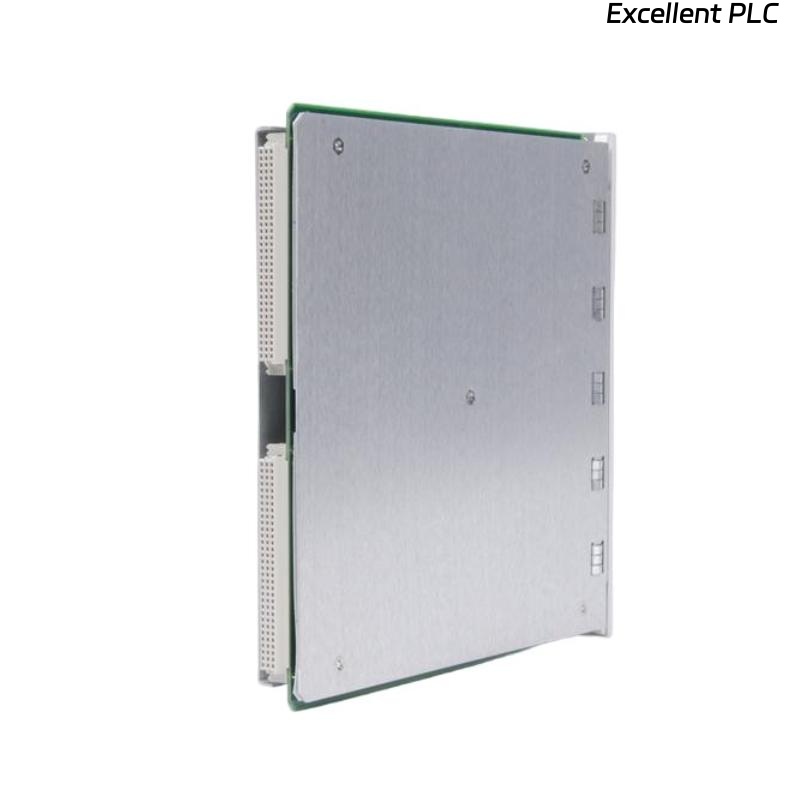

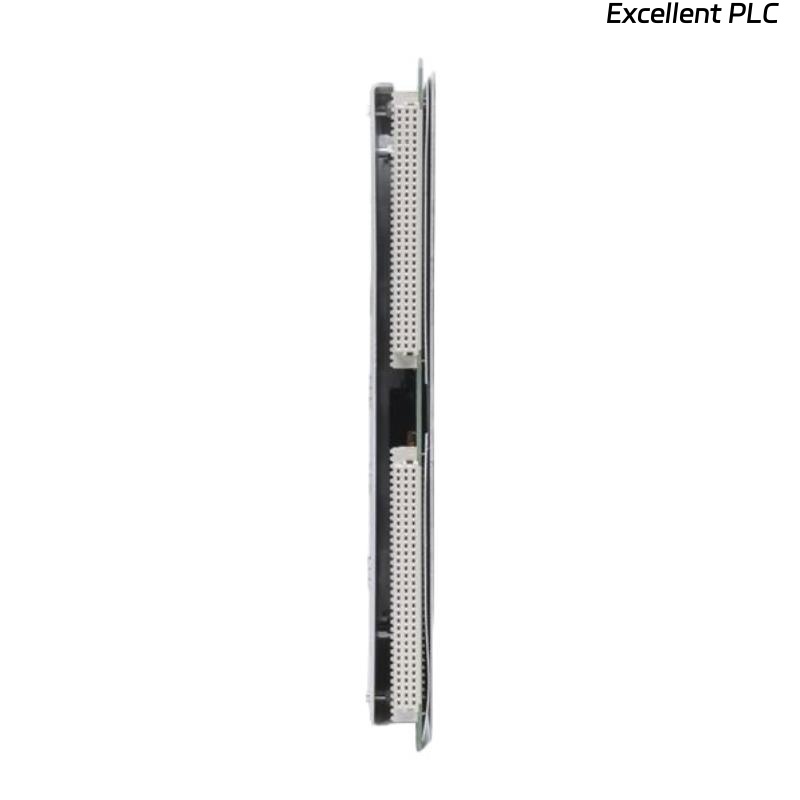

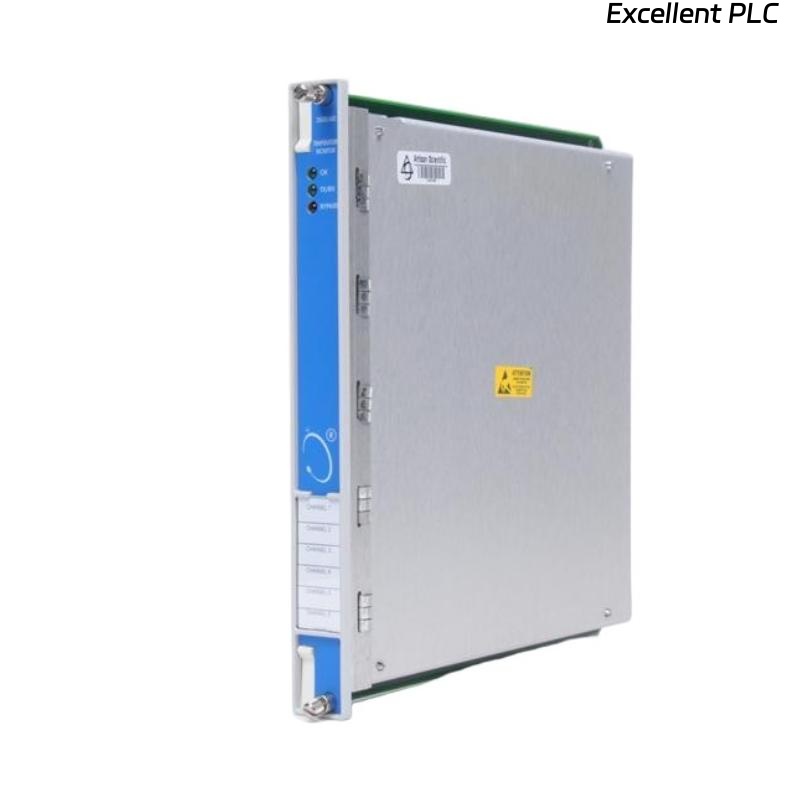

The Bently Nevada 3500/60 133811-01 Temperature Monitor is a high-precision module designed to measure and monitor temperature in critical industrial machinery. As part of the Bently Nevada 3500 Machinery Protection System, it ensures safe operation of turbines, compressors, generators, and other rotating equipment by providing accurate temperature readings and configurable alarm outputs.
This module is widely used in machinery protection systems to prevent overheating, support predictive maintenance, and maintain the overall reliability of industrial processes.
Key Features
-
Accurate temperature monitoring for critical machinery components
-
Supports multiple sensor types including RTDs and thermocouples
-
Configurable alarms for high-temperature conditions
-
Integration with 3500 rack system for centralized monitoring
-
Continuous self-diagnostics to ensure reliable operation
-
Industrial-grade construction for harsh operating environments
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Temperature Monitor |
| Part Number | 133811-01 |
| System Compatibility | Bently Nevada 3500 Series |
| Input Types | RTD, Thermocouple |
| Number of Channels | 1 or 2 (depending on configuration) |
| Measurement Range | RTD: -200°C to 850°C, TC: -200°C to 1200°C (depending on type) |
| Accuracy | ±0.25% of full scale |
| Alarm Types | High-temperature, sensor failure |
| Power Consumption | ≤ 8 W |
| Mounting | 3500 rack slot |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
Industry Applications
-
Turbine bearing temperature monitoring
-
Compressor and generator temperature protection
-
Predictive maintenance for rotating machinery
-
Industrial process temperature measurement
-
Power generation, oil & gas, and petrochemical industries
Frequently Asked Questions (FAQ)
Q1: What sensor types are supported by the 3500/60 133811-01?
Supports RTDs and thermocouples.
Q2: Can it provide alarms for high temperature?
Yes, it has configurable high-temperature alarms.
Q3: Is it compatible with Bently Nevada 3500 racks?
Yes, it fully integrates with the 3500 rack system.
Q4: How many input channels does it have?
It supports 1 or 2 channels depending on configuration.
Q5: What is the operating temperature range?
It operates between -30°C and +65°C.
Q6: Does it include self-diagnostic features?
Yes, it continuously monitors its own operation to ensure reliability.
Q7: What is the accuracy of temperature measurement?
±0.25% of full scale.
Q8: Can it be used in harsh industrial environments?
Yes, it is built to withstand demanding conditions.
Q9: What is the power requirement?
It draws ≤ 8 W from the 3500 rack.
Q10: What is the part number?
The part number is 133811-01.
