Product Introduction

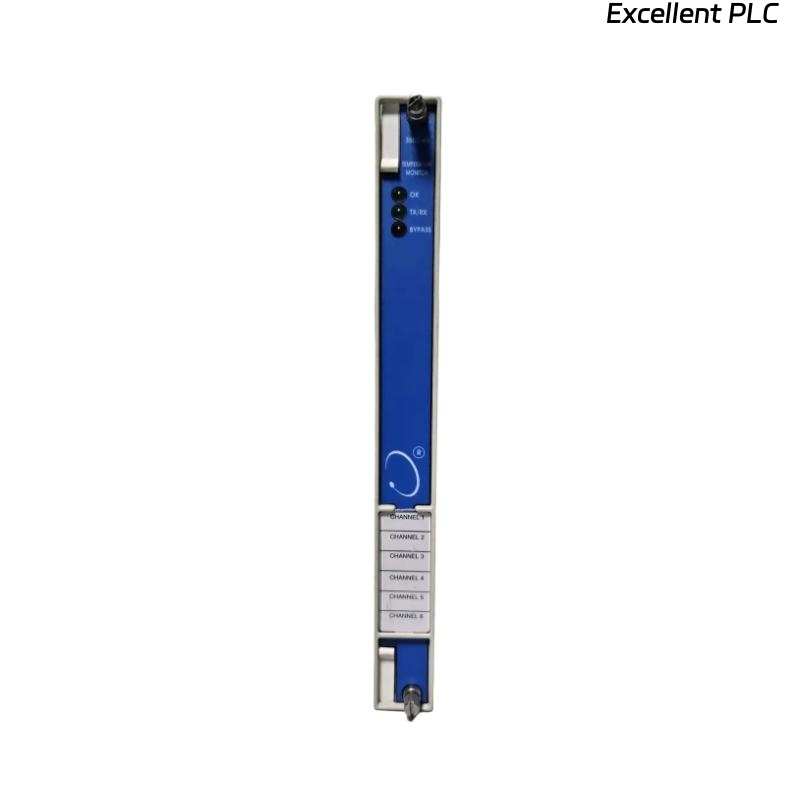

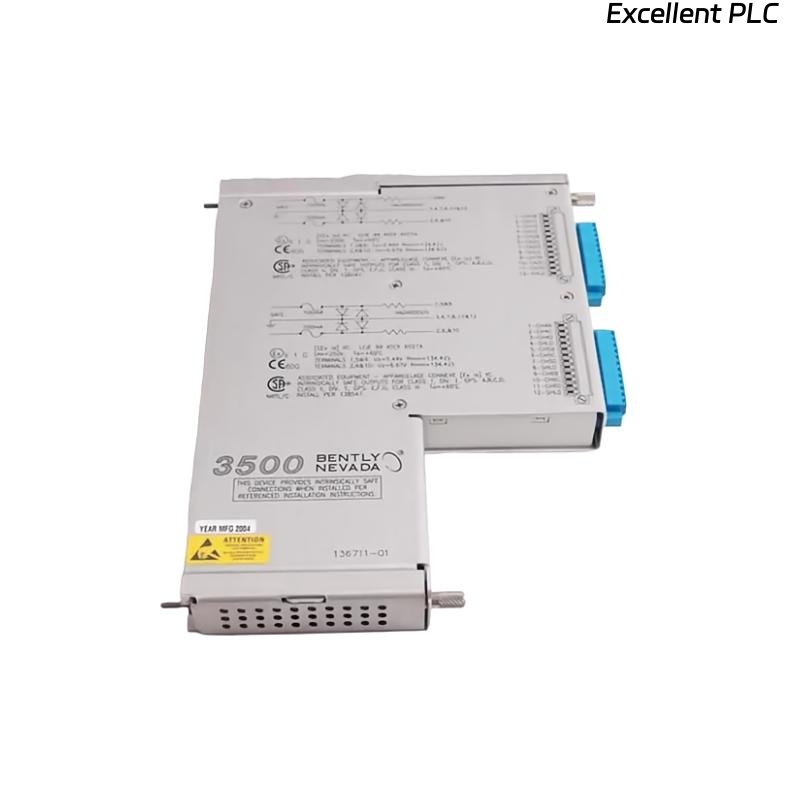

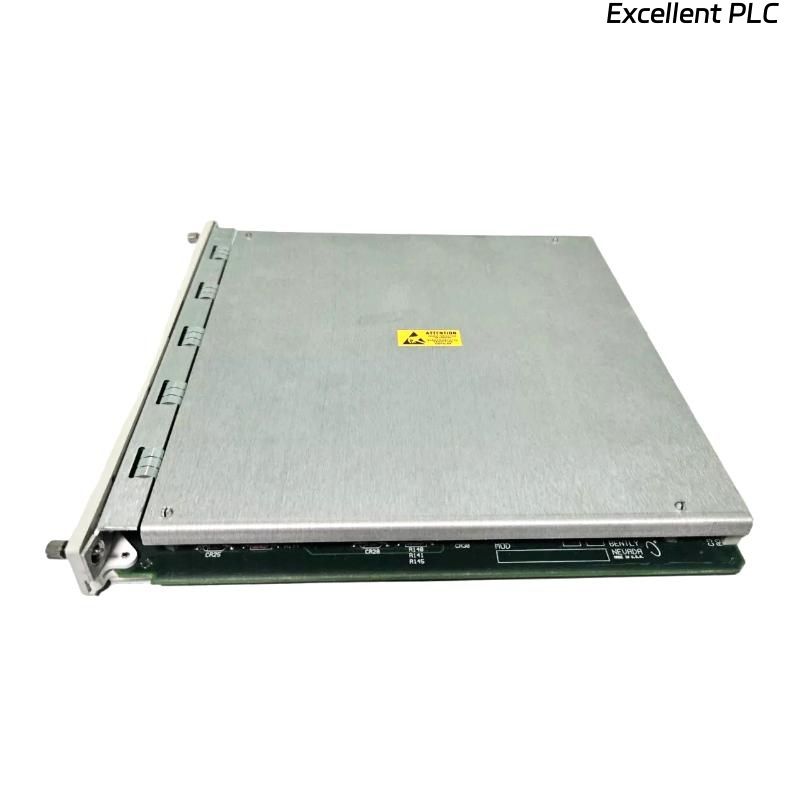

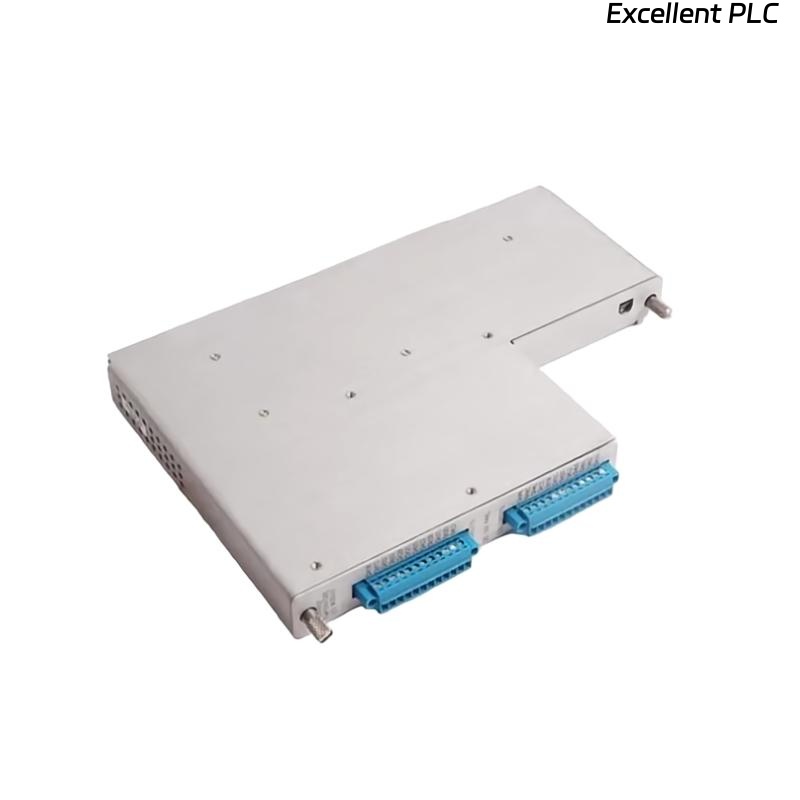

The Bently Nevada 3500/60 133811-01+136711-01 Temperature Monitor is a critical component of the 3500 Machinery Protection System. It is specifically engineered to continuously measure and monitor temperature from multiple sensor inputs, ensuring reliable detection of abnormal conditions that may compromise machinery integrity. By integrating advanced signal processing and configurable alarm thresholds, the 3500/60 provides a robust solution for condition monitoring in industrial environments where high-value rotating equipment must operate safely.
This module supports a wide variety of temperature sensor types, including RTDs and thermocouples, providing flexibility across diverse applications. It forms an integral part of proactive maintenance strategies by alerting operators to early signs of overheating, insulation breakdown, or lubrication issues. Designed with Bently Nevada’s long-standing expertise in machinery protection, the 3500/60 133811-01+136711-01 is built for accuracy, stability, and durability.
Product Parameters
| Parameter | Specification |
|---|---|
| Module Type | Temperature Monitor |
| Supported Sensors | RTDs (2-wire, 3-wire, 4-wire), Thermocouples (J, K, E, T, etc.) |
| Number of Input Channels | 6 independent channels |
| Input Range | -200°C to +1200°C (sensor dependent) |
| Accuracy | ±1°C or ±0.1% of full scale |
| Alarm Setpoints | 2 levels per channel (Alert and Danger) |
| Signal Processing | Configurable filtering and scaling |
| Communication | Fully integrated with 3500 rack and System Configuration Software |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Compliance | CE, CSA, ATEX, IECEx |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
Product Applications
The Bently Nevada 3500/60 Temperature Monitor is widely deployed in industries that require precision thermal monitoring of rotating and static machinery. Typical applications include:
-
Power Generation: Monitoring turbine and generator winding temperatures to prevent overheating.
-
Oil & Gas: Continuous temperature supervision of compressors, pumps, and pipeline systems.
-
Petrochemical Plants: Protection of reactors, heat exchangers, and distillation columns.
-
Pulp & Paper Industry: Monitoring of critical motors, drying cylinders, and bearings.
-
Metals & Mining: Temperature detection in smelting equipment, mills, and heavy-duty motors.
-
Industrial Manufacturing: Used for temperature-critical processes to ensure production consistency.
Product Advantages
-
Multi-Sensor Compatibility: Supports both RTDs and thermocouples, offering versatility for different monitoring needs.
-
High Accuracy & Stability: Delivers precise readings even in harsh industrial conditions.
-
Scalable Integration: Fully compatible with the Bently Nevada 3500 rack system and other monitoring modules.
-
Advanced Alarm Functions: Configurable dual-level alarms allow operators to respond before equipment reaches critical conditions.
-
Rugged Reliability: Designed for continuous operation in demanding environments.
-
Predictive Maintenance Support: Helps extend equipment life by detecting potential thermal issues early.
-
Compliance & Safety: Certified to global safety and industrial standards for use in hazardous environments.
FAQ
1. What types of temperature sensors are supported by the 3500/60 133811-01+136711-01?
The module supports both RTDs (2, 3, and 4-wire configurations) and thermocouples (J, K, E, T, and others).
2. How many input channels does this module provide?
It provides six independent input channels for flexible temperature monitoring.
3. What is the maximum measurable temperature range?
The range is -200°C to +1200°C, depending on the selected sensor type.
4. How does the module communicate with the control system?
It integrates seamlessly with the 3500 rack and communicates via the system’s configuration and communication modules.
5. What is the accuracy level of the temperature readings?
Accuracy is ±1°C or ±0.1% of full scale, ensuring reliable monitoring.
6. Can alarm thresholds be customized per channel?
Yes, each channel allows configuration of two alarm setpoints: Alert and Danger.
7. How does the module handle noisy signals from sensors?
It applies configurable filtering to reduce noise and improve signal clarity.
8. Does the module support redundant configurations?
Yes, it can be deployed in redundant 3500 rack configurations for high reliability.
9. What power source is required for operation?
The module is powered directly from the 3500 rack backplane, requiring no external supply.
10. Is the module certified for hazardous area use?
Yes, it complies with CE, CSA, ATEX, and IECEx certifications.
