Product Overview

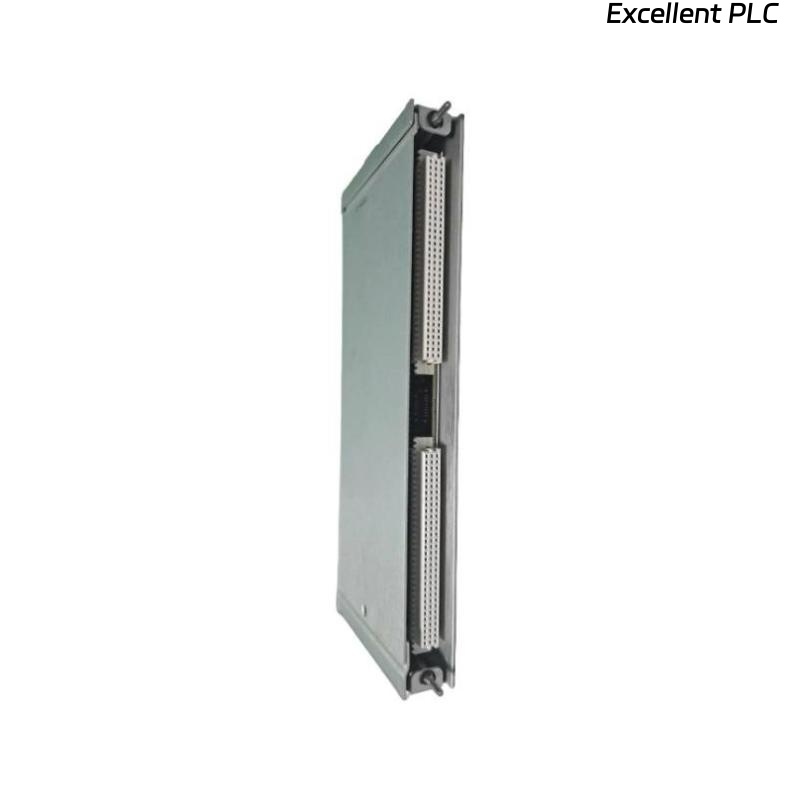

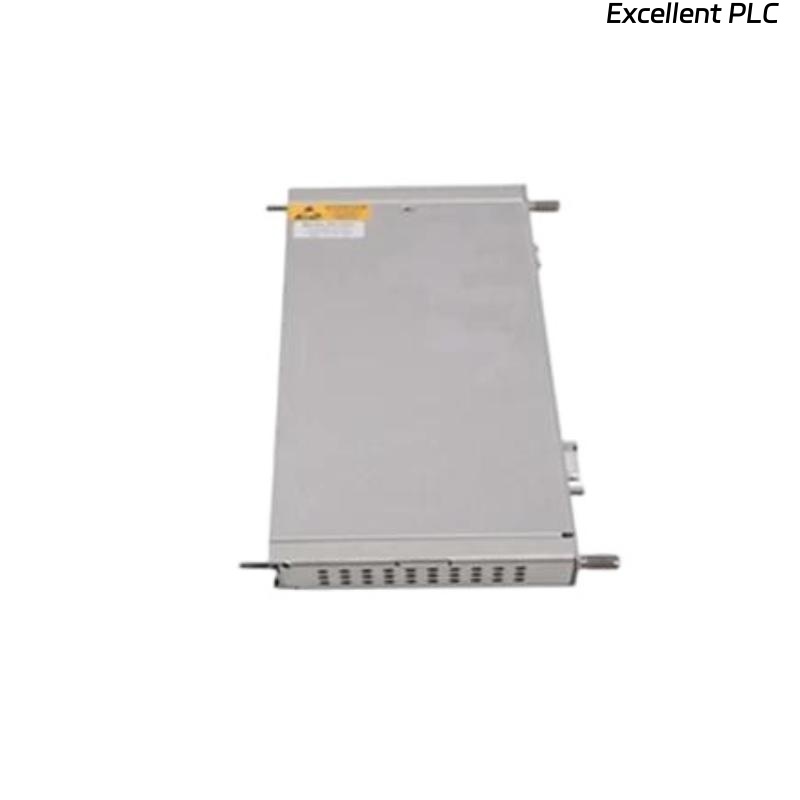

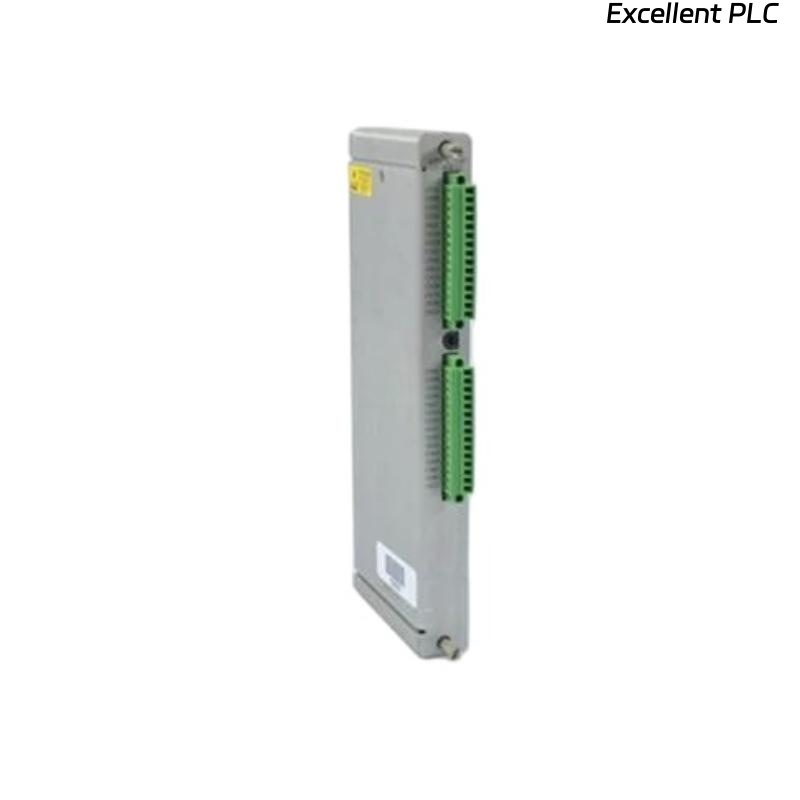

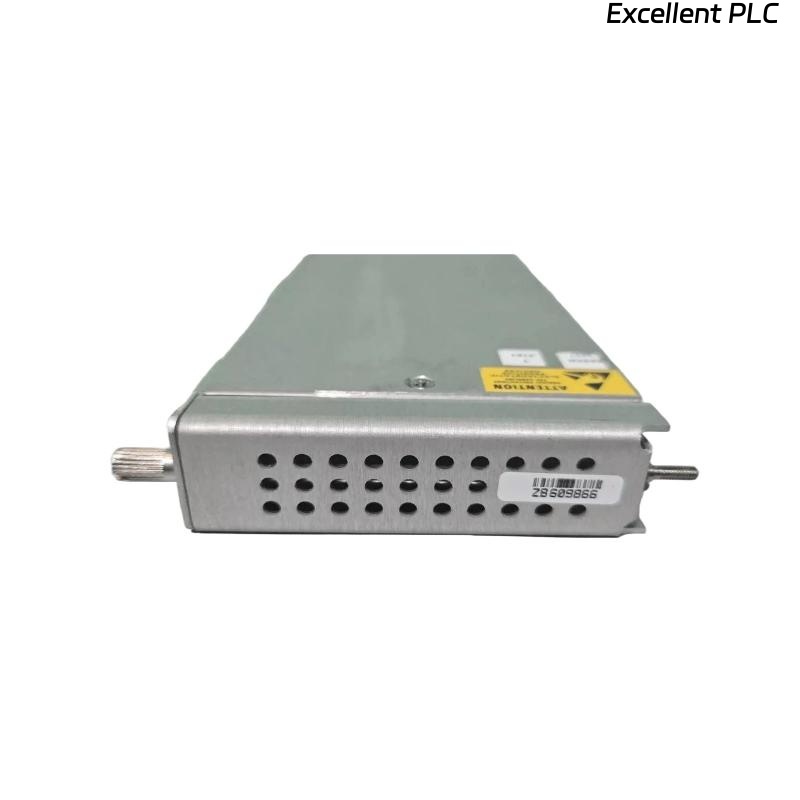

The Bently Nevada 3500/60 133835-01 TC Isolated I/O Module is engineered to provide high-accuracy thermocouple temperature measurement for machinery protection and condition monitoring. Featuring isolated channel design and internal terminals, it ensures robust signal integrity and protection against electrical interference. This module is part of the trusted Bently Nevada 3500 series, offering reliable real-time monitoring, flexible configuration, and seamless integration into critical rotating equipment monitoring systems.
Key Features
-
Fully isolated thermocouple measurement channels
-
Internal terminal connections for secure and compact wiring
-
Six independent temperature input channels
-
Supports multiple thermocouple types
-
High accuracy and stable performance in industrial environments
-
Hot-swappable design for uninterrupted operation
-
Compatible with all 3500 series racks
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/60 133835-01 |
| Module Type | TC Isolated I/O Module with Internal Terminals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Supported Sensors | Thermocouples: Types E, J, K, T, B, R, S, N |
| Channels | 6 temperature channels |
| Measurement Range | Dependent on thermocouple type |
| Accuracy | High-precision measurement, per sensor specs |
| Alarm Capabilities | Individually configurable per channel |
| Communication | Via 3500 rack backplane |
| Isolation Type | Channel-to-channel and channel-to-ground isolation |
| Terminal Type | Internal terminals |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Gas turbine and steam turbine temperature monitoring
-
Compressor and pump thermocouple measurement
-
Oil and gas processing facilities
-
Petrochemical plants and refineries
-
Power generation and industrial machinery condition monitoring
Frequently Asked Questions (FAQ)
Q1: How many temperature inputs does this module support?
It supports six independent thermocouple channels.
Q2: What makes this model different from the non-isolated version?
This model provides electrical isolation between channels and ground, improving signal integrity and safety.
Q3: Can it be used with RTDs?
No, this model is designed specifically for thermocouples.
Q4: Which thermocouple types are supported?
It supports types E, J, K, T, B, R, S, and N.
Q5: Are alarm thresholds configurable per channel?
Yes, each channel can be set with independent alarm levels.
Q6: Is this module hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q7: Does it require an external power supply?
No, it receives power from the 3500 rack backplane.
Q8: What type of terminals does it use?
It uses internal terminal connections for compact and secure wiring.
Q9: What are the module’s dimensions and weight?
It measures 241.3mm x 24.4mm x 99.1 mm and weighs approximately 0.45 kg.
Q10: Is it certified for hazardous areas?
Yes, it meets CE, CSA, ATEX, and IECEx certification requirements.
