Product Overview

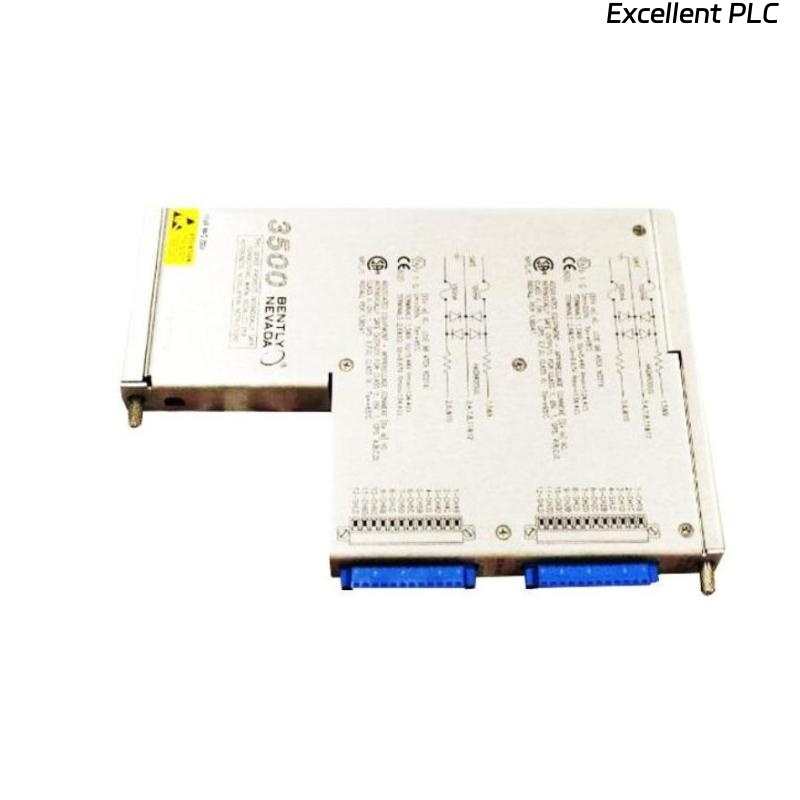

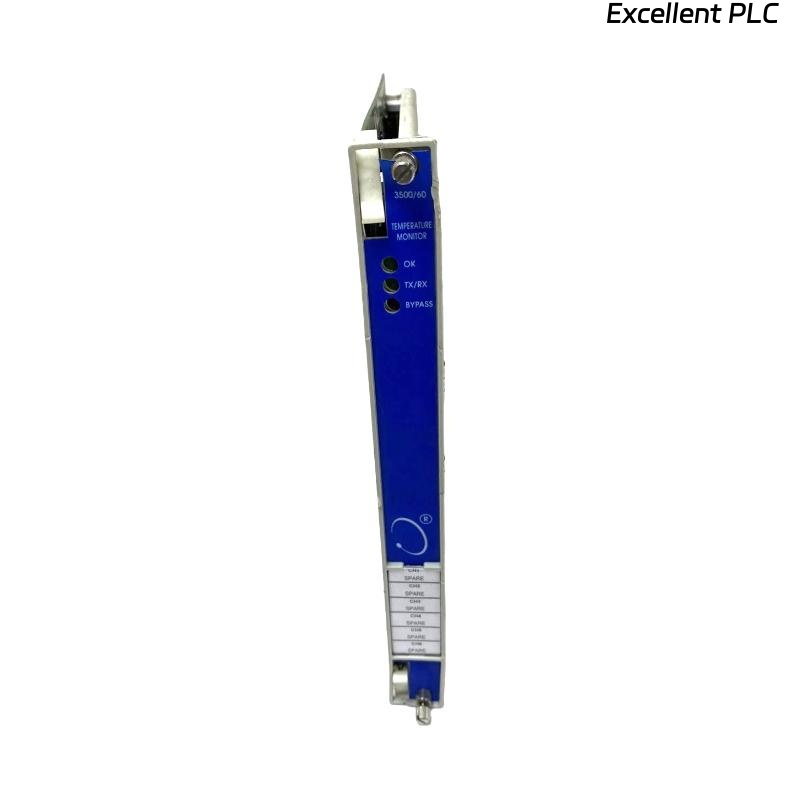

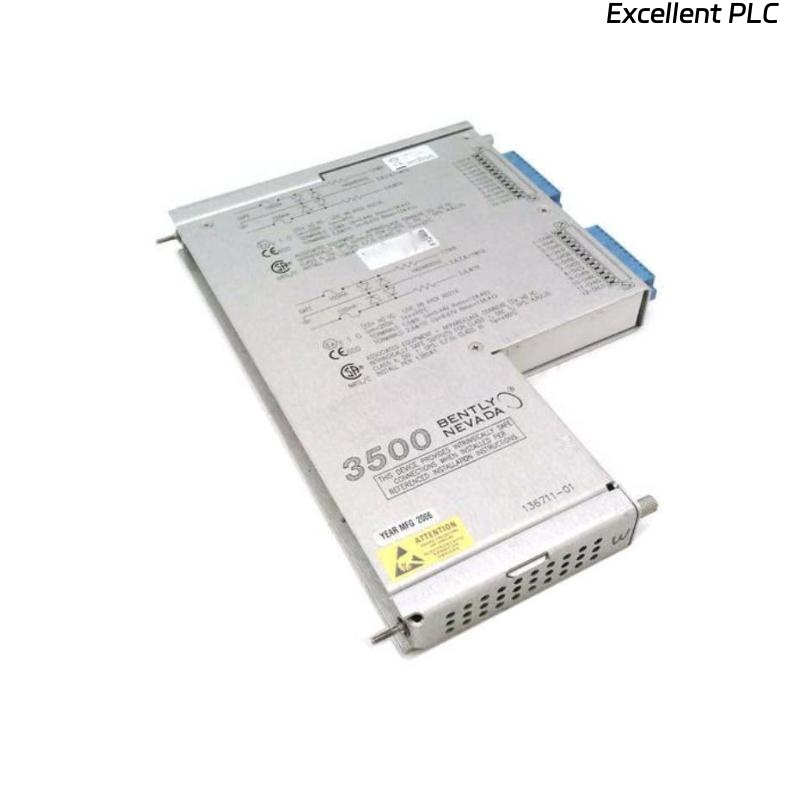

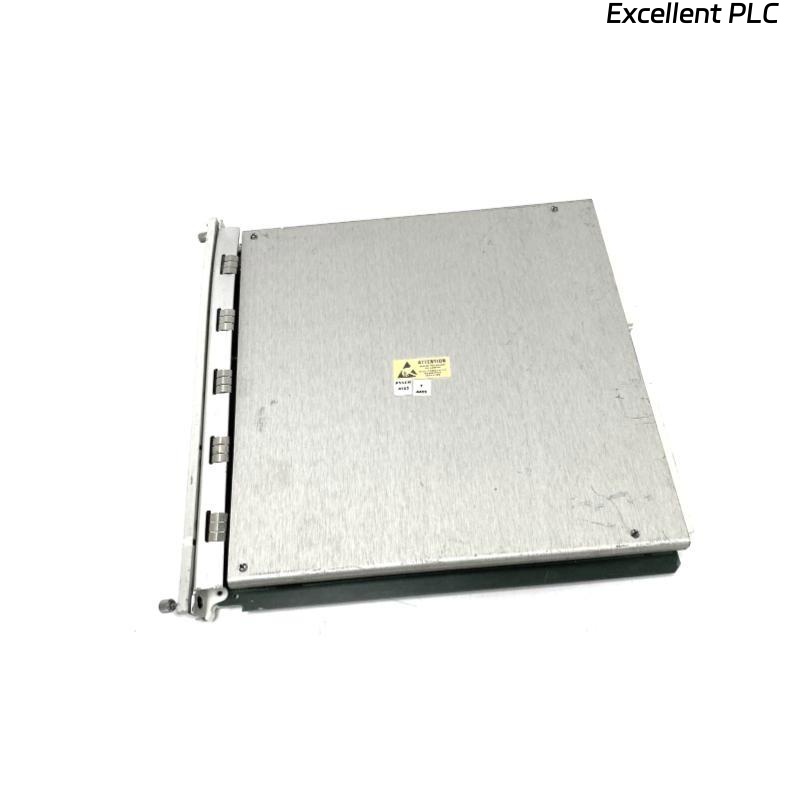

The Bently Nevada 3500/60 Temperature Module (163179-01 + 136711-01) is designed for precision temperature monitoring in industrial machinery. It integrates seamlessly with the 3500 Series monitoring system, ensuring reliable protection against overheating and operational anomalies.
Technical Specifications
| Feature | 3500/60 163179-01 | 3500/60 136711-01 |
|---|---|---|
| Channels | 6 | 6 |
| Input Types | RTD, Thermocouple | RTD, Thermocouple |
| Input Impedance | 10 MΩ per lead | 10 MΩ per lead |
| Power Consumption | 7 W nominal | 7 W nominal |
| Operating Temperature | -30°C to +65°C | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C | -40°C to +85°C |
| Dimensions (L×W×H) | 241.3 × 24.4 × 241.8 mm | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg | 0.91 kg |
| Recorder Outputs | No | Yes |
Applications
-
Industrial machinery protection
-
Process control and monitoring
-
Turbines and generator temperature monitoring
-
Oil & gas equipment supervision
Advantages
-
Supports RTD and thermocouple inputs
-
High input impedance for accurate measurements
-
Wide operating temperature range
-
Modular design compatible with 3500 Series
Frequently Asked Questions (FAQs)
-
What is the main function?
Provides accurate temperature monitoring for critical machinery. -
How many channels are available?
Six channels per module. -
Which input types are supported?
RTD and thermocouple. -
What is the significance of 10 MΩ input impedance?
Ensures minimal signal loss and precise readings. -
Can it operate in extreme temperatures?
Yes, -30°C to +65°C operating range. -
What is the storage temperature range?
-40°C to +85°C. -
What is the difference between 163179-01 and 136711-01?
136711-01 includes recorder outputs; 163179-01 does not. -
What are the module dimensions and weight?
241.3 × 24.4 × 241.8 mm, 0.91 kg. -
Is it compatible with Triple Modular Redundant (TMR) systems?
Yes, for enhanced reliability. -
Can it integrate with other 3500 Series modules?
Yes, fully compatible with the 3500 monitoring system.
Related Models
| Model Number | Description | Recorder Outputs | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/60 163179-01 | Temperature Module | No | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/60 136711-01 | RTD/TC I/O Module | Yes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/61 163179-02 | Temp Module with Recorder | Yes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/61 136711-02 | RTD/TC Module with Recorder | Yes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/65 145988-02 | 16-Channel Temperature Monitor | Yes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/42M 176449-02 | 3500/42M Module | No | 241.3 × 24.4 × 241.8 | 0.91 |
