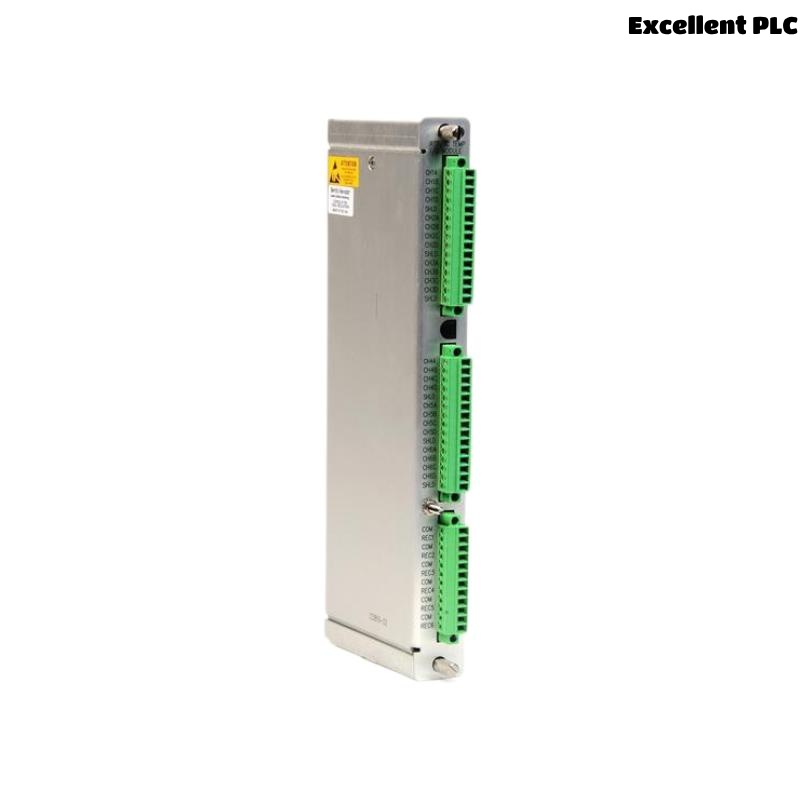

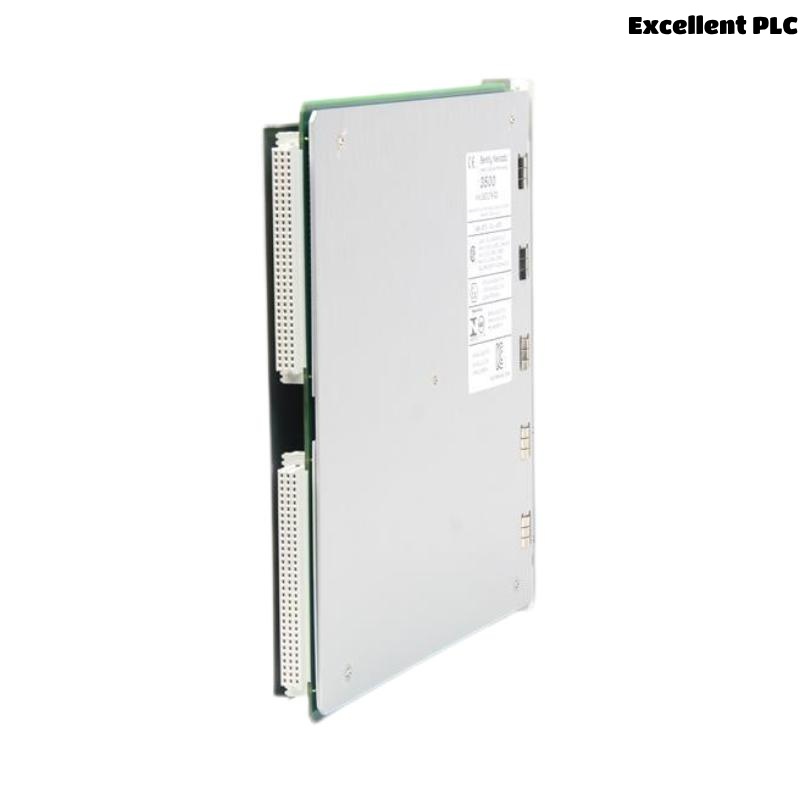

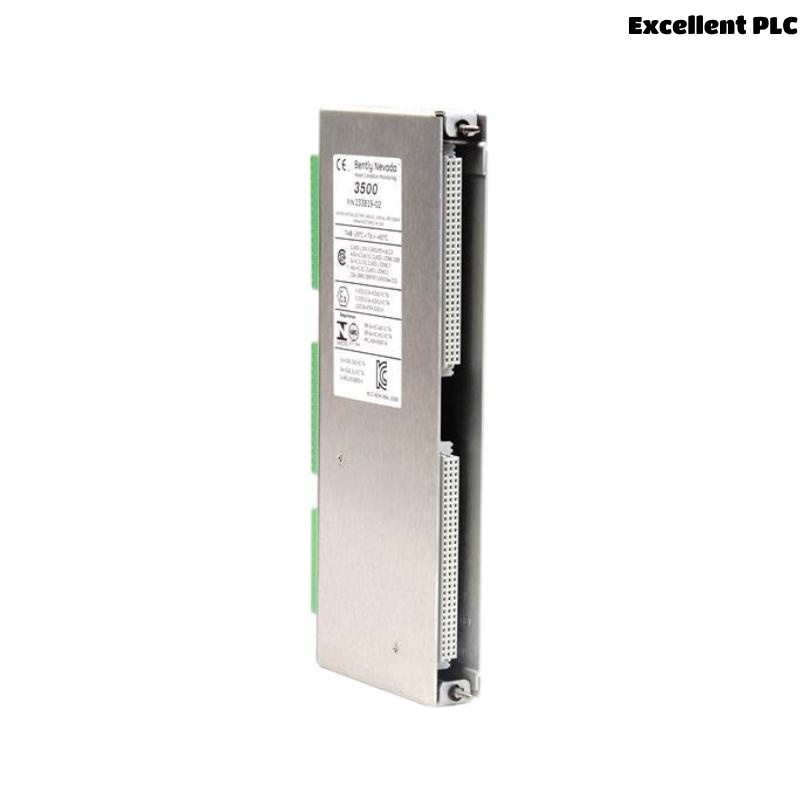

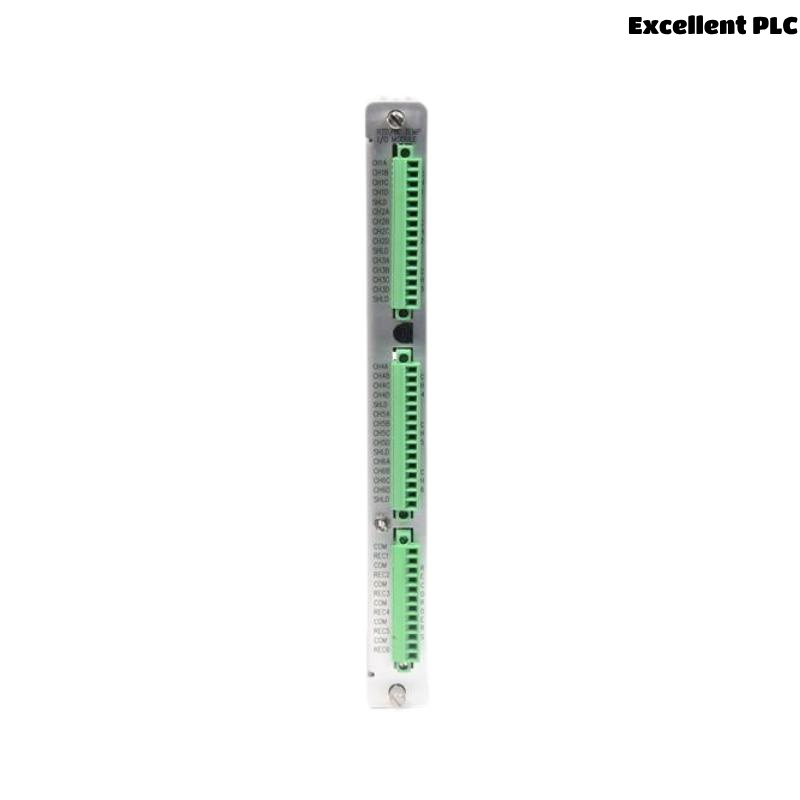

Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module

Product Introduction

The Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module is an advanced industrial module designed for accurate measurement and monitoring of temperature in industrial machinery and systems. Specifically tailored for use in Bently Nevada’s 3500 Series, this module offers exceptional reliability and precision for applications requiring RTD (Resistance Temperature Detectors) and thermocouple (TC) inputs.

The 3500/61-01-00 module plays a crucial role in providing accurate and real-time temperature data, which is essential for predictive maintenance, system monitoring, and fault detection in various industrial equipment. This non-isolated I/O module allows for easy integration into existing monitoring systems, helping ensure the safe and efficient operation of critical machinery in industries such as power generation, oil & gas, mining, and manufacturing.

Designed for optimal performance, the module provides excellent resistance to industrial noise and other challenging environments, making it highly suitable for demanding industrial applications. It offers superior data accuracy with minimal system interruptions and downtime.

Technical Specifications

Product Applications

The 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module is widely used in applications requiring precise temperature measurement in industrial environments. Key use cases include:

1. Industrial Temperature Monitoring: The module is used for monitoring the temperature of critical machinery such as turbines, compressors, and engines to ensure they operate within safe and efficient temperature ranges.

2. Predictive Maintenance: With its accurate temperature readings, the module plays a crucial role in detecting potential issues before they lead to equipment failure, enabling proactive maintenance.

3. Power Generation Systems: It is commonly used in power plants for the monitoring of temperatures in generators, motors, and other crucial equipment.

4. Oil and Gas Industry: In refineries and drilling operations, the module helps monitor the temperature of pumps, motors, and other machinery to avoid overheating and extend equipment life.

5. Mining and Manufacturing: The module helps monitor the temperature of critical equipment such as crushers, mills, and conveyors in mining and manufacturing facilities.

6. HVAC Systems: The device is also used in large-scale HVAC systems to ensure that temperature sensors and actuators are functioning correctly, maintaining system efficiency.

Advantages

1. High-Precision Measurement: The 3500/61-01-00 module provides highly accurate temperature measurements with a typical accuracy of ±0.1% of full scale (FS), ensuring reliable data for critical systems.

2. Wide Temperature Range: The module supports RTD measurements from -200°C to +850°C and thermocouple inputs from -200°C to +1372°C, making it suitable for a broad range of industrial temperature monitoring applications.

3. Non-Isolated Inputs: Designed with non-isolated inputs, the module allows for easier integration into industrial systems, reducing complexity and cost while maintaining optimal performance.

4. Ease of Integration: The module is designed to work seamlessly with Bently Nevada’s 3500 Series, enabling easy integration into existing monitoring systems without the need for additional hardware or complicated configuration.

5. Space-Saving Design: With compact dimensions (241.3 x 24.4 x 99.1 mm), the module offers an efficient solution for temperature monitoring without taking up excessive space in control panels or racks.

6. Reliability in Harsh Environments: Designed to withstand industrial noise and environmental challenges, the module offers superior reliability in harsh operating conditions commonly found in industrial plants.

7. Low Power Consumption: The module consumes just 2.4 W of power, contributing to energy efficiency in industrial systems and reducing operational costs.

8. Flexible Signal Inputs: Capable of handling both RTD and thermocouple (TC) inputs, the 3500/61-01-00 offers versatile measurement options, making it suitable for diverse industrial applications.

9. Mounting Flexibility: As a rack-mounted device, the module is easy to install in Bently Nevada 3500 Series racks, allowing for seamless integration into existing setups.

10. Safety and Compliance: The module meets international safety and quality standards, including UL, CE, and RoHS certifications, ensuring its safe operation in a wide range of industrial environments.

FAQs (Frequently Asked Questions)

1. What is the size of the Bently Nevada 3500/61-01-00 133819-02 RTD/TC Non-Isolated I/O Module?

   • The module has dimensions of 241.3 x 24.4 x 99.1 mm, making it compact and easy to install in control racks.

2. What is the weight of the 3500/61-01-00 module?

   • The module weighs 0.45 kg, making it lightweight for easy handling and installation.

3. What types of inputs are supported by the module?

   • The module supports both RTD (Resistance Temperature Detector) and thermocouple (TC) inputs for versatile temperature monitoring.

4. What is the temperature range supported by the module?

   • For RTDs, the range is -200°C to +850°C, and for thermocouples, the range is -200°C to +1372°C.

5. How many channels does the 3500/61-01-00 module support?

   • The module supports up to 8 channels for simultaneous temperature measurements.

6. What is the power consumption of the module?

   • The module consumes 2.4 W of power, making it energy-efficient for industrial applications.

7. How accurate is the temperature measurement provided by the module?

   • The module offers a typical accuracy of ±0.1% of full scale (FS), ensuring precise temperature data.

8. What is the protection rating of the 3500/61-01-00 module?

   • The module has an IP20 protection rating, offering protection against dust and small foreign objects.

9. Can the 3500/61-01-00 module be used in high-temperature environments?

   • Yes, the module can handle high-temperature measurements up to +1372°C when using thermocouples, making it suitable for high-temperature environments.

10. Is the module compatible with other Bently Nevada systems?

    • Yes, the 3500/61-01-00 is designed to be fully compatible with Bently Nevada’s 3500 Series, making it easy to integrate into existing systems.
