Product Introduction

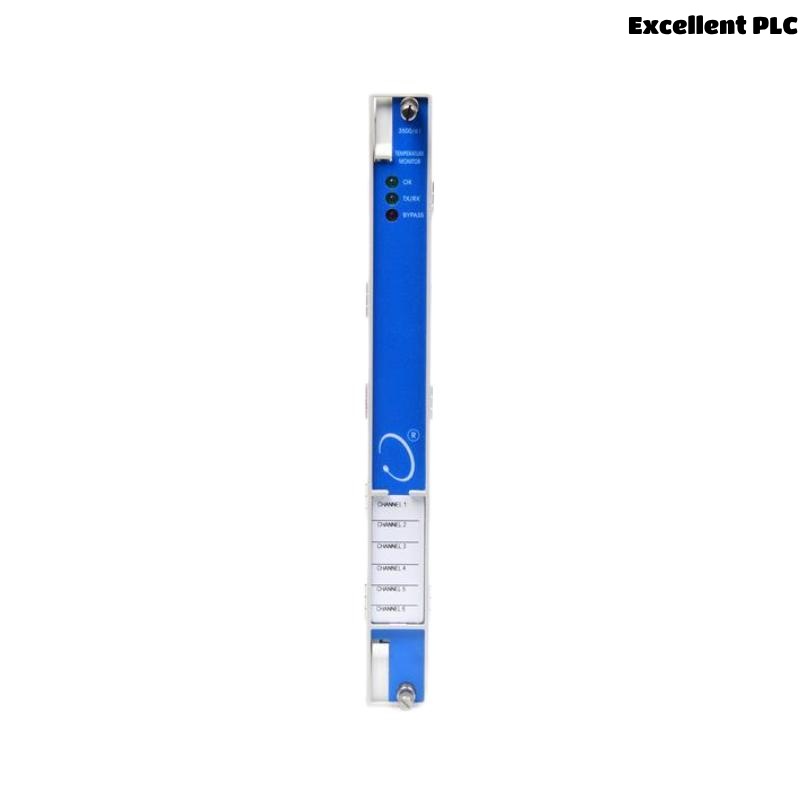

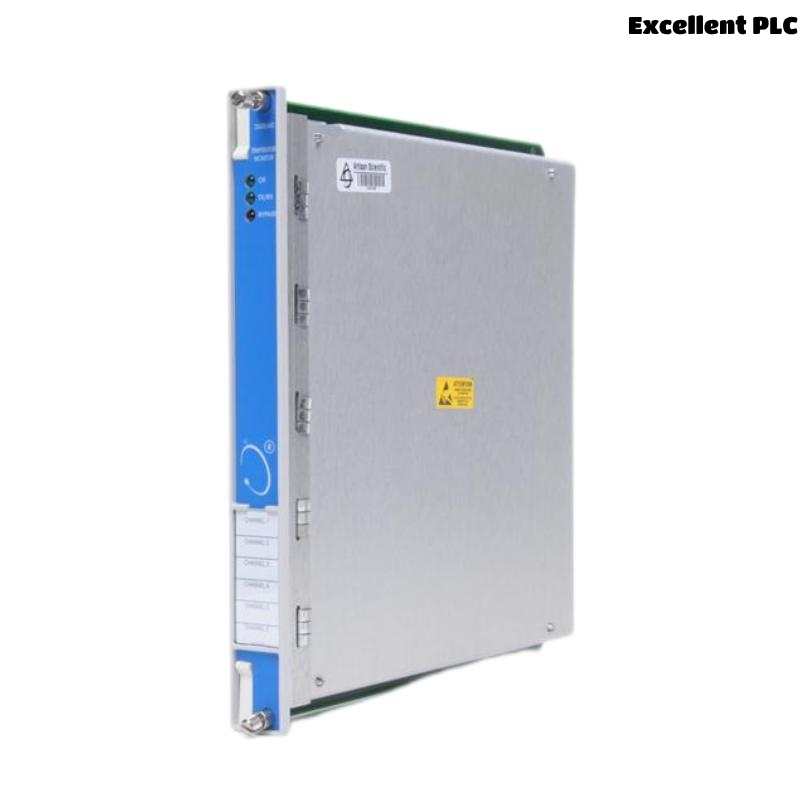

The Bently Nevada 3500/61-01-00 163179-02 Temperature Monitor with Data Logger is a state-of-the-art temperature monitoring solution designed to provide real-time, accurate temperature measurements across a wide range of industrial applications. This module not only measures temperature but also serves as a data logger, storing historical temperature data to ensure efficient monitoring, analysis, and troubleshooting. The 3500/61-01-00 163179-02 is part of Bently Nevada’s comprehensive 3500 Series, known for its high-performance, reliability, and precision in demanding environments.
This advanced device is designed to monitor the temperature of critical machinery, such as turbines, motors, pumps, and compressors, providing essential data that helps operators identify issues early, ensuring timely maintenance, and preventing costly downtime. With its robust design and high-accuracy readings, the temperature monitor is ideal for use in industries like power generation, oil and gas, mining, and manufacturing.
The 3500/61-01-00 163179-02 integrates seamlessly into Bently Nevada’s monitoring systems and provides actionable insights through data logging. This feature allows operators to track temperature trends over time, which is essential for predictive maintenance and ensuring the longevity of industrial assets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 3500/61-01-00 163179-02 |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Type | Temperature Monitor with Data Logger |
| Operating Voltage | 10 to 30 V DC |
| Signal Input | RTD (Resistance Temperature Detectors) |
| Number of Channels | 8 Channels |
| Temperature Range | -200°C to +850°C |
| Accuracy | ±0.1% of Full Scale (FS) |
| Data Storage Capacity | 100,000 Data Points |
| Mounting Type | Rack-mounted (3500 Series) |
| Power Consumption | 2.8 W |
| Protection Rating | IP20 |
| Compatibility | Bently Nevada 3500 Series |
| Certification | UL, CE, RoHS |
Product Applications
The 3500/61-01-00 163179-02 Temperature Monitor with Data Logger is designed for a wide range of temperature monitoring and data logging applications across various industrial sectors. Some of its key applications include:
-
Industrial Temperature Monitoring: The module continuously monitors the temperature of critical machinery, such as turbines, compressors, and motors, to ensure they remain within safe operating temperatures.
-
Predictive Maintenance: By providing real-time and historical temperature data, this monitor helps identify trends that can signal potential failures, enabling operators to perform predictive maintenance and reduce unplanned downtime.
-
Power Generation Systems: The module is crucial in power plants, where maintaining optimal temperature levels is vital for the efficient operation of turbines and generators.
-
Oil and Gas Industry: In the oil and gas industry, the module monitors the temperature of pumps, valves, and pipelines, ensuring they are operating within safe parameters to prevent overheating and system failures.
-
Mining and Manufacturing: It ensures that temperature-sensitive machinery, such as crushers, mills, and conveyors, operates efficiently and safely in mining and manufacturing environments.
-
Data Logging for Trend Analysis: The built-in data logger stores up to 100,000 data points, making it possible to track temperature trends over time for historical analysis, reporting, and performance optimization.
Advantages
-
Real-Time Monitoring with Data Logging: The 3500/61-01-00 163179-02 offers both real-time temperature monitoring and the ability to store large amounts of historical data (100,000 data points), allowing for more effective decision-making.
-
High-Accuracy Measurements: With an accuracy of ±0.1% of full scale, this module provides highly accurate temperature readings, essential for applications where precise data is critical.
-
Wide Temperature Range: The module supports a wide temperature range of -200°C to +850°C, making it suitable for use in a variety of industrial environments, including those with extreme temperatures.
-
Non-Volatile Memory: The data logger ensures that stored data is preserved even in the event of power loss, ensuring reliable data integrity.
-
Compact and Efficient Design: With compact dimensions (241.3 x 24.4 x 241.8 mm), the 3500/61-01-00 163179-02 is space-efficient, fitting easily into control panels and system racks.
-
Seamless Integration with 3500 Series: The module is fully compatible with Bently Nevada’s 3500 Series, ensuring easy integration with other monitoring modules for a complete asset monitoring solution.
-
Energy-Efficient Operation: Consuming only 2.8 W of power, the monitor minimizes energy use while still providing exceptional performance.
-
Robust Industrial Design: The 3500/61-01-00 163179-02 is built to withstand harsh industrial environments, offering reliability in challenging conditions.
-
Easy to Install: The module is designed for rack mounting, which simplifies installation and reduces wiring complexity.
-
Global Certifications: With UL, CE, and RoHS certifications, this product meets global safety and environmental standards, ensuring its suitability for a wide range of international applications.
FAQs (Frequently Asked Questions)
-
What are the dimensions of the Bently Nevada 3500/61-01-00 163179-02 Temperature Monitor?
-
The module has dimensions of 241.3 x 24.4 x 241.8 mm, which makes it compact and easy to install in control panels or racks.
-
-
What is the weight of the 3500/61-01-00 163179-02 module?
-
The module weighs 0.91 kg, which is relatively lightweight for its function and allows easy handling during installation.
-
-
What types of inputs does the 3500/61-01-00 163179-02 support?
-
The module supports RTD (Resistance Temperature Detectors) for temperature measurement.
-
-
What is the temperature range of the 3500/61-01-00 163179-02?
-
The module has a temperature range of -200°C to +850°C, making it suitable for various industrial temperature monitoring needs.
-
-
How many channels can the 3500/61-01-00 163179-02 module support?
-
The module supports up to 8 channels for simultaneous temperature measurement across multiple devices or systems.
-
-
What is the power consumption of the 3500/61-01-00 163179-02?
-
The module consumes 2.8 W of power, ensuring energy-efficient operation while maintaining high performance.
-
-
How much data can the 3500/61-01-00 163179-02 store?
-
The module’s built-in data logger can store up to 100,000 data points, allowing for long-term temperature trend tracking.
-
-
What protection rating does the 3500/61-01-00 163179-02 have?
-
The module has an IP20 protection rating, providing protection against dust and small foreign objects.
-
-
Is the module compatible with Bently Nevada’s other monitoring systems?
-
Yes, the module is fully compatible with the 3500 Series, ensuring easy integration into existing Bently Nevada monitoring systems.
-
-
What industries can benefit from using the 3500/61-01-00 163179-02?
-
This module is ideal for industries such as power generation, oil and gas, manufacturing, and mining, where accurate temperature monitoring and data logging are essential.
-
