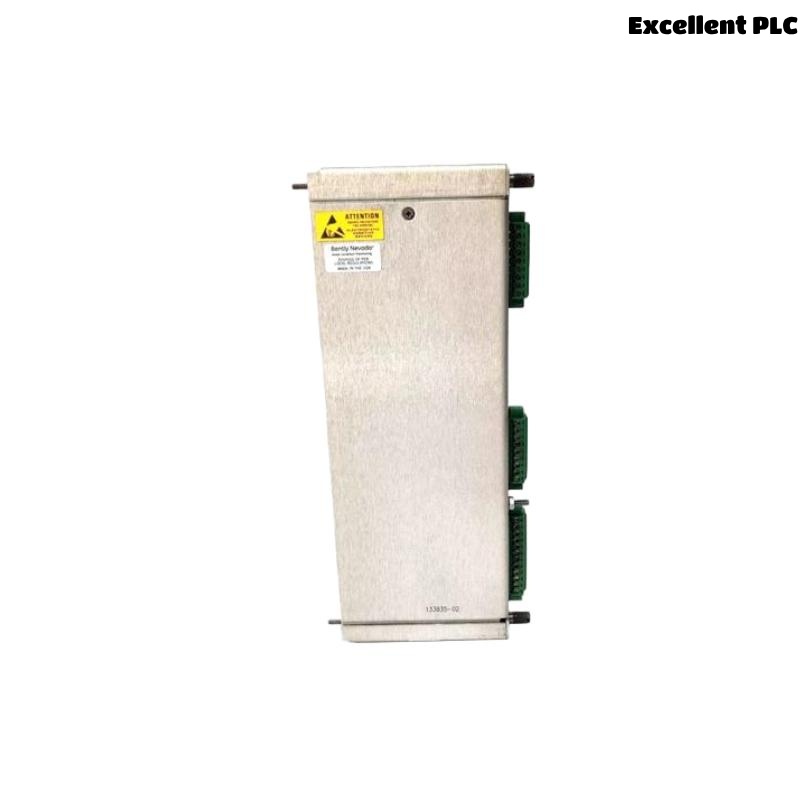

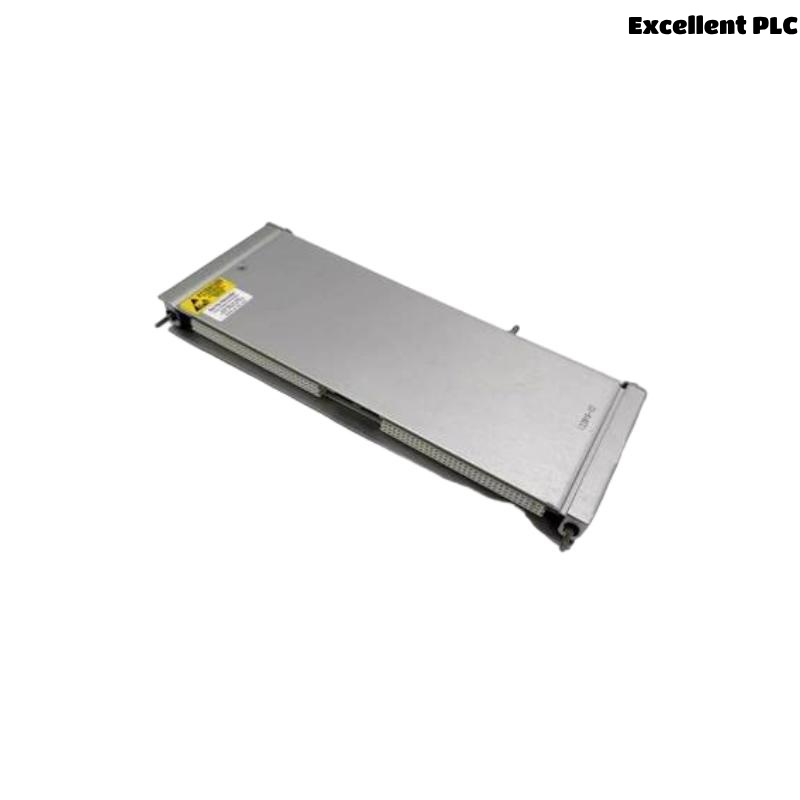

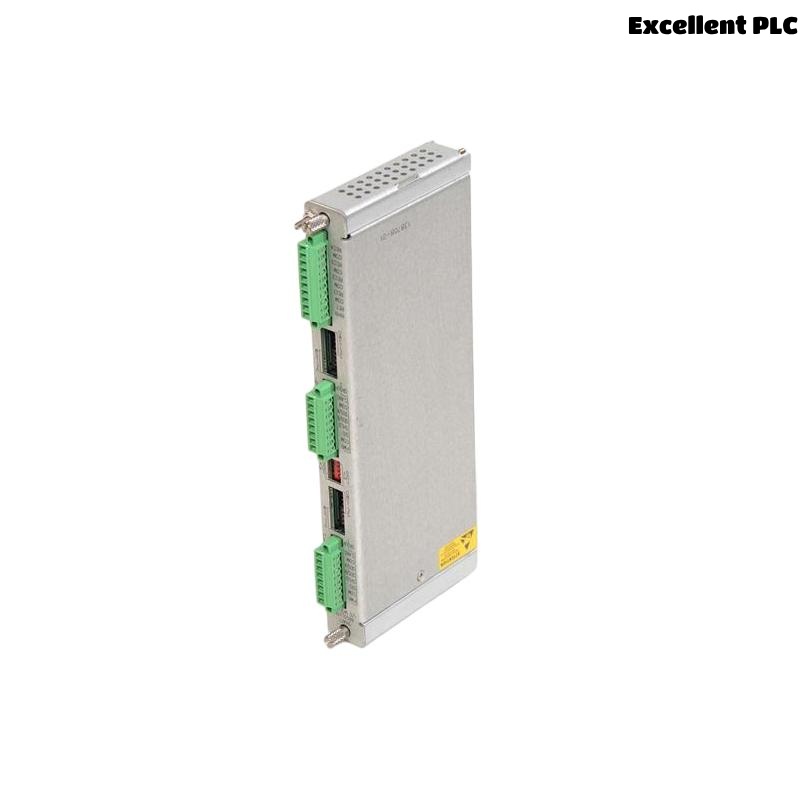

Bently Nevada 3500/61-03-00 133835-02 TC Isolated I/O Module

Product Introduction

The Bently Nevada 3500/61-03-00 133835-02 TC Isolated I/O Module is a high-performance industrial component designed to provide reliable and accurate temperature measurements in various critical applications. Specifically designed for use in Bently Nevada’s 3500 Series, the TC Isolated I/O module is built to withstand the harshest industrial environments while offering precise temperature data for continuous monitoring and analysis. This module supports thermocouple (TC) inputs, making it ideal for industries that require robust, real-time temperature monitoring for applications such as turbines, compressors, and other high-value equipment.

The 3500/61-03-00 module offers isolation between the input channels and the rest of the system, ensuring optimal protection against electrical noise, ground loops, and other disturbances that could affect temperature measurement accuracy. This makes it an essential component for precise monitoring of critical temperature parameters in power plants, oil and gas facilities, mining operations, and other industries that rely on real-time temperature data to optimize performance and prevent failures.

Designed for seamless integration into the Bently Nevada 3500 Series, this module not only provides accurate temperature readings but also helps reduce system downtime and maintenance costs by offering early warning signs of potential issues, which can be addressed proactively.

Technical Specifications

Product Applications

The 3500/61-03-00 133835-02 TC Isolated I/O Module is used in a wide range of industrial applications where high-precision temperature measurement is critical. Key areas where this module is commonly deployed include:

1. Power Generation: In power plants, the module is used to monitor the temperature of turbines, generators, and motors, ensuring that they operate within safe limits and improving the reliability and efficiency of the power generation process.

2. Oil and Gas Industry: The module helps monitor the temperature of critical equipment such as pumps, compressors, and pipelines in oil and gas facilities, preventing overheating and potential system failures.

3. Mining Industry: In mining operations, this module is used to monitor the temperature of heavy machinery and ensure their safe operation in challenging environments.

4. Manufacturing and Process Industries: The TC Isolated I/O module is used in various manufacturing and process industries for monitoring temperature-sensitive equipment such as conveyor belts, reactors, and kilns.

5. Predictive Maintenance: By providing real-time temperature data, the module assists in predictive maintenance programs, helping to detect overheating and other issues before they lead to costly downtime or damage to equipment.

6. HVAC Systems: The module can also be used in large-scale HVAC systems for temperature monitoring and optimization, ensuring the efficient performance of HVAC equipment.

Advantages

1. Thermocouple (TC) Input Compatibility: The module supports thermocouple inputs, which allows it to measure temperatures in a wide range of environments with high accuracy.

2. Input Isolation: The module provides input isolation, which protects the system from electrical noise, ground loops, and other interference that could affect temperature measurement accuracy, ensuring reliable data even in challenging industrial environments.

3. High-Accuracy Temperature Measurements: The 3500/61-03-00 module offers ±0.1% of full scale accuracy, ensuring that the temperature data it provides is highly precise and reliable for critical applications.

4. Wide Temperature Range: With a temperature range of -200°C to +1372°C, the module is suitable for a diverse range of applications, including those with extreme temperature conditions.

5. Compact and Efficient Design: The module has compact dimensions (241 x 24.4 x 99.1 mm), making it easy to install in racks and control panels without occupying excessive space.

6. Low Power Consumption: The module consumes only 2.4 W of power, making it energy-efficient while still providing high-performance temperature monitoring.

7. Easy Integration: Designed to work seamlessly with the Bently Nevada 3500 Series, the module integrates easily into existing monitoring systems without the need for additional hardware or complex configurations.

8. Robust Industrial Design: Built to withstand harsh environmental conditions, the module offers reliability and durability in demanding industrial settings.

9. Real-Time Monitoring and Data Logging: The module provides real-time temperature monitoring and, when integrated with Bently Nevada’s system, supports data logging for future analysis and trend tracking.

10. Global Compliance: The module is UL, CE, and RoHS certified, ensuring that it meets international safety and environmental standards, making it suitable for global use.

FAQs (Frequently Asked Questions)

1. What is the temperature range of the Bently Nevada 3500/61-03-00 133835-02?

   • The module supports a temperature range from -200°C to +1372°C, making it suitable for a wide variety of industrial applications.

2. What type of inputs does the 3500/61-03-00 133835-02 support?

   • This module supports thermocouple (TC) inputs for temperature measurement.

3. How many channels does the module support?

   • The module supports up to 8 channels for simultaneous temperature measurements across multiple devices.

4. What is the power consumption of the 3500/61-03-00 133835-02 module?

   • The module consumes 2.4 W of power, ensuring energy-efficient operation.

5. What is the accuracy of the temperature measurements?

   • The module offers an accuracy of ±0.1% of full scale, ensuring high-precision temperature data.

6. What are the dimensions of the 3500/61-03-00 module?

   • The module has dimensions of 241 x 24.4 x 99.1 mm, making it compact and easy to install.

7. What is the weight of the 3500/61-03-00 module?

   • The module weighs 0.45 kg, which makes it lightweight and easy to handle.

8. Can the module be used in high-temperature environments?

   • Yes, with its wide temperature range, the module is suitable for monitoring both low and high-temperature environments.

9. Is the 3500/61-03-00 module compatible with other Bently Nevada products?

   • Yes, this module is designed to be fully compatible with Bently Nevada’s 3500 Series, ensuring seamless integration with other monitoring equipment.

10. What industries can benefit from using the 3500/61-03-00 module?

    • The module is ideal for industries such as power generation, oil and gas, mining, and manufacturing, where accurate temperature monitoring is critical.
