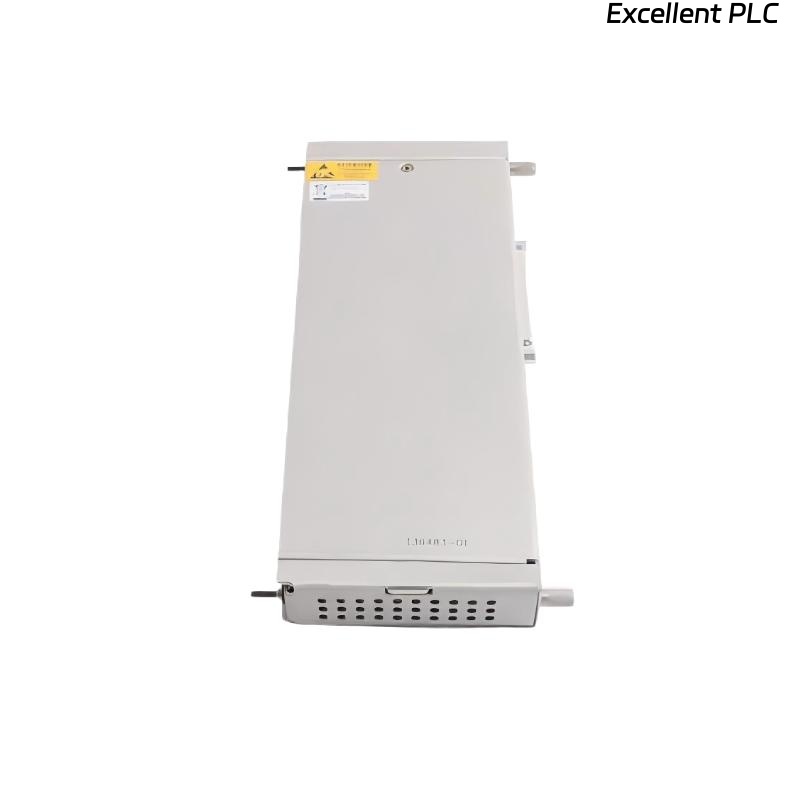

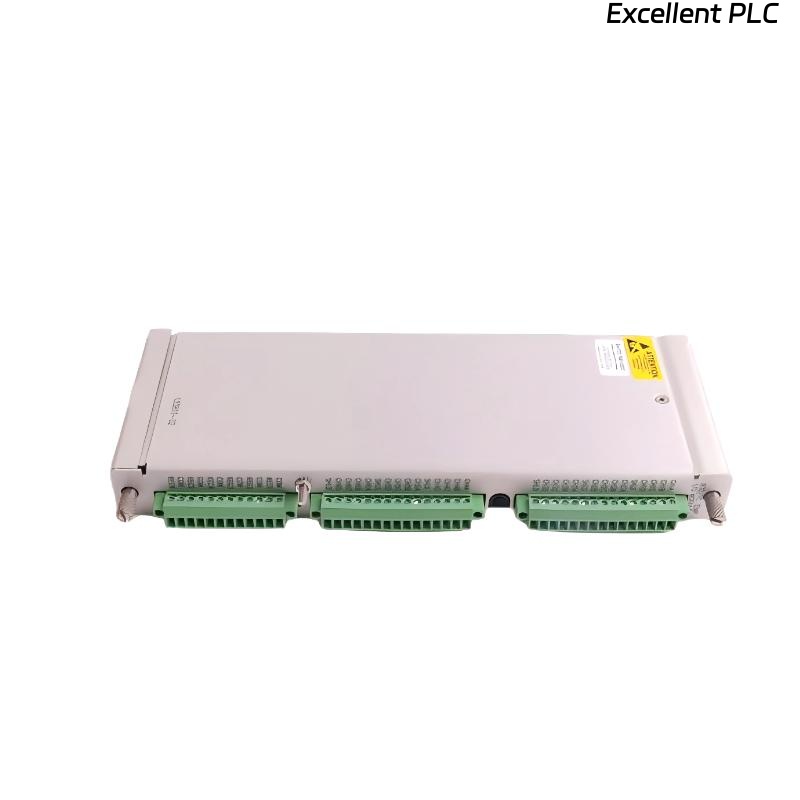

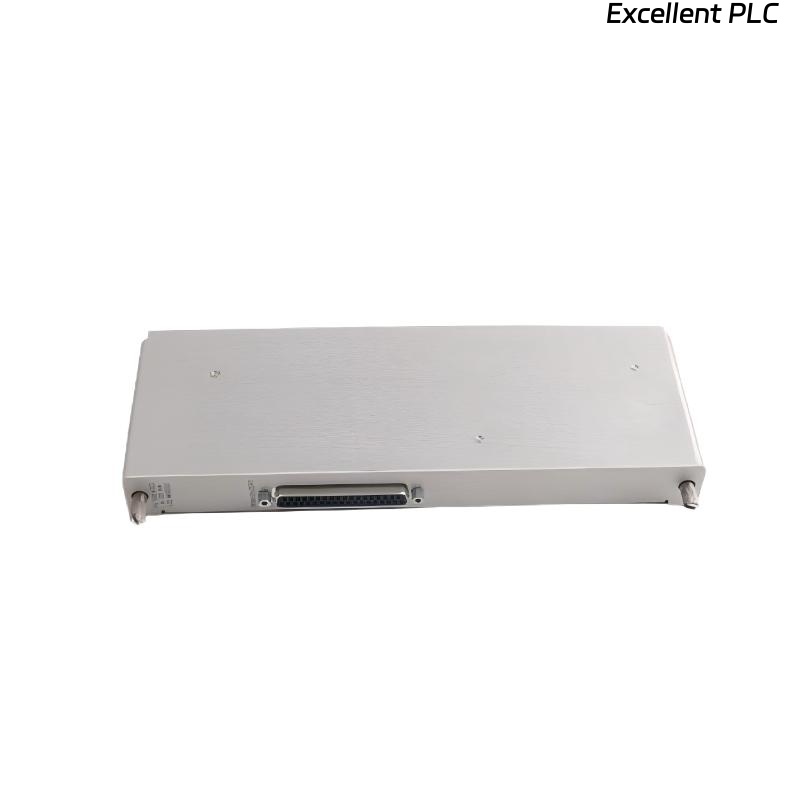

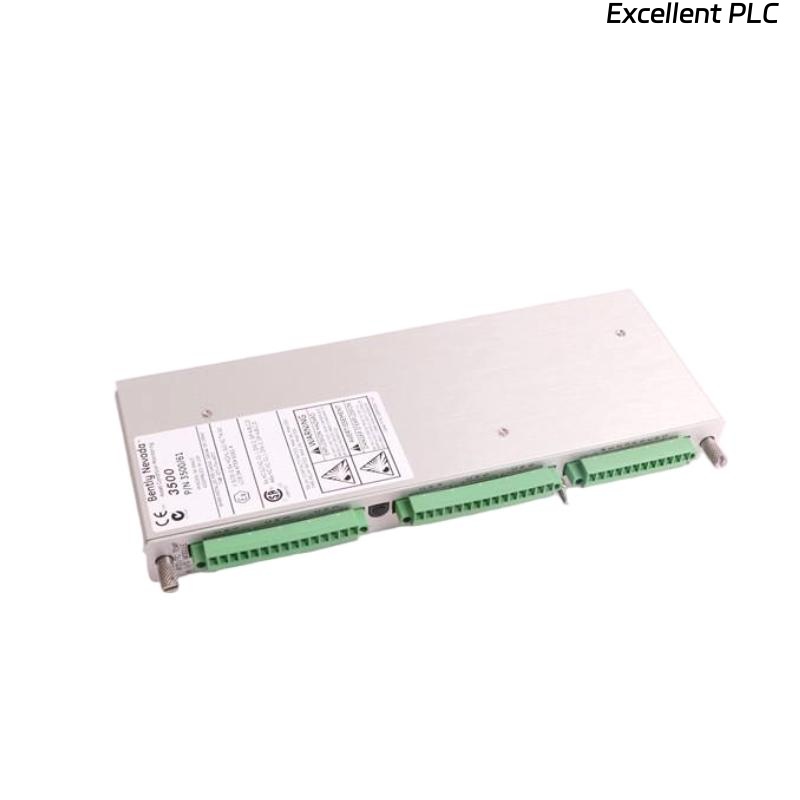

Bently Nevada 3500/62 136499-01 I/O Module with External Termination

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 3500/62 136499-01 is an advanced I/O module designed to integrate seamlessly with the Bently Nevada 3500 series of monitoring systems. This module is equipped with external termination, offering flexibility in connecting various industrial sensors for real-time data acquisition and process monitoring.

This module is engineered to handle a wide range of industrial applications, providing reliable and accurate data measurement, essential for condition monitoring and preventive maintenance. The Bently Nevada 3500/62 136499-01 is typically deployed in systems where external termination is preferred, providing easier access for maintenance and troubleshooting.

The module supports both analog and digital signals, allowing users to monitor critical parameters such as vibration, temperature, pressure, and more, helping industries to maintain high performance and minimize the risk of downtime.

---

Product Specifications

---

Product Application

The Bently Nevada 3500/62 I/O module with external termination is used in industrial process monitoring and control systems, primarily where external connections and wiring are required. Its applications include:

• Vibration Monitoring: Measures machinery vibrations, enabling early detection of potential faults such as imbalances, misalignments, or bearing failures.

• Temperature Monitoring: Monitors the temperature of key components, ensuring equipment is operating within safe thermal limits and preventing overheating.

• Pressure and Flow Monitoring: Tracks pressure and flow rates in piping and tanks, identifying abnormal conditions that may lead to damage or failure.

• Pump and Motor Protection: Assures the safe operation of pumps and motors by monitoring critical variables such as pressure, temperature, and vibration.

The flexibility of this I/O module allows it to be used across many industries, such as oil and gas, energy, manufacturing, and chemical processing, where equipment uptime and performance are critical.

---

Product Advantages

• External Termination for Easy Access: The inclusion of external termination points allows for simplified wiring, easier maintenance, and more flexibility during installation, especially in large systems with multiple sensors.

• High-Accuracy Signal Processing: The module is designed for precise analog and digital signal processing, ensuring that measurement data is accurate and reliable.

• Wide Input Range: The 3500/62 supports input ranges of 0-10 V DC and 4-20 mA, allowing for compatibility with a wide array of sensors and devices.

• High Isolation: With 2500 V AC isolation, the module protects sensitive equipment from electrical interference and surges, ensuring long-term reliability.

• Compact Design: The small form factor (241.3 x 24.4 x 99.1 mm) and lightweight build (0.2 kg) make it ideal for installations in space-constrained environments without sacrificing performance.

• Rugged Durability: Designed to operate in harsh industrial environments with an extended operating temperature range of -40°C to +85°C, making it suitable for diverse locations.

• Ease of Integration: Easily integrates with other Bently Nevada 3500 series modules, providing a seamless, comprehensive solution for monitoring multiple parameters in real-time.

• Energy Efficient: With a maximum power consumption of only 1.8 W, the module is energy-efficient, reducing overall operational costs.

---

Frequently Asked Questions (FAQ)

1. What type of input/output channels does the Bently Nevada 3500/62 support?

   • The module supports 8 analog input/output channels for real-time monitoring of multiple process variables.

2. What is the maximum voltage range the module can handle?

   • The module can handle input voltage ranges from 0-10 V DC and 4-20 mA.

3. Can the module be used for hazardous location monitoring?

   • The module is designed for industrial environments but may require additional certifications for hazardous locations. Always check the installation requirements.

4. How does the module ensure electrical protection?

   • The 3500/62 provides 2500 V AC isolation to protect sensitive components from electrical surges and interference.

5. What is the power consumption of the Bently Nevada 3500/62?

   • The module has a maximum power consumption of 3.0 W.

6. How does the Bently Nevada 3500/62 monitor process variables?

   • It processes both analog and digital signals, providing real-time data for accurate monitoring of variables such as temperature, pressure, vibration, and flow.

7. Is the module compatible with other Bently Nevada systems?

   • Yes, the 3500/62 integrates seamlessly with other products from the Bently Nevada 3500 series, offering an interconnected solution.

8. What certifications does the Bently Nevada 3500/62 have?

   • The module is certified by UL, CE, and RoHS, ensuring it meets international safety and environmental standards.

9. What is the size and weight of the Bently Nevada 3500/62 module?

   • The module has dimensions of 241.3 x 24.4 x 241.8 mm and weighs 0.82 kg.

10. Can the module handle both analog and digital signals?

    • Yes, the 3500/62 can handle both analog and digital signals for a wide variety of process monitoring applications.

---
