Product Overview

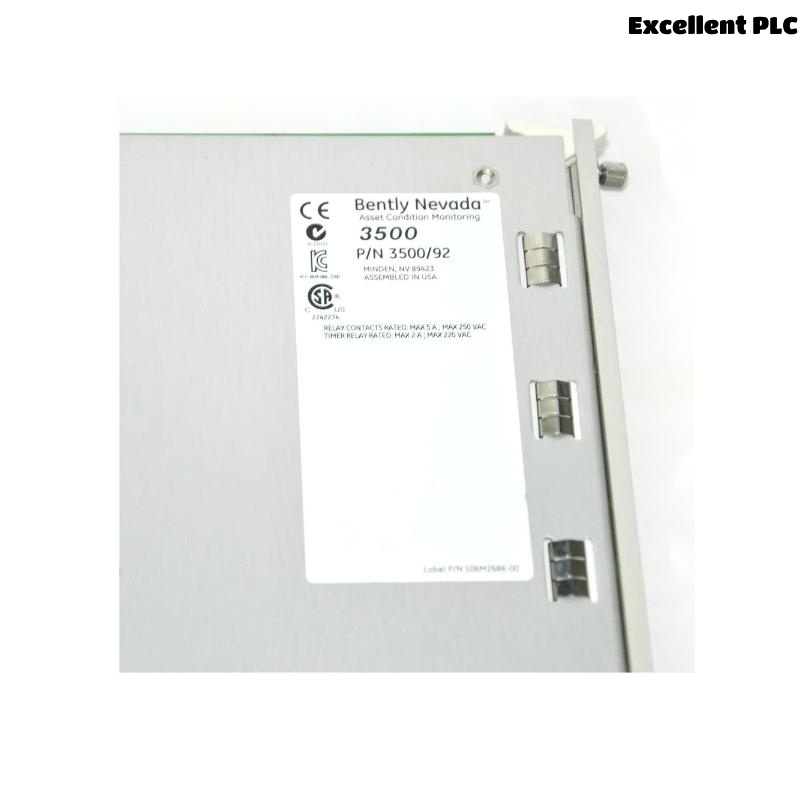

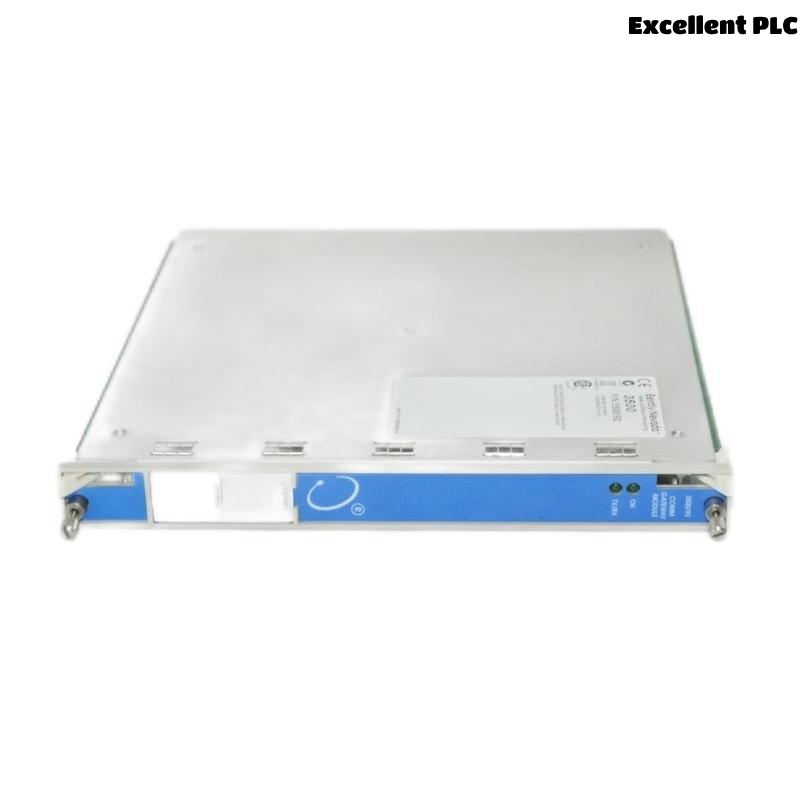

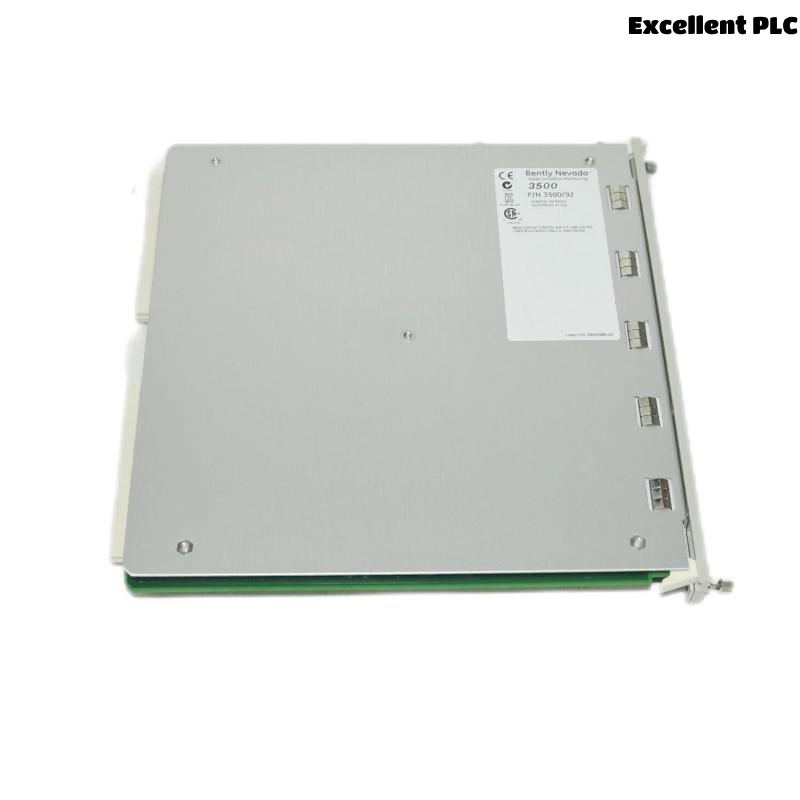

The Bently Nevada 3500/92 136180-01 Communication Gateway Module is a critical component designed to provide seamless data exchange between the Bently Nevada 3500 Machinery Protection System and external control, monitoring, or asset management systems. It functions as a communication bridge, facilitating the transmission of machine condition data, alarms, and diagnostic information using a range of industrial communication protocols.
This gateway module enhances the ability to integrate Bently Nevada’s machinery protection data into plant-wide Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) systems, and other enterprise-level monitoring platforms, thereby enabling comprehensive asset management and predictive maintenance strategies.
Key Features
-
Enables communication between the 3500 system and external host systems such as DCS, PLC, SCADA
-
Supports multiple communication protocols including Modbus TCP/IP, Modbus RTU, and OPC DA
-
Real-time transmission of vibration, temperature, speed, and status data
-
Supports configurable alarm and event reporting
-
High-speed Ethernet interface with RJ45 connector for network connectivity
-
Facilitates centralized monitoring and control of rotating machinery
-
LED indicators for communication status, power, and fault diagnostics
-
Compatible with the Bently Nevada 3500 system rack architecture
-
Rugged design suitable for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Bently Nevada 3500/92 Communication Gateway Module |
| Model Number | 3500/92 |
| Part Number | 136180-01 |
| Function | Gateway for communication between 3500 system and external control/monitoring systems |
| Supported Protocols | Modbus TCP/IP, Modbus RTU, OPC DA |
| Communication Interface | 10/100 Mbps Ethernet (RJ45) |
| Data Transmission Rate | Up to 100 Mbps |
| Data Types Supported | Vibration, temperature, speed, status, alarms, events |
| Alarm and Event Reporting | Supported with configurable mapping |
| Power Supply | Powered via 3500 system rack backplane |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Certifications | CE, CSA, ATEX, IECEx (subject to regional requirements) |
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.82 kg |
Industry Applications
The 3500/92 Communication Gateway Module is used extensively in industries that demand reliable machinery data integration and centralized monitoring:
-
Oil & Gas: Integration of turbine, compressor, and pump data into plant DCS and SCADA systems
-
Power Generation: Transmission of generator and turbine condition data for centralized control
-
Petrochemical: Machinery protection data reporting for process optimization and safety
-
Marine & Offshore: Communication between machinery protection and vessel control systems
-
Metals & Mining: Consolidated condition monitoring for mining equipment and processing plants
-
Industrial Automation: Enterprise-level integration for predictive maintenance and asset management
Product Advantages
-
Versatile Protocol Support: Provides multiple protocol options for broad compatibility with host systems
-
High-Speed Ethernet Connectivity: Ensures fast and reliable data transmission
-
Real-Time Data Access: Enables immediate access to machine condition and status information
-
Seamless Integration: Designed to fit into the Bently Nevada 3500 system without modifications
-
Robust Industrial Design: Suitable for continuous operation in harsh environments
-
Simplified Diagnostics: LED indicators provide clear status and fault information
-
Configurable Alarm Reporting: Customizable alarm/event forwarding supports proactive maintenance
-
Improved Operational Efficiency: Centralized data access supports informed decision-making
Frequently Asked Questions (FAQ)
1. What is the primary role of the 3500/92 Communication Gateway Module?
It acts as a communication interface enabling data exchange between the 3500 system and external control or monitoring systems.
2. Which communication protocols are supported?
Modbus TCP/IP, Modbus RTU, and OPC DA.
3. What types of data can be transmitted via this gateway?
Vibration, temperature, speed, status, alarms, and event data.
4. What physical interface does the module use?
It uses a 10/100 Mbps Ethernet connection via an RJ45 port.
5. How is the module powered?
Power is supplied through the Bently Nevada 3500 system rack backplane.
6. Is the module suitable for harsh industrial environments?
Yes, it operates reliably from -30°C to +65°C.
7. Does the module provide diagnostic indicators?
Yes, LED indicators show power status, communication activity, and faults.
8. Can alarms and events be forwarded to external systems?
Yes, with configurable alarm and event reporting.
9. Is this module compatible with existing Bently Nevada 3500 racks?
Yes, it integrates seamlessly with standard 3500 system racks.
10. Which industries commonly use this communication gateway?
Oil & gas, power generation, petrochemical, marine, mining, and industrial automation.
