Bently Nevada 3500/92 136188-02
Product Introduction

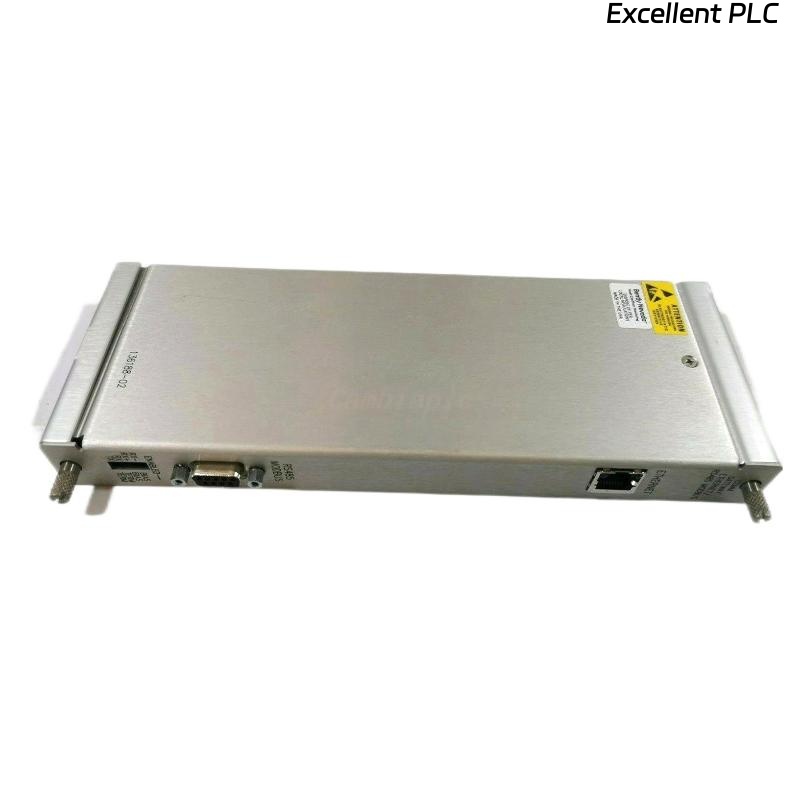

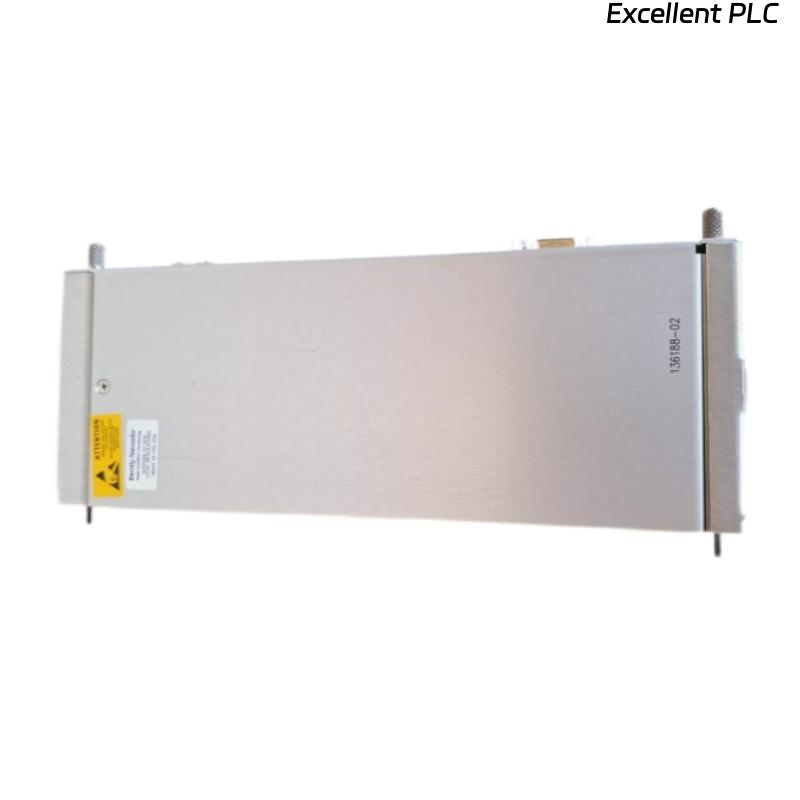

The Bently Nevada 3500/92 136188-02 is an Ethernet/RS232 Modbus Communication Gateway Module designed for the 3500 Machinery Protection System. It provides an efficient and secure interface between the 3500 rack and plant-wide control systems, supporting both Modbus TCP/IP over Ethernet and Modbus RTU over RS232 connections. This enables seamless integration with DCS, SCADA, or other supervisory control systems, ensuring that critical machinery condition data is delivered accurately and in real time.
This module is widely adopted in industries such as power generation, petrochemical processing, oil & gas, and heavy manufacturing, where continuous machine health monitoring and high system availability are mission-critical.
Product Advantages
-
Dual Communication Protocols – Supports both Modbus TCP and Modbus RTU, offering flexible integration options.
-
High Reliability – Engineered for continuous operation in harsh industrial environments with robust EMC compliance.
-
Real-Time Data Transfer – Delivers machine condition and alarm data with minimal latency.
-
Rack-Based Integration – Fits directly into the 3500 rack system without the need for external communication converters.
-
Ease of Configuration – Configurable via Bently Nevada’s 3500 Configuration Software.
-
Proven Industry Standard – Used globally in mission-critical applications, backed by GE/Bently Nevada’s decades of expertise in machinery protection systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Part Number | 136188-02 |
| Product Name | 3500/92 Modbus Communication Gateway Module |
| Communication Protocols | Modbus TCP/IP over Ethernet, Modbus RTU over RS232 |
| Ethernet Port | 10BASE-T/100BASE-TX, RJ45 connector |
| Serial Port | RS232, DB9 connector |
| Supported Baud Rates | 1200 to 115200 bps |
| Data Refresh Rate | User configurable, typically 1s |
| Power Consumption | < 7 W |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 241 x 24.4 x 99.1 mm |
| Weight | 0.44 kg |
| Mounting | Installs directly into 3500 rack slot |
| Compliance | CE, CSA, IEC standards for industrial environments |
Applications
The Bently Nevada 3500/92 136188-02 is designed for:
-
Integration of 3500 machinery monitoring systems with DCS or SCADA.
-
Remote monitoring of turbines, compressors, pumps, and other rotating equipment.
-
Industrial Ethernet or serial-based condition monitoring solutions.
-
Redundant communication pathways for high-reliability applications.
-
Bridging legacy RS232-based systems with modern Ethernet infrastructure.
Compatible / Related Models (Same-Series)
-
Bently Nevada 3500/42M Proximitor®/Seismic Monitor
-
Bently Nevada 3500/50M Tachometer Module
-
Bently Nevada 3500/60 Temperature Monitor
-
Bently Nevada 3500/64MX Machinery Protection Card
-
Bently Nevada 3500/22M Transient Data Interface (TDI)
-
Bently Nevada 3500/40M Proximitor® Monitor
Same-Brand Popular Models (Bently Nevada)
| Model Number | Description | Dimensions (H×W×D) | Weight | Voltage |
|---|---|---|---|---|
| 3500/42M | Proximitor®/Seismic Monitor | 241×24×241 mm | 0.55 kg | 18–32 VDC |
| 3500/60 | Temperature Monitor | 241×24×241 mm | 0.56 kg | 18–32 VDC |
| 3500/22M | Transient Data Interface (TDI) | 241×24×241 mm | 0.54 kg | 18–32 VDC |
| 3500/50M | Tachometer Module | 241×24×241 mm | 0.57 kg | 18–32 VDC |
| 3500/32M | Relay Module | 241×24×241 mm | 0.56 kg | 18–32 VDC |
| 3500/77M | Temperature/Process Variable Monitor | 241×24×241 mm | 0.55 kg | 18–32 VDC |
| 3500/61 | Temperature Monitor (Thermocouple/RTD) | 241×24×241 mm | 0.56 kg | 18–32 VDC |
| 3500/64M | Dynamic Pressure Monitor | 241×24×241 mm | 0.55 kg | 18–32 VDC |
FAQ
Q1: What is the main function of the 3500/92 136188-02?
A1: It acts as a Modbus communication gateway between the 3500 rack and supervisory control systems.
Q2: Can it support both Ethernet and RS232 connections simultaneously?
A2: Yes, the module supports concurrent operation for Ethernet Modbus TCP and serial Modbus RTU.
Q3: How is the module installed?
A3: It installs directly into an available slot in the 3500 rack without requiring external mounting hardware.
Q4: Does it require special configuration software?
A4: Yes, configuration is done using Bently Nevada’s 3500 Configuration Software.
Q5: Is it suitable for outdoor installations?
A5: It is designed for industrial environments, but if used outdoors, it should be housed in a weatherproof enclosure.
Q6: What industries commonly use this module?
A6: Oil & gas, petrochemical plants, power generation, steel production, and heavy manufacturing.
Q7: What happens if the module fails?
A7: The 3500 system will continue protecting the machine, but data transmission to external systems will be interrupted.
Q8: Is firmware upgradeable?
A8: Yes, firmware can be updated via the configuration software when required.
Q9: Can it be used with older 3500 systems?
A9: Compatibility depends on the rack firmware version; newer firmware may be required for full functionality.
Q10: What is its typical lifespan?
A10: With proper installation and environmental control, it can last over 5 years in continuous operation.
