Product Overview

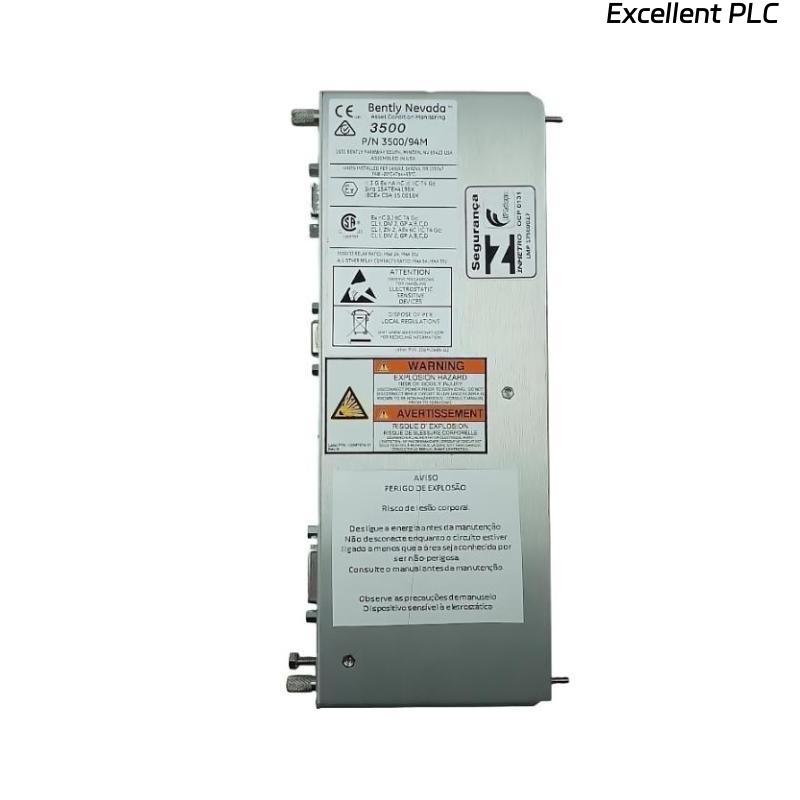

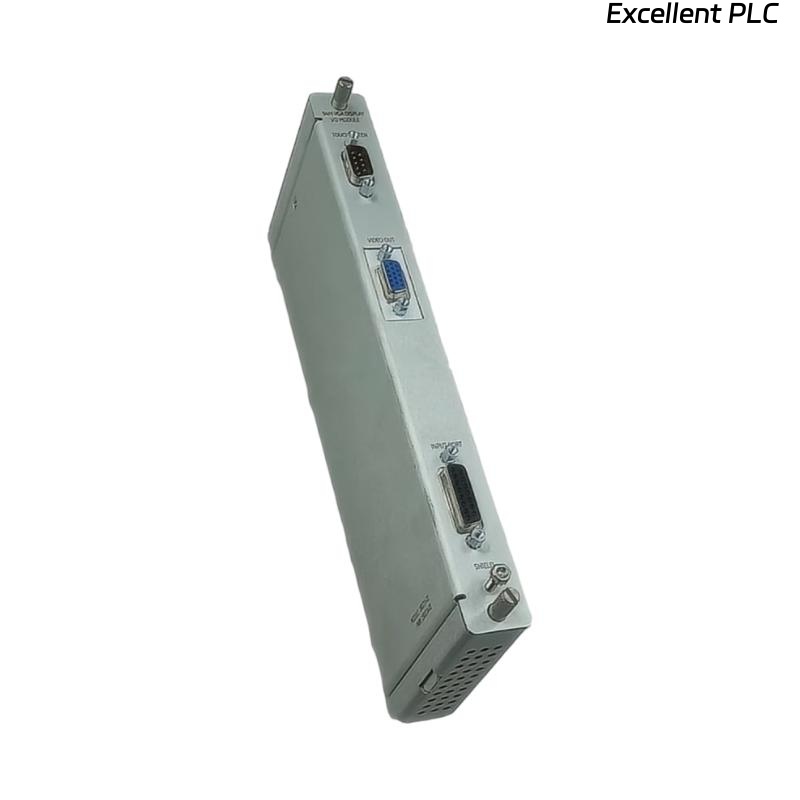

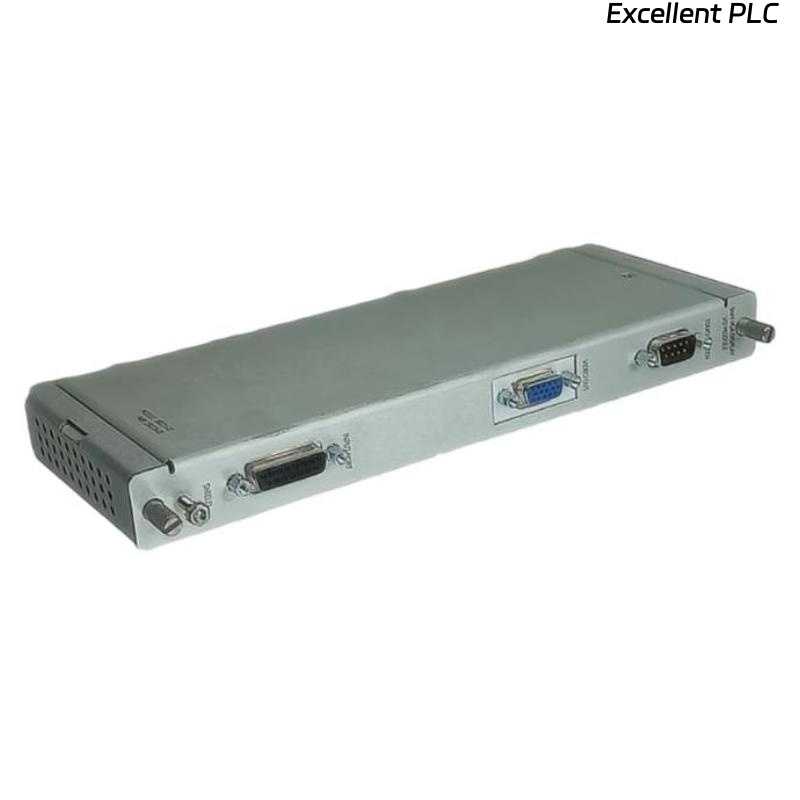

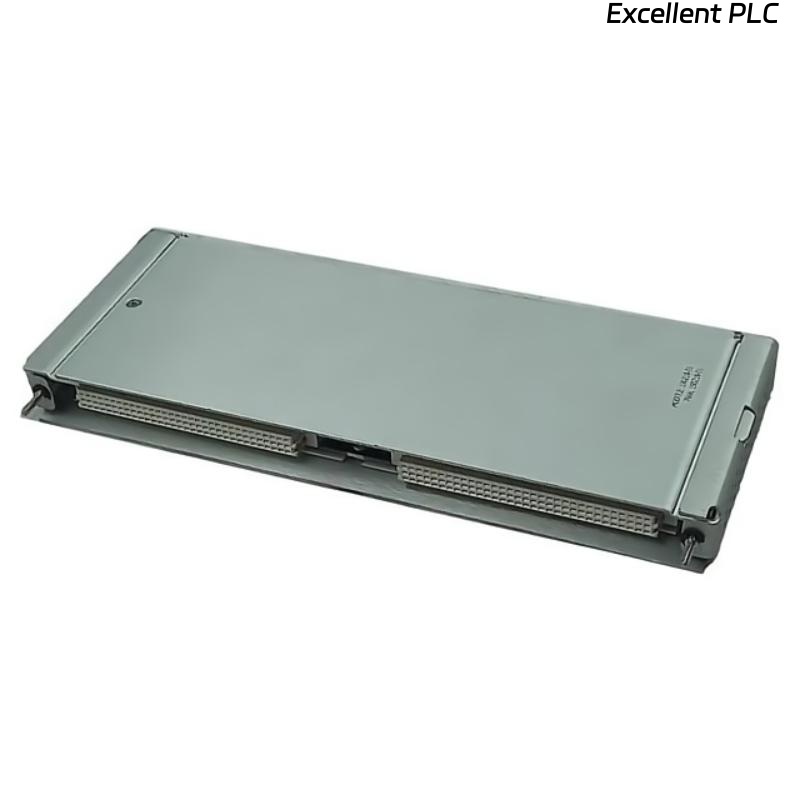

The Bently Nevada 3500/94 190214-01 General I/O Modules provide flexible input and output interfaces for the 3500 monitoring system. These modules enable the system to communicate with a variety of field devices, including sensors, switches, and auxiliary equipment. They are designed for reliability and accuracy in critical machinery monitoring applications, ensuring seamless integration with other 3500 system modules.
Key Features
-
Provides general-purpose input and output channels
-
Compatible with Bently Nevada 3500 monitoring systems
-
Interfaces with sensors, switches, and auxiliary devices
-
Robust design suitable for industrial environments
-
Supports real-time data acquisition and monitoring
-
Facilitates easy integration and maintenance
-
Enhances flexibility of 3500 system installations
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | General I/O Module |
| Model Number | 190214-01 |
| System Compatibility | Bently Nevada 3500 Series |
| Input/Output Channels | Multiple configurable channels (system dependent) |
| Signal Types | Digital and analog inputs/outputs |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.34 kg |
| Indicators | Module status LEDs |
Industry Applications
-
Oil & Gas – Monitoring and controlling machinery and auxiliary devices
-
Power Generation – Interface with sensors and control equipment
-
Chemical & Petrochemical – Flexible I/O for process equipment
-
Mining & Metals – Integration with industrial machinery systems
-
Marine & Offshore – Interfaces for auxiliary machinery and safety devices
-
Pulp & Paper – Control and monitoring of pumps, compressors, and sensors
Frequently Asked Questions (FAQ)
Q1: What is the function of the 3500/94 190214-01 module?
It provides configurable input and output channels for various field devices in the 3500 system.
Q2: How many I/O channels does it support?
It supports multiple configurable channels, depending on the system setup.
Q3: What types of signals are supported?
Both digital and analog input/output signals are supported.
Q4: What is the operating temperature range?
-20°C to 70°C.
Q5: What are the module dimensions?
241.3 mm x 24.4 mm x 99.1 mm.
Q6: How much does the module weigh?
Approximately 0.34 kg.
Q7: Can it integrate with other 3500 system modules?
Yes, it fully integrates with the 3500 monitoring system.
Q8: What indicators are included for diagnostics?
Module status LEDs provide visual diagnostic information.
Q9: Is it suitable for harsh industrial environments?
Yes, it is designed for rugged industrial operation.
Q10: Can it interface with both sensors and auxiliary devices?
Yes, it supports a wide range of field devices for flexible monitoring.
