Product Overview

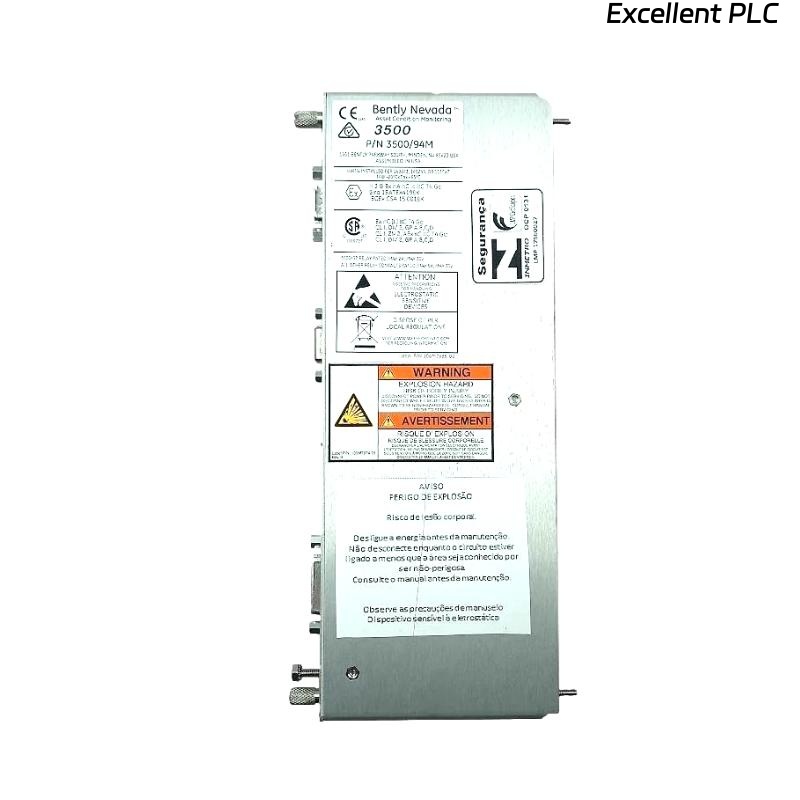

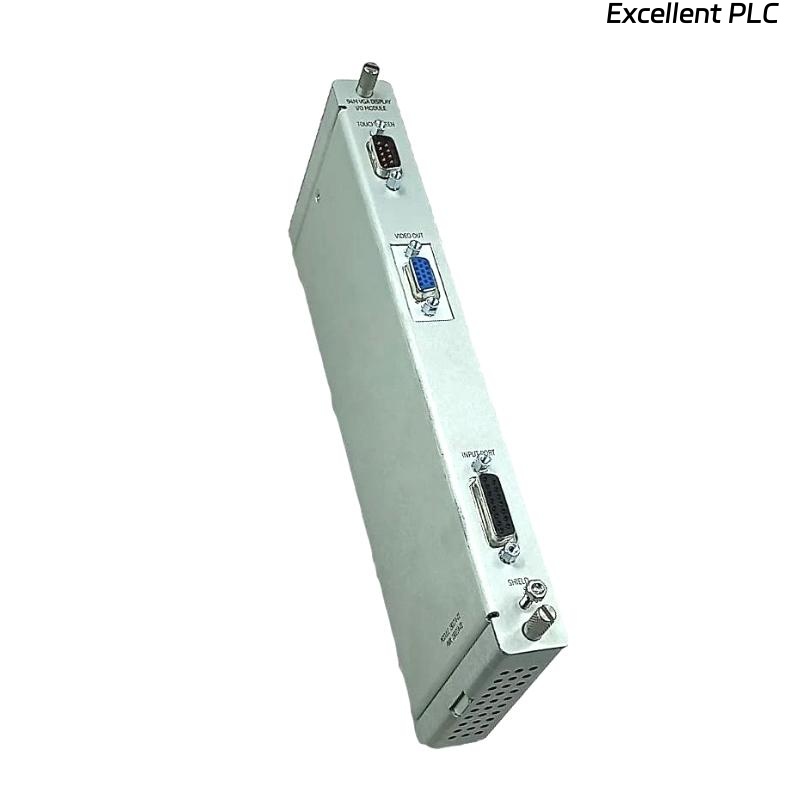

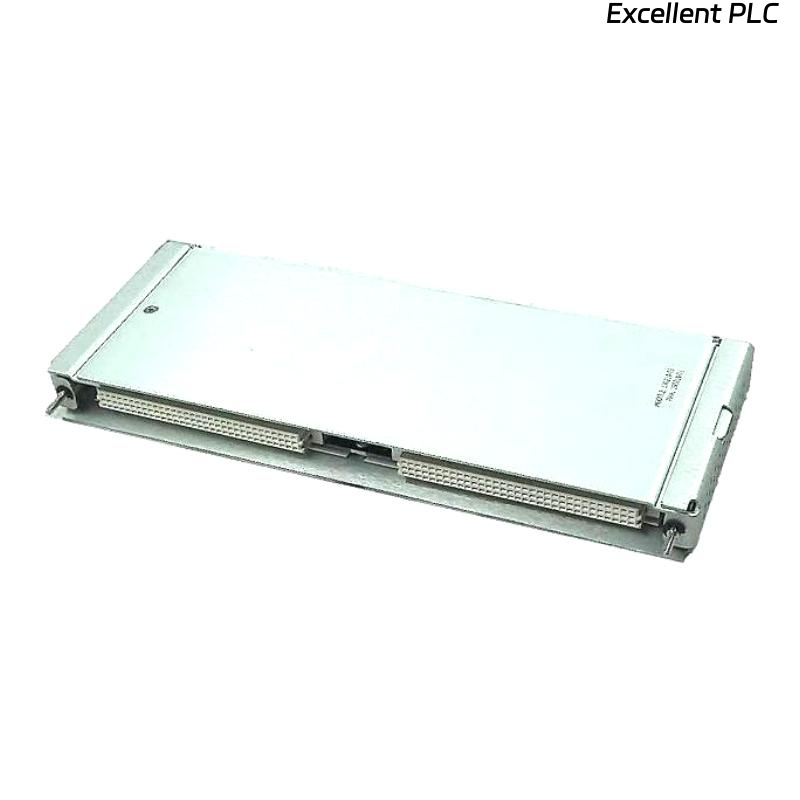

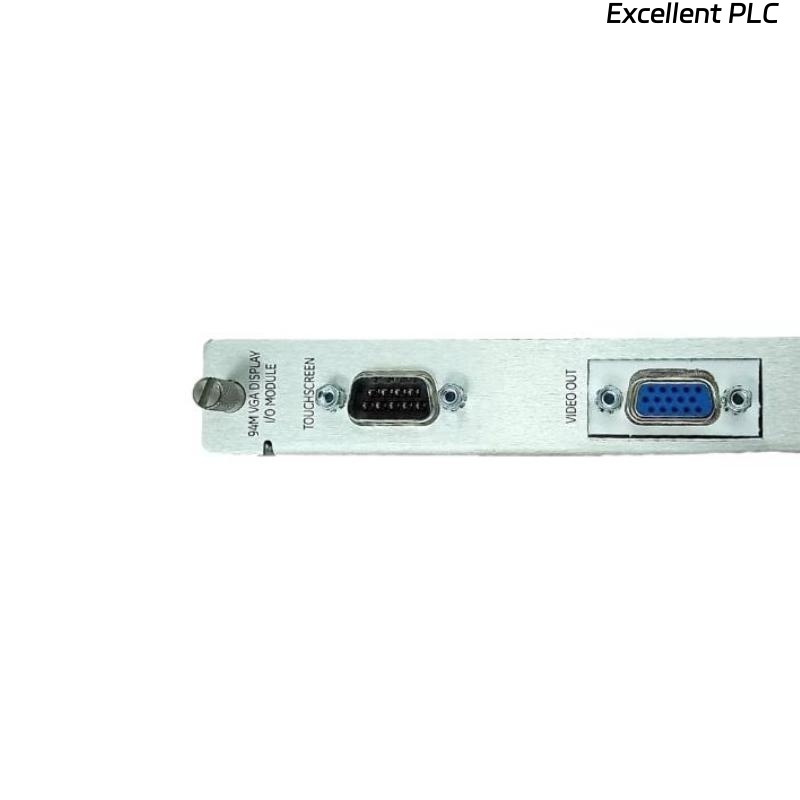

The Bently Nevada 3500/94M 190214-01 Normal I/O Module is a core component of the 3500 Machinery Protection System, designed to provide reliable input/output interface functions. It ensures secure communication between monitoring modules and external systems, offering enhanced flexibility and redundancy within high-demand industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3500/94M 190214-01 Normal I/O Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Input/Output Type | Normal I/O |
| Redundancy Support | Yes (when paired with redundant module) |
| Power Consumption | Low power design for continuous operation |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.34 kg |
| Mounting | Rack-mounted |
| Certification | CE, CSA, IEC compliance |
Applications
-
Power generation plants for critical turbomachinery monitoring
-
Oil and gas facilities requiring vibration and protection systems
-
Petrochemical processing plants with stringent reliability needs
-
Marine and offshore platforms where continuous machine health monitoring is essential
-
Industrial manufacturing plants with rotating equipment protection requirements
Advantages
-
High Reliability: Engineered for 24/7 operation in demanding environments.
-
Seamless Integration: Fully compatible with Bently Nevada 3500 system architecture.
-
Flexible Configuration: Supports various monitoring strategies and redundant installations.
-
Compact Design: Slim profile saves rack space while maintaining high performance.
-
Enhanced Safety: Provides secure data exchange for machinery protection and shutdown systems.
FAQ
Q1: What is the primary function of the 3500/94M 190214-01 module?
A1: It provides normal input/output functions for the Bently Nevada 3500 monitoring system, enabling secure data communication.
Q2: Can this module be used with redundant configurations?
A2: Yes, it supports redundancy when paired with an appropriate backup I/O module.
Q3: What industries commonly use this module?
A3: Power generation, oil & gas, petrochemical, marine, and heavy manufacturing industries.
Q4: Is the module hot-swappable?
A4: Yes, it can be replaced without shutting down the entire 3500 system.
Q5: What certifications does the module hold?
A5: It complies with CE, CSA, and IEC industry standards.
Q6: How is it mounted within the system?
A6: It is rack-mounted as part of the 3500 series monitoring rack.
Q7: What is the weight and dimension of the module?
A7: 241.3 x 24.4 x 99.1 mm, 0.34 kg.
Q8: Does it require external power supply?
A8: No, it draws power directly from the 3500 rack system.
Q9: How does the module enhance machinery protection?
A9: It ensures accurate signal communication between sensors, monitors, and external systems for timely protection.
Q10: What is the typical operating environment range?
A10: -30 °C to +65 °C with up to 95% non-condensing humidity.
Related Models (Same Series or Compatible)
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/93 135799-01 | System Display Module | 241.3 x 24.4 x 99.1 | 0.35 kg |
| 3500/22M 288055-01 | Transient Data Interface Module | 241.3 x 24.4 x 99.1 | 0.36 kg |
| 3500/91 125760-01 | EGD Communication Module | 241.3 x 24.4 x 99.1 | 0.34 kg |
| 3500/92 136180-01 | Communication Gateway Module | 241.3 x 24.4 x 99.1 | 0.34 kg |
| 3500/25 149369-01 | Keyphasor Module | 241.3 x 24.4 x 99.1 | 0.33 kg |
| 3500/15 106M1079-01 | Power Supply Module | 241.3 x 24.4 x 99.1 | 0.37 kg |
