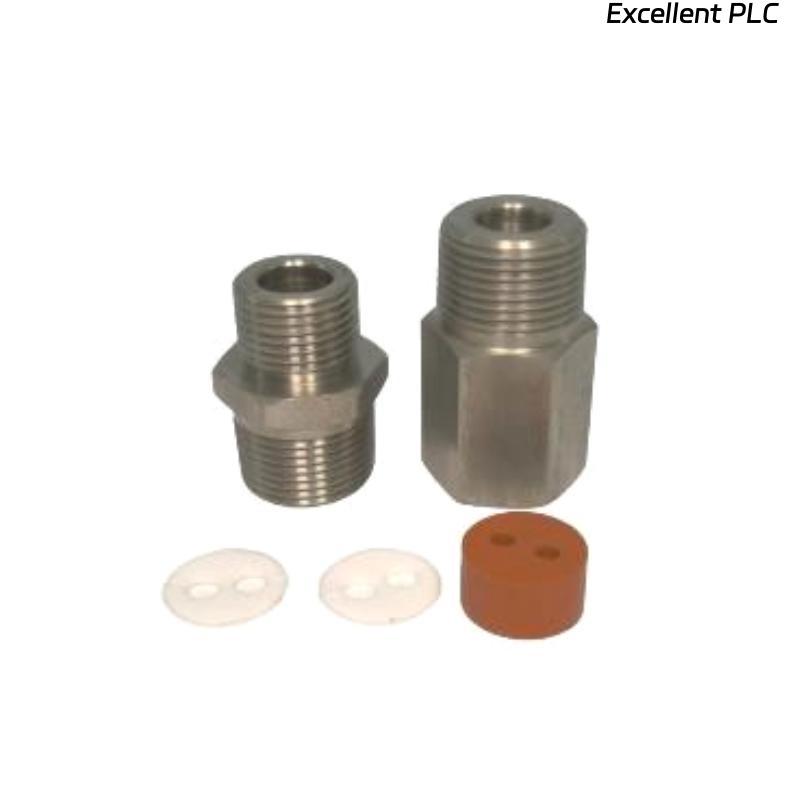

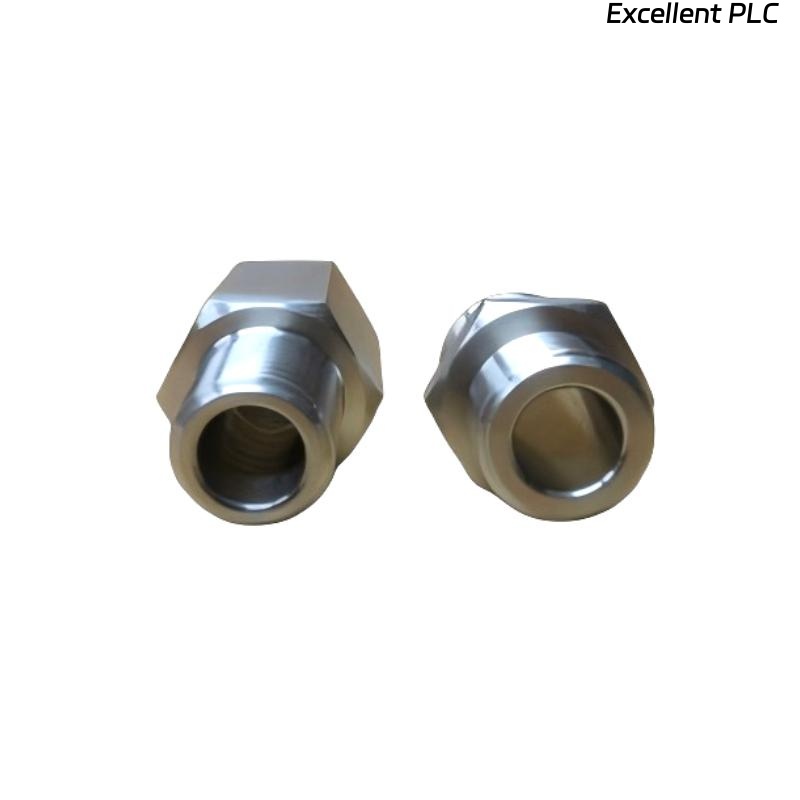

The Bently Nevada 43501-01-04-01 Low Pressure Cable Seal is a precision-engineered sealing component designed to protect sensitive instrumentation and cabling in industrial environments. It is part of Bently Nevada’s comprehensive accessory line for vibration monitoring and proximity measurement systems, providing reliable sealing for low-pressure conduits and cable penetrations.
This cable seal is engineered to maintain the integrity of instrumentation systems by preventing the ingress of dust, moisture, and other contaminants into enclosures and junction points. Designed for low-pressure applications, it ensures a secure and consistent seal without compromising the flexibility or routing of instrument cables.
The 43501-01-04-01 model is widely used in turbines, generators, pumps, and compressors, where accurate signal transmission from proximity probes, vibration sensors, and other monitoring devices is critical. It features a high-pressure side thread size of 1/2-14 NPT, providing compatibility with standard conduit fittings. Constructed from durable, corrosion-resistant materials, the seal withstands harsh industrial environments while maintaining reliable performance over extended periods.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 43501-01-04-01 |
| Product Type | Low Pressure Cable Seal |
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Application | Sealing instrument and sensor cables in low-pressure systems |
| High Pressure Side Thread Size | 1/2-14 NPT |
| Material | Stainless steel body with elastomeric sealing components |
| Cable Diameter Range | 4–12 mm (0.16–0.47 in) |
| Temperature Range | -40°C to +120°C |
| Pressure Rating | Low-pressure applications (≤ 2 bar / 30 psi) |
| Ingress Protection | IP65 rated for dust and water resistance |
| Corrosion Resistance | Stainless steel body suitable for industrial environments |
| Electrical Isolation | Provides insulation and protection for cable conductors |
| Mounting Type | Threaded NPT connection |
| Shipping Weight | 3 kg |
| Compliance Standards | CE, RoHS |
Product Applications
The Bently Nevada 43501-01-04-01 Low Pressure Cable Seal is used to ensure the integrity and reliability of instrumentation and sensor systems in various industrial applications:
-
Turbines and Generators: Protects proximity probe and vibration sensor cables from moisture and contaminants.
-
Compressors and Pumps: Seals cable entry points in low-pressure instrumentation systems.
-
Petrochemical and Refinery Equipment: Prevents ingress of dust and liquid in critical monitoring systems.
-
Power Plants: Ensures reliable signal transmission from sensors in low-pressure environments.
-
Rotating Machinery: Maintains isolation and stability of instrumentation cables for precise monitoring.
-
Industrial Automation: Used in low-pressure conduits for control and monitoring networks.
The product is particularly valuable where signal integrity is critical and environmental exposure could compromise measurement accuracy.
Product Advantages
-
Reliable Sealing: Prevents ingress of dust, moisture, and other contaminants into instrumentation enclosures.
-
Corrosion-Resistant Construction: Stainless steel and elastomer components ensure durability in harsh environments.
-
Wide Cable Compatibility: Accommodates various cable diameters (4–12 mm).
-
Low-Pressure Application Optimization: Designed specifically for low-pressure systems to ensure stable sealing.
-
Threaded Mounting: Standard 1/2-14 NPT threads allow easy installation in industrial conduits.
-
Temperature Resistant: Operates reliably from -40°C to +120°C.
-
Electrical Isolation: Provides insulation for sensitive instrument cables.
-
Compact Design: Minimal footprint for installation in tight or confined spaces.
-
Ease of Maintenance: Quick and secure installation reduces downtime during service.
-
Proven Industrial Reliability: Widely used in critical rotating machinery and monitoring systems.
FAQ
-
What is the primary function of the 43501-01-04-01 Low Pressure Cable Seal?
The cable seal is designed to protect instrumentation and sensor cables from environmental contaminants, ensuring accurate signal transmission by maintaining a secure seal in low-pressure conduit entries. -
What thread size is used on the high-pressure side of the seal?
The high-pressure side uses a standard 1/2-14 NPT thread, providing compatibility with common industrial conduit fittings and ensuring a secure and leak-free connection. -
Can the seal accommodate cables of different diameters?
Yes, it is designed to handle a range of cable diameters from 4 mm to 12 mm, providing flexibility for various instrumentation setups while maintaining an effective seal. -
What temperature range can this cable seal operate within safely?
The seal is rated for operation between -40°C and +120°C, making it suitable for both indoor and moderately harsh industrial environments. -
Is the 43501-01-04-01 suitable for high-pressure applications?
No, this specific model is designed for low-pressure applications up to approximately 2 bar (30 psi) and should not be used in high-pressure systems to prevent seal failure. -
What materials are used in the construction of this seal?
The seal consists of a durable stainless steel body with elastomeric components, providing corrosion resistance, mechanical strength, and a reliable sealing interface for cable protection. -
Does the cable seal provide protection against dust and water ingress?
Yes, it is rated IP65, which means it is fully dust-tight and can resist water spray, ensuring that critical instrumentation cables are protected from environmental hazards. -
Can the seal be used in outdoor or harsh industrial environments?
Yes, the combination of stainless steel construction and elastomeric sealing materials allows the seal to withstand industrial contaminants, moisture, and moderate chemical exposure. -
Does the 43501-01-04-01 provide electrical isolation for cables?
Yes, the seal also acts as an electrical insulator, protecting sensitive instrumentation cables from accidental grounding or electrical interference while maintaining reliable signal integrity. -
Is installation of the cable seal complex or time-consuming?
No, the cable seal is designed for straightforward installation using the 1/2-14 NPT threaded mount. It can be quickly and securely installed in conduit entries, minimizing maintenance downtime while providing long-term protection.
Related Models (Same Series or Equivalent)
| Model | Description | Thread Size | Cable Diameter Range | Temperature Range |
|---|---|---|---|---|
| 43501-01-04-02 | Low Pressure Cable Seal, Extended | 1/2-14 NPT | 5–14 mm | -40°C to +120°C |
| 43501-02-04-01 | Medium Pressure Cable Seal | 3/4-14 NPT | 6–16 mm | -40°C to +150°C |
| 43501-03-04-01 | High Pressure Cable Seal | 1-14 NPT | 8–20 mm | -40°C to +180°C |
| 43501-01-05-01 | Low Pressure Cable Seal, Compact | 1/2-14 NPT | 3–10 mm | -40°C to +120°C |
| 43501-01-06-01 | Low Pressure Cable Seal, Long | 1/2-14 NPT | 4–12 mm | -40°C to +120°C |
| 43501-04-04-01 | Heavy Duty Low Pressure Seal | 1/2-14 NPT | 6–14 mm | -40°C to +150°C |
Popular Bently Nevada Models (Same Brand)
| Model | Description | Product Type | Key Feature |
|---|---|---|---|
| 330103-00-07-10-02-05 | 8 mm Proximity Probe | Sensor | Standard probe for general machinery monitoring |
| 330180-90-00 | Proximity Sensor | Driver Module | Converts probe signals to conditioned output |
| 330851-05-000-040-10-00 | 25 mm XL Proximity Probe | Sensor | Large-range probe for turbines and compressors |
| 330910-00-05-02-00 | 3300 NSv Proximity Probe | Sensor | High-frequency NSv series probe for precision monitoring |
| 3500/42M | Vibration Monitor | Monitoring Module | Dual-axis vibration measurement and protection |
| 43500-01-04-01 | Cable Gland / Seal | Accessory | Protects instrumentation cables in industrial environments |
