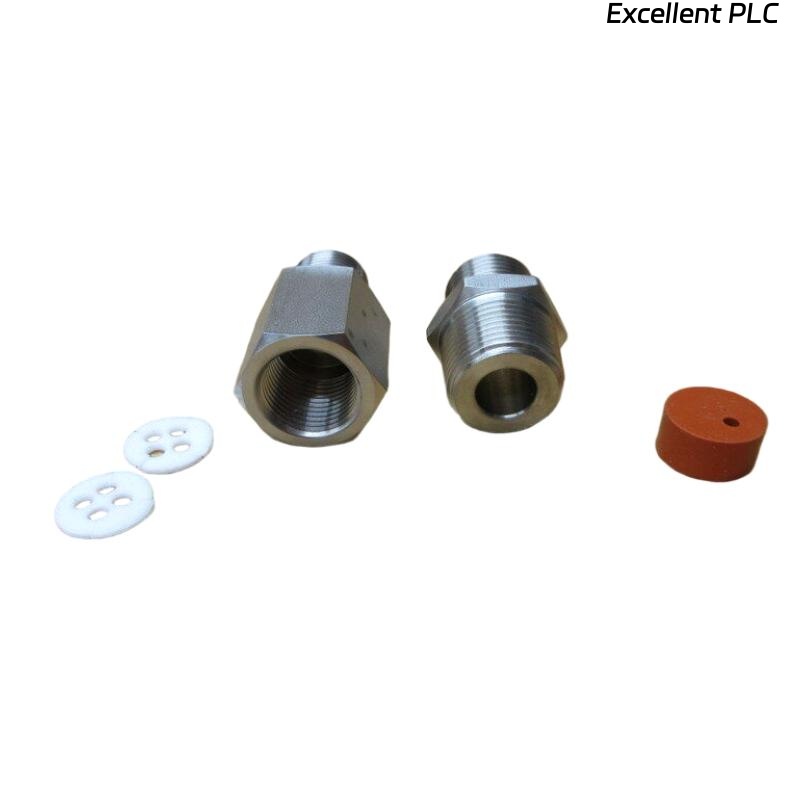

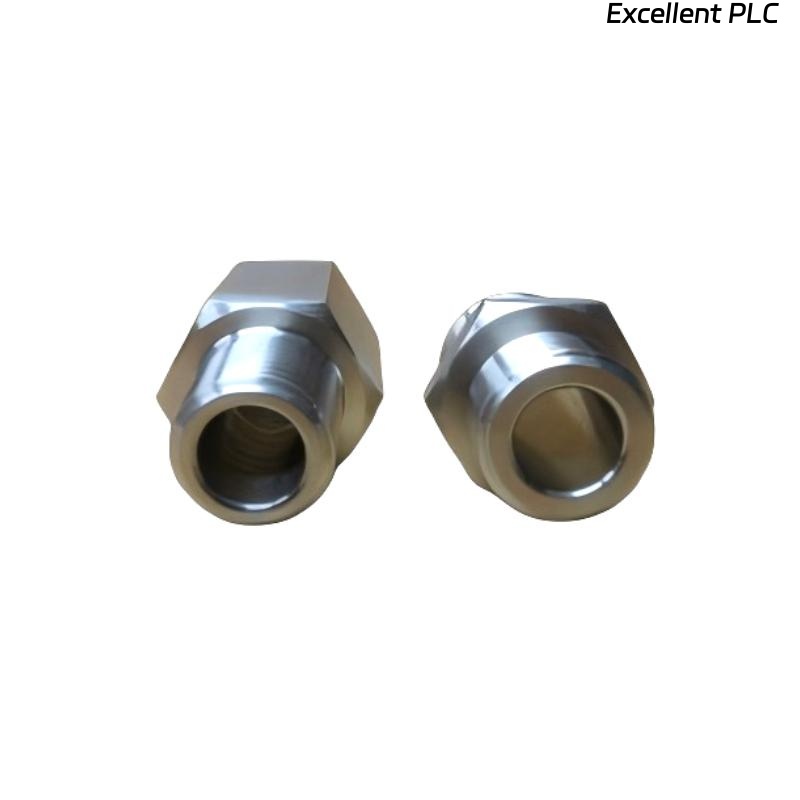

The Bently Nevada 43501-02-04-02 Low Pressure Cable Seal is a precision-engineered sealing accessory designed to protect instrumentation and sensor cabling in low-pressure industrial environments. It is part of Bently Nevada’s range of accessories for vibration monitoring, proximity measurement, and machinery protection systems, ensuring that sensitive signals from sensors and probes are accurately transmitted without interference from environmental factors.
This cable seal is intended for low-pressure applications, offering a secure and reliable seal for conduit entries and cable penetrations. By preventing the ingress of dust, moisture, and other contaminants, it maintains the integrity of the instrumentation system and prolongs the reliability of connected sensors and monitoring devices.
Featuring a high-pressure side thread size of 3/4-14 NPT, the 43501-02-04-02 seal is compatible with common industrial conduit standards, enabling easy integration into existing instrumentation networks. Its robust construction, including a stainless steel body and elastomeric sealing components, provides durability against harsh conditions typically encountered in industrial plants, refineries, power generation facilities, and rotating machinery systems.
The product is commonly applied in turbines, generators, pumps, and compressors, where maintaining the signal integrity of proximity probes and vibration sensors is critical for machinery protection, condition monitoring, and predictive maintenance programs.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 43501-02-04-02 |
| Product Type | Low Pressure Cable Seal |
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Application | Sealing and protecting instrumentation and sensor cables in low-pressure systems |
| High Pressure Side Thread Size | 3/4-14 NPT |
| Material | Stainless steel body with elastomeric sealing components |
| Cable Diameter Range | 6–16 mm (0.24–0.63 in) |
| Temperature Range | -40°C to +120°C |
| Pressure Rating | Low-pressure applications (≤ 2 bar / 30 psi) |
| Ingress Protection | IP65 for dust and water resistance |
| Corrosion Resistance | Stainless steel construction suitable for industrial environments |
| Electrical Isolation | Provides insulation and protection for cables |
| Mounting Type | Threaded NPT connection |
| Shipping Weight | 3 kg |
| Compliance Standards | CE, RoHS |
Product Applications
The Bently Nevada 43501-02-04-02 Low Pressure Cable Seal is used to maintain the performance and reliability of critical monitoring systems in industrial environments:
-
Turbines and Generators: Protects proximity probes and vibration sensor cables from environmental exposure.
-
Compressors and Pumps: Seals low-pressure conduit entries to ensure signal integrity.
-
Petrochemical and Refinery Plants: Prevents dust, oil, and moisture from affecting sensor systems.
-
Power Generation Facilities: Ensures uninterrupted and reliable measurement transmission from critical machinery.
-
Rotating Equipment: Protects cabling for vibration monitoring and displacement measurements.
-
Automation and Control Systems: Provides secure sealing for low-pressure conduits in industrial networks.
The seal is particularly effective where accurate monitoring of machinery performance is critical and environmental contaminants could compromise sensor readings.
Product Advantages
-
Reliable Environmental Protection: Prevents dust, moisture, and oil from entering instrumentation conduits.
-
Robust Construction: Stainless steel body with elastomer components ensures durability in harsh industrial environments.
-
Wide Cable Compatibility: Supports cable diameters from 6 mm to 16 mm.
-
Low-Pressure System Optimization: Designed specifically for low-pressure conduit applications.
-
Threaded Installation: Standard 3/4-14 NPT threads allow secure and straightforward mounting.
-
Temperature Tolerance: Functional from -40°C to +120°C.
-
Electrical Insulation: Protects sensitive cables from accidental grounding and electrical interference.
-
Compact Design: Can be installed in confined spaces without impacting cable routing.
-
Ease of Installation: Quick and secure installation reduces downtime during maintenance.
-
Proven Reliability: Widely used in industrial monitoring and machinery protection systems worldwide.
FAQ
-
What is the main purpose of the 43501-02-04-02 Low Pressure Cable Seal?
It is designed to protect and seal instrumentation and sensor cables in low-pressure systems, ensuring accurate signal transmission by preventing contaminants from entering the conduit. -
What thread size is provided for high-pressure connection?
The high-pressure side uses a standard 3/4-14 NPT thread, compatible with common industrial conduits for secure installation. -
Can the seal accommodate cables of varying sizes?
Yes, it supports cables ranging from 6 mm to 16 mm in diameter, making it flexible for various sensor and instrumentation setups. -
What is the operational temperature range of this cable seal?
The seal is rated for -40°C to +120°C, ensuring functionality in both indoor and moderately harsh industrial conditions. -
Is the 43501-02-04-02 suitable for high-pressure applications?
No, it is designed specifically for low-pressure applications up to approximately 2 bar (30 psi) and should not be used for high-pressure systems. -
What materials are used in the seal construction?
It consists of a stainless steel body and elastomeric sealing components, providing corrosion resistance and mechanical durability for industrial use. -
Does the seal protect against dust and water ingress?
Yes, it is IP65 rated, offering full protection against dust and resistance to water spray, maintaining cable integrity. -
Can this seal be used in harsh outdoor or industrial environments?
Yes, the stainless steel body and elastomer materials allow it to withstand moisture, dust, and moderate chemical exposure. -
Does the seal provide electrical insulation for connected cables?
Yes, it ensures electrical isolation, preventing unintended grounding or interference while maintaining signal reliability. -
Is installation of this cable seal difficult or time-consuming?
No, installation is straightforward using the 3/4-14 NPT threaded mount, allowing for quick and secure integration into conduit systems.
Related Models (Same Series or Equivalent)
| Model | Description | Thread Size | Cable Diameter Range | Temperature Range |
|---|---|---|---|---|
| 43501-02-04-01 | Low Pressure Cable Seal, Standard | 3/4-14 NPT | 5–14 mm | -40°C to +120°C |
| 43501-01-04-01 | Low Pressure Cable Seal, 1/2 NPT | 1/2-14 NPT | 4–12 mm | -40°C to +120°C |
| 43501-03-04-01 | High Pressure Cable Seal | 1-14 NPT | 8–20 mm | -40°C to +180°C |
| 43501-02-05-01 | Low Pressure Seal, Extended | 3/4-14 NPT | 6–18 mm | -40°C to +120°C |
| 43501-02-06-01 | Low Pressure Seal, Heavy Duty | 3/4-14 NPT | 6–16 mm | -40°C to +150°C |
| 43501-04-04-01 | Low Pressure Cable Seal, Reinforced | 3/4-14 NPT | 6–16 mm | -40°C to +150°C |
Popular Bently Nevada Models (Same Brand)
| Model | Description | Product Type | Key Feature |
|---|---|---|---|
| 330103-00-07-10-02-05 | 8 mm Proximity Probe | Sensor | Standard probe for general machinery monitoring |
| 330180-90-00 | Proximity Sensor | Driver Module | Converts probe signals to conditioned output |
| 330851-05-000-040-10-00 | 25 mm XL Proximity Probe | Sensor | Large-range probe for turbines and compressors |
| 330910-00-05-02-00 | 3300 NSv Proximity Probe | Sensor | High-frequency NSv series probe for precision monitoring |
| 3500/42M | Vibration Monitor | Monitoring Module | Dual-axis vibration measurement and protection |
| 43501-01-04-01 | Low Pressure Cable Seal | Accessory | Protects cables in low-pressure conduit applications |
