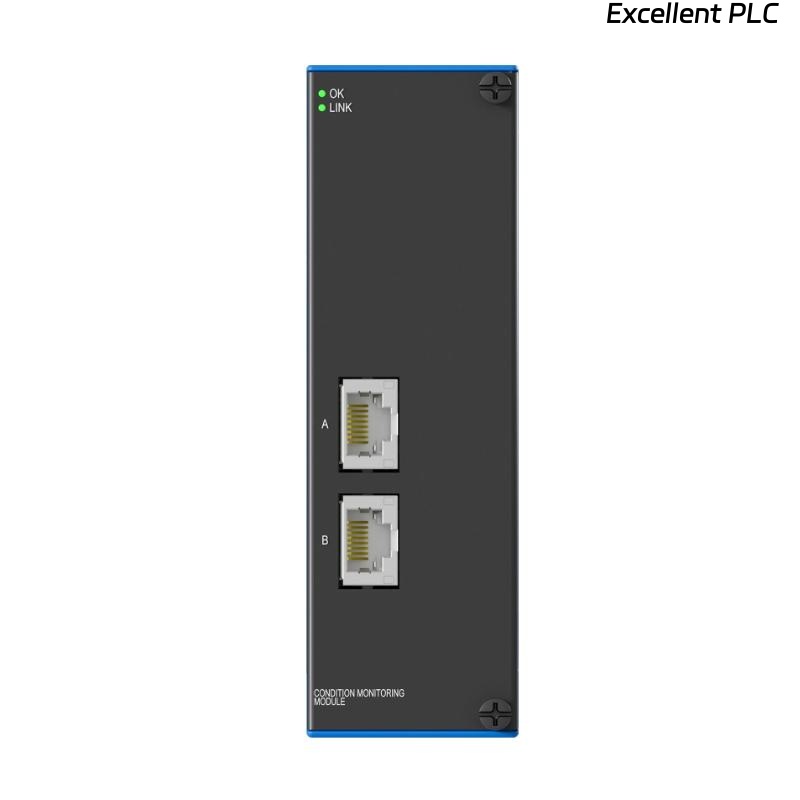

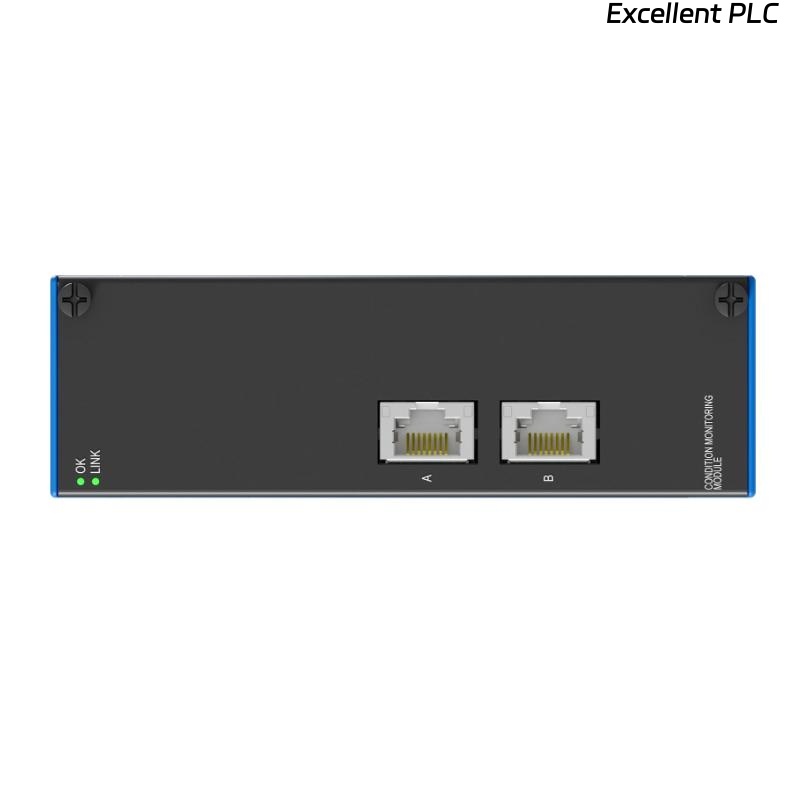

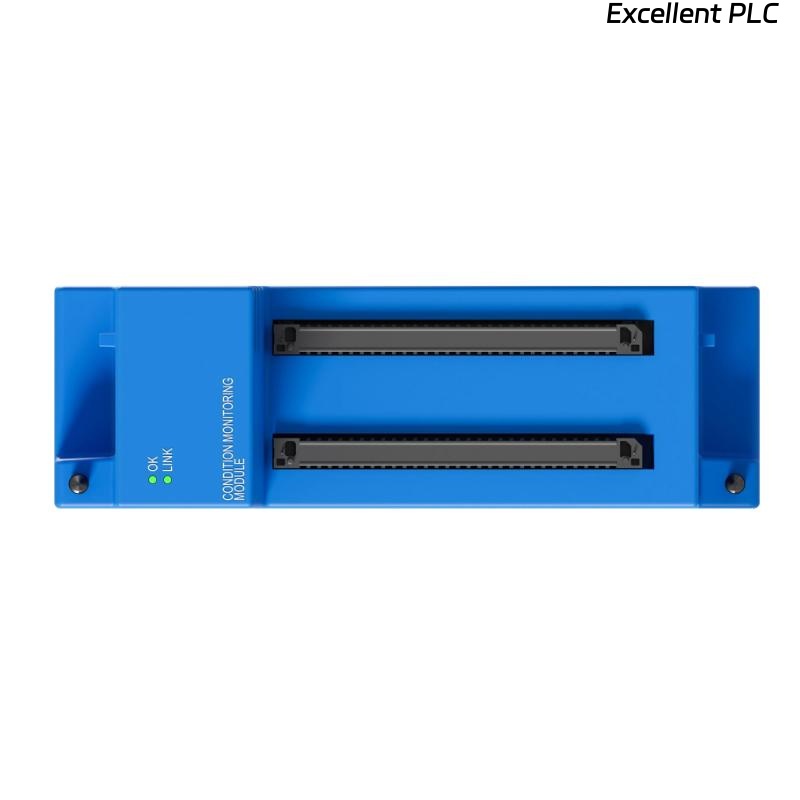

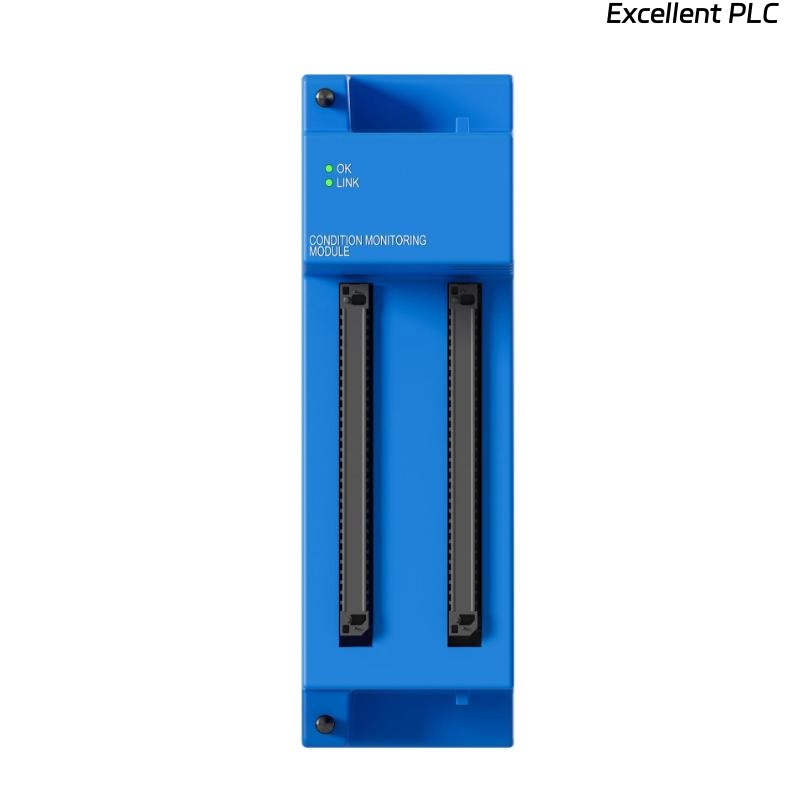

Bently Nevada 60R/CMM01-00 Condition Monitoring Module

Product Introduction

The Bently Nevada 60R/CMM01-00 Condition Monitoring Module is a high-performance data acquisition and diagnostic unit designed to provide continuous, real-time insight into the health of rotating machinery and critical industrial assets. This module serves as the analytical core of the Bently Nevada 60R platform, capturing vibration, temperature, and process signals with exceptional precision. Its design includes configurable options for country-specific electrical and compliance codes, making it suitable for installations around the world. With advanced signal processing and robust communication capabilities, the 60R/CMM01-00 is ideal for predictive maintenance, helping operators prevent unplanned downtime and optimize maintenance schedules.

Technical Specifications

Applications

• Power Generation: Continuous monitoring of turbines, generators, and auxiliary rotating equipment.

• Oil & Gas: Detection of bearing faults, imbalance, and cavitation in pumps and compressors.

• Petrochemical Plants: Real-time supervision of agitators, blowers, and process motors.

• Steel & Pulp Mills: Monitoring of high-speed rollers and industrial drives.

• Marine & Offshore Platforms: Reliable condition monitoring in salt-laden or humid environments.

• Predictive Maintenance Programs: Seamless integration with enterprise-level maintenance management systems.

Advantages

• Comprehensive Monitoring: Simultaneously measures vibration, temperature, and process data for a complete asset-health profile.

• High-Speed Data Acquisition: 40 kHz per channel sampling allows detailed vibration spectrum analysis.

• Global Compliance: Country-specific code options simplify international installation and certification.

• Advanced Signal Processing: Built-in FFT and envelope analysis support early fault detection.

• Flexible Communication: Ethernet, Modbus, and OPC UA protocols enable easy integration into SCADA or DCS networks.

• Scalable Architecture: Modular design allows expansion as monitoring needs grow.

• Robust Construction: Withstands industrial shock, vibration, and wide temperature fluctuations.

• Low Power Consumption: 24 VDC operation minimizes energy usage and simplifies field deployment.

FAQ

1. Which sensor types are compatible with the 60R/CMM01-00 module?
   The module supports proximity probes, accelerometers, RTDs, and 4–20 mA process transmitters, allowing diverse monitoring configurations.

2. How many input channels can be configured simultaneously?
   It provides 8 dynamic vibration channels plus 4 process input channels, all configurable for specific measurement requirements.

3. What is the maximum sampling rate per channel?
   Each input channel supports up to 40 kHz sampling, ensuring precise capture of vibration and dynamic events.

4. Can the module interface with existing SCADA or DCS systems?
   Yes, it supports Ethernet TCP/IP, Modbus TCP, and OPC UA protocols for seamless system integration.

5. What alarm features are included?
   Four programmable relay outputs allow customized alarm logic for early warnings or automatic shutdown procedures.

6. Is real-time spectral analysis available directly from the module?
   Yes, the module performs real-time FFT and envelope analysis for on-the-fly diagnostics.

7. Does the unit support country-specific compliance codes?
   Models can be ordered to comply with North American, European, or Asia-Pacific electrical and safety standards.

8. How is vibration and shock resistance ensured?
   The module is designed to withstand continuous vibration of 5 g and shock levels of up to 30 g without performance degradation.

9. What is the required power input specification?
   It operates on a nominal 24 VDC power supply and accepts an input range of 18–36 VDC.

10. Can the module be expanded for more channels?
    Yes, multiple modules can be installed within the 60R chassis to expand total monitoring capacity.
