Product Introduction

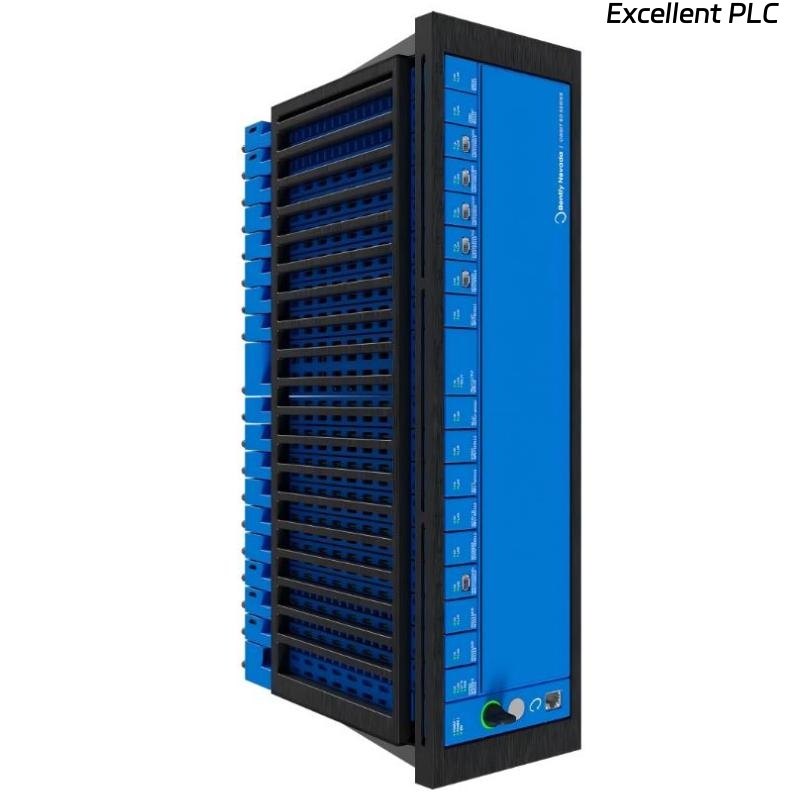

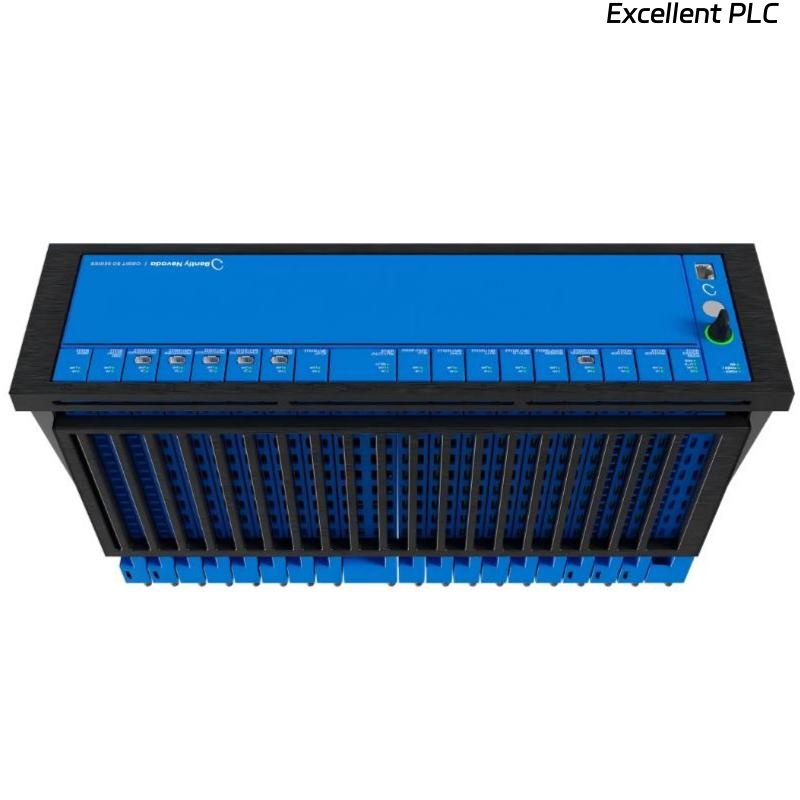

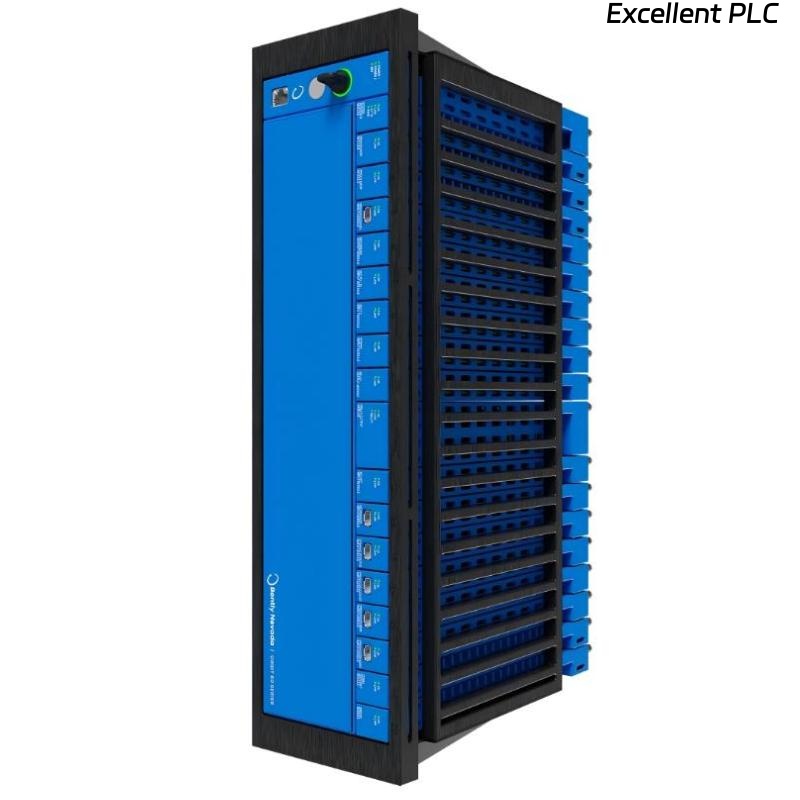

The Bently Nevada 60X/CFG Orbit Studio Configuration Software is a dedicated engineering configuration platform developed for commissioning, parameterization, and diagnostic management of the Bently Nevada 60X machinery protection and condition monitoring system. It provides a structured software environment for configuring monitoring channels, alarm thresholds, signal processing parameters, communication settings, and system logic.
Orbit Studio serves as the central engineering tool during system setup and lifecycle maintenance. It allows engineers to define measurement types, scaling factors, filter settings, relay logic, and data transmission parameters in a controlled and traceable configuration environment. The software supports both initial deployment and system optimization tasks within industrial plants.
Designed for industrial reliability and operational clarity, 60X/CFG Orbit Studio ensures deterministic configuration handling and structured system documentation. It enhances commissioning efficiency while maintaining strict control over monitoring logic and protection strategies.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 60X/CFG |
| Manufacturer | Bently Nevada |
| Product Type | Orbit Studio Configuration Software |
| System Compatibility | Bently Nevada 60X Monitoring Platform |
| Primary Function | System configuration and commissioning |
| Configuration Scope | Channels, alarms, logic, communication settings |
| User Interface Type | Graphical engineering interface |
| Data Management | Project-based configuration storage |
| Alarm Configuration | Multi-level alarm setup |
| Signal Processing Setup | Filter configuration and scaling definition |
| Communication Setup | Network parameter configuration |
| Diagnostic Tools | System status and module diagnostics |
| File Export Capability | Configuration backup and documentation export |
| Installation Medium Dimensions | 120 × 30 × 100 mm |
| Weight | 0.3 kg |
Applications
● Used for initial commissioning of 60X monitoring systems including channel mapping and parameter definition.
● Configures vibration measurement types, alarm thresholds, and relay logic for machinery protection.
● Supports setup of communication protocols and network integration with DCS or PLC systems.
● Enables adjustment of signal filtering, scaling, and data acquisition parameters.
● Applied during system upgrades requiring configuration modification and firmware coordination.
● Used for diagnostic review and optimization of monitoring system performance.
Advantages
● Provides a structured environment for precise engineering configuration management.
● Simplifies commissioning by offering intuitive graphical setup of monitoring channels and alarm logic.
● Supports secure configuration backup to ensure system documentation traceability.
● Reduces setup errors through guided parameter validation and logic consistency checks.
● Enhances system reliability by enabling controlled adjustment of signal processing parameters.
● Fully compatible with 60X system architecture for seamless hardware-software integration.
