Bently Nevada 60X/EXD01-00-02 10.4-inch External Display

Product Introduction

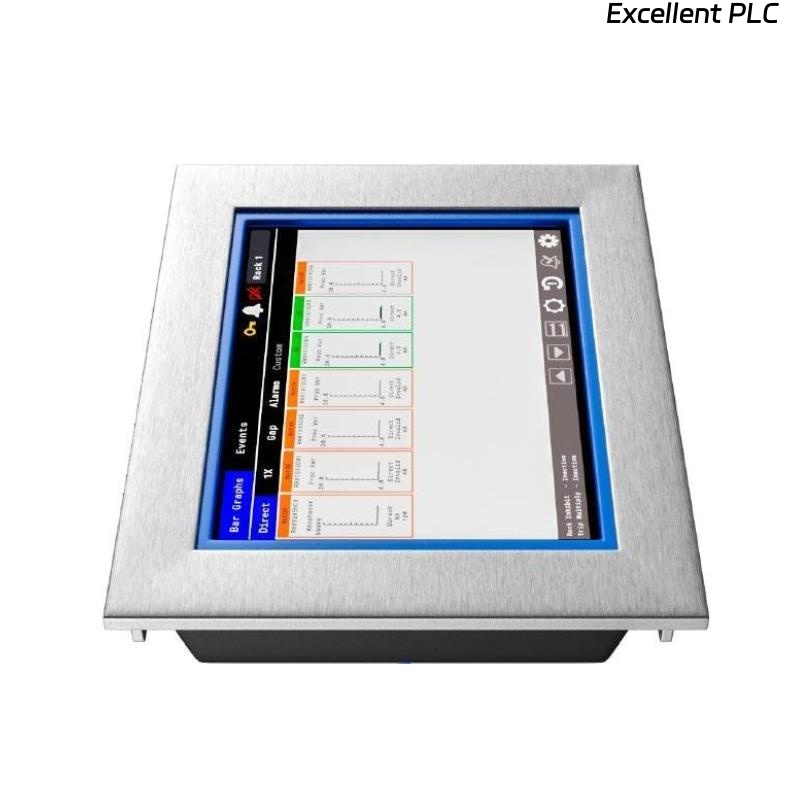

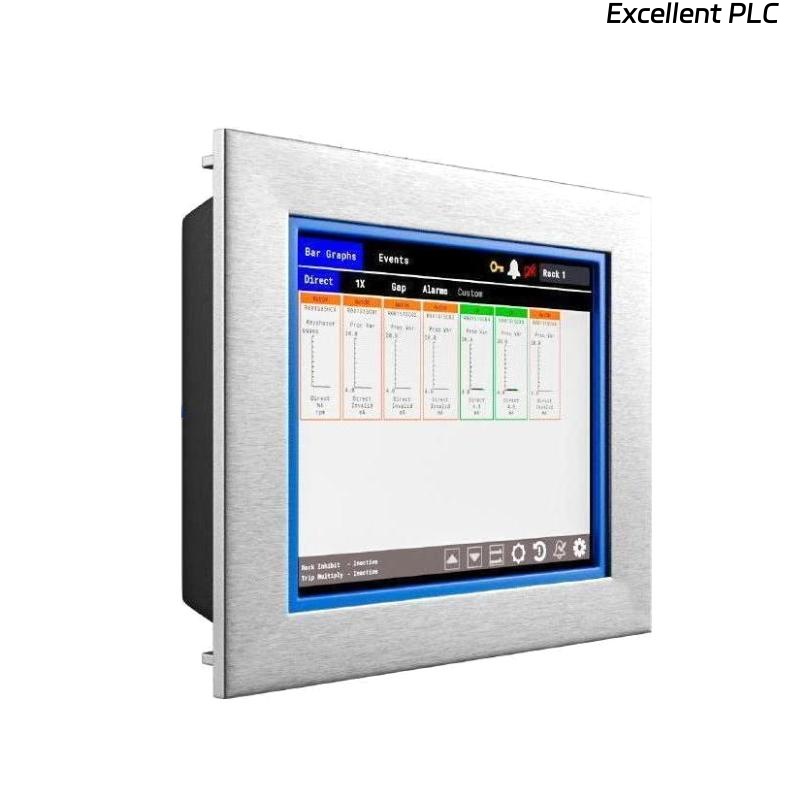

The Bently Nevada 60X/EXD01-00-02 10.4-inch External Display is an industrial-grade visualization unit designed to provide clear, real-time monitoring of machinery protection and condition data from the Bently Nevada 60X series. Engineered for demanding industrial environments, this external display offers a bright 10.4-inch screen for operators to view system diagnostics, alarms, and vibration data without accessing the main control rack. Its robust enclosure and versatile mounting options make it ideal for installations where remote or field-level visibility of critical parameters is essential.

---

Technical Specifications

---

Applications

• Remote Machine Monitoring: Provides a convenient interface for real-time vibration, speed, and process data from the Bently Nevada 60X system.

• Turbine and Compressor Stations: Enables operators to review alarms and operational data directly in the field.

• Condition-Based Maintenance: Offers maintenance teams immediate access to equipment health indicators for predictive maintenance programs.

• Industrial Control Rooms: Serves as a dedicated visualization terminal for large plants where centralized monitoring is critical.

• Marine and Offshore Platforms: Rugged design supports offshore vibration and machinery protection monitoring.

• Power Generation Facilities: Ideal for gas, steam, and hydro turbines requiring on-site data display without entering hazardous zones.

---

Advantages

• High-Resolution Display: Bright 10.4-inch screen ensures clear visibility in both indoor and outdoor lighting.

• Industrial Durability: IP65-rated front panel resists dust, water, and industrial contaminants.

• Flexible Communication: Supports Ethernet Modbus TCP and RS-485 for seamless integration with Bently Nevada 60X series systems.

• User-Friendly Operation: Glove-friendly resistive touch interface for easy interaction in harsh environments.

• Easy Installation: Multiple mounting options including panel and VESA mounts allow quick deployment.

• Low Power Consumption: Efficient electronics minimize energy use and heat generation.

• Robust Environmental Tolerance: Wide temperature and humidity range ensures dependable performance in extreme conditions.

• Maintenance Accessibility: USB port for easy firmware updates and configuration.

---

FAQ

1. What communication protocols are supported by the 60X/EXD01-00-02?
   Ethernet (Modbus TCP), RS-485, and a USB service port are supported for data and configuration.

2. Does the display provide real-time data from the Bently Nevada 60X system?
   Yes, it continuously streams and displays live vibration and system health data.

3. Is the touch screen usable with industrial gloves?
   Yes, the resistive touch panel is glove-friendly for field technicians.

4. How is power supplied to the unit?
   The display operates on 24 VDC input with a range of 18–30 VDC.

5. Can this display be mounted outdoors?
   The IP65-rated front allows outdoor use in sheltered locations; ensure the enclosure is protected from direct rain when rear ventilation is required.

6. Is the screen brightness adjustable for different environments?
   Yes, brightness can be adjusted up to 500 cd/m² for varying light conditions.

7. Does it require a separate controller to operate?
   It functions as an external display; it must be connected to a Bently Nevada 60X monitoring system to receive data.

8. What is the maximum cable length for Ethernet connection?
   Up to 100 meters (328 feet) using standard Cat5e or Cat6 Ethernet cables.

9. Is firmware upgradeable in the field?
   Yes, firmware can be updated through the USB maintenance port.

10. What level of vibration can the display withstand?
    It is tested for 1 g vibration from 5 to 500 Hz in industrial conditions.

---
