Product Introduction

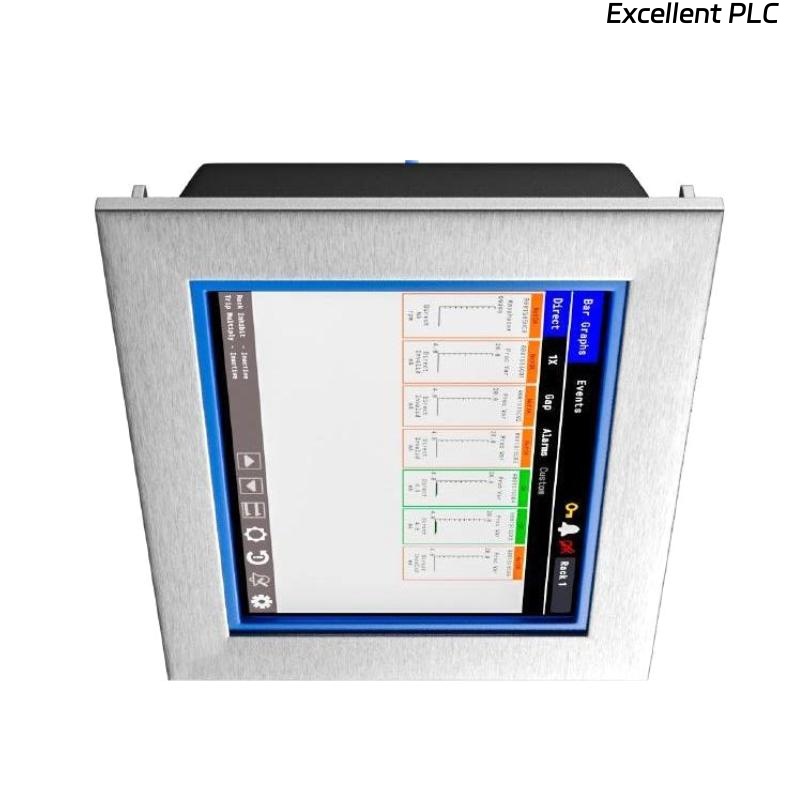

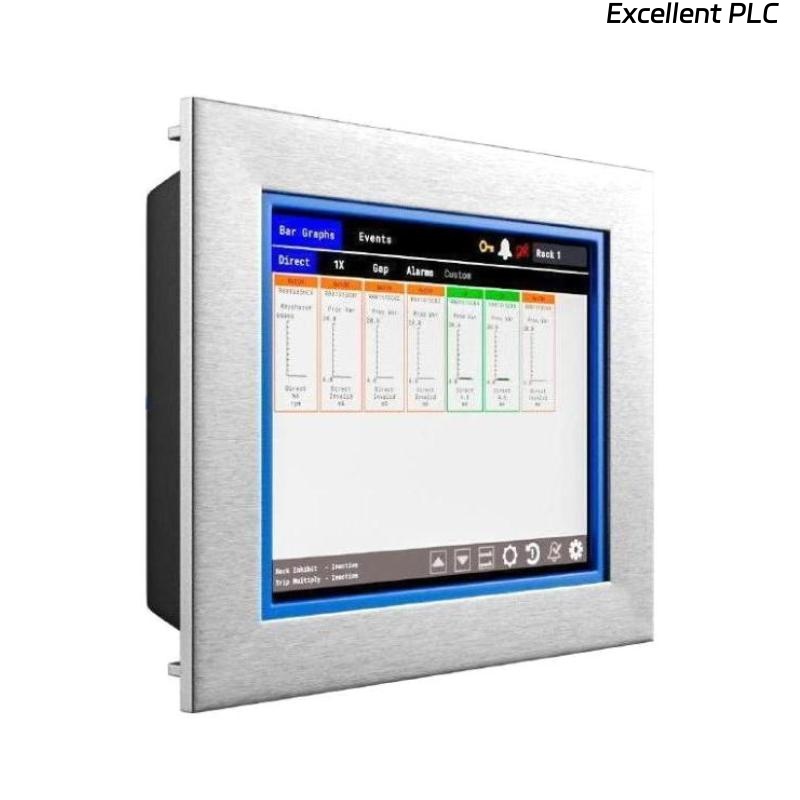

The Bently Nevada 60X/EXD02 15-inch External Display is an industrial visualization unit developed for use with the Bently Nevada 60X machinery protection and condition monitoring platform. It serves as the primary operator display interface, providing clear and stable real-time presentation of vibration parameters, alarm states, trend curves, and system diagnostics.
Designed for demanding industrial environments, the 60X/EXD02 combines rugged mechanical construction with stable display electronics. It is intended for installation in control rooms, electrical cabinets, or local monitoring panels where continuous operational visibility of rotating equipment health is required.
This display module is optimized to work seamlessly with 60X industrial computing units and system controllers, ensuring accurate graphical representation without communication lag or signal distortion. Its industrial design emphasizes long-term operational stability, electromagnetic compatibility, and mechanical robustness.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 60X/EXD02 |
| Manufacturer | Bently Nevada |
| Product Type | 15-inch Industrial External Display |
| Display Size | 15-inch TFT LCD |
| Resolution | Industrial standard XGA resolution |
| Aspect Ratio | 4:3 |
| Brightness | Industrial-grade backlight system |
| Contrast Ratio | Optimized for control room visibility |
| Viewing Angle | Wide viewing angle suitable for panel use |
| Input Interface | VGA / DVI (configuration dependent) |
| Response Time | Industrial LCD response performance |
| Power Supply | External regulated industrial power input |
| Operating Temperature Range | Industrial operating range (-20°C to +60°C typical) |
| Humidity Tolerance | Up to 95% non-condensing |
| Mounting Type | Panel mount / cabinet integration |
| Enclosure Material | Industrial metal housing |
| Dimensions | 422 x 338 x 68 mm |
| Weight | 8.5 kg |
Applications
● Used as the primary operator visualization interface in Bently Nevada 60X monitoring systems.
● Provides real-time display of shaft vibration, axial displacement, and bearing condition data.
● Installed in control rooms for turbine and compressor monitoring.
● Integrated into local cabinets for on-site machinery protection panels.
● Supports display of alarm thresholds, trend curves, and event logs.
● Suitable for industrial environments requiring continuous monitoring visibility.
Advantages
● Industrial-grade construction ensures stable operation under vibration and temperature variation.
● Optimized brightness and contrast provide clear readability in control room lighting conditions.
● Seamless compatibility with 60X industrial computers and monitoring racks.
● Robust metal enclosure enhances resistance to electromagnetic interference.
● Designed for long-term continuous operation in critical machinery protection systems.
● Simplifies operator monitoring through clear graphical representation of real-time condition data.
