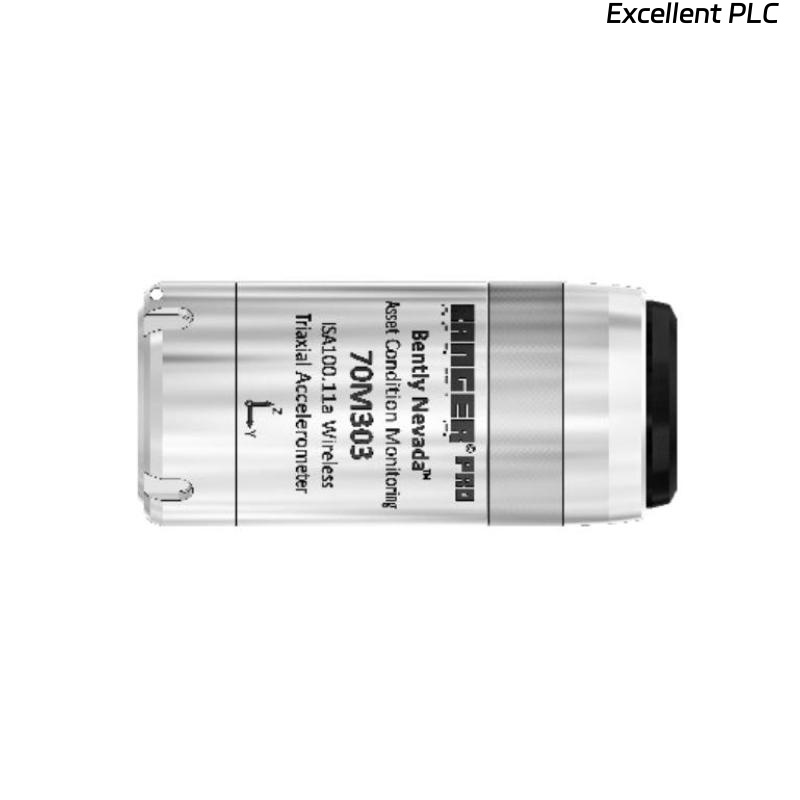

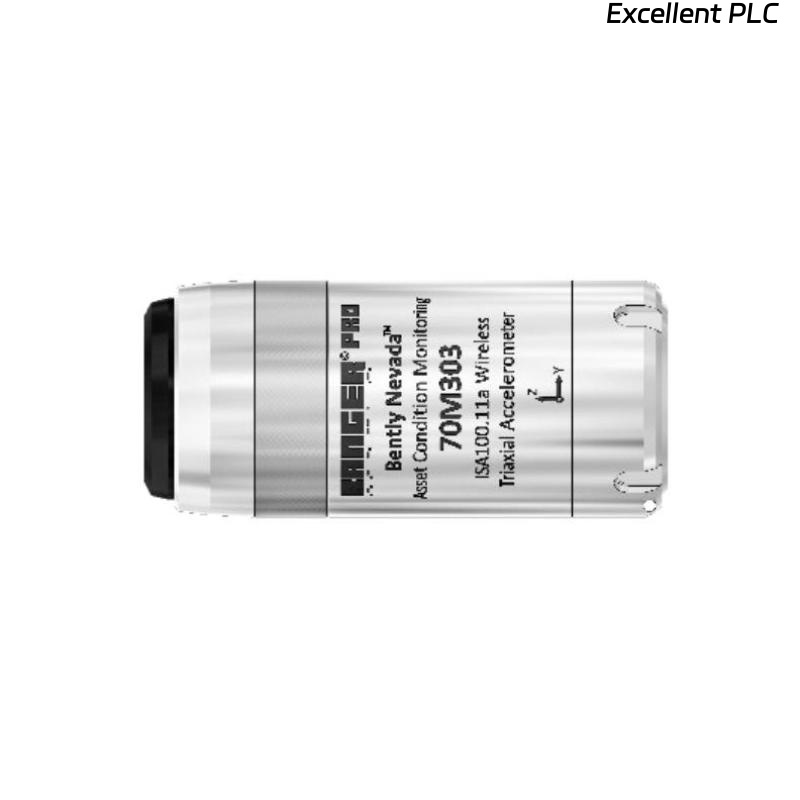

Bently Nevada 70M303-10-01-01-02 Ranger Pro Wireless Condition Monitoring Vibration Sensor

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 70M303-10-01-01-02 Ranger Pro Wireless Condition Monitoring Vibration Sensor is a state-of-the-art wireless vibration and temperature monitoring device designed to provide real-time asset condition data for industrial machinery. It is part of Bently Nevada’s Ranger Pro series—an advanced wireless condition monitoring platform that allows users to continuously track equipment health without the need for extensive cabling or complex installation.

This device is specifically developed for use in rotating machinery such as pumps, fans, compressors, motors, and gearboxes, where early fault detection is essential for predictive maintenance. With its integrated accelerometer and temperature sensor, it captures both vibration and thermal data, transmitting it securely through an industrial wireless network for analysis and diagnostics.

By combining robust hardware design with advanced wireless communication technology, the Ranger Pro sensor significantly reduces installation costs, simplifies maintenance routines, and enhances reliability in plant-wide condition monitoring systems. It is a perfect solution for facilities that aim to modernize their maintenance programs with Industrial IoT (IIoT) and wireless condition monitoring.

---

Product Specifications

---

Product Applications

The Bently Nevada 70M303-10-01-01-02 Ranger Pro Sensor is designed for diverse industrial environments and machine types requiring accurate vibration and temperature data for predictive and condition-based maintenance. Typical applications include:

• Pumps and Compressors: Detects bearing wear, imbalance, and cavitation.

• Electric Motors: Monitors shaft vibration and temperature to prevent motor failure.

• Fans and Blowers: Identifies imbalance or misalignment before severe damage occurs.

• Gearboxes: Detects gear mesh irregularities and lubrication issues.

• Industrial Turbines: Enables wireless health monitoring in hard-to-reach or hazardous areas.

• Conveyor Systems and Rotating Equipment: Ensures smooth operation through real-time vibration trend analysis.

This wireless sensor eliminates the need for wired connections, making it ideal for retrofit projects, remote installations, or hazardous zones where cabling is impractical.

---

Product Advantages

• Wireless Data Transmission: Simplifies installation and eliminates wiring costs.

• Dual Sensing Capability: Measures both vibration and temperature simultaneously for complete asset condition awareness.

• High Sensitivity: Detects minute changes in vibration amplitude or frequency.

• Rugged Construction: Stainless steel body rated IP67 for harsh industrial conditions.

• Long Battery Life: Up to five years of continuous operation on a single lithium battery.

• Seamless Integration: Fully compatible with Bently Nevada System 1 software and industrial IoT platforms.

• Wide Frequency Range: Captures data from low-speed to high-speed machinery.

• Reliable Wireless Communication: Uses the ISA100 protocol for robust and secure industrial data transmission.

• Predictive Maintenance Optimization: Enables early fault detection, reducing unplanned downtime.

• Flexible Mounting Options: Can be installed using threaded or magnetic mounts for easy deployment.

---

FAQ

1. What type of sensors are integrated into the Ranger Pro device?
   The 70M303-10-01-01-02 model integrates a triaxial accelerometer for vibration measurement and a temperature sensor, allowing it to monitor both parameters simultaneously for comprehensive machine diagnostics.

2. What wireless communication standard does this device use?
   It operates on the ISA100 Wireless protocol, a robust industrial standard designed for reliable communication in harsh environments with minimal latency and secure data transfer.

3. How often does the sensor transmit data?
   The sampling and transmission rates are configurable through the system software, typically ranging between 1 to 5 seconds, depending on the monitoring requirements and battery optimization settings.

4. Can the sensor be used in hazardous or explosive environments?
   Yes, the device is ATEX Zone 2 compliant, meaning it is suitable for installation in hazardous areas with limited risk of explosion, such as petrochemical plants and refineries.

5. How is the Ranger Pro sensor powered?
   It uses a replaceable industrial-grade lithium battery, providing up to five years of service depending on the data transmission frequency and environmental conditions.

6. What kind of vibration data can it collect?
   The sensor measures acceleration and velocity across a frequency range of 2 Hz to 10 kHz, providing insight into imbalance, misalignment, bearing defects, and other mechanical anomalies.

7. Can the device integrate with existing condition monitoring systems?
   Yes, it seamlessly integrates with Bently Nevada System 1 software and other compatible condition monitoring platforms for data analysis, visualization, and predictive diagnostics.

8. How is the device mounted to machinery?
   It can be attached via a threaded stud or a magnetic base, allowing flexibility for both permanent and temporary installations depending on monitoring needs.

9. Does the sensor provide temperature compensation?
   Yes, the embedded temperature sensor allows real-time compensation for temperature variations, ensuring accurate vibration readings across diverse operating conditions.

10. What is the typical wireless range of the sensor?
    The 70M303-10-01-01-02 model can communicate up to 250 meters line-of-sight, depending on environmental factors and gateway placement, ensuring strong signal coverage in most industrial facilities.

---
