Product Introduction

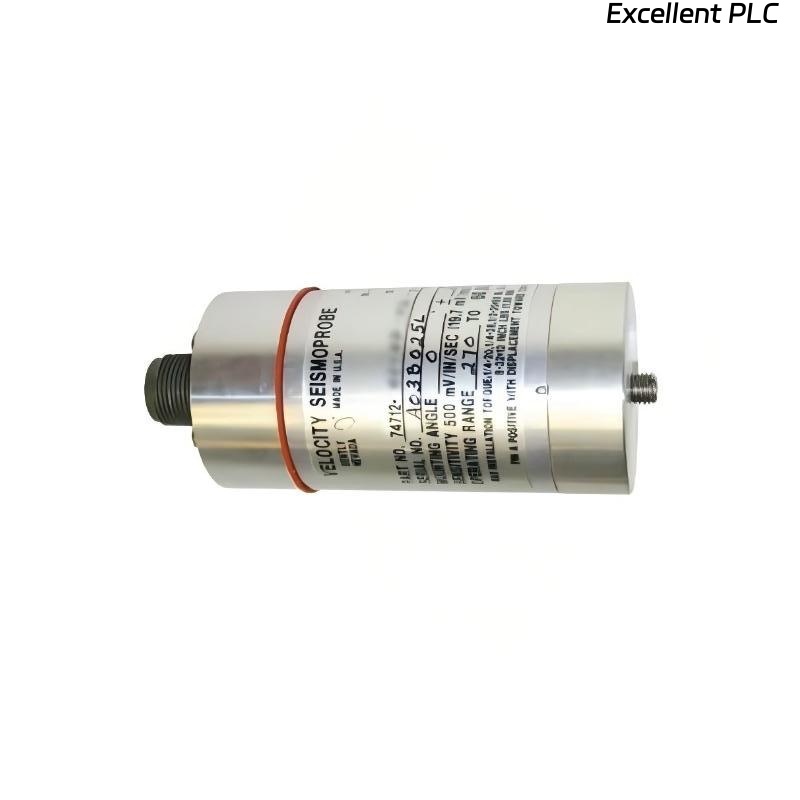

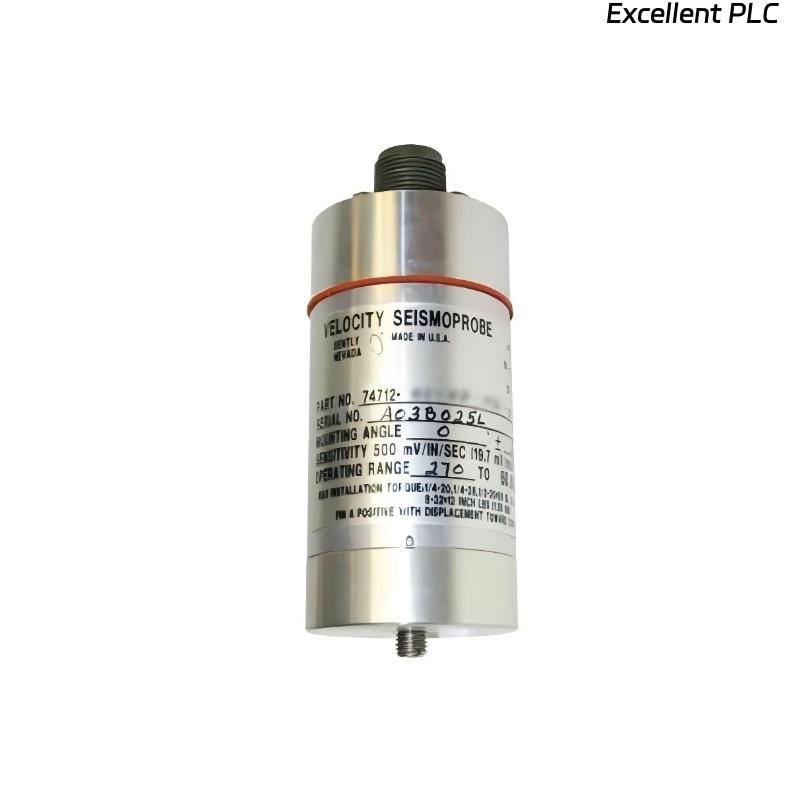

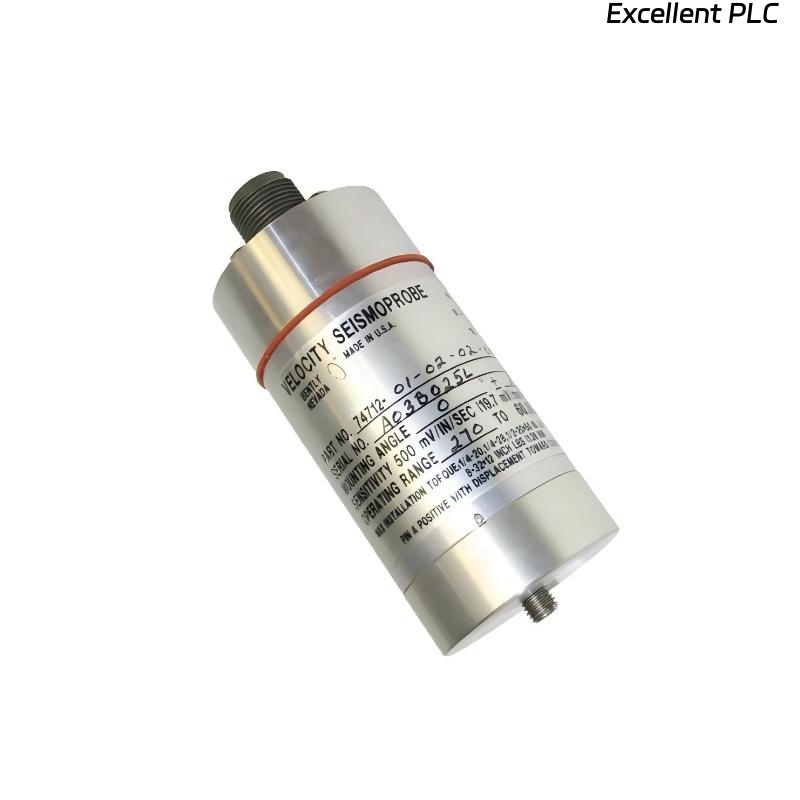

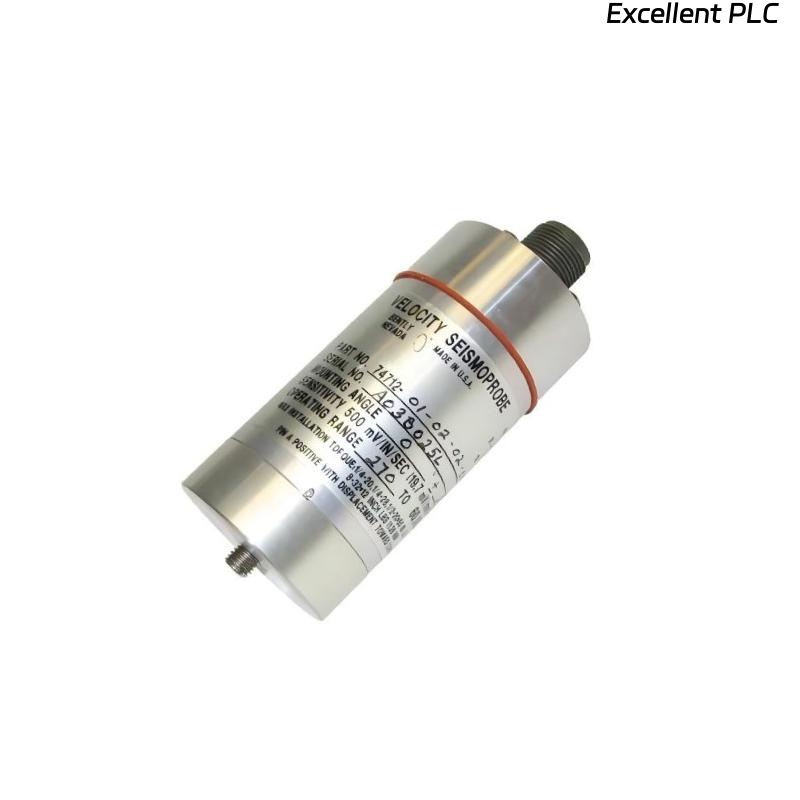

The Bently Nevada 74712-03-10-02-00 Seismoprobe Velocity Transducer is a precision instrument designed for monitoring vibration in rotating and stationary industrial machinery. Part of Bently Nevada’s Seismoprobe series, this velocity transducer converts mechanical vibration into a proportional electrical signal, allowing accurate measurement of machinery movement and dynamic behavior.
With a diameter of 41 mm and weighing 0.48 kg, this transducer is compact and lightweight, suitable for installation in confined spaces without sacrificing performance. Its rugged construction ensures reliable operation in industrial environments where oil, dust, and temperature variations are present. The device provides high-fidelity velocity measurements that are crucial for condition monitoring, vibration analysis, and machinery protection.
The Seismoprobe operates on a velocity-sensing principle, delivering a linear output across a broad frequency range. This allows plant operators to detect early signs of imbalance, misalignment, bearing wear, or structural resonance, supporting predictive maintenance programs and reducing the risk of unplanned downtime.
Product Parameters
| Parameter | Description |
|---|---|
| Product Model | Bently Nevada 74712-03-10-02-00 |
| Series | Seismoprobe Velocity Transducer |
| Sensor Type | Velocity Transducer |
| Operating Principle | Electromechanical velocity sensing |
| Diameter | 41 mm |
| Weight | 0.48 kg |
| Frequency Range | 2 Hz to 1 kHz |
| Sensitivity | 100 mV/in/sec nominal |
| Output Type | Voltage proportional to velocity |
| Operating Temperature | -40°C to +120°C |
| Mounting Type | Flange or stud mount |
| Material | Stainless steel housing |
| Cable Type | Integral shielded cable |
| Environmental Protection | Oil and moisture resistant |
| Typical Applications | Industrial machinery vibration monitoring |
| System Compatibility | Works with Bently Nevada 3500 and 3300 XL monitoring systems |
| Maximum Acceleration | 50 g peak |
| Housing Protection | Sealed to prevent ingress of contaminants |
Product Applications
The 74712-03-10-02-00 Seismoprobe Velocity Transducer is used for precise vibration monitoring in a wide range of industrial machinery. Typical applications include:
-
Steam and Gas Turbines: Monitors rotor vibration and structural dynamics to prevent mechanical failure.
-
Compressors: Tracks bearing and shaft vibration to detect imbalance or misalignment.
-
Generators: Measures vibration in rotor and stator components for condition assessment.
-
Pumps and Fans: Provides early detection of mechanical faults through velocity measurement.
-
Gearboxes: Monitors vibration patterns to identify potential gear wear or misalignment.
-
Structural Monitoring: Detects excessive vibration in machine foundations, frames, and supports.
Product Advantages
The Bently Nevada 74712-03-10-02-00 Seismoprobe Velocity Transducer offers several key advantages:
-
High Accuracy: Provides linear output across a wide frequency range, ensuring reliable velocity measurement.
-
Compact Design: 41 mm diameter allows installation in tight spaces.
-
Lightweight Construction: At 0.48 kg, it is easy to mount without additional support.
-
Durable Housing: Stainless steel body resists oil, moisture, and industrial contaminants.
-
Versatile Mounting: Flange or stud mount options allow flexible installation.
-
System Compatibility: Fully compatible with Bently Nevada 3500 and 3300 XL monitoring systems.
-
Early Fault Detection: Supports predictive maintenance by detecting imbalance, misalignment, or bearing wear.
-
Environmental Resistance: Operates reliably in extreme industrial conditions.
-
High Dynamic Range: Measures low and high velocity vibrations accurately.
-
Maintenance-Free Operation: Robust design minimizes service requirements.
FAQ
-
What is the operating principle of this transducer?
It converts mechanical vibration into a proportional electrical voltage, allowing accurate velocity measurement of rotating and stationary machinery. -
What is the frequency range of the transducer?
The device operates from 2 Hz to 1 kHz, covering low and high-frequency vibration events in industrial machinery. -
What is the nominal sensitivity?
Approximately 100 mV/in/sec, ensuring small and large vibration amplitudes are accurately detected. -
Can it measure both rotor and structural vibrations?
Yes, it measures vibrations from shafts, rotors, and structural components like machine frames. -
Is it compatible with Bently Nevada systems?
Yes, it works with 3500 and 3300 XL monitoring systems for continuous vibration analysis. -
How is the transducer mounted?
It can be mounted via flange or stud, depending on machine configuration and measurement needs. -
Is it resistant to oil and moisture?
Yes, the stainless steel housing and sealed cable protect against oil, moisture, and dust. -
Can it handle high acceleration or shocks?
Yes, it can withstand peak acceleration up to 50 g, suitable for transient vibration events. -
Is it suitable for confined spaces?
Yes, its 41 mm diameter and 0.48 kg weight allow installation in tight areas. -
What type of output does it provide?
It outputs a voltage proportional to velocity, which is used for vibration monitoring and predictive maintenance.
