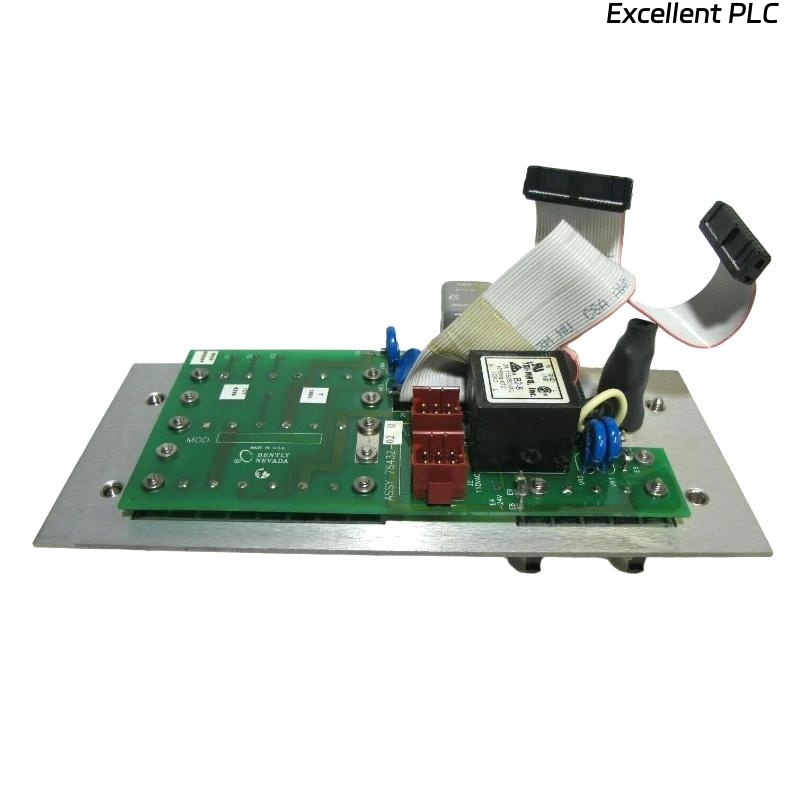

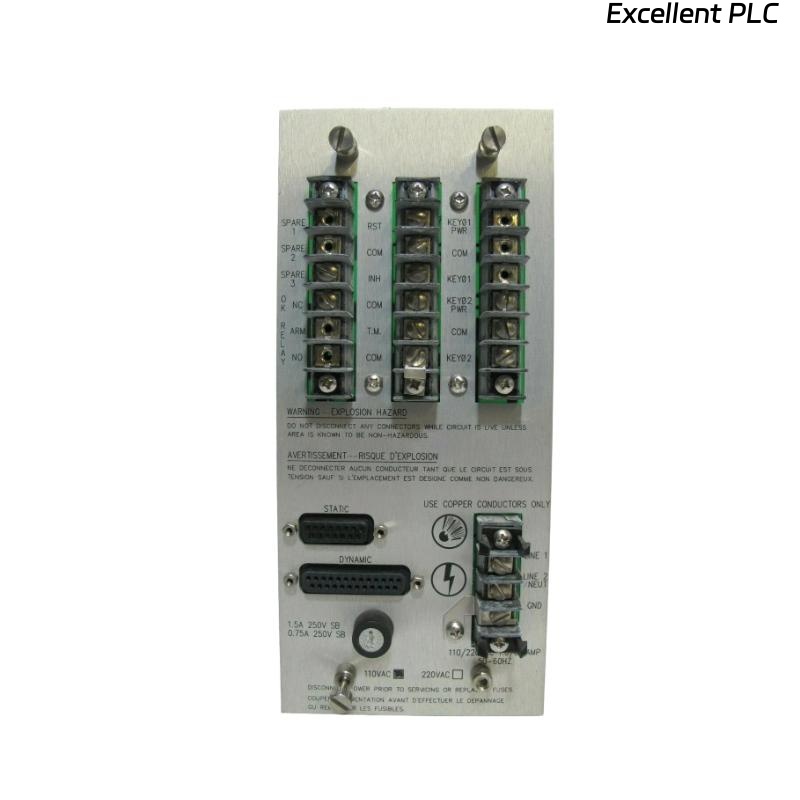

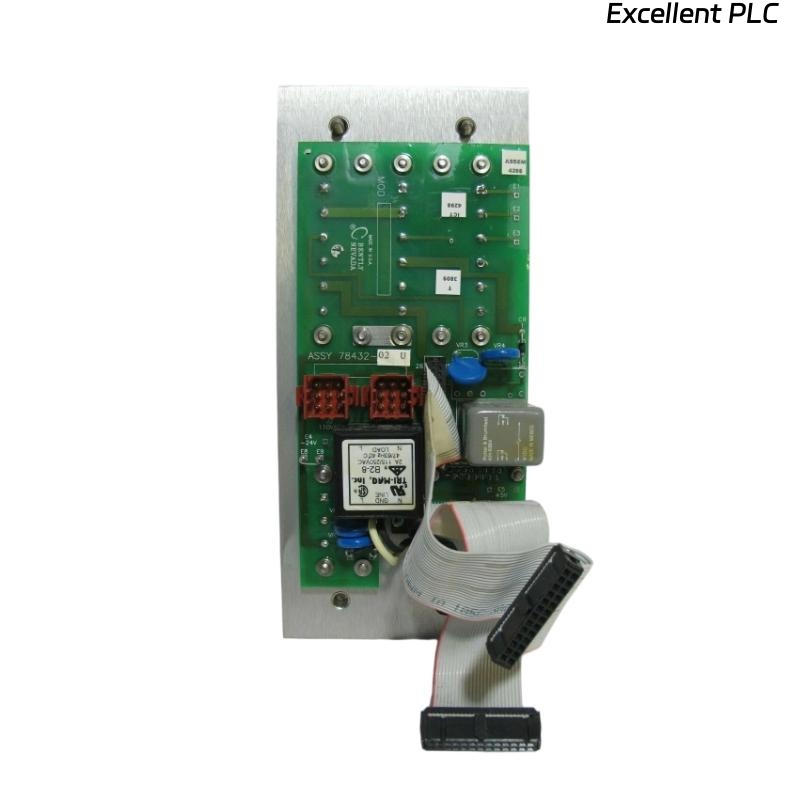

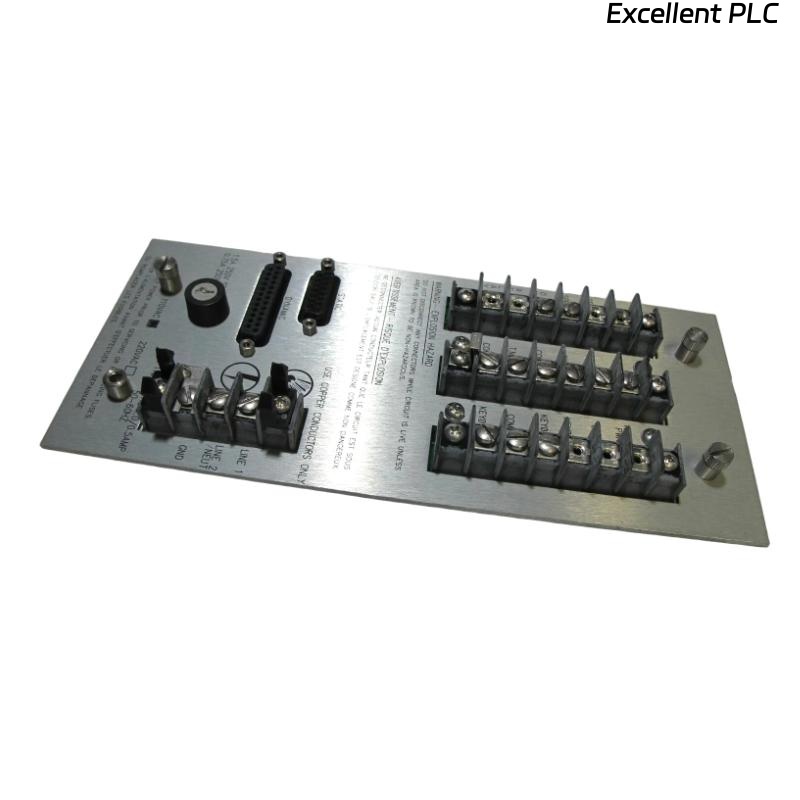

Bently Nevada 78432-02 Power Input Module

Product Introduction

The Bently Nevada 78432-02 Power Input Module is a critical component designed to supply stable and reliable power to Bently Nevada monitoring systems, such as the renowned 3500 series machinery protection platforms. Built for high-performance industrial environments, the module ensures consistent power distribution to vibration, temperature, and other monitoring cards within the rack. Its robust construction, advanced filtering technology, and fault-tolerant architecture help maintain system availability even under challenging electrical conditions. Engineered for continuous operation in power generation, oil and gas, and heavy industrial applications, the 78432-02 provides both reliability and safety for critical rotating equipment monitoring.

Technical Specifications

Applications

The 78432-02 Power Input Module is designed to serve as a stable and redundant power source for critical monitoring systems in a wide variety of industrial environments:

• Power Generation Plants: Provides dependable power for turbine and generator monitoring systems.

• Oil & Gas Facilities: Ensures continuous operation of vibration monitoring and protection systems on compressors and pumps.

• Petrochemical Plants: Supports machinery protection systems for refineries and chemical processing equipment.

• Steel Mills and Mining: Powers monitoring racks for large motors, crushers, and rolling mills.

• Marine and Offshore Platforms: Delivers reliable power for vibration and condition monitoring systems exposed to demanding offshore conditions.

• Industrial Automation Systems: Supplies clean, regulated power for distributed monitoring and protection systems.

Advantages

• High Reliability: Delivers clean, regulated power to critical monitoring systems, minimizing downtime.

• Wide Input Range: Accepts both AC and DC input voltages, providing installation flexibility.

• Integrated Protection: Built-in over-voltage, over-current, and thermal safeguards ensure safe operation in demanding conditions.

• Rack Compatibility: Seamlessly integrates with Bently Nevada 3500 racks for easy installation and maintenance.

• Redundant Operation: Can be paired with another power module for full redundancy to guarantee uninterrupted operation.

• Industrial-Grade Design: Capable of withstanding harsh environments with broad operating temperature and high isolation standards.

• Maintenance-Friendly: LED status indicators and modular design enable quick diagnostics and replacement.

• Energy Efficient: High conversion efficiency reduces heat generation and operating costs.

FAQ

1. What is the acceptable input voltage range for the 78432-02 module?
   The module operates with 85–264 VAC or 100–150 VDC input voltage.

2. What is the nominal output voltage provided to the rack?
   It delivers a regulated 24 VDC output to power the monitoring system.

3. Can this module operate in a redundant configuration?
   Yes, it can be paired with another 78432-02 module to provide full redundancy.

4. What type of isolation is provided between input and output?
   The module features 2500 VAC input-to-output isolation for enhanced safety.

5. What is the maximum power output capacity?
   The unit can supply up to 200 W of regulated power.

6. Does it include protection against over-voltage and over-current conditions?
   Yes, it is equipped with comprehensive protection including over-voltage, over-current, and thermal safeguards.

7. What is the operating temperature range for reliable performance?
   The module operates from –30 °C to +65 °C without derating.

8. How is the module cooled during operation?
   It uses natural convection cooling and does not require an internal fan.

9. Is the module compatible with Bently Nevada 3500 monitoring racks?
   Yes, it is specifically designed for direct insertion into Bently Nevada 3500 series racks.

10. What indicators are provided for operational status and faults?
    Front-panel LEDs display real-time power status and fault conditions for easy monitoring.
