Product Introduction

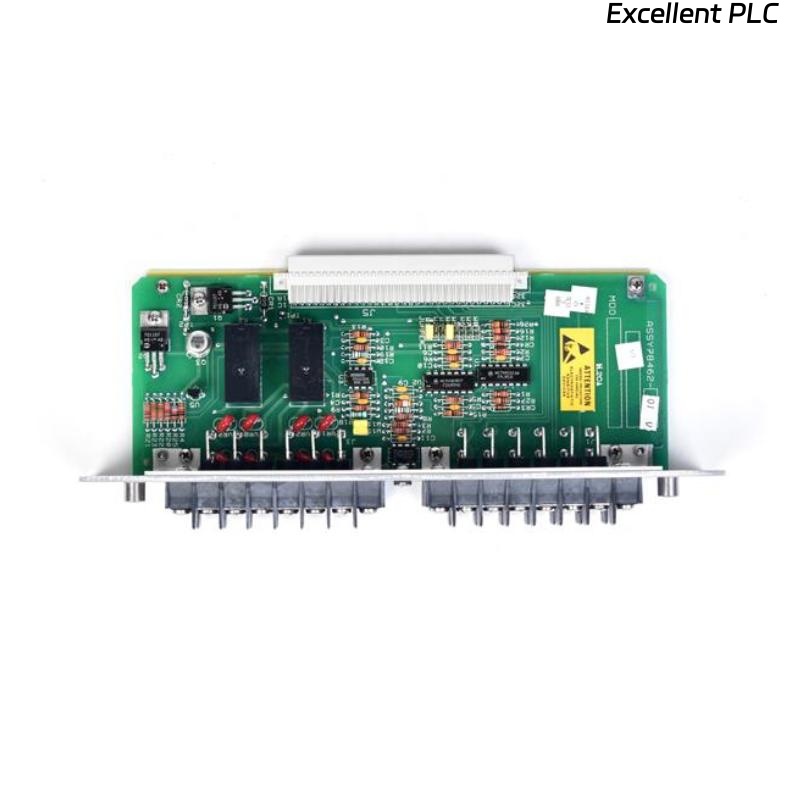

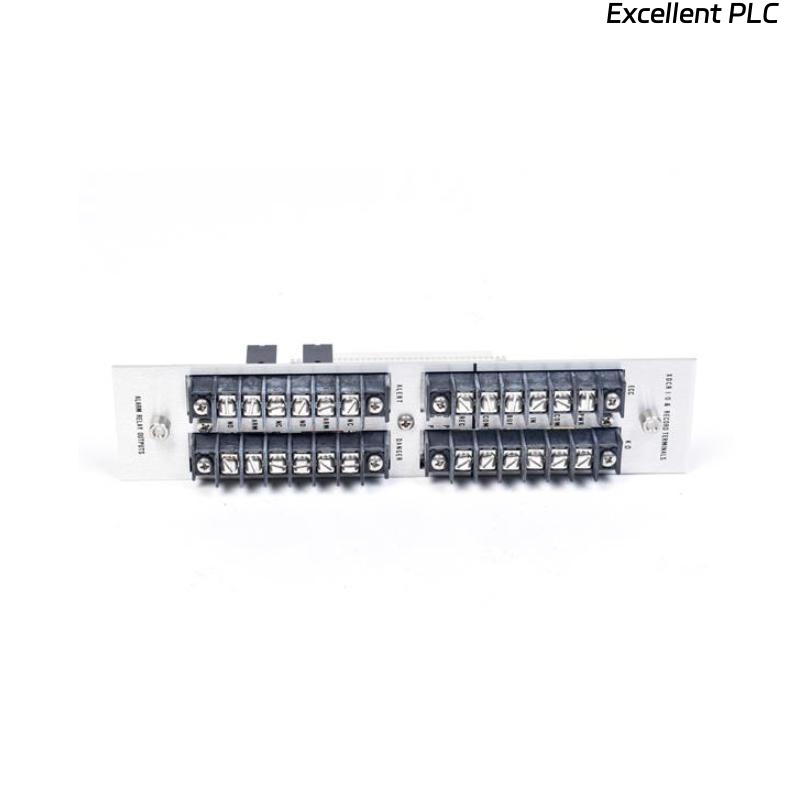

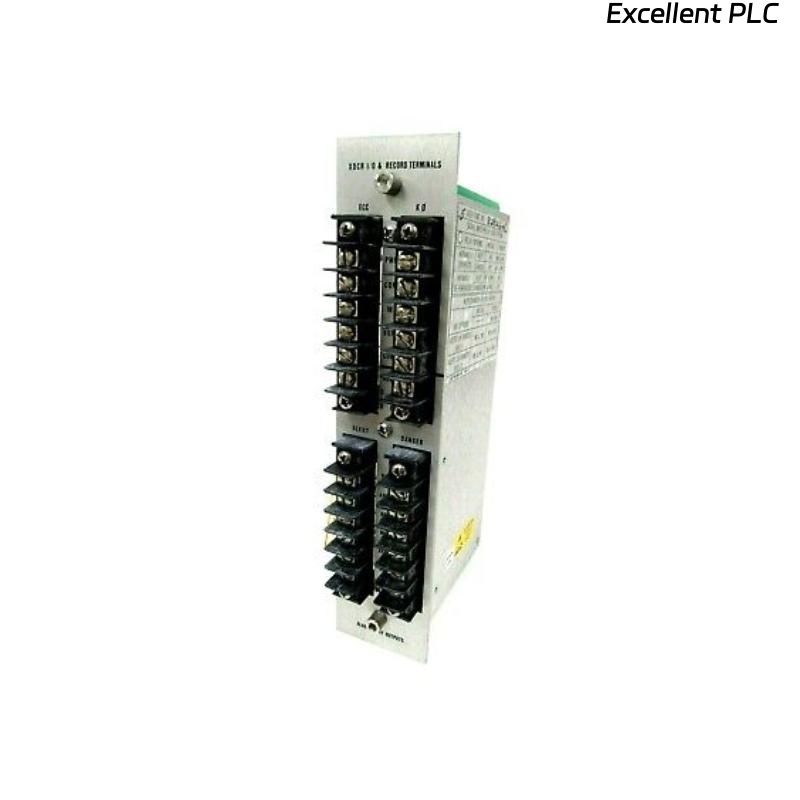

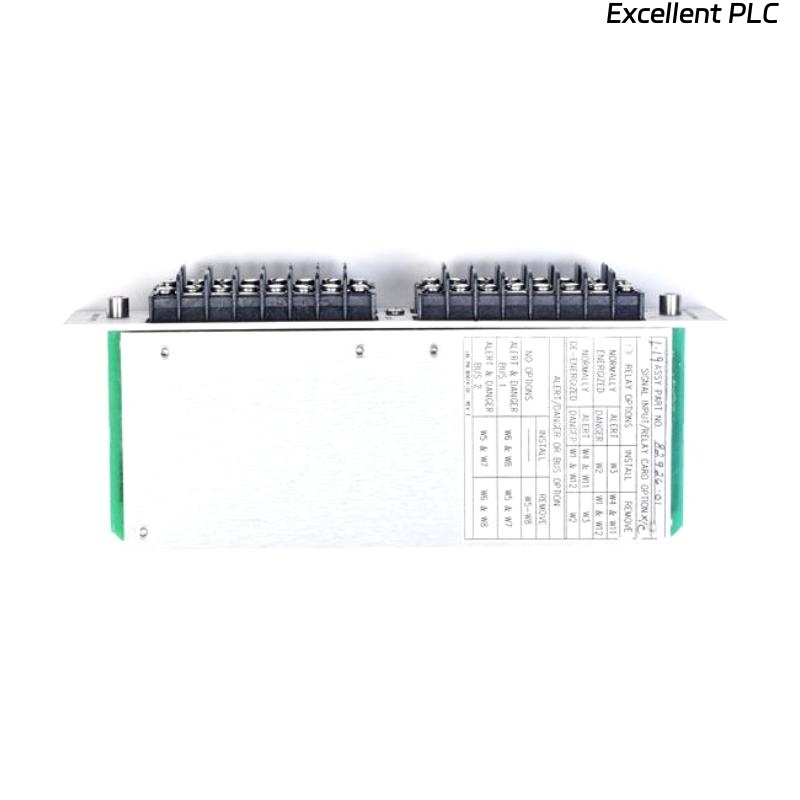

The Bently Nevada 82926-01 Relay Board is a precision-engineered module designed to provide reliable relay switching for monitoring and control systems in industrial applications. As part of Bently Nevada’s robust portfolio of machinery protection solutions, this relay board ensures accurate signal processing and alarm output to safeguard rotating equipment.
The 82926-01 integrates seamlessly with monitoring systems, allowing for flexible configuration of alarms, trip points, and logic operations. Its design prioritizes durability, signal integrity, and easy maintenance.
Product Advantages
-
High Reliability: Engineered for continuous operation in demanding industrial environments.
-
Fast Response: Provides rapid relay actuation for critical alarm signaling.
-
Compatibility: Fully compatible with Bently Nevada 3300 series and other monitoring modules.
-
Ease of Installation: Pre-configured relay terminals reduce wiring complexity.
-
Diagnostics: Built-in status indicators facilitate troubleshooting and maintenance.
-
Modular Design: Can be easily replaced or upgraded without system downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 82926-01 |
| Function | Relay Board for alarm and signal output |
| Input Voltage | 24 VDC nominal |
| Output Type | SPDT Relays |
| Maximum Relay Current | 5 A |
| Response Time | < 10 ms |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel mount |
| Dimensions | 160 x 160 x 120 mm |
| Weight | 0.8 kg |
| Certifications | CE, UL recognized |
Product Applications
-
Machinery protection systems in turbines, compressors, and pumps.
-
Alarm and trip signaling in industrial process monitoring.
-
Integration with distributed control systems (DCS) for automated shutdown.
-
Remote monitoring stations for critical rotating equipment.
-
Oil, gas, and power generation industries requiring fast response relays.
FAQ
Q1: What is the maximum current the 82926-01 relay contacts can handle?
A1: The relay contacts are rated for a maximum of 5 A.
Q2: Can the relay board operate with AC input voltages?
A2: No, it is designed for 24 VDC nominal input only.
Q3: How fast does the relay board respond to a triggering signal?
A3: The typical response time is less than 10 milliseconds.
Q4: Is the relay output configurable for normally open and normally closed states?
A4: Yes, the SPDT relays support both NO and NC configurations.
Q5: Can the board be used in outdoor environments?
A5: It can operate within -20°C to +70°C but requires enclosure protection for direct outdoor exposure.
Q6: Does the board support integration with the 3300 XL series monitors?
A6: Yes, it is fully compatible with 3300 XL and standard 3300 series modules.
Q7: Are there indicators to show relay activation?
A7: Yes, the board has built-in LED indicators for each relay.
Q8: What is the maximum allowable ambient humidity for operation?
A8: The board operates reliably in 5% to 95% relative humidity, non-condensing.
Q9: Can multiple boards be cascaded for extended alarm outputs?
A9: Yes, multiple relay boards can be connected to expand the number of alarm channels.
Q10: Is the board compliant with industry safety standards?
A10: Yes, it is CE marked and UL recognized for industrial applications.
Recommended Same-Series or Related Models
| Model Number | Function/Notes |
|---|---|
| 82925-01 | Auxiliary relay module |
| 82927-01 | Trip and alarm relay interface |
| 82928-01 | Signal conditioning relay board |
| 82930-01 | Redundant relay output module |
| 82931-01 | Logic relay integration board |
| 82932-01 | Expansion relay board for multiple outputs |
