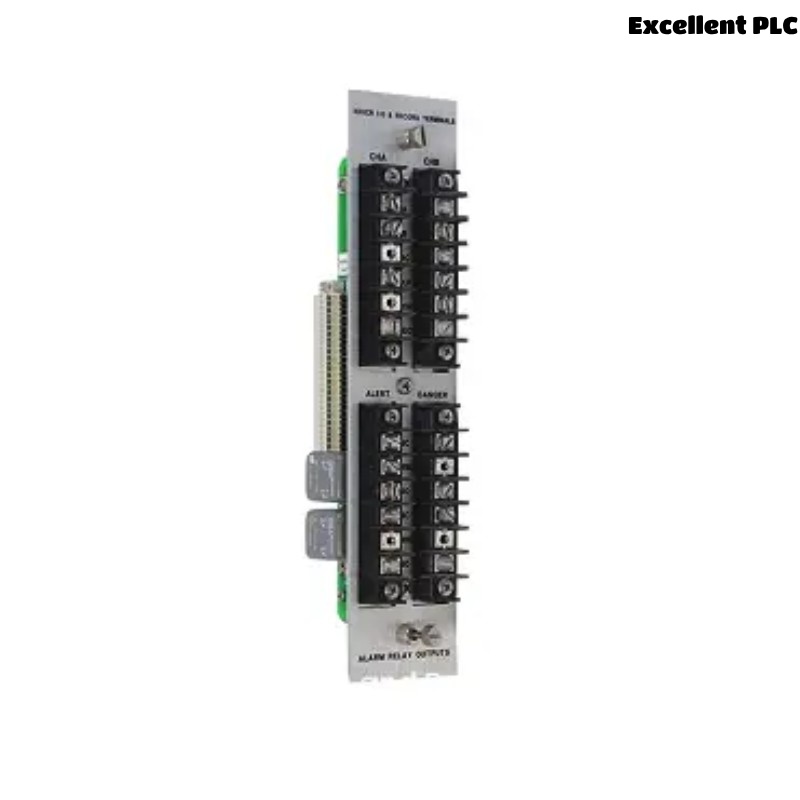

Bently Nevada 84147-01 Product Overview
The Bently Nevada 84147-01 is a high-performance vibration monitoring module designed for industrial machinery protection and condition monitoring. It is part of the 3500 Series by Bently Nevada, a leading brand in predictive maintenance and machinery health solutions. This module ensures reliable detection of vibration, speed, and other critical parameters to prevent equipment failure.
Product Specifications
The 84147-01 module is engineered for rugged industrial environments, offering precise measurements and seamless integration with Bently Nevada’s monitoring systems.
| Parameter | Value |
|---|---|
| Input Channels | 2 (Dual-channel configuration) |
| Measurement Range | 0-20 mA / 0-10 VDC (configurable) |
| Frequency Response | 0.5 Hz to 15 kHz |
| Power Supply | 18-30 VDC |
| Operating Temp. | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 51x 102x 229mm |
| Weight | 0.35 kg |
| Enclosure Rating | IP67 (Dust/Waterproof) |
| Communication | RS-485 / Modbus Protocol |
| Mounting | DIN rail or panel mounting |
Applications
The 84147-01 is widely used in industries requiring precise machinery health monitoring, including:
-
Oil & Gas: Compressors, turbines, and pumps.
-
Power Generation: Steam and gas turbines, generators.
-
Chemical & Petrochemical: Rotating equipment monitoring.
-
Mining & Metals: Crushers, conveyors, and heavy machinery.
-
Water Treatment: Large pumps and motors.
Product Advantages
-
High Accuracy: Provides reliable vibration data for predictive maintenance.
-
Robust Design: Built for harsh industrial environments (IP67 rated).
-
Easy Integration: Compatible with Bently Nevada’s 3500 Series and third-party systems.
-
Dual-Channel Input: Allows monitoring of two separate sensors simultaneously.
-
Wide Temp. Range: Operates in extreme temperatures (-40°C to +85°C).
-
Low Maintenance: Solid-state design ensures long-term reliability.
Frequently Asked Questions (FAQ)
Q1: What type of sensors are compatible with the 84147-01?
A: It supports accelerometers, proximity probes, and velocity sensors (0-20 mA / 0-10 VDC).
Q2: Can this module be used in hazardous areas?
A: Yes, with proper intrinsic safety barriers (ATEX/IECEx certifications may apply).
Q3: What is the maximum cable length for sensor connections?
A: Up to 300 meters (shielded cable recommended).
Q4: Does it support wireless communication?
A: No, it uses wired RS-485/Modbus for data transmission.
Q5: How is the module powered?
A: 18-30 VDC power supply (redundant power options available).
Q6: Is calibration required?
A: Factory-calibrated, but field verification is recommended annually.
Q7: Can it be used with non-Bently Nevada systems?
A: Yes, via standard Modbus protocol.
Q8: What is the typical lifespan of the module?
A: 5+ years with proper maintenance.
Q9: Does it include software for diagnostics?
A: Requires Bently Nevada’s System 1 or third-party SCADA integration.
Q10: Is there a warranty?
A: Standard 12-month warranty (extended options available).
Recommended Related Models
Same Series (3500 Series)
| Model | Description |
|---|---|
| 3500/42M | 4-Channel Vibration Monitor |
| 3500/22M | Dual-Channel Transient Data Interface |
| 3500/15 | Power Supply Module |
| 3500/25 | Keyphasor® Module |
| 3500/32M | 16-Channel Relay Interface |
| 3500/92 | Communication Gateway |
Popular Bently Nevada Models
| Model | Description |
|---|---|
| 3300 XL 8mm | Proximity Probe System |
| 1900/65A | Accelerometer with Integral Cable |
| 7200 Series | Wireless Vibration Monitoring |
| 2300/25 | Velocity Sensor |
| 3701/27 | High-Temperature Accelerometer |
| 2600 Series | Turbine Supervisory Instrumentation |
