Product Introduction:

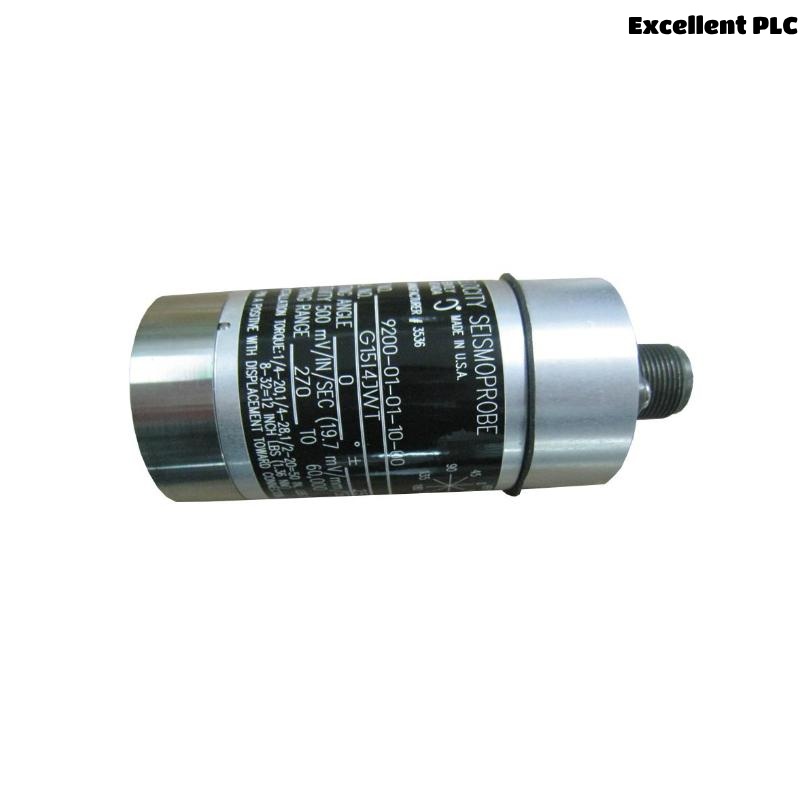

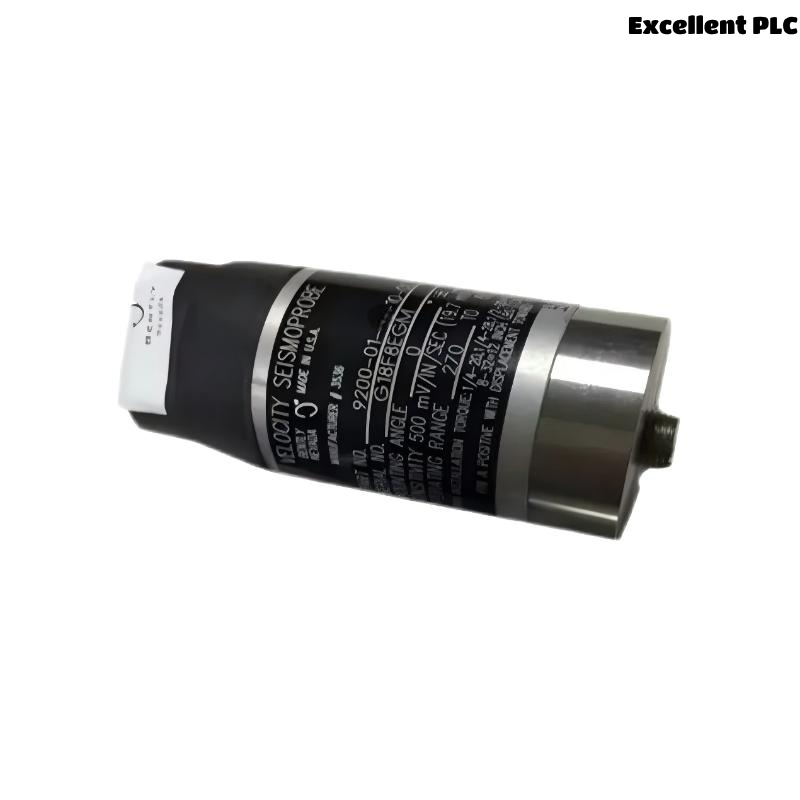

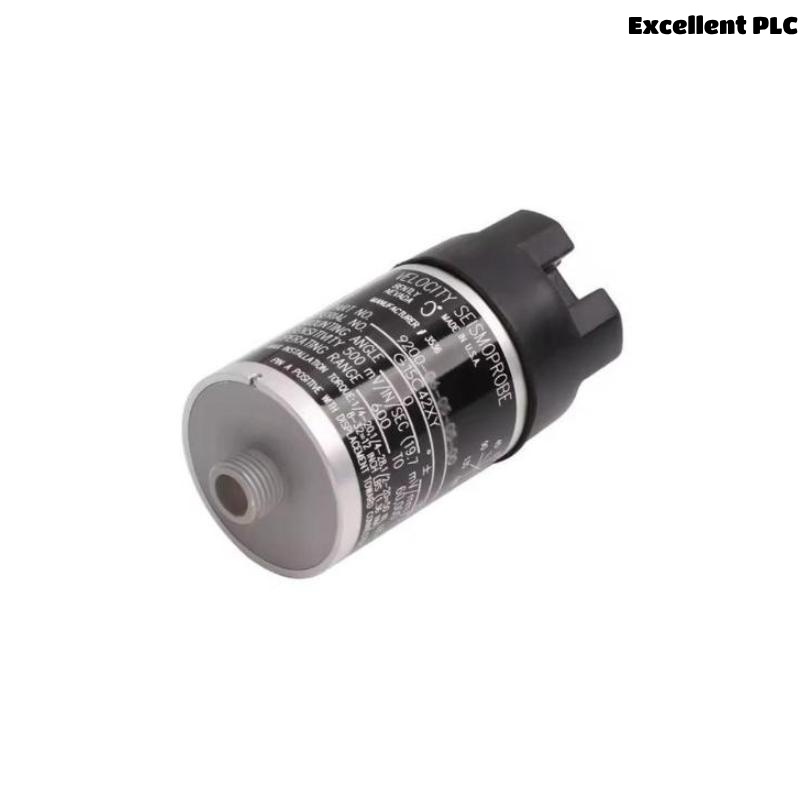

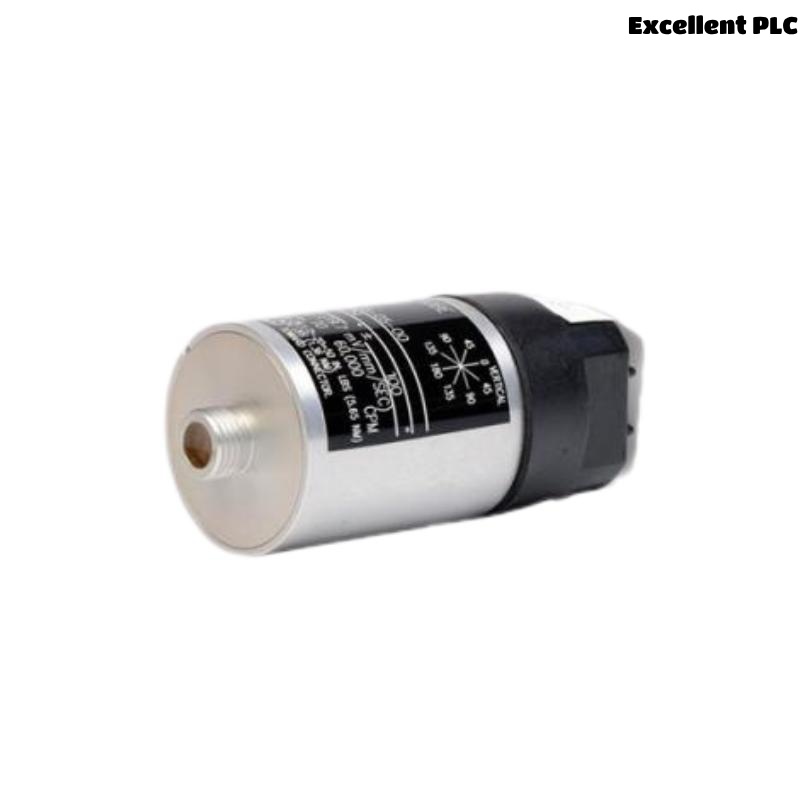

The Bently Nevada 9200-01-01-10-00 is a high-performance dual-wire velocity seismic sensor designed to accurately measure vibrations and seismic activities in industrial machinery and structures. This sensor is typically used for monitoring the condition of rotating machinery, such as turbines, pumps, and compressors, by detecting vibrations that could indicate mechanical issues or impending failure.
The Bently Nevada 9200 series is known for its robustness and reliability in harsh industrial environments, providing real-time data to help prevent equipment failures, reduce maintenance costs, and increase operational efficiency. The dual-wire configuration allows for easy integration into existing monitoring systems, making it a versatile choice for a wide range of applications.
With its high sensitivity and precision, the 9200-01-01-10-00 is ideal for industries that require continuous monitoring and predictive maintenance, ensuring the smooth operation of critical machinery and systems. Whether used for vibration monitoring, condition monitoring, or structural monitoring, this sensor delivers precise and actionable data.
Product Parameters:
| Parameter | Specification |
|---|---|
| Model | 9200-01-01-10-00 |
| Dimensions (WxH) | 91.19 x 41.4 mm |
| Weight | 0.3 kg |
| Output Type | Dual-wire velocity |
| Power Supply | 24V DC |
| Measurement Range | ±10 mm/s |
| Frequency Response | 10 Hz to 1000 Hz |
| Temperature Range | -40°C to +85°C |
| Vibration Sensitivity | 2.5 mV/mm/s |
| Mounting | Surface mount or bolt mount |
| Protection Class | IP67 |
| Signal Output | 4-20 mA |
Product Applications:
The Bently Nevada 9200-01-01-10-00 dual-wire velocity seismic sensor is widely used in various industries for monitoring vibrations and detecting seismic events. Some key applications include:
-
Condition Monitoring: This sensor is primarily used for monitoring the health of rotating machinery like motors, pumps, and compressors. By detecting abnormal vibrations, it allows for early detection of mechanical issues.
-
Predictive Maintenance: By providing continuous vibration data, the 9200-01-01-10-00 helps predict potential failures, allowing maintenance teams to intervene before problems escalate, reducing downtime and repair costs.
-
Seismic Activity Detection: In industries with structures or machinery prone to seismic activity, this sensor is used to detect vibrations that may indicate ground movement or other seismic disturbances.
-
Machinery Protection: The sensor can be used as part of a machinery protection system, where it provides real-time feedback to control systems, helping to protect equipment from damage caused by excessive vibration.
-
Structural Health Monitoring: The sensor can also be used for monitoring the health of industrial structures, including bridges, buildings, and dams, by measuring the seismic and vibrational effects on these structures.
Product Advantages:
-
High Sensitivity and Accuracy: The Bently Nevada 9200-01-01-10-00 features high sensitivity, with a vibration measurement range of ±10 mm/s. This ensures that even small changes in vibration are accurately detected, enabling early fault detection.
-
Dual-Wire Configuration: The dual-wire setup makes installation and integration with monitoring systems straightforward, while also offering a robust and reliable output signal.
-
Robust and Durable: Designed for use in industrial environments, this sensor has a protection class of IP67, making it resistant to dust, water, and harsh conditions. It is built to withstand high levels of vibration, shock, and temperature extremes.
-
Wide Frequency Response: With a frequency response range of 10 Hz to 1000 Hz, the 9200-01-01-10-00 can measure a wide range of vibration frequencies, making it suitable for various applications, from low-frequency vibrations to higher frequency shock events.
-
Easy Integration: This sensor can be easily integrated into existing monitoring systems, providing continuous and accurate data for predictive maintenance, condition monitoring, and safety systems.
-
Versatile Mounting Options: The sensor offers flexibility in installation with surface or bolt mounting options, allowing it to be used in various applications and environments.
FAQ:
Q1: What is the vibration measurement range of the Bently Nevada 9200-01-01-10-00?
A1: The sensor has a vibration measurement range of ±10 mm/s, ensuring accurate detection of both small and large vibration changes.
Q2: What is the power supply requirement for the 9200-01-01-10-00 sensor?
A2: The sensor operates on a 24V DC power supply, which is commonly used in industrial sensor systems.
Q3: Can the 9200-01-01-10-00 sensor be mounted in different ways?
A3: Yes, the sensor offers surface mount or bolt mount options, providing flexibility for installation in various applications.
Q4: What is the frequency response range of the Bently Nevada 9200-01-01-10-00?
A4: The sensor has a frequency response range of 10 Hz to 1000 Hz, making it suitable for a wide range of vibration monitoring applications.
Q5: Is the Bently Nevada 9200-01-01-10-00 sensor suitable for harsh industrial environments?
A5: Yes, the sensor is built to withstand harsh conditions, with an IP67 protection class that makes it resistant to dust, water, and extreme temperatures.
Q6: How much does the 9200-01-01-10-00 sensor weigh?
A6: The sensor weighs 0.3 kg, making it lightweight and easy to handle during installation.
Q7: Can the sensor be used for both vibration monitoring and seismic activity detection?
A7: Yes, the 9200-01-01-10-00 can be used for both vibration monitoring of machinery and seismic activity detection in structures.
Q8: What is the output signal type for the Bently Nevada 9200-01-01-10-00 sensor?
A8: The sensor provides a 4-20 mA output signal, which is standard for many industrial monitoring systems.
Q9: What is the temperature range for operating the 9200-01-01-10-00 sensor?
A9: The sensor operates within a temperature range of -40°C to +85°C, making it suitable for use in a wide range of industrial environments.
Q10: How does the sensor help in predictive maintenance?
A10: By continuously monitoring vibrations, the 9200-01-01-10-00 helps detect anomalies early, enabling predictive maintenance and minimizing unexpected downtime.
Recommended Models from the Same Series or Related:
| Model | Description | Measurement Range | Frequency Response |
|---|---|---|---|
| 9200-01-02-10-00 | Similar sensor with higher sensitivity | ±15 mm/s | 10 Hz to 1000 Hz |
| 9200-02-01-10-00 | Version with extended output options | ±10 mm/s | 10 Hz to 1000 Hz |
| 9200-01-03-10-00 | Compact version for tighter spaces | ±8 mm/s | 5 Hz to 800 Hz |
| 9200-03-01-10-00 | Heavy-duty version for extreme environments | ±12 mm/s | 10 Hz to 1000 Hz |
| 9200-01-04-10-00 | High-frequency version for fast machinery | ±10 mm/s | 20 Hz to 1500 Hz |
| 9200-01-05-10-00 | Multi-channel configuration for large systems | ±10 mm/s | 10 Hz to 1000 Hz |
