Product Introduction

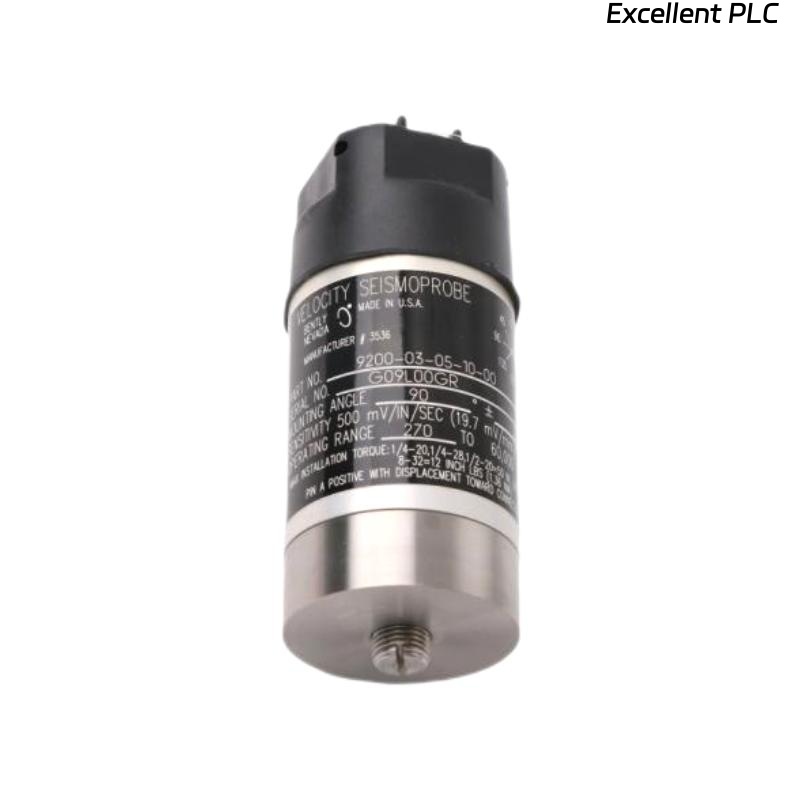

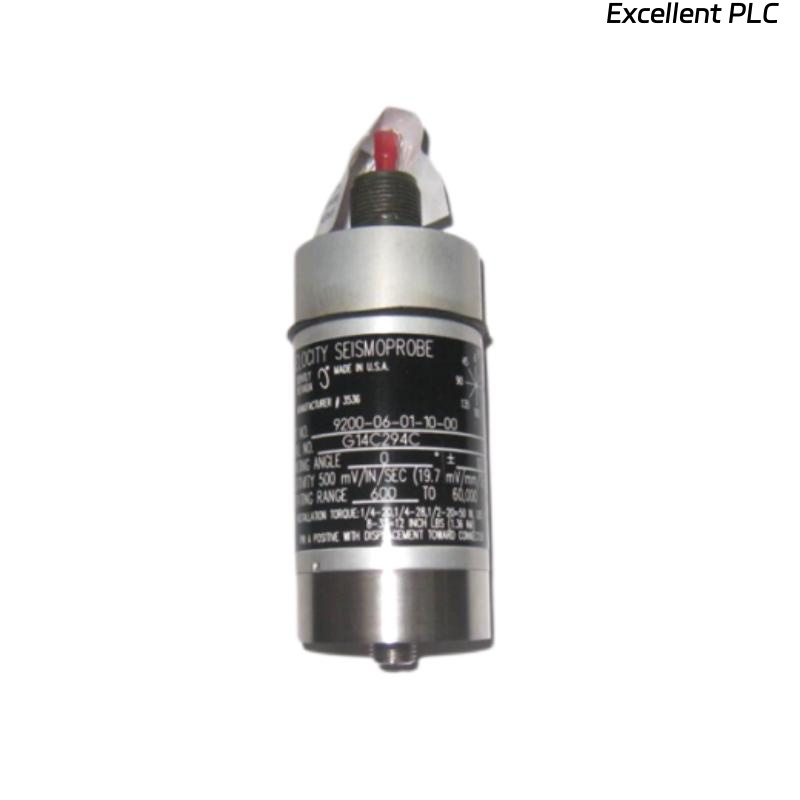

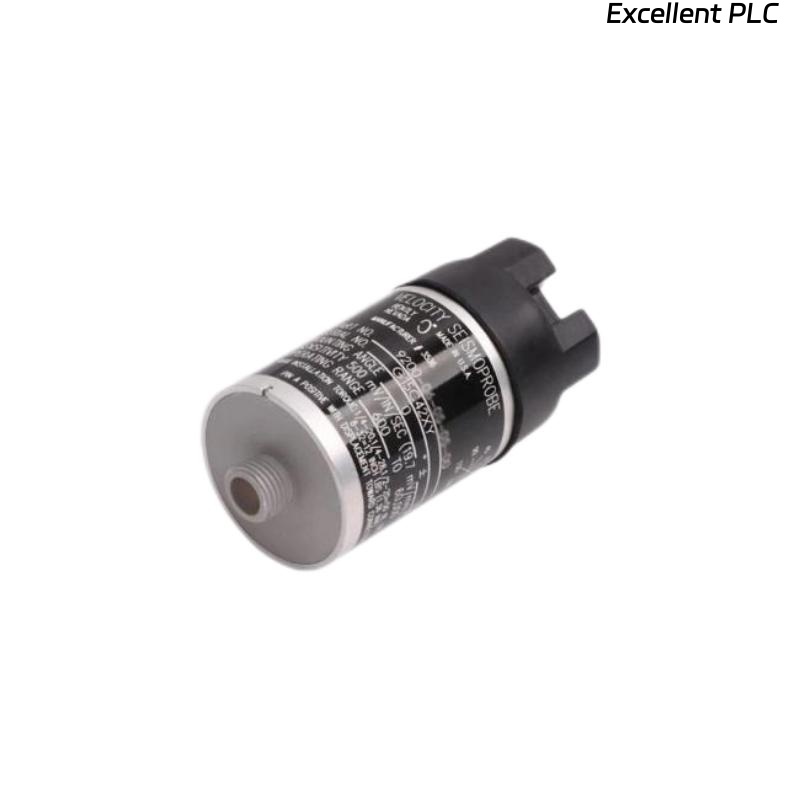

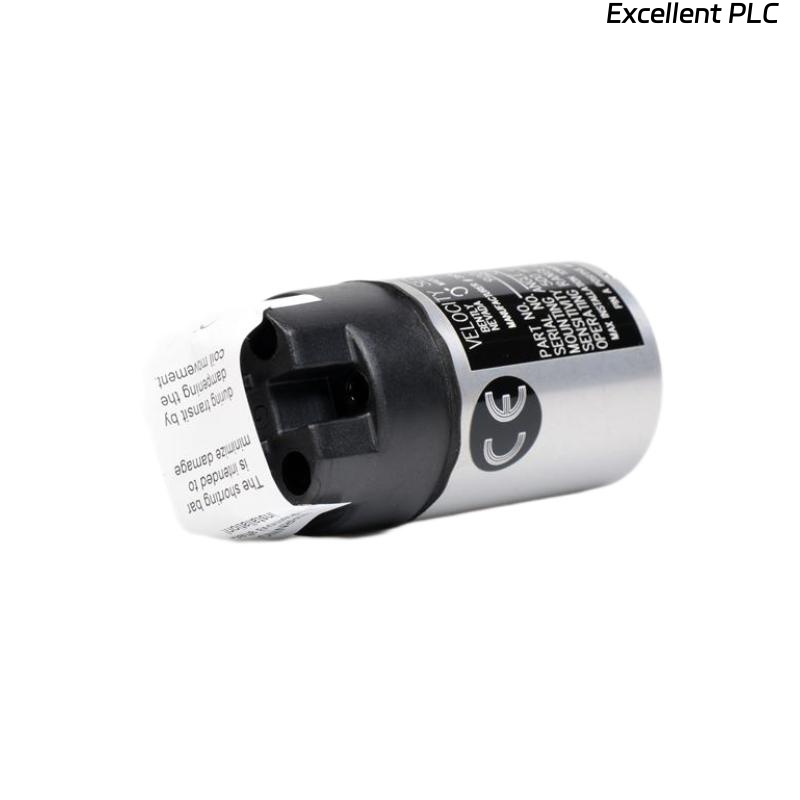

The Bently Nevada 9200-01-02-10-00 is a precision-engineered dual-line velocity seismic sensor designed for reliable vibration measurement in industrial machinery monitoring applications. It forms part of Bently Nevada’s trusted 9200 series, which is recognized for delivering stable and accurate velocity measurements in harsh industrial environments.
This model is specifically tailored to convert mechanical vibration into a proportional electrical signal for analysis by monitoring systems. It is suitable for applications such as turbine, compressor, and large motor monitoring, offering high durability, excellent linearity, and resistance to environmental interference. With its rugged housing and sealed construction, the 9200-01-02-10-00 ensures dependable performance even in areas with high temperatures, humidity, or mechanical stress.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 9200-01-02-10-00 |
| Series | 9200 Series Dual-line Velocity Seismic Sensor |
| Measurement Range | 0–50 mm/s (typical for velocity sensors, depending on configuration) |
| Sensitivity | 100 mV/in/sec ±5% |
| Frequency Range | 4.5 Hz to 5 kHz |
| Output Signal | Dual-line, self-generating voltage signal |
| Operating Temperature | –40°C to +100°C |
| Housing Material | Stainless steel, corrosion-resistant |
| Sealing | IP65 or better, dust and moisture protection |
| Mounting | Stud mount or magnetic base (optional) |
| Cable Connection | Two-wire shielded cable, industrial-grade |
| Power Supply | Self-powered (does not require external power) |
| Sensor diameter | 41.4mm |
| Weight | 0.3 kg |
| Compliance | CE, RoHS compliant |
Product Applications
The Bently Nevada 9200-01-02-10-00 is used in a wide range of vibration monitoring applications, including:
-
Power Generation – Monitoring steam turbines, hydro turbines, and generators for imbalance or bearing issues.
-
Oil & Gas Industry – Continuous monitoring of compressors, pumps, and offshore equipment.
-
Petrochemical Plants – Detecting vibration abnormalities in large rotating machinery to prevent process disruption.
-
Steel & Mining Industry – Supervising heavy-duty motors, crushers, and mill drives.
-
Marine & Shipping – Monitoring propulsion systems and auxiliary equipment to ensure operational safety.
-
Pulp & Paper Industry – Tracking vibration levels of high-speed rolls and rotating process equipment.
Product Advantages
-
High Accuracy – Delivers stable velocity measurements with minimal drift over time.
-
Rugged Design – Stainless steel housing and sealed enclosure for harsh industrial conditions.
-
Wide Frequency Range – Suitable for detecting both low-frequency imbalance and high-frequency bearing faults.
-
Low Maintenance – Self-generating design eliminates the need for external power sources.
-
Long Service Life – Built to last with high resistance to corrosion, shock, and vibration.
-
Easy Installation – Compatible with multiple mounting options and standard vibration monitoring systems.
-
Consistent Output – Dual-line signal ensures redundancy and improved reliability in critical monitoring.
-
Global Compatibility – Meets international compliance standards for industrial monitoring equipment.
Frequently Asked Questions (FAQ)
Q1: What type of signal does the 9200-01-02-10-00 produce?
A1: It produces a dual-line self-generating voltage signal proportional to the measured vibration velocity.
Q2: Does this sensor require external power?
A2: No, it is self-powered and does not require an external supply.
Q3: Can it be used in outdoor environments?
A3: Yes, its IP65-rated housing makes it suitable for outdoor and industrial use.
Q4: How is it typically mounted?
A4: It can be stud-mounted directly to machinery or attached with a magnetic base for temporary measurements.
Q5: What is the typical service life of this sensor?
A5: When properly installed, it can last over 5 years in normal industrial use.
Q6: Is it compatible with all Bently Nevada monitoring systems?
A6: Yes, it works with most Bently Nevada monitoring and analysis systems.
Q7: What is the benefit of a dual-line output?
A7: It provides redundancy and ensures reliable signal transmission in critical monitoring situations.
Q8: What machinery is it best suited for?
A8: Large rotating machinery such as turbines, compressors, pumps, and motors.
Q9: Can it withstand high temperatures?
A9: Yes, it can operate in temperatures up to +100°C.
Q10: Is it resistant to vibration from other nearby machinery?
A10: Yes, its design minimizes interference from non-target vibrations.
Recommended 6 Same-Series or Related Models
-
Bently Nevada 9200-01-01-02-00 – Dual-line seismic velocity sensor, alternate mounting configuration.
-
Bently Nevada 9200-01-20-10-00 – Extended temperature range version.
-
Bently Nevada 9200-03-01-05-00 – Compact version for limited-space installations.
-
Bently Nevada 9200-03-02-10-00 – High-frequency optimized version.
-
Bently Nevada 9200-03-02-02-00 – Balanced performance variant for general-purpose use.
-
Bently Nevada 9200-01-01-10-00 – High-sensitivity variant for low-level vibration detection.
6 Other Popular Models from Bently Nevada (with Specs)
| Model Number | Measurement Range | Frequency Range | Sensitivity | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|---|
| 330103-00-05-10-02-05 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 71 × 25 | 210 |
| 330104-00-10-10-02-05 | 0–25 mm/s | 5 Hz – 3 kHz | 200 mV/in/sec | 75 × 30 | 220 |
| 330500 | 0–50 mm/s | 3 Hz – 10 kHz | 100 mV/in/sec | 80 × 28 | 240 |
| 330530 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 76 × 27 | 230 |
| 3500/42M | Multi-channel | System-dependent | N/A | Rack module | N/A |
| 330780 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 78 × 29 | 235 |
