Product Introduction:

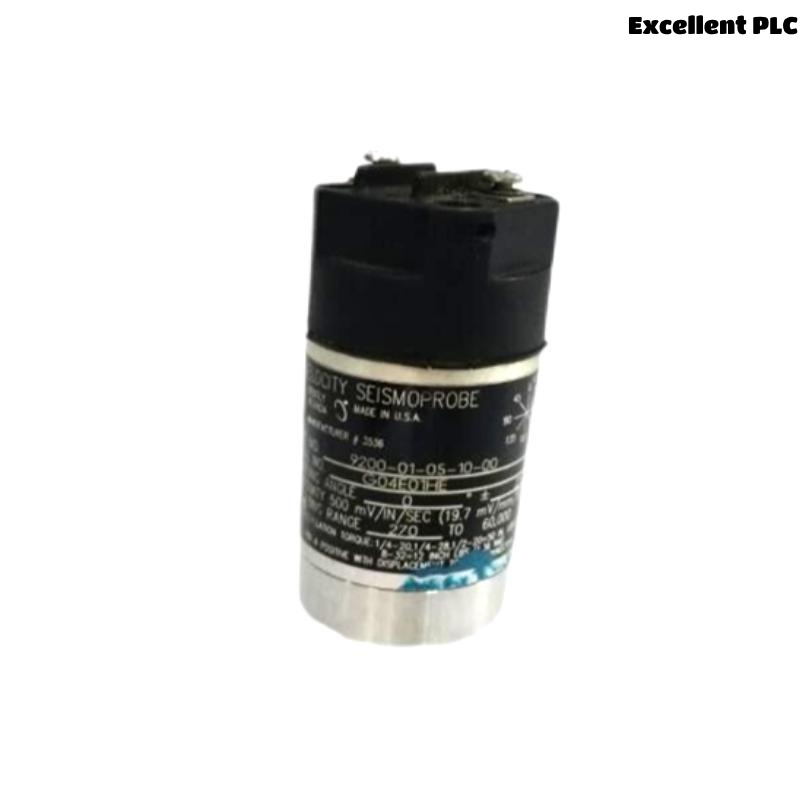

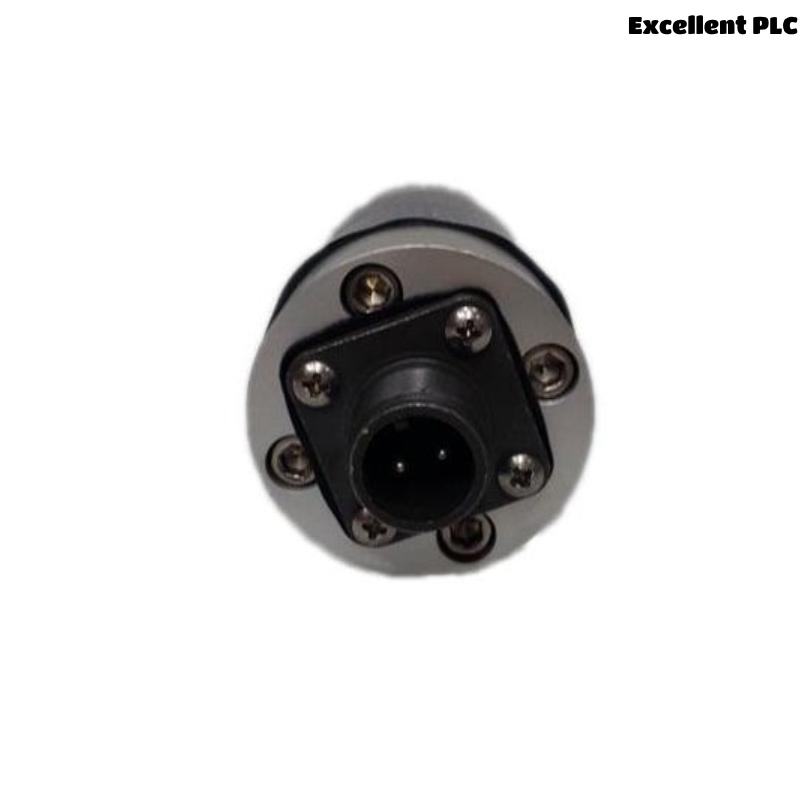

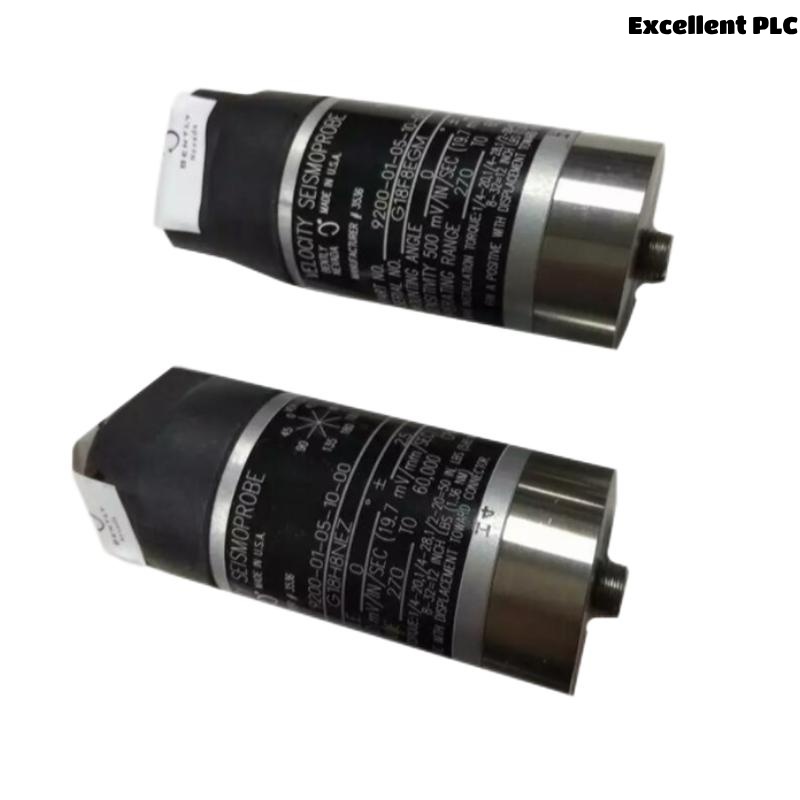

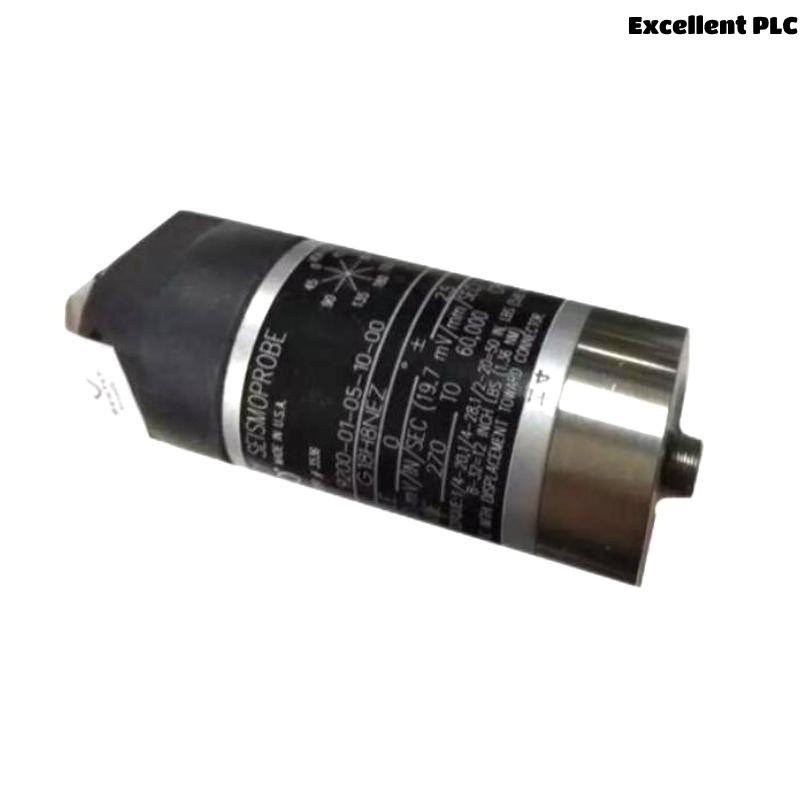

The Bently Nevada 9200-01-05-10-00 is a high-quality, dual-wire velocity seismic sensor designed to provide accurate and reliable vibration monitoring in industrial applications. It is specifically engineered to detect low-frequency vibrations and seismic activity, ensuring the health and performance of critical machinery and structures. Whether used in monitoring turbines, pumps, compressors, or structural integrity, this sensor plays a key role in enhancing operational efficiency and reducing maintenance costs.
With a robust design, the 9200-01-05-10-00 delivers precise data on machinery vibrations, which is essential for predictive maintenance and ensuring that the machinery operates within its safe parameters. It has a wide frequency response range, making it suitable for diverse industrial environments that demand real-time monitoring of seismic or vibration activities.
This sensor can be integrated easily into existing monitoring systems and is known for its longevity and high performance even under harsh environmental conditions. Whether used for structural health monitoring or machinery protection, the Bently Nevada 9200-01-05-10-00 provides an essential tool for ensuring asset protection and uptime.
Product Parameters:
| Parameter | Specification |
|---|---|
| Model | 9200-01-05-10-00 |
| Dimensions (WxH) | 91.19 x 41.4 mm |
| Weight | 0.3 kg |
| Output Type | Dual-wire velocity |
| Power Supply | 24V DC |
| Measurement Range | ±12.5 mm/s |
| Frequency Response | 10 Hz to 1000 Hz |
| Temperature Range | -40°C to +85°C |
| Vibration Sensitivity | 2.5 mV/mm/s |
| Mounting | Surface mount or bolt mount |
| Protection Class | IP67 |
| Signal Output | 4-20 mA |
Product Applications:
The Bently Nevada 9200-01-05-10-00 dual-wire velocity seismic sensor is designed for use in various applications where real-time monitoring of vibration and seismic data is required. Its primary applications include:
-
Machinery Vibration Monitoring: This sensor is widely used to monitor the health of rotating equipment like turbines, compressors, and pumps. By detecting abnormal vibration levels, it helps prevent damage and enables early intervention, reducing downtime and repair costs.
-
Predictive Maintenance: Continuous vibration monitoring allows the early detection of anomalies in machine behavior, helping schedule maintenance before a failure occurs, thus optimizing uptime and minimizing operational interruptions.
-
Seismic Activity Detection: Used for monitoring seismic vibrations in structures, the sensor detects ground movements or mechanical stress in critical infrastructure, helping ensure the structural integrity of buildings, bridges, and other important assets.
-
Industrial Safety Systems: The sensor provides valuable input to safety systems by providing real-time feedback, triggering alarms if vibrations exceed safe thresholds. This protects machinery from catastrophic failure and improves overall safety.
-
Structural Health Monitoring: In construction and civil engineering, the sensor is used to measure and monitor the seismic or vibrational effects on structures, ensuring their stability and long-term reliability.
Product Advantages:
-
High Sensitivity: With a vibration measurement range of ±12.5 mm/s, the 9200-01-05-10-00 sensor ensures the detection of even minute changes in vibration, offering early warning signs of potential mechanical issues.
-
Durable and Rugged Design: The sensor is built to withstand harsh conditions, featuring an IP67 protection class that offers complete protection from dust and water immersion, making it ideal for use in demanding environments.
-
Wide Frequency Response: The 9200-01-05-10-00 provides a wide frequency response of 10 Hz to 1000 Hz, allowing it to monitor both low-frequency vibrations and high-frequency shock events, which is essential in a variety of industrial applications.
-
Ease of Integration: With its dual-wire configuration and 4-20 mA output, the sensor is easy to integrate into existing monitoring systems, allowing for seamless installation and operation in both new and retrofit applications.
-
Temperature Tolerance: The sensor operates within a broad temperature range of -40°C to +85°C, ensuring reliable performance in both high- and low-temperature environments, such as outdoor or industrial settings.
-
Flexible Mounting Options: Whether mounted via surface attachment or bolts, the sensor provides installation flexibility, enabling it to fit various monitoring setups in different types of equipment or structures.
FAQ:
Q1: What is the measurement range of the Bently Nevada 9200-01-05-10-00?
A1: The sensor has a vibration measurement range of ±12.5 mm/s, ensuring accurate detection of both small and large vibration changes.
Q2: What power supply does the 9200-01-05-10-00 require?
A2: The sensor operates on a 24V DC power supply, which is typical for industrial monitoring equipment.
Q3: How can the 9200-01-05-10-00 sensor be mounted?
A3: The sensor offers flexible mounting options, including surface mount or bolt mount, making it adaptable to various applications.
Q4: What is the frequency response range of the sensor?
A4: The frequency response range of the 9200-01-05-10-00 is 10 Hz to 1000 Hz, making it suitable for detecting both low- and high-frequency vibrations.
Q5: What protection class does the 9200-01-05-10-00 have?
A5: The sensor is rated at IP67, which provides full protection against dust and the ability to withstand immersion in water up to 1 meter.
Q6: How much does the sensor weigh?
A6: The 9200-01-05-10-00 weighs 0.3 kg, which makes it lightweight and easy to handle during installation.
Q7: Can the sensor be used in extreme temperatures?
A7: Yes, the sensor operates in a temperature range of -40°C to +85°C, making it suitable for use in both hot and cold environments.
Q8: What is the output signal type of the 9200-01-05-10-00 sensor?
A8: The sensor provides a 4-20 mA output signal, which is widely used in industrial applications for integration into control systems.
Q9: Can the sensor be used for both vibration and seismic monitoring?
A9: Yes, the 9200-01-05-10-00 can be used for both vibration monitoring in rotating machinery and seismic activity detection in structures, offering versatility for various applications.
Q10: How does the 9200-01-05-10-00 support predictive maintenance?
A10: By providing continuous real-time vibration data, the sensor helps identify early signs of failure, enabling maintenance teams to take proactive actions to avoid costly breakdowns and reduce unplanned downtime.
Recommended Models from the Same Series or Related:
| Model | Description | Measurement Range | Frequency Response |
|---|---|---|---|
| 9200-01-05-09-00 | Similar model with higher sensitivity | ±15 mm/s | 10 Hz to 1500 Hz |
| 9200-01-05-08-00 | Compact version for tighter spaces | ±12.5 mm/s | 10 Hz to 800 Hz |
| 9200-01-05-06-00 | Extended version for large systems | ±12.5 mm/s | 5 Hz to 1000 Hz |
| 9200-01-05-07-00 | Heavy-duty version for industrial applications | ±10 mm/s | 10 Hz to 1000 Hz |
| 9200-01-05-05-00 | High-frequency version for precise machinery monitoring | ±12.5 mm/s | 20 Hz to 1500 Hz |
| 9200-01-05-04-00 | Multi-channel configuration for large-scale systems | ±10 mm/s | 10 Hz to 2000 Hz |
