Product Overview

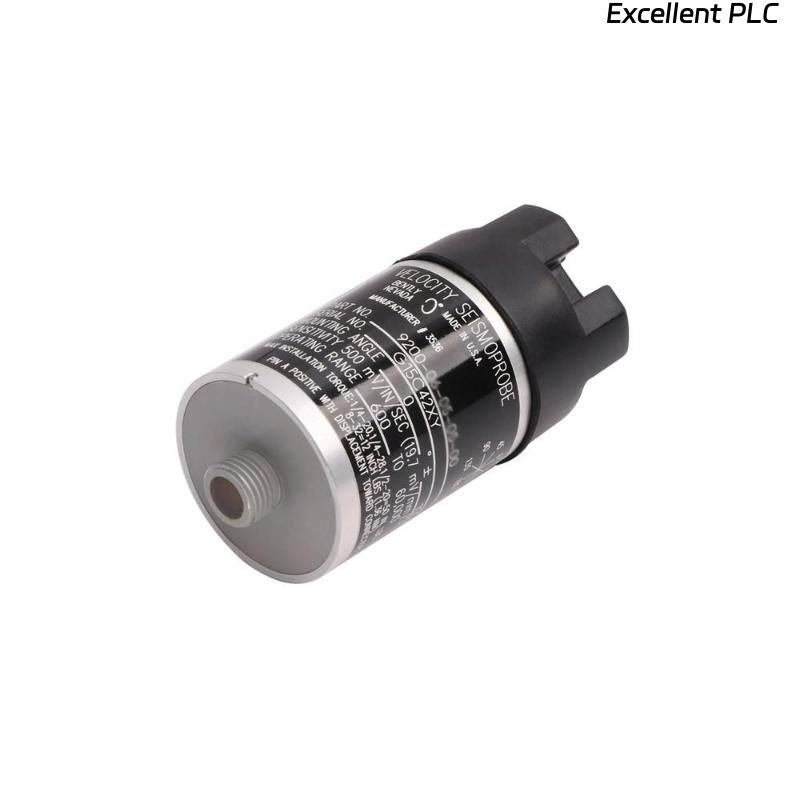

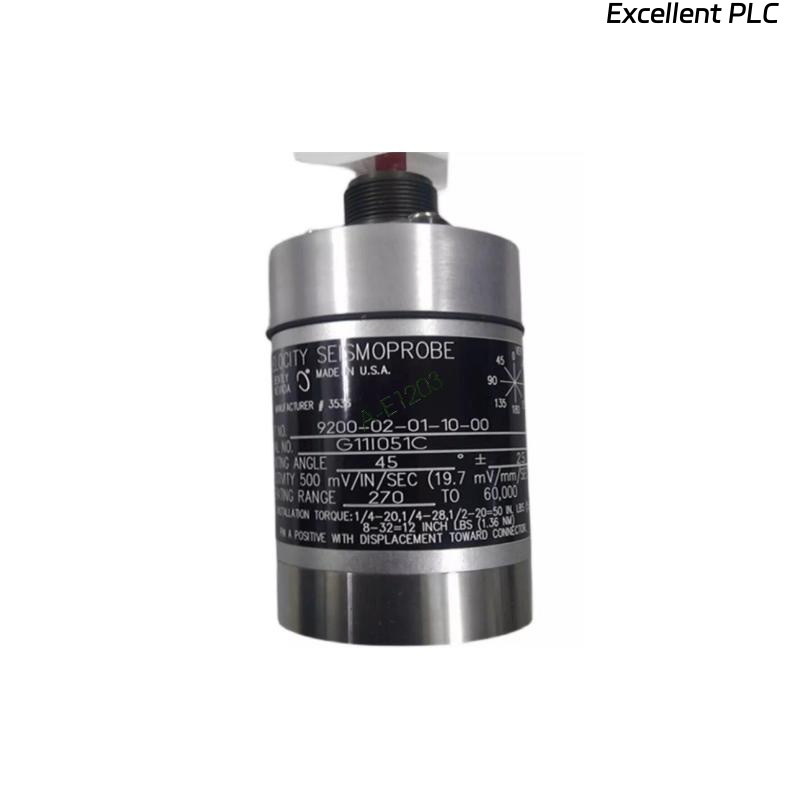

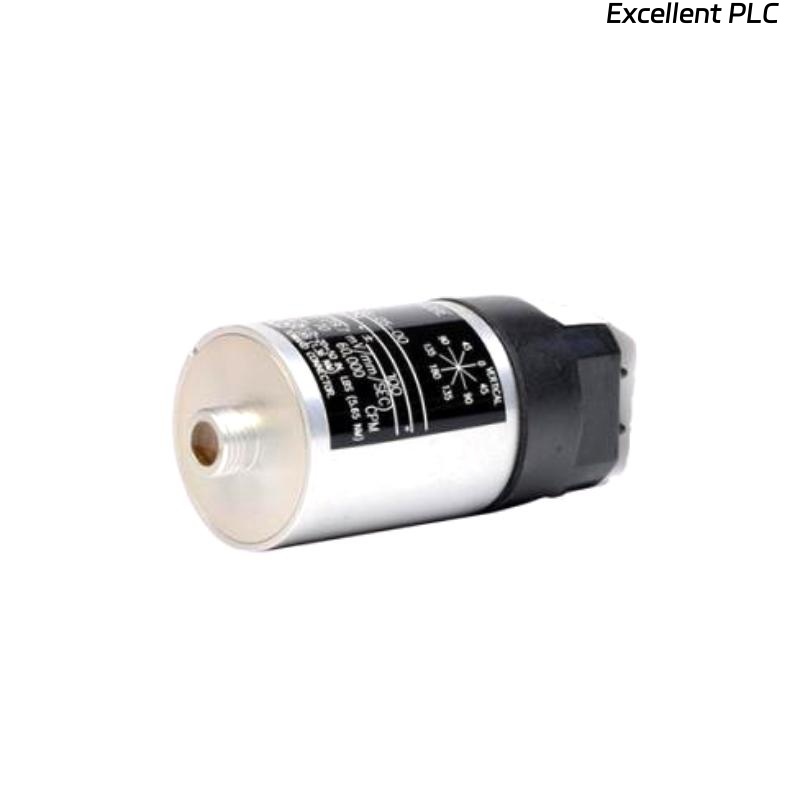

The Bently Nevada 9200-02-01-10-00 is a dual-line velocity seismic sensor designed to provide high-precision vibration monitoring for critical rotating machinery. This sensor is ideal for detecting low-frequency seismic and structural vibrations, ensuring accurate machinery condition assessment and protection.
Key Features
-
Dual-line velocity seismic sensing for enhanced accuracy
-
Detects low-frequency seismic and structural vibrations
-
Rugged and durable design for industrial applications
-
Compatible with Bently Nevada monitoring systems
-
High sensitivity and long-term measurement stability
-
Supports predictive maintenance and machinery protection programs
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 9200-02-01-10-00 |
| Type | Dual-line Velocity Seismic Sensor |
| Measurement Type | Velocity (Seismic) |
| Frequency Range | 0.5 Hz – 100 Hz |
| Sensitivity | 50 V/in/s (nominal) |
| Output | Differential voltage output |
| Case Material | Stainless Steel |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -50 °C to +100 °C |
| Humidity | Up to 100% condensing |
| Dimensions | Sensor diameter: 41.4mm |
| Weight | 0.3 kg |
| Mounting | Flange or threaded connection |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbine and generator vibration monitoring
-
Oil & Gas – compressors, pumps, and rotating machinery monitoring
-
Petrochemical & Chemical – structural vibration assessment
-
Manufacturing – precision machinery and equipment health monitoring
-
Water & Wastewater – pump and motor vibration analysis
Advantages
-
Provides highly accurate low-frequency vibration detection
-
Enhances machinery protection and operational safety
-
Rugged design ensures reliable long-term performance
-
Seamless integration with Bently Nevada monitoring systems
-
Supports predictive maintenance programs to reduce downtime and costs
-
Durable under harsh environmental conditions, including humidity and temperature extremes
Frequently Asked Questions (FAQ)
Q1: What is the main function of this sensor?
It measures low-frequency seismic and structural vibrations to monitor machinery condition.
Q2: Which monitoring systems is it compatible with?
It is compatible with Bently Nevada monitoring systems.
Q3: What is the frequency range?
0.5 Hz to 100 Hz.
Q4: What type of output does it provide?
Differential voltage output.
Q5: What is the operating temperature range?
-40 °C to +85 °C.
Q6: Can it withstand high humidity environments?
Yes, it is rated for up to 100% condensing humidity.
Q7: What material is the sensor case made from?
Stainless steel for durability.
Q8: How is it mounted?
Via flange or threaded connection.
Q9: Is it suitable for industrial environments?
Yes, it is designed for harsh industrial conditions.
Q10: Which industries commonly use this sensor?
Power Generation, Oil & Gas, Petrochemical, Manufacturing, and Water & Wastewater.
