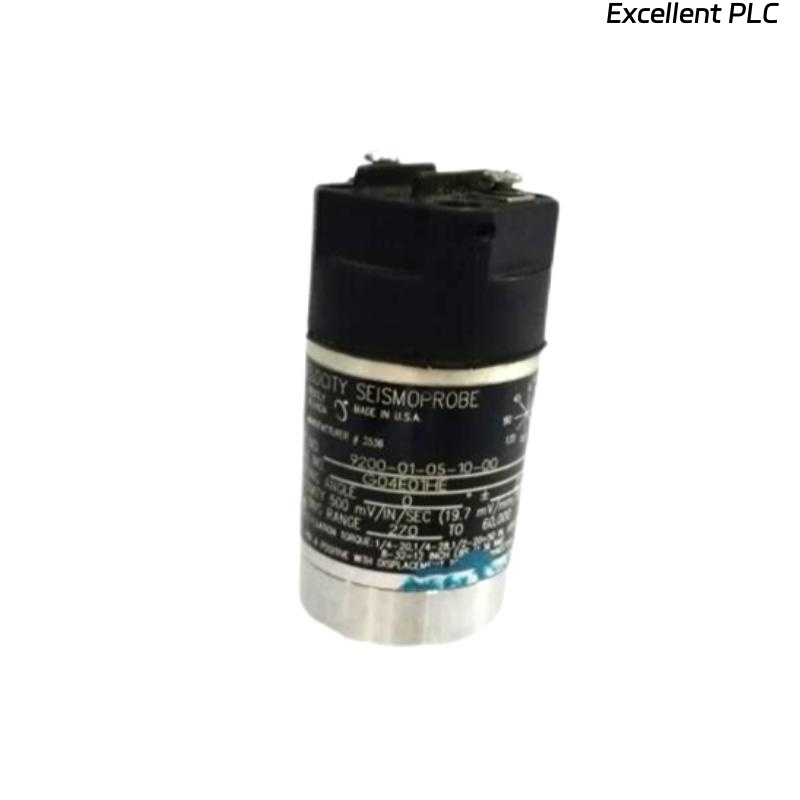

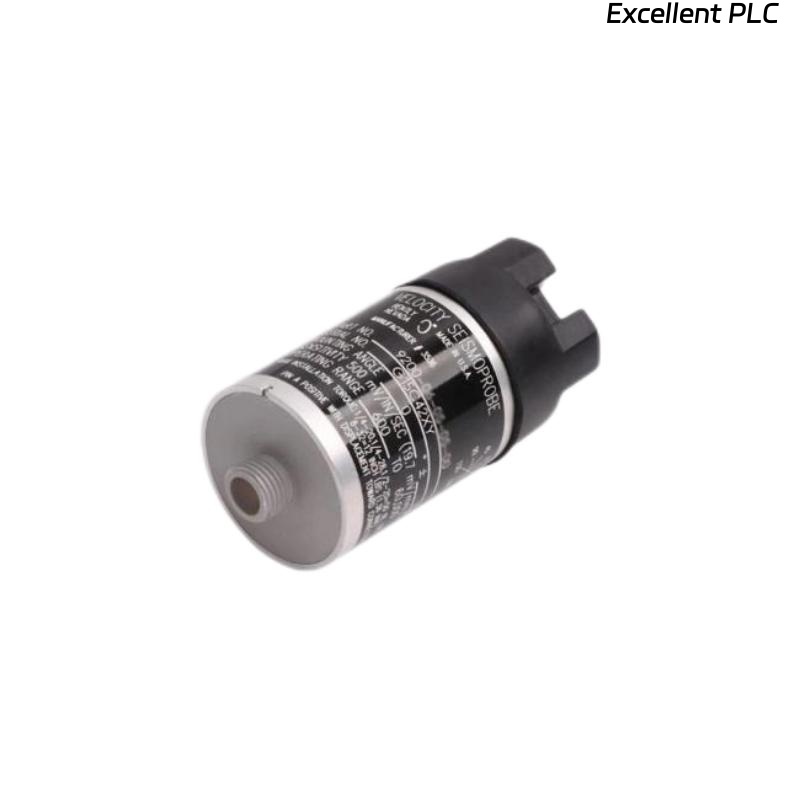

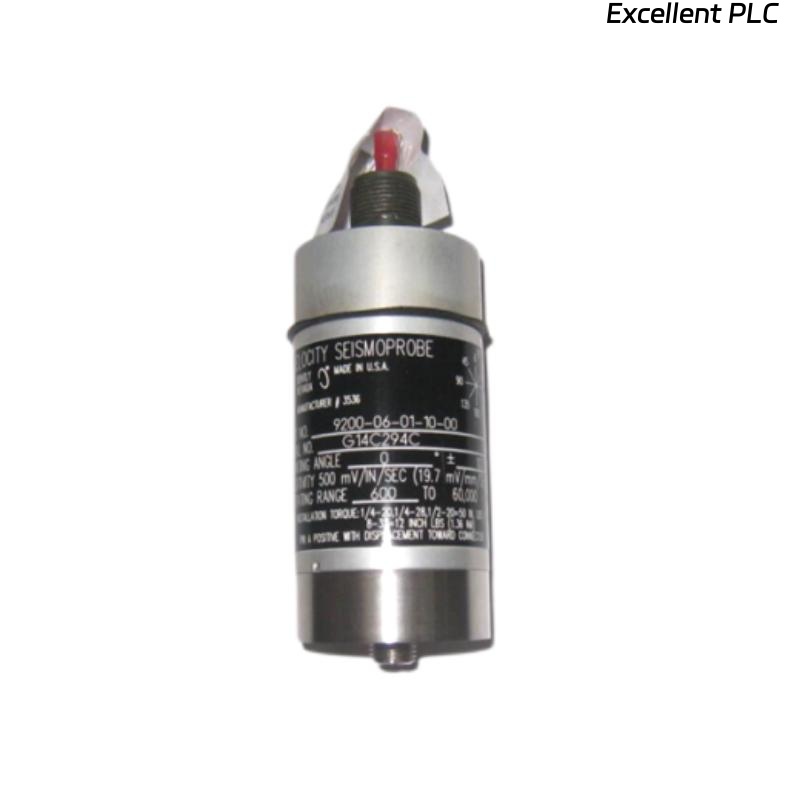

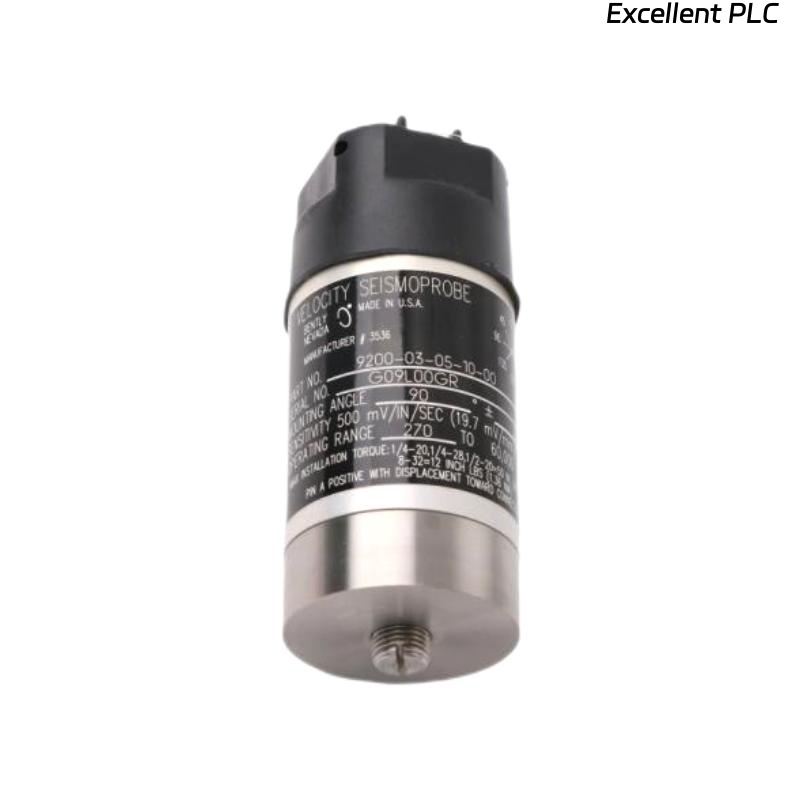

Bently Nevada 9200-03-02-02-00 Product Overview
The Bently Nevada 9200-03-02-02-00 is a high-performance vibration monitoring transducer designed for industrial machinery protection and condition monitoring. It is part of the Bently Nevada 9200 series, known for its reliability in critical applications such as turbines, compressors, pumps, and motors.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 9200-03-02-02-00 |
| Type | Vibration Transducer |
| Measurement Range | 0 to 2 in/s (0 to 50.8 mm/s) peak |
| Frequency Response | 10 Hz to 1,000 Hz (±3 dB) |
| Output Signal | 4-20 mA (2-wire loop-powered) |
| Power Supply | 18-30 VDC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Mounting Thread | ½”-20 UNF |
| Sensor diameter | 41.4mm |
| Weight | 0.3 kg |
| Compliance | ATEX, IECEx, CE, CSA |
Applications
The Bently Nevada 9200-03-02-02-00 is widely used in industries requiring precise vibration monitoring, including:
-
Oil & Gas: Monitoring turbines, compressors, and pumps.
-
Power Generation: Protection of steam and gas turbines.
-
Chemical & Petrochemical: Vibration analysis in rotating equipment.
-
Mining & Metals: Condition monitoring of heavy machinery.
-
Water Treatment: Pump and motor vibration detection.
Product Advantages
-
High Accuracy: Provides reliable vibration measurements for early fault detection.
-
Robust Construction: Stainless steel housing ensures durability in harsh environments.
-
Wide Temperature Range: Operates efficiently in extreme temperatures.
-
Loop-Powered Design: Simplifies installation with 2-wire 4-20 mA output.
-
Certified for Hazardous Areas: Complies with ATEX and IECEx standards.
-
Low Maintenance: Designed for long-term reliability with minimal servicing.
Frequently Asked Questions (FAQ)
1. What is the output signal of the 9200-03-02-02-00?
The transducer provides a 4-20 mA loop-powered output proportional to vibration velocity.
2. Can this sensor be used in explosive environments?
Yes, it is ATEX and IECEx certified for use in hazardous areas.
3. What is the operating temperature range?
It operates between -40°C to +85°C (-40°F to +185°F).
4. How long is the warranty period?
The standard warranty is 1 years, subject to proper usage and conditions.
5. How is the sensor mounted?
It uses a ½”-20 UNF threaded mounting for secure installation.
6. What is the frequency response range?
The sensor covers 10 Hz to 1,000 Hz (±3 dB).
7. Is the sensor waterproof?
Yes, it has an IP67 rating for dust and water resistance.
8. What industries commonly use this sensor?
Oil & gas, power generation, chemical plants, and mining.
9. Can the output signal be adjusted?
No, the 4-20 mA output is fixed to the vibration range (0-2 in/s).
10. Does it require external power?
Yes, it requires an 18-30 VDC power supply for loop operation.
