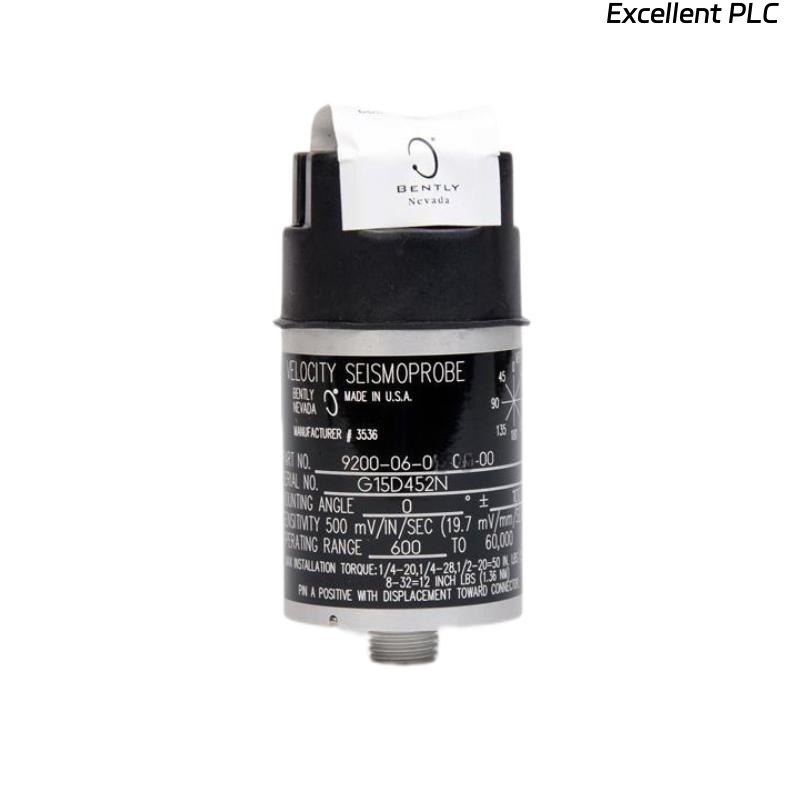

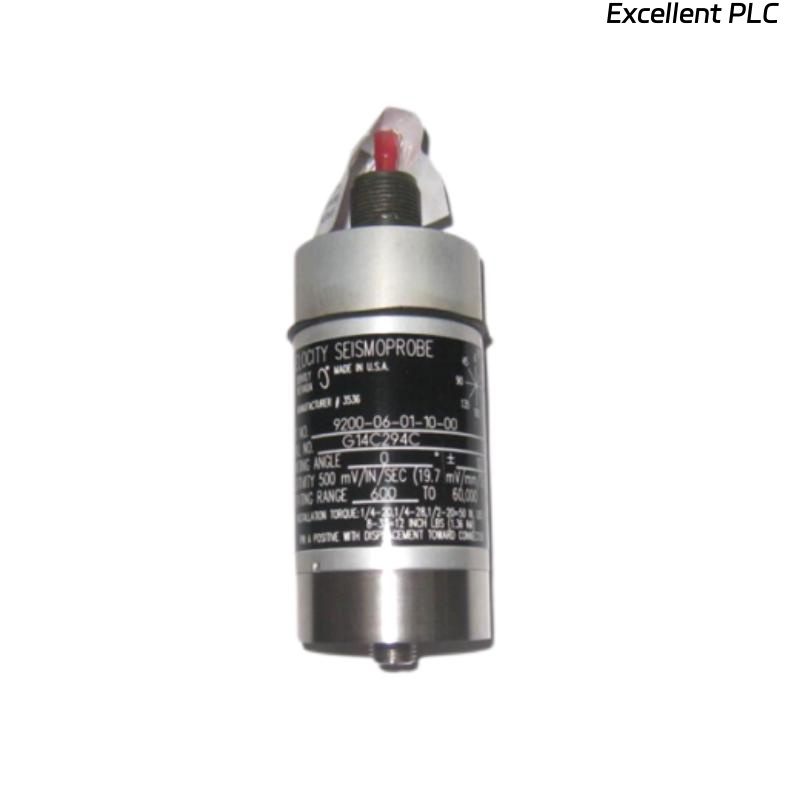

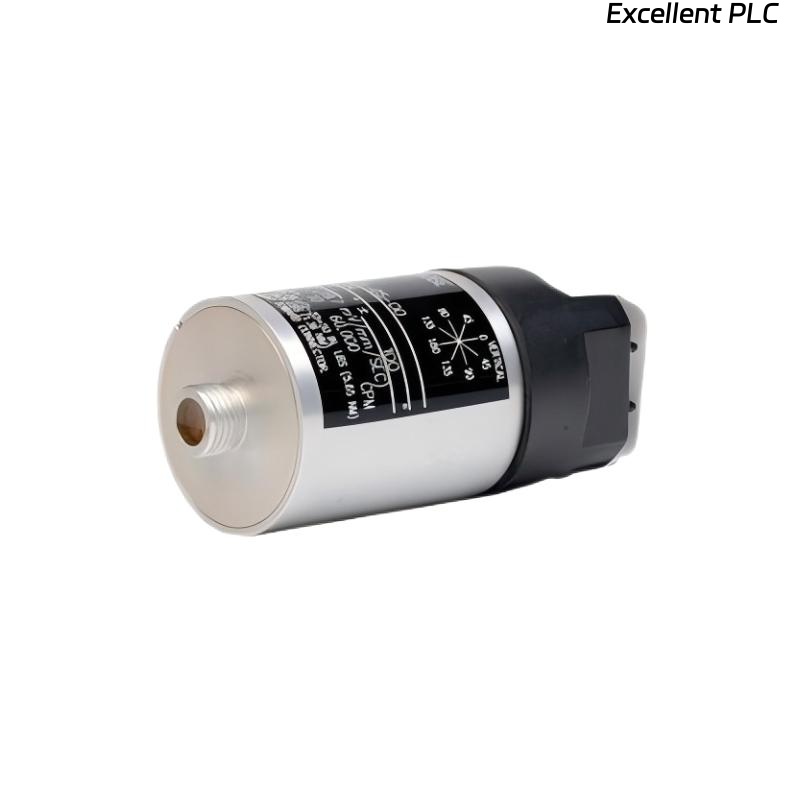

Bently Nevada 9200-03-02-11-04 Product Overview
The Bently Nevada 9200-03-02-11-04 is a high-performance vibration monitoring transducer designed for industrial applications. It is part of the Bently Nevada 9200 series, renowned for its reliability and precision in machinery condition monitoring. This transducer is widely used in critical rotating equipment to detect and analyze vibration, ensuring optimal operational efficiency and preventing unexpected downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 9200-03-02-11-04 |
| Type | Vibration Transducer |
| Measurement Range | 0-20 mm/s or 0-50 mm/s (configurable) |
| Frequency Response | 10 Hz to 1 kHz |
| Output Signal | 4-20 mA (loop-powered) |
| Power Supply | 18-30 VDC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Sensor head diameter | 41.4mm |
| Weight | 0.3 kg |
| Mounting | Direct bolt-on or magnetic base |
Product Applications
The Bently Nevada 9200-03-02-11-04 is ideal for:
-
Industrial Machinery Monitoring: Used in turbines, compressors, pumps, and motors to detect abnormal vibrations.
-
Power Generation: Ensures reliable operation of gas and steam turbines.
-
Oil & Gas: Monitors critical equipment in refineries and pipelines.
-
Manufacturing: Provides real-time vibration data for predictive maintenance.
-
Mining: Protects heavy-duty machinery from excessive wear.
Product Advantages
-
High Accuracy: Delivers precise vibration measurements for early fault detection.
-
Robust Construction: Stainless steel housing ensures durability in harsh environments.
-
Easy Installation: Flexible mounting options reduce setup time.
-
Wide Compatibility: Integrates seamlessly with Bently Nevada monitoring systems.
-
Low Maintenance: Designed for long-term reliability with minimal servicing.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range for the 9200-03-02-11-04?
The transducer operates on 18-30 VDC. -
Can this transducer be used in explosive environments?
No, it is not rated for explosive atmospheres unless paired with additional protection. -
What is the frequency response range?
The frequency response is 10 Hz to 1 kHz. -
How is the transducer mounted?
It can be mounted using bolts or a magnetic base. -
Is the output signal configurable?
Yes, the output can be configured for 4-20 mA or other ranges depending on the model variant. -
What is the IP rating?
The IP67 rating ensures dust and water resistance. -
What is the warranty period?
Typically 12 months, but check with the supplier for specific terms. -
Can it measure displacement and velocity?
Yes, it measures vibration velocity but can be integrated with systems for displacement analysis. -
What is the expected lifespan?
Under normal conditions, the transducer can last 5+ years. -
Is calibration required?
Yes, periodic calibration is recommended for accurate measurements.
