Product Introduction:

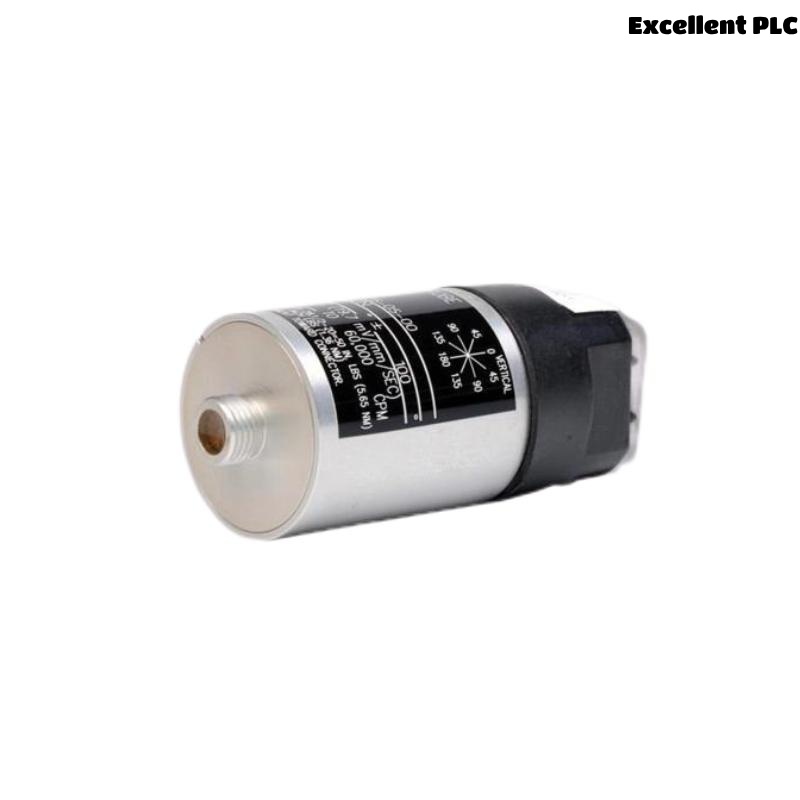

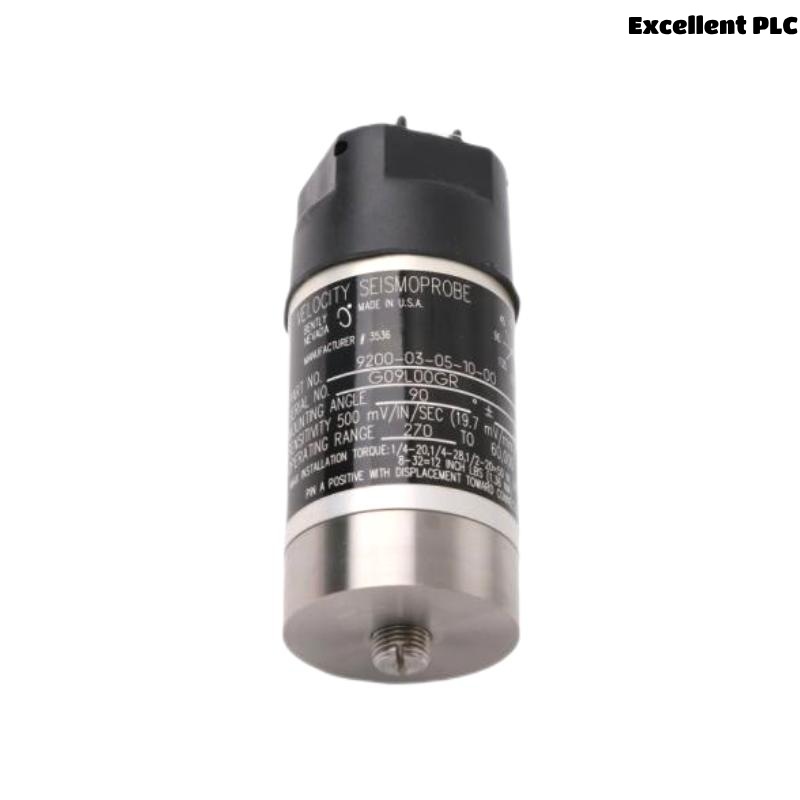

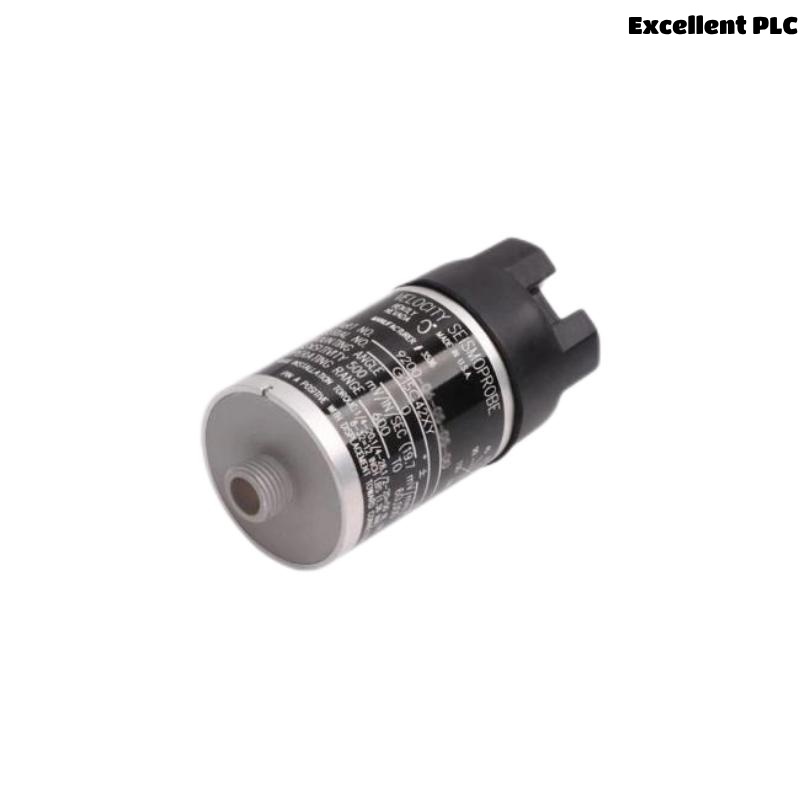

The Bently Nevada 9200-03-05-10-00 is a reliable dual-wire velocity seismic sensor designed for monitoring vibrations and seismic activity in industrial settings. It’s commonly used in machinery health monitoring, predictive maintenance, and structural integrity assessments. The sensor provides accurate real-time data, helping prevent equipment failure and ensuring operational efficiency.
Thanks to its dual-wire configuration, the 9200-03-05-10-00 is easy to integrate into existing systems, making it ideal for industries that need continuous, non-intrusive monitoring. It is built for harsh environments, offering precise measurements even under tough operating conditions.
Product Parameters:
| Parameter | Specification |
|---|---|
| Model | 9200-03-05-10-00 |
| Dimensions (WxH) | 91.19 x 41.4 mm |
| Weight | 0.3 kg |
| Output Type | Dual-wire velocity |
| Power Supply | 24V DC |
| Measurement Range | ±12.5 mm/s |
| Frequency Response | 10 Hz to 1000 Hz |
| Temperature Range | -40°C to +85°C |
| Vibration Sensitivity | 2.5 mV/mm/s |
| Mounting | Surface mount or bolt mount |
| Protection Class | IP67 |
| Signal Output | 4-20 mA |
Product Applications:
The Bently Nevada 9200-03-05-10-00 dual-wire velocity seismic sensor is designed for use in various industrial applications where real-time monitoring of vibrations and seismic activity is required. Its primary applications include:
-
Machinery Vibration Monitoring: The sensor is widely used for monitoring the health of rotating equipment such as turbines, compressors, and pumps. It detects abnormal vibration levels that can indicate potential mechanical failure, enabling early intervention.
-
Predictive Maintenance: Continuous vibration monitoring helps detect anomalies early, allowing maintenance teams to perform repairs before failures occur, reducing downtime and minimizing repair costs.
-
Seismic Activity Detection: The sensor can be used to monitor seismic vibrations in structures such as bridges, dams, and buildings. It detects ground movements that may affect the structural integrity of critical assets.
-
Industrial Safety Systems: The sensor integrates into safety systems to trigger alarms if vibrations exceed predefined limits, protecting machinery from damage and preventing operational disruptions.
-
Structural Health Monitoring: Used in civil engineering and construction, the sensor monitors the vibrational effects on structures, ensuring their stability and long-term reliability.
Product Advantages:
-
High Sensitivity: With a vibration measurement range of ±12.5 mm/s, the sensor can detect even small variations in vibration, providing early warning signs of potential equipment issues.
-
Durable Design: Built to withstand harsh environments, the sensor features an IP67 protection class, ensuring resistance to dust, water, and other challenging conditions.
-
Wide Frequency Range: The 9200-03-05-10-00 offers a frequency response range of 10 Hz to 1000 Hz, making it suitable for monitoring both low-frequency vibrations and high-frequency shock events.
-
Easy Integration: Its dual-wire configuration and 4-20 mA output allow for easy integration into existing monitoring systems, making it a versatile choice for both new installations and retrofitting projects.
-
Temperature Tolerance: The sensor operates within a wide temperature range of -40°C to +85°C, ensuring reliable performance in both extreme heat and cold environments.
-
Flexible Mounting Options: Whether surface-mounted or bolt-mounted, the sensor offers flexible installation options for use in different types of machinery or structures.
FAQ:
Q1: What is the measurement range of the Bently Nevada 9200-03-05-10-00?
A1: The sensor has a measurement range of ±12.5 mm/s, allowing it to detect even subtle changes in vibration.
Q2: What power supply does the 9200-03-05-10-00 require?
A2: The sensor operates on a 24V DC power supply, which is commonly used in industrial applications.
Q3: How can the 9200-03-05-10-00 sensor be mounted?
A3: The sensor can be mounted using surface mounting or bolt mounting, offering flexibility for various applications.
Q4: What is the frequency response range of the sensor?
A4: The frequency response range of the sensor is 10 Hz to 1000 Hz, making it suitable for detecting both low- and high-frequency vibrations.
Q5: What protection class does the 9200-03-05-10-00 have?
A5: The sensor is rated at IP67, offering full protection against dust and immersion in water up to 1 meter.
Q6: How much does the sensor weigh?
A6: The sensor weighs 0.3 kg, making it lightweight and easy to handle during installation.
Q7: Can the sensor be used in extreme temperatures?
A7: Yes, the sensor operates within a temperature range of -40°C to +85°C, making it suitable for use in both hot and cold environments.
Q8: What output signal does the 9200-03-05-10-00 provide?
A8: The sensor provides a 4-20 mA output signal, commonly used for integration into industrial control systems.
Q9: Can the sensor be used for both vibration and seismic monitoring?
A9: Yes, the 9200-03-05-10-00 is suitable for both vibration monitoring in rotating machinery and seismic activity detection in structures.
Q10: How does the 9200-03-05-10-00 support predictive maintenance?
A10: By continuously monitoring vibration levels, the sensor helps identify early signs of equipment issues, allowing for timely maintenance to prevent costly breakdowns.
Recommended Models from the Same Series or Related:
| Model | Description | Measurement Range | Frequency Response |
|---|---|---|---|
| 9200-03-05-09-00 | Similar model with higher sensitivity | ±15 mm/s | 10 Hz to 1500 Hz |
| 9200-03-05-08-00 | Compact version for tight spaces | ±12.5 mm/s | 10 Hz to 800 Hz |
| 9200-03-05-06-00 | Extended version for large systems | ±12.5 mm/s | 5 Hz to 1000 Hz |
| 9200-03-05-07-00 | Heavy-duty version for industrial applications | ±10 mm/s | 10 Hz to 1000 Hz |
| 9200-03-05-05-00 | High-frequency version for precise monitoring | ±12.5 mm/s | 20 Hz to 1500 Hz |
| 9200-03-05-04-00 | Multi-channel configuration for large setups | ±10 mm/s | 10 Hz to 2000 Hz |
