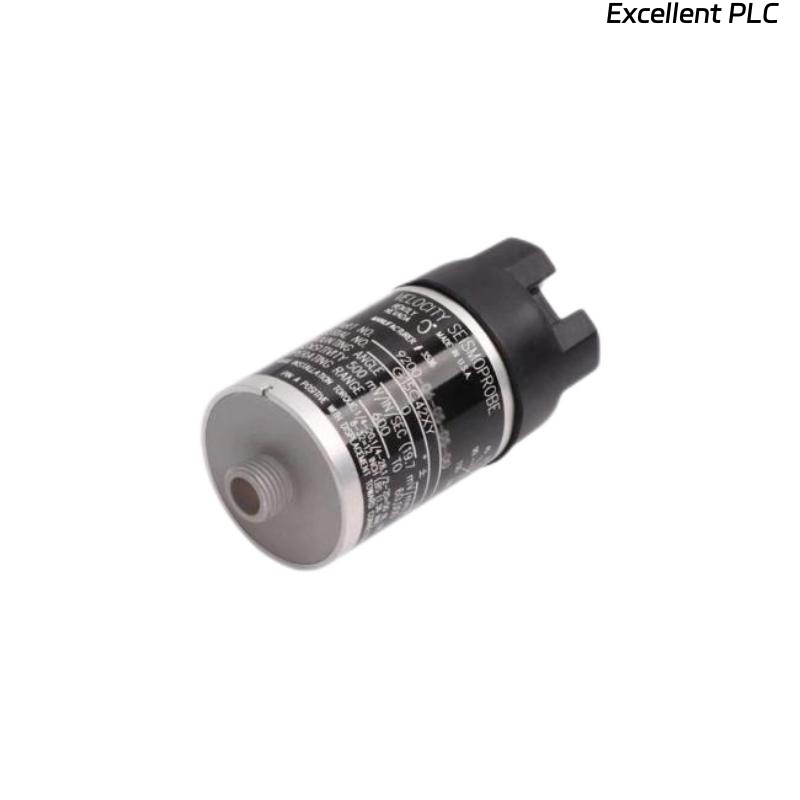

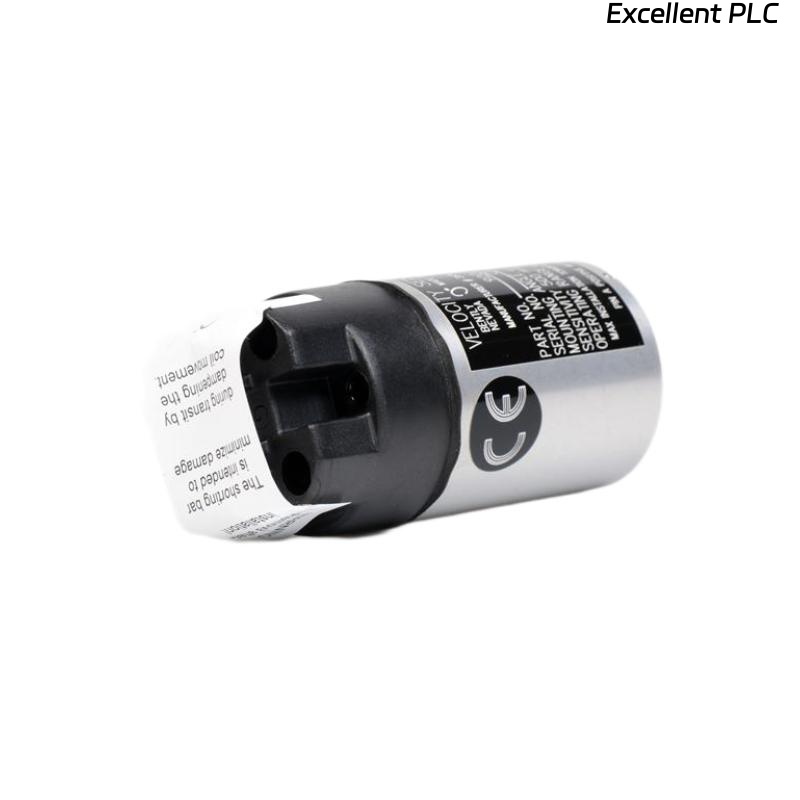

Bently Nevada 9200-06-01-10-00 Product Introduction
The Bently Nevada 9200-06-01-10-00 is a high-performance vibration monitoring transducer designed for industrial applications. It is part of the Bently Nevada 9200 series, known for its reliability and precision in measuring machinery vibration and providing critical data for predictive maintenance. This transducer is widely used in industries such as oil and gas, power generation, and manufacturing to ensure optimal equipment performance and prevent unexpected failures.
Product Parameters
The technical specifications of the Bently Nevada 9200-06-01-10-00 are as follows:
| Parameter | Specification |
|---|---|
| Model Number | 9200-06-01-10-00 |
| Type | Vibration Transducer |
| Measurement Range | ±2 in/s (±50 mm/s) velocity |
| Frequency Range | 10 Hz to 1,000 Hz |
| Sensitivity | 100 mV/in/s (4 mV/mm/s) |
| Output Signal | 4-20 mA (Loop-powered) |
| Power Supply | 18-30 VDC |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Housing Material | Stainless Steel |
| Ingress Protection | IP67 |
| Sensor head diameter | 41.4mm |
| Weight | 0.3 kg |
Product Applications
The Bently Nevada 9200-06-01-10-00 is primarily used for:
-
Rotating Machinery Monitoring: Detects vibrations in turbines, compressors, pumps, and motors.
-
Predictive Maintenance: Helps identify early signs of mechanical wear or misalignment.
-
Industrial Automation: Integrates with control systems for real-time vibration analysis.
-
Oil & Gas: Monitors critical equipment in refineries and pipelines.
-
Power Plants: Ensures reliable operation of generators and auxiliary systems.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Construction: Stainless steel housing ensures durability in harsh environments.
-
Wide Temperature Range: Operates reliably in extreme conditions.
-
Easy Integration: Compatible with most industrial control and monitoring systems.
-
Low Maintenance: Designed for long-term reliability with minimal servicing.
Frequently Asked Questions (FAQ)
-
What is the operating voltage range for the 9200-06-01-10-00?
The transducer operates on 18-30 VDC. -
Can this sensor be used in hazardous environments?
Yes, it is suitable for harsh industrial environments with an IP67 rating. -
What is the frequency response range?
The frequency range is 10 Hz to 1,000 Hz. -
How is the output signal transmitted?
It provides a 4-20 mA loop-powered output signal. -
Is the transducer resistant to corrosion?
Yes, the stainless steel housing provides excellent corrosion resistance. -
What is the expected lifespan of this sensor?
With proper installation and maintenance, it can last over 5 years. -
Can it measure both velocity and displacement?
No, this model measures vibration velocity only. -
Does it require regular calibration?
Periodic calibration is recommended for optimal performance. -
Is it compatible with Bently Nevada’s monitoring systems?
Yes, it integrates seamlessly with Bently Nevada’s condition monitoring platforms. -
What is the warranty period for this product?
Typically, it comes with a 12-month manufacturer’s warranty.
